Purpose

The purpose of this lab is to gain an understanding of genomic/proteomic databases and phylogenetic comparison software. Additionally, through this lab, a fundamental understanding of the relationship between various strains of coronaviruses will be gained.

Methods/Results

Part 1: GenBank

  • I navigated to GenBank
  • I chose to analyze the Tylonycteris bat coronavirus HKU4, complete genome sequence from the GenBank records from the Data & Resources section of the Week 4 Assignment page, and I viewed both the full record and the FASTA formatted sequence
    • The accession number was NC_009019
    • I observed the information in the GenBank record:
      • Organism: Tylonycteris bat
      • Location: China (Guangdong province)
      • Contains all the genes of the novel coronavirus (complete genome)
  • I downloaded the nucleotide sequence in FASTA format to my hard drive
  • I opened the file that I saved with Microsoft Word to confirm that I had the sequence and that it was in the FASTA format
  • After gaining a fundamental understanding of GenBank and FASTA files, I then searched for the GenBank record of my assigned viral strain, BtSCoV-Rm1 sequence (DQ412043)
    • I added a hyperlink to it in the list of sequences in the Data & Tools section of the Week 4 Assignment
  • Next, I located the spike protein accession number (ABD75332) of the BtSCoV-Rm1 sequence (DQ412043) in the GenBank record
    • I added a hyperlink to it in the list of sequences in the Data & Tools section of the Week 4 Assignment
  • I downloaded the spike protein sequence in FASTA format
  • Spike Protein [Bat SARS CoV Rm1/2004] Sequence:
MKVLIFALLFSLAKAQEGCGIISRKPQPKMEKVSSSRRGVYYNDDIFRSDVLHLTQDYFLPFDSNLTQYF
SLNIDSNKYTYFDNPILDFGDGVYFAATEKSNVIRGWIFGSSFDNTTQSAIIVNNSTHIIIRVCNFNLCK
EPMYTVSKGTQQSSWVYQSAFNCTYDRVEKSFQLDTAPKTGNFKDLREYVFKNKGGFLRVYQTYTAVNLP
RGFPAGFSVLRPILKLPFGINITSYRVVMTMFSQFNSNFLPESAAYYVGNLKYTTFMLSFNENGTITDAV
DCSQNPLAELKCTIKNFNVSKGIYQTSNFRVTPTQEVVRFPNITNRCPFDKVFNASRFPNVYAWERTKIS
DCVADYTVLYNSTSFSTFKCYGVSPSKLIDLCFTSVYADTFLIRSSEVRQVAPGETGVIADYNYKLPDDF
TGCVIAWNTAQQDQGQYYYRSYRKEKLKPFERDLSSDENGVYTLSTYDFYPSIPVEYQATRVVVLSFELL
NAPATVCGPKLSTQLVKNQCVNFNFNGLRGTGVLTTSSKRFQSFQQFGRDTSDFTDSVRDPQTLEILDIS
PCSFGGVSVITPGTNASSEVAVLYQDVNCTDVPTSIHADQLTPAWRVYSTGVNVFQTQAGCLIGAEHVNA
SYECDIPIGAGICASYHTASVLRSTGQKSIVAYTMSLGAENSIAYANNSIAIPTNFSISVTTEVMPVSIA
KTSVDCTMYICGDSLECSNLLLQYGSFCTQLNRALTGIAIEQDKNTQEVFAQVKQMYKTPAIKDFGGFNF
SQILPDPSKPTKRSFIEDLLFNKVTLADAGFMKQYGECLGDISARDLICAQKFNGLTVLPPLLTDEMIAA
YTAALVSGTATAGWTFGAGSALQIPFAMQMAYRFNGIGVTQNVLYENQKQIANQFNKAISQIQESLTTTS
TALGKLQDVVNQNAQALNTLVKQLSSNFGAISSVLNDILSRLDKVEAEVQIDRLITGRLQSLQTYVTQQL
IRAAEIRASANLAATKMSECVLGQSKRVDFCGKGYHLMSFPQAAPHGVVFLHVTYVPSQERNFTTAPAIC
HEGKAYFPREGVFVSNGTSWFITQRNFYSPQIITTDNTFVAGNCDVVIGIINNTVYDPLQPELDSFKEEL
DKYFKNHTSPDVDLGDISGINASVVNIQKEIDRLNEVAKNLNESLIDLQELGKYEQYIKWPWYVWLGFIA
GLIAIVMVTILLCCMTSCCSCLKGACSCGSCCKFDEDDSEPVLKGVKLHYT
  • This protein sequence can also be found in the Week 4 Talk Page for this assignment

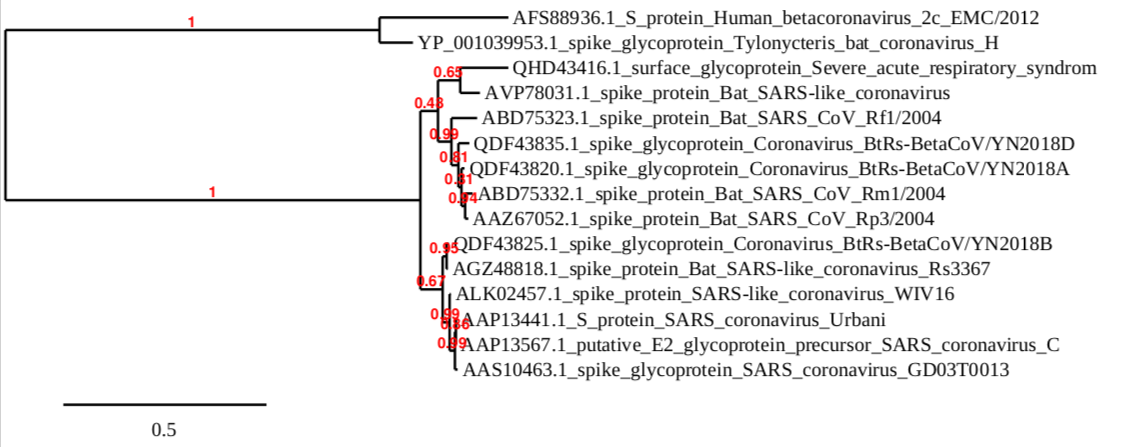

Part 2: Creating a phylogenetic tree with Phylogeny.fr

  • I navigated to the website www.phylogeny.fr, went to the section labeled ‘Phylogeny analysis,’ and I clicked on the text ‘One Click’
  • I then clicked in the large text field labeled ‘Upload your set of sequences in FASTA, EMBL, or NEXUS format’
  • To create my phylogenetic tree, I copied the list of sequences from the talk page and used Ctrl-V (or command-V) to paste them in the text field
  • When all the sequences were in the text field, I clicked the “Submit” button
  • I saw a page named Alignment results, a page named Phylogeny results, and then finally a page named Tree rendering results
  • I then found the numbered tabs located just beneath the text One Click Mode, and I clicked on the tab labeled 3. Alignment
  • On this tab page, individual positions were color-coded to indicate their conservation or how similar the sequences were to each other at that position
    • Blue highlighting indicated high conservation (i.e., the sequences are identical or at least very similar)
    • Gray highlighting indicated lower conservation
    • White highlighting indicated little if any conservation
  • Initial Observations Based Off of Color Coding
    • AFS88936.1 S protein [Human betacoronavirus 2c EMC/2012] and YP_001039953.1 spike glycoprotein [Tylonycteris bat coronavirus HKU4] had significantly less conserved residues than the rest of the spike protein sequences
    • The other sequences had the majority of their residues conserved
    • There were more unconserved residues at the start of the alignment than at the end of the alignment
      • Almost all residues at the end of the spike protein sequences alignment were conserved (except for the two sequences mentioned above)
  • After observing the sequence alignments, I scrolled to the bottom of the page under Outputs and I clicked on Alignment in Clustal format
    • This displayed my alignment in a text-only format in which each position's conservation was indicated by a symbol underneath the alignment block
      • “*” for invariant
      • “:” for highly conserved
      • “.” for weakly conserved
      • A space for not conserved
  • Below is the entire alignment
QDF43825.1      ---------MKLLVLV-----FATLVSSYTIEKCTDFD------DRTPPSNTQFLSSHRG
AGZ48818.1      ---------MKLLVLV-----FATLVSSYTIEKCLDFD------DRTPPANTQFLSSHRG
ALK02457.1      ----------MFIFLF-----FLTLTSGSDLESCTTFD------DVQAPNYPQHSSSRRG
AAS10463.1      ----------MFIFLL-----FLTLTSGSDLDRCTTFD------DVQAPNYTQHTSSMRG
AAP13441.1      ----------MFIFLL-----FLTLTSGSDLDRCTTFD------DVQAPNYTQHTSSMRG
AAP13567.1      ----------MFIFLL-----FLTLTSGSDLDRCTTFD------DVQAPNYTQHTSSMRG
QHD43416.1      ----------MFVFLV-----LLPLVSSQ----CVNLT------TRTQLPPAYTNSFTRG
AVP78031.1      -----------MLFFL-----FLQFALVN--SQCVNLT------GRTPLNPNYTNSSQRG
ABD75323.1      --------MKILIFAF-----LVTLVKAQ--EGCGVIN------LRTQPKLTQVSSSRRG
QDF43835.1      --------MKVLIVLL-----CLGLVTAQ--DGCGHIS------TKPQPLLDKFSSSRRG
ABD75332.1      --------MKVLIFAL-----LFSLAKAQ--EGCGIIS------RKPQPKMEKVSSSRRG
QDF43820.1      --------MKILIFAF-----LVTLVEAQ--EGCGIIS------RKPQPKMAQVSSSRRG
AAZ67052.1      --------MKILILAF-----LASLAKAQ--EGCGIIS------RKPQPKMAQVSSSRRG
AFS88936.1      ----MIHSVFLLMFLLTPTESYVDVGPDSVKSACIEVDIQQTFFDKTWPRPIDVSKA-DG
YP_0010399      MTLLMCLLMSLLIFVRGCDSQFVDMSPASNTSECLESQVDAAAFSKLMWPYPIDPSKVDG
                           ::.          .        *                     .   *

QDF43825.1      VYYPDDIFRSNVLHLVQDHFLPFDSNVTRFITFGLN-------------FDN---PIIPF
AGZ48818.1      VYYPDDIFRSNVLHLVQDHFLPFDSNVTRFITFGLN-------------FDN---PIIPF
ALK02457.1      VYYPDEIFRSDTLYLTQDLFLPFYSNVTGFHTINHR-------------FDN---PVIPF
AAS10463.1      VYYPDEIFRSDTLYLTQDLFLPFYSNVTGFHTINHT-------------FDD---PVIPF
AAP13441.1      VYYPDEIFRSDTLYLTQDLFLPFYSNVTGFHTINHT-------------FGN---PVIPF
AAP13567.1      VYYPDEIFRSDTLYLTQDLFLPFYSNVTGFHTINHT-------------FDN---PVIPF
QHD43416.1      VYYPDKVFRSSVLHSTQDLFLPFFSNVTWFHAIHVS------GTNGTKRFDN---PVLPF
AVP78031.1      VYYPDTIYRSDTLVLSQGYFLPFYSNVSWYYSLTTN-------NAATKRTDN---PILDF
ABD75323.1      VYYNDDIFRSDVLHLTQDYFLPFHSNLTQYFSLNIE-------SDKIVYFDN---PILKF
QDF43835.1      VYYNDDIFRSDVLHLTQDYFLPFDTNLTRYLSFNMD-------SATKVYFDN---PTLPF
ABD75332.1      VYYNDDIFRSDVLHLTQDYFLPFDSNLTQYFSLNID-------SNKYTYFDN---PILDF
QDF43820.1      VYYNDDIFRSDVLHLTQDYFLPFDSNLTQYFSLNVD-------SDRYTYFDN---PILDF
AAZ67052.1      VYYNDDIFRSNVLHLTQDYFLPFDSNLTQYFSLNVD-------SDRFTYFDN---PILDF
AFS88936.1      IIYPQGRTYSNITITYQGLF-PYQGDHGDMYVYSAG--HATGTTPQKLFVANYSQDVKQF
YP_0010399      IIYPLGRTYSNITLAYTGLF-PLQGDLGSQYLYSVSHAVGHDGDPTKAYISNYSLLVNDF
                : *      *.      . * *   :                         :       *

QDF43825.1      RDGVYF----AATEKSNVIRG-------------WVFGSTMNNKSQ---------SVIIM
AGZ48818.1      KDGIYF----AATEKSNVIRG-------------WVFGSTMNNKSQ---------SVIIM
ALK02457.1      KDGVYF----AATEKSNVVRG-------------WVFGSTMNNKSQ---------SVIII
AAS10463.1      KDGIYF----AATEKSNVVRG-------------WVFGSTMNNKSQ---------SVIII
AAP13441.1      KDGIYF----AATEKSNVVRG-------------WVFGSTMNNKSQ---------SVIII
AAP13567.1      KDGIYF----AATEKSNVVRG-------------WVFGSTMNNKSQ---------SVIII
QHD43416.1      NDGVYF----ASTEKSNIIRG-------------WIFGTTLDSKTQ---------SLLIV
AVP78031.1      KDGIYF----AATEHSNIIRG-------------WIFGTTLDNTSQ---------SLLIV
ABD75323.1      GDGVYF----AATEKSNVIRG-------------WVFGSTFDNTTQ---------SAIIV
QDF43835.1      GDGIYF----AATEKSNVVRG-------------WIFGSTMDNTTQ---------SAIIV
ABD75332.1      GDGVYF----AATEKSNVIRG-------------WIFGSSFDNTTQ---------SAIIV
QDF43820.1      GDGVYF----AATEKSNVIRG-------------WIFGSTFDNTTQ---------SAVIV
AAZ67052.1      GDGVYF----AATEKSNVIRG-------------WIFGSTFDNTTQ---------SAVIV
AFS88936.1      ANGFVVRIGAAANSTGTVIISPSTSATIRKIYPAFMLGSSVGNFSDGKMGRFFNHTLVLL
YP_0010399      DNGFVVRIGAAANSTGTIVISPSVNTKIKKAYPAFILGSSLTNTSAGQ-PLYANYSLTII
                 :*. .    *:.. ..:: .             :::*::. . :          :  ::

QDF43825.1      NNSTNLVIRACNFELCDNPFFVVLRSNNTQIPSY------IFNNAFN-CTFEYVSKDFNL
AGZ48818.1      NNSTNLVIRACNFELCDNPFFVVLKSNNTQIPSY------IFNNAFN-CTFEYVSKDFNL
ALK02457.1      NNSTNVVIRACNFELCDNPFFAVSKPTGTQTHTM------IFDNAFN-CTFEYISDSFSL
AAS10463.1      NNSTNVVIRACNFELCDNPFFVVSKPMGTRTHTM------IFDNAFN-CTFEYISDAFSL
AAP13441.1      NNSTNVVIRACNFELCDNPFFAVSKPMGTQTHTM------IFDNAFN-CTFEYISDAFSL
AAP13567.1      NNSTNVVIRACNFELCDNPFFAVSKPMGTQTHTM------IFDNAFN-CTFEYISDAFSL
QHD43416.1      NNATNVVIKVCEFQFCNDPFLGVYY--HKNNKSWMESEFRVYSSANN-CTFEYVSQPFLM
AVP78031.1      NNATNVIIKVCNFDFCYDP-YLSGY--YHNNKTWSIREFAVYSSYAN-CTFEYVSKSFML
ABD75323.1      NNSTHIIIRVCYFNLCKDPMYTVSA--GTQKSSW------VYQSAFN-CTYDRVEKSFQL
QDF43835.1      NNSTHIIIRVCYFNLCKEPMYAISN--EQHYKSW------VYQNAYN-CTYDRVEQSFQL
ABD75332.1      NNSTHIIIRVCNFNLCKEPMYTVSK--GTQQSSW------VYQSAFN-CTYDRVEKSFQL
QDF43820.1      NNSTHIIIRVCNFNLCKEPMYTVSR--GTQQSSW------VYQSAFN-CTYDRVERSFQL
AAZ67052.1      NNSTHIIIRVCNFNLCKEPMYTVSR--GAQQSSW------VYQSAFN-CTYDRVEKSFQL
AFS88936.1      PDGCGTLLRAFYCIL--EPRSGNHCPAGNSYTSF-----ATYHTPATDCSDGNYNRNASL
YP_0010399      PDGCGTVLHAFYCIL--KPRTVNRCPSGTGYVSY-----FIYETVHNDCQ-STINRNASL
                 :.   ::..    :  .*             :        : .  . *     .    :

QDF43825.1      DIGEKPGNFKDLREFVFRNKDG--------FLHVYSGYQPISAASGLPTGF--NALKPIF
AGZ48818.1      DLGEKPGNFKDLREFVFRNKDG--------FLHVYSGYQPISAASGLPTGF--NALKPIF
ALK02457.1      DVAEKSGNFKHLREFVFKNKDG--------FLYVYKGYQPIDVVRDLPSGF--NILKPIF
AAS10463.1      DVSEKSGNFKHLREFVFKNKDG--------FLYVYKGYQPIDVVRDLPSGF--NTLKPIF
AAP13441.1      DVSEKSGNFKHLREFVFKNKDG--------FLYVYKGYQPIDVVRDLPSGF--NTLKPIF
AAP13567.1      DVSEKSGNFKHLREFVFKNKDG--------FLYVYKGYQPIDVVRDLPSGF--NTLKPIF
QHD43416.1      DLEGKQGNFKNLREFVFKNIDG--------YFKIYSKHTPINLVRDLPQGF--SALEPLV
AVP78031.1      NISGNGGLFNTLREFVFRNVDG--------HFKIYSKFTPVNLNRGLPTGL--SVLQPLV
ABD75323.1      DTSPKTGNFTDLREFVFKNRDG--------FFTAYQTYTPVNLLRGLPSGL--SVLKPIL
QDF43835.1      DTAPQTGNFKDLREYVFKNKDG--------FLSVYNAYSPIDIPRGLPVGF--SVLKPIL
ABD75332.1      DTAPKTGNFKDLREYVFKNKGG--------FLRVYQTYTAVNLPRGFPAGF--SVLRPIL
QDF43820.1      DTAPKTGNFKDLREYVFKNRDG--------FLSVYQTYTAVNLPRGLPIGF--SVLRPIL
AAZ67052.1      DTAPKTGNFKDLREYVFKNRDG--------FLSVYQTYTAVNLPRGLPIGF--SVLRPIL
AFS88936.1      NSFKE---YFNLRNCTFMYTYNITEDEILEWFGITQTAQGVHLFSSRYVDLYGGNMFQFA
YP_0010399      NSFK---SFFDLVNCTFFNSWDITADETKEWFGITQDTQGVHLYSSRKGDLYGGNMFRFA
                :       :  * : .*    .         :   .    :    .   .:  . :  :

QDF43825.1      KLPLGINITNFRTLLTAF------PPNPGYWGTSAAAYFVGYLKPTTFMLKYDENGTITD
AGZ48818.1      KLPLGINITNFRTLLTAF------PPRPDYWGTSAAAYFVGYLKPTTFMLKYDENGTITD
ALK02457.1      KLPLGINITNFRAILTAF------LPAQDTWGTSAAAYFVGYLKPATFMLKYDENGTITD
AAS10463.1      KLPLGINITNFRAILTAF------SPAQDTWGTSAAAYFVGYLKPTTFMLKYDENGTITD
AAP13441.1      KLPLGINITNFRAILTAF------SPAQDIWGTSAAAYFVGYLKPTTFMLKYDENGTITD
AAP13567.1      KLPLGINITNFRAILTAF------SPAQDTWGTSAAAYFVGYLKPTTFMLKYDENGTITD
QHD43416.1      DLPIGINITRFQTLLALHRSYLTPGDSSSGWTAGAAAYYVGYLQPRTFLLKYNENGTITD
AVP78031.1      ELPVSINITKFRTLLTIHRGD---PMPNNGWTAFSAAYFVGYLKPRTFMLKYNENGTITD
ABD75323.1      KLPFGINITSFRVVMAMF------SKTTSNYVPESAAYYVGNLKQSTFMLSFNQNGTIVD
QDF43835.1      KLPIGINITSFKVVMSMF------SRTTSNFLPEVAAYFVGNLKYSTFMLNFNENGTITD
ABD75332.1      KLPFGINITSYRVVMTMF------SQFNSNFLPESAAYYVGNLKYTTFMLSFNENGTITD
QDF43820.1      KLPFGINITSYRVVMAMF------SQTTSNFLPESAAYYVGNLKYTTFMLRFNENGTITD
AAZ67052.1      KLPFGINITSYRVVMAMF------SQTTSNFLPESAAYYVGNLKYTTFMLSFNENGTITN
AFS88936.1      TLPVYDTIKYYSIIPHSIRSI---QSDRKAW----AAFYVYKLQPLTFLLDFSVDGYIRR
YP_0010399      TLPVYEGIKYYTVIPRSFRSK---ANKREAW----AAFYVYKLHQLTYLLDFSVDGYIRR
                 **.   *. :  :                :    **::*  *:  *::* :. :* *

QDF43825.1      AVDCSQNPLAELKCSVKSFEIDKGIYQTSNFRVAPSKEVVRFPNITNLCPFGEVFNATTF
AGZ48818.1      AVDCSQNPLAELKCSVKSFEIDKGIYQTSNFRVAPSKEVVRFPNITNLCPFGEVFNATTF
ALK02457.1      AVDCSQNPLAELKCSVKSFEIDKGIYQTSNFRVAPSKEVVRFPNITNLCPFGEVFNATTF
AAS10463.1      AVDCSQNPLAELKCSVKSFEIDKGIYQTSNFRVVPSGDVVRFPNITNLCPFGEVFNATKF
AAP13441.1      AVDCSQNPLAELKCSVKSFEIDKGIYQTSNFRVVPSGDVVRFPNITNLCPFGEVFNATKF
AAP13567.1      AVDCSQNPLAELKCSVKSFEIDKGIYQTSNFRVVPSGDVVRFPNITNLCPFGEVFNATKF
QHD43416.1      AVDCALDPLSETKCTLKSFTVEKGIYQTSNFRVQPTESIVRFPNITNLCPFGEVFNATRF
AVP78031.1      AVDCALDPLSETKCTLKSLTVQKGIYQTSNFRVQPTQSVVRFPNITNVCPFHKVFNATRF
ABD75323.1      AVDCSQDPLAELKCTTKSFNVSKGIYQTSNFRVSPVTEVVRFPNITNLCPFDKVFNATRF
QDF43835.1      AIDCAQNPLSELKCTIKNFNVSKGIYQTSNFRVSPTHEVIRFPNITNRCPFDKVFNASRF
ABD75332.1      AVDCSQNPLAELKCTIKNFNVSKGIYQTSNFRVTPTQEVVRFPNITNRCPFDKVFNASRF
QDF43820.1      AIDCAQNPLAELKCTIKNFNVSKGIYQTSNFRVSPTQEVVRFPNITNRCPFDKVFNASRF
AAZ67052.1      AIDCAQNPLAELKCTIKNFNVSKGIYQTSNFRVSPTQEVIRFPNITNRCPFDKVFNATRF
AFS88936.1      AIDCGFNDLSQLHCSYESFDVESGVYSVSSFEAKPSGSVVEQAEGVE-CDFSPLLSGTP-
YP_0010399      AIDCGHDDLSQLHCSYTSFEVDTGVYSVSSYEASATGTFIEQPNATE-CDFSPMLTGVA-
                *:**. : *:: :*:  .: :..*:*..*.: . .   .:  .: .: * *  ::..

QDF43825.1      PSVYAWERKRISNCVADYSVLYNSTSFSTFKCYGVSATKLNDLCFSNVYADSFVVKGDDV
AGZ48818.1      PSVYAWERKRISNCVADYSVLYNSTSFSTFKCYGVSATKLNDLCFSNVYADSFVVKGDDV
ALK02457.1      PSVYAWERKRISNCVADYSVLYNSTSFSTFKCYGVSATKLNDLCFSNVYADSFVVKGDDV
AAS10463.1      PSVYAWERKRISNCVADYSVLYNSTSFSTFKCYGVSATKLNDLCFSNVYADSFVVKGDDV
AAP13441.1      PSVYAWERKKISNCVADYSVLYNSTFFSTFKCYGVSATKLNDLCFSNVYADSFVVKGDDV
AAP13567.1      PSVYAWERKKISNCVADYSVLYNSTFFSTFKCYGVSATKLNDLCFSNVYADSFVVKGDDV
QHD43416.1      ASVYAWNRKRISNCVADYSVLYNSASFSTFKCYGVSPTKLNDLCFTNVYADSFVIRGDEV
AVP78031.1      PSVYAWERTKISDCIADYTVFYNSTSFSTFKCYGVSPSKLIDLCFTSVYADTFLIRFSEV
ABD75323.1      PSVYAWERTKISDCVADYTVFYNSTSFSTFNCYGVSPSKLIDLCFTSVYADTFLIRFSEV
QDF43835.1      PNVYAWERTKISDCVADYTVLYNSTSFSTFKCYGVSPSKLIDLCFTSVYADTFLIRSSEV
ABD75332.1      PNVYAWERTKISDCVADYTVLYNSTSFSTFKCYGVSPSKLIDLCFTSVYADTFLIRSSEV
QDF43820.1      PNVYAWERTKISDCVADYTVLYNSTSFSTFKCYGVSPSKLIDLCFTSVYADTFLIRSSEV
AAZ67052.1      PNVYAWERTKISDCVADYTVLYNSTSFSTFKCYGVSPSKLIDLCFTSVYADTFLIRSSEV
AFS88936.1      PQVYNFKRLVFTNCNYNLTKLLSLFSVNDFTCSQISPAAIASNCYSSLILDYFSYPLSMK
YP_0010399      PQVYNFKRLVFSNCNYNLTKLLSLFAVDEFSCNGISPDSIARGCYSTLTVDYFAYPLSMK
                ..** ::*  :::*  : : : .   .. *.*  :*.  :   *::.:  * *    .

QDF43825.1      RQIAPGQTGVIADYNYKLPDDFMGC-VLAWNTRNIDATSTGNYNYKYRSLRHGKLRPFER
AGZ48818.1      RQIAPGQTGVIADYNYKLPDDFTGC-VLAWNTRNIDATQTGNYNYKYRSLRHGKLRPFER
ALK02457.1      RQIAPGQTGVIADYNYKLPDDFTGC-VLAWNTRNIDATQTGNYNYKYRSLRHGKLRPFER
AAS10463.1      RQIAPGQTGVIADYNYKLPDDFMGC-VLAWNTRNIDATSTGNYNYKYRYLRHGKLRPFER
AAP13441.1      RQIAPGQTGVIADYNYKLPDDFMGC-VLAWNTRNIDATSTGNYNYKYRYLRHGKLRPFER
AAP13567.1      RQIAPGQTGVIADYNYKLPDDFMGC-VLAWNTRNIDATSTGNYNYKYRYLRHGKLRPFER
QHD43416.1      RQIAPGQTGKIADYNYKLPDDFTGC-VIAWNSNNLDSKVGGNYNYLYRLFRKSNLKPFER
AVP78031.1      RQVAPGQTGVIADYNYKLPDDFTGC-VIAWNTAKQD---VGNYF--YRSHRSTKLKPFER
ABD75323.1      RQVAPGQTGVIADYNYKLPDDFTGC-VIAWNTAKQD---VGSYF--YRSHRSSKLKPFER
QDF43835.1      RQVAPGETGVIADYNYKLPDDFTGC-VIAWNTAKQD---QGQYY--YRSSRKTKLKPFER
ABD75332.1      RQVAPGETGVIADYNYKLPDDFTGC-VIAWNTAQQD---QGQYY--YRSYRKEKLKPFER
QDF43820.1      RQVAPGETGVIADYNYKLPDDFTGC-VIAWNTAKQD---TGHYY--YRSHRKTKLKPFER
AAZ67052.1      RQVAPGETGVIADYNYKLPDDFTGC-VIAWNTAKQD---QGQYY--YRSHRKTKLKPFER
AFS88936.1      SDLSVSSAGPISQFNYKQSFSNPTC-LILATVPHNLTTITKPLKYSYINKCSRLLSDDRT
YP_0010399      SYIRPGSAGNIPLYNYKQSFANPTCRVMASVLANVTITKPHAYG--YIS-KCSRLTGANQ
                  :  ..:* *. :*** .     * ::     :            *       *

QDF43825.1      DISNVPFSPDGKPCTPP-AF-NCYW-----------PLNDYGFFTTNGIGYQPYRVVVLS
AGZ48818.1      DISNVPFSPDGKPCTPP-AF-NCYW-----------PLNDYGFYITNGIGYQPYRVVVLS
ALK02457.1      DISNVPFSPDGKPCTPP-AF-NCYW-----------PLNDYGFYITNGIGYQPYRVVVLS
AAS10463.1      DISNVPFSPDGKPCTPP-AP-NCYW-----------PLNGYGFYTTSGIGYQPYRVVVLS
AAP13441.1      DISNVPFSPDGKPCTPP-AL-NCYW-----------PLNDYGFYTTTGIGYQPYRVVVLS
AAP13567.1      DISNVPFSPDGKPCTPP-AL-NCYW-----------PLNDYGFYTTTGIGYQPYRVVVLS
QHD43416.1      DISTEIYQAGSTPCNGVEGF-NCYF-----------PLQSYGFQPTNGVGYQPYRVVVLS
AVP78031.1      DLSSDE---------------NGVR-----------TLSTYDFNPNVPLEYQATRVVVLS
ABD75323.1      DLSSEE---------------NGVR-----------TLSTYDFNQNVPLEYQATRVVVLS
QDF43835.1      DLTSDE---------------NGVR-----------TLSTYDFYPNVPIEYQATRVVVLS
ABD75332.1      DLSSDE---------------NGVY-----------TLSTYDFYPSIPVEYQATRVVVLS
QDF43820.1      DLSSDDG--------------NGVY-----------TLSTYDFNPNVPVAYQATRVVVLS
AAZ67052.1      DLSSDE---------------NGVR-----------TLSTYDFYPSVPVAYQATRVVVLS
AFS88936.1      EVPQLVNANQYSPCVSI-VP-STVWEDGDYYRKQLSPLEGGGWLVASGSTVAMTEQLQMG
YP_0010399      DVETPLYINPGEYSICRDFSPGGFSEDGQVFKRTLTQFEGGGLLIGVGTRVPMTDNLQMS
                ::                   .               :.  .              : :.

QDF43825.1      FELL----NAPATVC-----GPKLSTDLIKNQCVNFNFNGLTGTGVLTPSSKRFQPFQQF
AGZ48818.1      FELL----NAPATVC-----GPKLSTDLIKNQCVNFNFNGLTGTGVLTPSSKRFQPFQQF
ALK02457.1      FELL----NAPATVC-----GPKLSTDLIKNQCVNFNFNGLTGTGVLTPSSKRFQPFQQF
AAS10463.1      FELL----NAPATVC-----GPKLSTDLIKNQCVNFNFNGLTGTGVLTPSSKRFQPFQQF
AAP13441.1      FELL----NAPATVC-----GPKLSTDLIKNQCVNFNFNGLTGTGVLTPSSKRFQPFQQF
AAP13567.1      FELL----NAPATVC-----GPKLSTDLIKNQCVNFNFNGLTGTGVLTPSSKRFQPFQQF
QHD43416.1      FELL----HAPATVC-----GPKKSTNLVKNKCVNFNFNGLTGTGVLTESNKKFLPFQQF
AVP78031.1      FELL----NAPATVC-----GPKLSTQLVKNQCVNFNFNGLKGTGVLTDSSKRFQSFQQF
ABD75323.1      FELL----NAPATVC-----GPKLSTSLVKNQCVNFNFNGFKGTGVLTDSSKTFQSFQQF
QDF43835.1      FELL----NAPATVC-----GPKLSTGLVKNQCVNFNFNGLRGTGVLTDSSKRFQSFQQF
ABD75332.1      FELL----NAPATVC-----GPKLSTQLVKNQCVNFNFNGLRGTGVLTTSSKRFQSFQQF
QDF43820.1      FELL----NAPATVC-----GPKLSTQLVKNQCVNFNFNGLKGTGVLTDSSKRFQSFQQF
AAZ67052.1      FELL----NAPATVC-----GPKLSTQLVKNQCVNFNFNGLKGTGVLTESSKRFQSFQQF
AFS88936.1      FGITVQYGTDTNSVCPKLEFANDTKIASQLGNCVEYSLYGVSGRGVFQNCTAVGVRQQRF
YP_0010399      FIISVQYGTGTDSVCPMLDLGDSLTITNRLGKCVDYSLYGVTGRGVFQNCTAVGVKQQRF
                * :       . :**     . . .     .:**::.: *. * **:  ..      *.*

QDF43825.1      GRDVSD-FTDSVRDPKTSEILDISPCSFGGVSVITPGTNTSSEVAVLYQDVNCTDVPVAI
AGZ48818.1      GRDVSD-FTDSVRDPKTSEILDISPCSFGGVSVITPGTNTSSEVAVLYQDVNCTDVPVAI
ALK02457.1      GRDVLD-FTDSVRDPKTSEILDISPCSFGGVSVITPGTNTSSEVAVLYQDVNCTDVPVAI
AAS10463.1      GRDVSD-FTDSVRDPKTSEILDISPCSFGGVSVITPGTNASSEVAVLYQDVNCTDVSTLI
AAP13441.1      GRDVSD-FTDSVRDPKTSEILDISPCSFGGVSVITPGTNASSEVAVLYQDVNCTDVSTAI
AAP13567.1      GRDVSD-FTDSVRDPKTSEILDISPCSFGGVSVITPGTNASSEVAVLYQDVNCTDVSTAI
QHD43416.1      GRDIAD-TTDAVRDPQTLEILDITPCSFGGVSVITPGTNTSNQVAVLYQDVNCTEVPVAI
AVP78031.1      GKDASD-FIDSVRDPQTLEILDITPCSFGGVSVITPGTNTSLEVAVLYQDVNCTDVPTTI
ABD75323.1      GRDASD-FTDSVRDPQTLRILDISPCSFGGVSVITPGTNTSSAVAVLYQDVNCTDVPRTI
QDF43835.1      GRDTSD-FTDSVRDPQTLEILDITPCSFGGVSVITPGTNASSEVAVLYQDVNCTDVPTAI
ABD75332.1      GRDTSD-FTDSVRDPQTLEILDISPCSFGGVSVITPGTNASSEVAVLYQDVNCTDVPTSI
QDF43820.1      GRDTSD-FTDSVRDPQTLEILDITPCSFGGVSVITPGTNASSEVAVLYQDVNCTDVPTAI
AAZ67052.1      GRDTSD-FTDSVRDPQTLEILDISPCSFGGVSVITPGTNASSEVAVLYQDVNCTDVPAAI
AFS88936.1      VYDAYQNLVGYYSDDGNYYCLR--ACVSVPVSVIY--DKETKTHATLFGSVACEHISSTM
YP_0010399      VYDSFDNLVGYYSDDGNYYCVR--PCVSVPVSVIY--DKSTNLHATLFGSVACEHVTTMM
                  *  :   .   *  .   :   .*    ****    : :   *.*: .* *  :.  :

QDF43825.1      --HADQLTPAWRIYSTGNNVFQTQAGCLIGAEHVDTSY---ECDIPIGAGICASYHTVSS
AGZ48818.1      --HADQLTPSWRVYSTGNNVFQTQAGCLIGAEHVDTSY---ECDIPIGAGICASYHTVSS
ALK02457.1      --HADQLTPSWRVYSTGNNVFQTQAGCLIGAEHVDTSY---ECDIPIGAGICASYHTVSS
AAS10463.1      --HAEQLTPAWRIYSTGNNVFQTQAGCLIGAEHVDTSY---ECDIPIGAGICASYHTVSS
AAP13441.1      --HADQLTPAWRIYSTGNNVFQTQAGCLIGAEHVDTSY---ECDIPIGAGICASYHTVSL
AAP13567.1      --HADQLTPAWRIYSTGNNVFQTQAGCLIGAEHVDTSY---ECDIPIGAGICASYHTVSL
QHD43416.1      --HADQLTPTWRVYSTGSNVFQTRAGCLIGAEHVNNSY---ECDIPIGAGICASYQTQTN
AVP78031.1      --HADQLTPAWRIYATGTNVFQTQAGCLIGAEHVNASY---ECDIPIGAGICASYHTASI
ABD75323.1      --QADQLAPSWRVYTTGPYVFQTQAGCLIGAEHVNASY---QCDIPIGAGICASYHTASH
QDF43835.1      --RADQLTPAWRVYSTGINVFQTQAGCLIGAEHVNASY---ECDIPIGAGICASYHTAST
ABD75332.1      --HADQLTPAWRVYSTGVNVFQTQAGCLIGAEHVNASY---ECDIPIGAGICASYHTASV
QDF43820.1      --RADQLTPAWRVYSTGVNVFQTQAGCLIGAEHVNASY---ECDIPIGAGICASYHTAST
AAZ67052.1      --HADQLTPAWRVYSTGTNVFQTQAGCLIGAEHVNASY---ECDIPIGAGICASYHTAST
AFS88936.1      SQYSRSTRSMLKRRDSTYGPLQTPVGCVLGL--VNSSLFVEDCKLPLGQSLCALPDTPST
YP_0010399      S-QFSRLTQSNLRRRDSNIPLQTAVGCVIGLS--NNSLVVSDCKLPLGQSLCAV-PPVST
                                    :** .**::*    : *    :*.:*:* .:**   . :

QDF43825.1      ----LRSTS----QKSI--------VAYTMSLGADSSIAYSNNTIAIPTNFSISITTEVM
AGZ48818.1      ----LRSTS----QKSI--------VAYTMSLGADSSIAYSNNTIAIPTNFSISITTEVM
ALK02457.1      ----LRSTS----QKSI--------VAYTMSLGADSSIAYSNNTIAIPTNFSISITTEVM
AAS10463.1      ----LRSTS----QKSI--------VAYTMSLGADSSIAYSNNTIAIPTNFSISITTEVM
AAP13441.1      ----LRSTS----QKSI--------VAYTMSLGADSSIAYSNNTIAIPTNFSISITTEVM
AAP13567.1      ----LRSTS----QKSI--------VAYTMSLGADSSIAYSNNTIAIPTNFSISITTEVM
QHD43416.1      SPRRARSVA----SQSI--------IAYTMSLGAENSVAYSNNSIAIPTNFTISVTTEIL
AVP78031.1      ----LRSTS----QKAI--------VAYTMSLGAENSIAYANNSIAIPTNFSISVTTEVM
ABD75323.1      ----LRSTG----QKSI--------VAYTMSLGAENSVAYANNSIAIPTNFSISVTTEVM
QDF43835.1      ----LRSVG----QKSI--------VAYTMSLGAENSIAYANNSIAIPTNFSISVTTEVM
ABD75332.1      ----LRSTG----QKSI--------VAYTMSLGAENSIAYANNSIAIPTNFSISVTTEVM
QDF43820.1      ----LRSVG----QKSI--------VAYTMSLGAENSIAYANNSIAIPTNFSISVTTEVM
AAZ67052.1      ----LRSVG----QKSI--------VAYTMSLGAENSIAYANNSIAIPTNFSISVTTEVM
AFS88936.1      ----LTPRS----VRSVPGEMRLASIAFNHPIQVDQ-LNSSYFKLSIPTNFSFGVTQEYI
YP_0010399      ----FRSYSASQFQLAV--------LNYTSPIVV-TPINSSGFTAAIPTNFSFSVTQEYI
                      . .      ::        : :. .: .   :  :  . :*****::.:* * :

QDF43825.1      PVSMAKTSVDCNMYICGDSTECANLLLQYGSFCTQLNRALSGIAVEQDRNTREVFAQVKQ
AGZ48818.1      PVSMAKTSVDCNMYICGDSTECANLLLQYGSFCTQLNRALSGIAVEQDRNTREVFAQVKQ
ALK02457.1      PVSMAKTSVDCNMYICGDSTECANLLLQYGSFCTQLNRALSGIAVEQDRNTREVFAQVKQ
AAS10463.1      PVSMAKTSVDCNMYICGDSTECANLLLQYGSFCRQLNRALSGIAAEQDRNTREVFVQVKQ
AAP13441.1      PVSMAKTSVDCNMYICGDSTECANLLLQYGSFCTQLNRALSGIAAEQDRNTREVFAQVKQ
AAP13567.1      PVSMAKTSVDCNMYICGDSTECANLLLQYGSFCTQLNRALSGIAAEQDRNTREVFAQVKQ
QHD43416.1      PVSMTKTSVDCTMYICGDSTECSNLLLQYGSFCTQLNRALTGIAVEQDKNTQEVFAQVKQ
AVP78031.1      PVSMAKTSVDCTMYICGDSIECSNLLLQYGSFCTQLNRALSGIAIEQDKNTQEVFAQVKQ
ABD75323.1      PVSMAKTSVDCTMYICGDSLECSNLLLQYGSFCTQLNRALSGIAVEQDKNTQEVFAQVKQ
QDF43835.1      PVSMSKTSVDCTMYICGDSQECSNLLLQYGSFCTQLNRALTGIAIEQDKNTQEVFAQVKQ
ABD75332.1      PVSIAKTSVDCTMYICGDSLECSNLLLQYGSFCTQLNRALTGIAIEQDKNTQEVFAQVKQ
QDF43820.1      PVSMAKTSVDCTMYICGDSQECSNLLLQYGSFCTQLNRALTGVALEQDKNTQEVFAQVKQ
AAZ67052.1      PVSMAKTSVDCTMYICGDSLECSNLLLQYGSFCTQLNRALSGIAIEQDKNTQEVFAQVKQ
AFS88936.1      QTTIQKVTVDCKQYVCNGFQKCEQLLREYGQFCSKINQALHGANLRQDDSVRNLFASVKS
YP_0010399      ETSIQKVTVDCKQYVCNGFTRCEKLLVEYGQFCSKINQALHGANLRQDESVYSLYSNIKT
                 .:: *.:***. *:*..   * :** :**.** ::*.** *    ** .. .:: .:*

QDF43825.1      MYKTPTLKD-FGG-FNFSQILPDPLKPTKRSF---IEDLLFNKVTLADAGFMKQYGECL-
AGZ48818.1      MYKTPTLKD-FGG-FNFSQILPDPLKPTKRSF---IEDLLFNKVTLADAGFMKQYGECL-
ALK02457.1      MYKTPTLKD-FGG-FNFSQILPDPLKPTKRSF---IEDLLFNKVTLADAGFMKQYGECL-
AAS10463.1      MYKTPTLKD-FGG-FNFSQILPDPLKPTKRSF---IEDLLFNKVTLADAGFMKQYGECL-
AAP13441.1      MYKTPTLKY-FGG-FNFSQILPDPLKPTKRSF---IEDLLFNKVTLADAGFMKQYGECL-
AAP13567.1      MYKTPTLKY-FGG-FNFSQILPDPLKPTKRSF---IEDLLFNKVTLADAGFMKQYGECL-
QHD43416.1      IYKTPPIKD-FGG-FNFSQILPDPSKPSKRSF---IEDLLFNKVTLADAGFIKQYGDCL-
AVP78031.1      IYKTPPIKD-FGG-FNFSQILPDPSKPSKRSF---IEDLLFNKVTLADAGFIKQYGDCL-
ABD75323.1      MYKTPTIRD-FGG-FNFSQILPDPLKPTKRSF---IEDLLYNKVTLADAGFMKQYADCL-
QDF43835.1      MYKTPAIKD-FGG-FNFSQILPDPSKPTKRSF---IEDLLFNKVTLADAGFMKQYGECL-
ABD75332.1      MYKTPAIKD-FGG-FNFSQILPDPSKPTKRSF---IEDLLFNKVTLADAGFMKQYGECL-
QDF43820.1      MYKTPAIKD-FGG-FNFSQILPDPSKPTKRSF---IEDLLFNKVTLADAGFMKQYGECL-
AAZ67052.1      MYKTPAIKD-FGG-FNFSQILPDPSKPTKRSF---IEDLLFNKVTLADAGFMKQYGECL-
AFS88936.1      SQSSPIIPG-FGGDFNLTLLEPVSISTGSRSARSAIEDLLFDKVTIADPGYMQGYDDCMQ
YP_0010399      T-STQTLEYGLNGDFNLTLLQVPQIGGSSSSYRSAIEDLLFDKVTIADPGYMQGYDDCMK
                  .:  :   :.* **:: :        . *    *****::***:**.*::: * :*:

QDF43825.1      -GDINARDLICAQKFNGLTVLPPLLTDDMIAAYTAALVSGTATAGWTFGAGAALQIPFAM
AGZ48818.1      -GDINARDLICAQKFNGLTVLPPLLTDDMIAAYTAALVSGTATAGWTFGAGAALQIPFAM
ALK02457.1      -GDINARDLICAQKFNGLTVLPPLLTDDMIAAYTAALVSGTATAGWTFGAGAALQIPFAM
AAS10463.1      -GDINARDLICAQKFNGLTVLPPLLTDDMIAAYTAALVSGTATAGWTFGAGAALQIPFAM
AAP13441.1      -GDINARDLICAQKFNGLTVLPPLLTDDMIAAYTAALVSGTATAGWTFGAGAALQIPFAM
AAP13567.1      -GDINARDLICAQKFNGLTVLPPLLTDDMIAAYTAALVSGTATAGWTFGAGAALQIPFAM
QHD43416.1      -GDIAARDLICAQKFNGLTVLPPLLTDEMIAQYTSALLAGTITSGWTFGAGAALQIPFAM
AVP78031.1      -GGISARDLICAQKFNGLTVLPPLLTDEMIAAYTAALISGTATAGWTFGAGAALQIPFAM
ABD75323.1      -GGINARDLICAQKFNGLTVLPPLLTDDMIAAYTAALISGTATAGWTFGAGAALQIPFAM
QDF43835.1      -GDINARDLICAQKFNGLTVLPPLLTDDMIAAYTAALVSGTATAGWTFGAGAALQIPFAM
ABD75332.1      -GDISARDLICAQKFNGLTVLPPLLTDEMIAAYTAALVSGTATAGWTFGAGSALQIPFAM
QDF43820.1      -GDINARDLICAQKFNGLTVLPPLLTDDMIAAYTAALVSGTATAGWTFGAGAALQIPFAM
AAZ67052.1      -GDISARDLICAQKFNGLTVLPPLLTDEMIAAYTAALVSGTATAGWTFGAGSALQIPFAM
AFS88936.1      QGPASARDLICAQYVAGYKVLPPLMDVNMEAAYTSSLLGSIAGVGWTAGLSSFAAIPFAQ
YP_0010399      QGPQSARDLICAQYVSGYKVLPPLYDPNMEAAYTSSLLGSIAGAGWTAGLSSFAAIPFAQ
                 *   ******** . * .*****   :* * **::*:..    *** * .:   ****

QDF43825.1      QMAYRFNGIGVTQNVLYENQKQIANQFNKAISQIQESLTTTSTALGKLQDVVNQNAQALN
AGZ48818.1      QMAYRFNGIGVTQNVLYENQKQIANQFNKAISQIQESLTTTSTALGKLQDVVNQNAQALN
ALK02457.1      QMAYRFNGIGVTQNVLYENQKQIANQFNKAISQIQESLTTTSTALGKLQDVVNQNAQALN
AAS10463.1      QMAYRFNGIGVTQNVLYENQKQIANQFNKAISQIQESLTTTSTALGKLQDVVNQNAQALN
AAP13441.1      QMAYRFNGIGVTQNVLYENQKQIANQFNKAISQIQESLTTTSTALGKLQDVVNQNAQALN
AAP13567.1      QMAYRFNGIGVTQNVLYENQKQIANQFNKAISQIQESLTTTSTALGKLQDVVNQNAQALN
QHD43416.1      QMAYRFNGIGVTQNVLYENQKLIANQFNSAIGKIQDSLSSTASALGKLQDVVNQNAQALN
AVP78031.1      QMAYRFNGIGVTQNVLYENQKLIANQFNSAIGKIQESLTSTASALGKLQDVVNQNAQALN
ABD75323.1      QMAYRFNGIGVTQNVLYENQKQIANQFNKAITQIQESLTTTSTALGKLQDVVNQNAQALN
QDF43835.1      QMAYRFNGIGVTQNVLYENQKQIANQFNKAISQIQESLTTTSTALGKLQDVVNQNAQALN
ABD75332.1      QMAYRFNGIGVTQNVLYENQKQIANQFNKAISQIQESLTTTSTALGKLQDVVNQNAQALN
QDF43820.1      QMAYRFNGIGVTQNVLYENQKQIANQFNKAISQIQESLTTTSTALGKLQDVVNQNAQALN
AAZ67052.1      QMAYRFNGIGVTQNVLYENQKQIANQFNKAISQIQESLTTTSTALGKLQDVVNQNAQALN
AFS88936.1      SIFYRLNGVGITQQVLSENQKLIANKFNQALGAMQTGFTTTNEAFQKVQDAVNNNAQALS
YP_0010399      SMFYRLNGVGITQQVLSENQKLIANKFNQALGAMQTGFTTSNLAFSKVQDAVNANAQALS
                .: **:**:*:**:** **** ***:**.*:  :* .::::  *: *:**.** *****.

QDF43825.1      TLVKQLSSNFGAISSVLNDILSRLDKVEAEVQIDRLITGRLQSLQTYVTQQLIRAAEIRA
AGZ48818.1      TLVKQLSSNFGAISSVLNDILSRLDKVEAEVQIDRLITGRLQSLQTYVTQQLIRAAEIRA
ALK02457.1      TLVKQLSSNFGAISSVLNDILSRLDKVEAEVQIDRLITGRLQSLQTYVTQQLIRAAEIRA
AAS10463.1      TLVKQLSSNFGAISSVLNDILSRLDKVEAEVQIDRLITGRLQSLQTYVTQQLIRAAEIRA
AAP13441.1      TLVKQLSSNFGAISSVLNDILSRLDKVEAEVQIDRLITGRLQSLQTYVTQQLIRAAEIRA
AAP13567.1      TLVKQLSSNFGAISSVLNDILSRLDKVEAEVQIDRLITGRLQSLQTYVTQQLIRAAEIRA
QHD43416.1      TLVKQLSSNFGAISSVLNDILSRLDKVEAEVQIDRLITGRLQSLQTYVTQQLIRAAEIRA
AVP78031.1      TLVKQLSSNFGAISSVLNDILSRLDKVEAEVQIDRLITGRLQSLQTYVTQQLIRAAEIRA
ABD75323.1      TLVKQLSSNFGAISSALNDILSRLDKVEAEVQIDRLITGRLQSLQTYVTQQLIRAAEIRA
QDF43835.1      TLVKQLSSNFGAISSVLNDILSRLDKVEAEVQIDRLITGRLQSLQTYVTQQLIRAAEIRA
ABD75332.1      TLVKQLSSNFGAISSVLNDILSRLDKVEAEVQIDRLITGRLQSLQTYVTQQLIRAAEIRA
QDF43820.1      TLVKQLSSNFGAISSVLNDILSRLDKVEAEVQIDRLITGRLQSLQTYVTQQLIRAAEIRA
AAZ67052.1      TLVKQLSSNFGAISSVLNDILSRLDKVEAEVQIDRLITGRLQSLQTYVTQQLIRAAEIRA
AFS88936.1      KLASELSNTFGAISASIGDIIQRLDVLEQDAQIDRLINGRLTTLNAFVAQQLVRSESAAL
YP_0010399      KLASELSNTFGAISSSISDILARLDTVEQDAQIDRLINGRLISLNAFVSQQLVRSETAAR
                .*..:**..*****: :.**: *** :* :.******.*** :*:::*:***:*:

QDF43825.1      SANLAATKMSECVLGQSKRVDFCGKGYHLMSFPQAAPHGVVFLHVTYVPSQERNFTTAPA
AGZ48818.1      SANLAATKMSECVLGQSKRVDFCGKGYHLMSFPQAAPHGVVFLHVTYVPSQERNFTTAPA
ALK02457.1      SANLAATKMSECVLGQSKRVDFCGKGYHLMSFPQAAPHGVVFLHVTYVPSQERNFTTAPA
AAS10463.1      SANLAATKMSECVLGQSKRVDFCGKGYHLMSFPQAAPHGVVFLHVTYVPSQERNFTTAPA
AAP13441.1      SANLAATKMSECVLGQSKRVDFCGKGYHLMSFPQAAPHGVVFLHVTYVPSQERNFTTAPA
AAP13567.1      SANLAATKMSECVLGQSKRVDFCGKGYHLMSFPQAAPHGVVFLHVTYVPSQERNFTTAPA
QHD43416.1      SANLAATKMSECVLGQSKRVDFCGKGYHLMSFPQSAPHGVVFLHVTYVPAQEKNFTTAPA
AVP78031.1      SANLAATKMSECVLGQSKRVDFCGKGYHLMSFPQSAPHGVVFLHVTYIPSQEKNFTTAPA
ABD75323.1      SANLAATKMSECVLGQSKRVDFCGKGYHLMSFPQSAPHGVVFLHVTYVPSQEKNFTTAPA
QDF43835.1      SANLAATKMSECVLGQSKRVDFCGRGYHLMSFPQAAPHGVVFLHVTYVPSQEKNFTTAPA
ABD75332.1      SANLAATKMSECVLGQSKRVDFCGKGYHLMSFPQAAPHGVVFLHVTYVPSQERNFTTAPA
QDF43820.1      SANLAATKMSECVLGQSKRVDFCGRGYHLMSFPQAAPHGVVFLHVTYVPSQEKNFTTAPA
AAZ67052.1      SANLAATKMSECVLGQSKRVDFCGKGYHLMSFPQAAPHGVVFLHVTYVPSQERNFTTAPA
AFS88936.1      SAQLAKDKVNECVKAQSKRSGFCGQGTHIVSFVVNAPNGLYFMHVGYYPSNHIEVVSAYG
YP_0010399      SAQLASDKVNECVKSQSKRNGFCGSGTHIVSFVVNAPNGFYFFHVGYVPTNYTNVTAAYG
                **:**  *:.*** .**** .*** * *::**   **:*. *:** * *::  :..:* .

QDF43825.1      ICHEGK---AYFPREGVFVFNGTS-------WFITQRNFFSPQIITTDNT-FVSGSCDVV
AGZ48818.1      ICHEGK---AYFPREGVFVFNGTS-------WFITQRNFFSPQIITTDNT-FVSGSCDVV
ALK02457.1      ICHEGK---AYFPREGVFVFNGTS-------WFITQRNFFSPQIITTDNT-FVSGSCDVV
AAS10463.1      ICHEGK---AYFPREGVFVFNGTS-------WFITQRNFFSPQIITTDNT-FVSGNCDVV
AAP13441.1      ICHEGK---AYFPREGVFVFNGTS-------WFITQRNFFSPQIITTDNT-FVSGNCDVV
AAP13567.1      ICHEGK---AYFPREGVFVFNGTS-------WFITQRNFFSPQIITTDNT-FVSGNCDVV
QHD43416.1      ICHDGK---AHFPREGVFVSNGTH-------WFVTQRNFYEPQIITTDNT-FVSGNCDVV
AVP78031.1      ICHEGK---AHFPREGVFVSNGTH-------WFVTQRNFYEPKIITTDNT-FVSGNCDVV
ABD75323.1      ICHEGK---AYFPREGVFVSNGSS-------WFITQRNFYSPQIITTDNT-FVAGSCDVV
QDF43835.1      ICHEGK---AYFPREGVFVSNGTS-------WFITQRNFYSPQIITTDNT-FVAGSCDVV
ABD75332.1      ICHEGK---AYFPREGVFVSNGTS-------WFITQRNFYSPQIITTDNT-FVAGNCDVV
QDF43820.1      ICHEGK---AYFPREGVFVSNGTF-------WFITQRNFYSPQIITTDNT-FVAGNCDVV
AAZ67052.1      ICHEGK---AYFPREGVFVSNGTS-------WFITQRNFYSPQIITTDNT-FVAGSCDVV
AFS88936.1      LCDAANPTNCIAPVNGYFIKTNNT--RIVDEWSYTGSSFYAPEPITSLNTKYVA--PQVT
YP_0010399      LCNNNNPPLCIAPIDGYFITNQTTTYSVDTEWYYTGSSFYKPEPITQANSRYVS--SDVK
                :*   :   .  * :* *: . .        *  *  .*: *: **  *: :*:   :*

QDF43825.1      IGIINNTVYDPL---QPELDSFKEELDKYFKNHTSPDVDLGDISGINASVVNIQKEIDRL
AGZ48818.1      IGIINNTVYDPL---QPELDSFKEELDKYFKNHTSPDVDLGDISGINASVVNIQKEINRL
ALK02457.1      IGIINNTVYDPL---QPELDSFKEELDKYFKNHTSPDVDLGDISGINASVVNIQKEIDRL
AAS10463.1      IGIINNTVYDPL---QPELDSFKEELDKYFKNHTSPDVDLGDISGINASVVNIQEEIDRL
AAP13441.1      IGIINNTVYDPL---QPELDSFKEELDKYFKNHTSPDVDLGDISGINASVVNIQKEIDRL
AAP13567.1      IGIINNTVYDPL---QPELDSFKEELDKYFKNHTSPDVDLGDISGINASVVNIQKEIDRL
QHD43416.1      IGIVNNTVYDPL---QPELDSFKEELDKYFKNHTSPDVDLGDISGINASVVNIQKEIDRL
AVP78031.1      IGIINNTVYDPL---QPELDSFKEELDKYFKNHTSPDIDLGDISGINASVVNIQKEIDRL
ABD75323.1      IGIINNTVYDPL---QPELDSFKQELDKYFKNHTSPDVDLGDISGINASVVDIQKEIDRL
QDF43835.1      IGIINNTVYDPL---QPELDSFKEELDKYFKNHTSPDVDLGDISGINASVVNIQKEIDRL
ABD75332.1      IGIINNTVYDPL---QPELDSFKEELDKYFKNHTSPDVDLGDISGINASVVNIQKEIDRL
QDF43820.1      IGIINNTVYDPL---QPELDSFKEELDKYFKNHTSPDVDLGDISGINASVVNIQKEIDRL
AAZ67052.1      IGIINNTVYDPL---QPELDSFKEELDKYFKNHTSPDVDLGDISGINASVVNIQKEIDRL
AFS88936.1      YQNISTNLPPPLLGNSTGID-FQDELDEFFKNVSTSIPNFGSLTQINTTLLDLTYEMLSL
YP_0010399      FDKLENNLPPPLLENSTDVD-FKDELEEFFKNVTSHGPNFAEISKINTTLLDLSDEMAML
                   :...:  **   .. :* *::**:::*** ::   ::..:: **::::::  *:  *

QDF43825.1      NEVAKNLNESLIDLQELGKYEQYIKWPWYVWLGFIAGLIAIVMVTILLCCMTSCCSCLKG
AGZ48818.1      NEVAKNLNESLIDLQELGKYEQYIKWPWYVWLGFIAGLIAIVMVTILLCCMTSCCSCLKG
ALK02457.1      NEVAKNLNESLIDLQELGKYEQYIKWPWYVWLGFIAGLIAIVMVTILLCCMTSCCSCLKG
AAS10463.1      NEVAKNLNESLIDLQELGKYEQYIKWPWYVWLGFIAGLIAIVMVTILLCCMTSCCSCLKG
AAP13441.1      NEVAKNLNESLIDLQELGKYEQYIKWPWYVWLGFIAGLIAIVMVTILLCCMTSCCSCLKG
AAP13567.1      NEVAKNLNESLIDLQELGKYEQYIKWPWYVWLGFIAGLIAIVMVTILLCCMTSCCSCLKG
QHD43416.1      NEVAKNLNESLIDLQELGKYEQYIKWPWYIWLGFIAGLIAIVMVTIMLCCMTSCCSCLKG
AVP78031.1      NEVARNLNESLIDLQELGKYEQYIKWPWYVWLGFIAGLIAIVMVTILLCCMTSCCSCLKG
ABD75323.1      NEVAKNLNESLIDLQELGKYEQYIKWPWYVWLGFIAGLVGLFMAIILLCYFTSCCSCCKG
QDF43835.1      NEVAKNLNESLIDLQELGKYEQYIKWPWYVWLGFIAGLIAIVMATILLCCMTSCCSCLKG
ABD75332.1      NEVAKNLNESLIDLQELGKYEQYIKWPWYVWLGFIAGLIAIVMVTILLCCMTSCCSCLKG
QDF43820.1      NEVAKNLNESLIDLQELGKYEQYIKWPWYVWLGFIAGLIAIVMATILLCCMTSCCSCLKG
AAZ67052.1      NEVAKNLNESLIDLQELGKYEQYIKWPWYVWLGFIAGLIAIVMVTILLCCMTSCCSCLKG
AFS88936.1      QQVVKALNESYIDLKELGNYTYYNKWPWYIWLGFIAGLVALALCVFFILCCTGCGTNCMG
YP_0010399      QEVVKQLNDSYIDLKELGNYTYYNKWPWYVWLGFIAGLVALLLCVFFLLCCTGCGTSCLG
                ::*.. **:* ***:***:*  * *****:********:.: :  :::   *.* :   *

QDF43825.1      ACSCGSCC-KFDEDDSEPVLKGVKLHYT
AGZ48818.1      ACSCGSCC-KFDEDDSEPVLKGVKLHYT
ALK02457.1      ACSCGSCC-KFDEDDSEPVLKGVKLHYT
AAS10463.1      ACSCGSCC-KFDEDDSEPVLKGVKLHYT
AAP13441.1      ACSCGSCC-KFDEDDSEPVLKGVKLHYT
AAP13567.1      ACSCGSCC-KFDEDDSEPVLKGVKLHYT
QHD43416.1      CCSCGSCC-KFDEDDSEPVLKGVKLHYT
AVP78031.1      CCSCGSCC-KFDEDDSEPVLKGVKLHYT
ABD75323.1      MCSCGSCC-RFDEDDSEPVLKGVKLHYT
QDF43835.1      ACSCGSCC-KFDEDDSEPVLKGVKLHYT
ABD75332.1      ACSCGSCC-KFDEDDSEPVLKGVKLHYT
QDF43820.1      ACSCGSCC-KFDEDDSEPVLKGVKLHYT
AAZ67052.1      ACSCGSCC-KFDEDDSEPVLKGVKLHYT
AFS88936.1      KLKCNRCCDRYEEYDLEP----HKVHVH
YP_0010399      KMKCKNCCDSYEEYDVE------KIHVH
                  .*  **  ::* * *      *:*

  • I then went back and clicked on the tab 6. Tree Rendering which rendered a phylogenetic tree of the sequenecs
    • Horizontal lines (branches) represented individual evolutionary lineages
    • Vertical lines (splits) represented mutation events
      • The vertical length of each split was drawn purely for visual clarity with no biological meaning
    • The left-most split, the root of the tree, represented a hypothesis about the most recent common ancestor (MRCA) of the sequences within the tree
    • The length of each branch represented the percentage change in amino acid sequence occurring along that branch, relative to the scale bar shown at the bottom of the tree
      • The scale bar was 0.5 (50%)
      • The tree also contained support values for each clade (shown in red on the branches)
        • In general, a higher support value indicates a higher statistical confidence in a particular clade

Phylogenetic Tree: Owen R Dailey Phylogenetic Tree.png

  • The phylogenetic tree compared to the multiple sequence alignment
    • As stated earlier, AFS88936.1 S protein [Human betacoronavirus 2c EMC/2012] and YP_001039953.1 spike glycoprotein [Tylonycteris bat coronavirus HKU4] had significantly less conserved residues than the rest of the spike protein sequences. This observation was verified by the phylogenetic tree as these two strains of coronavirus were the two outgroups for my phylogenetic tree. Besides the two outgroups, the various virus strains are split into two monophyletic groups; however, the differences between these two groups can not be easily extrapolated from the multiple sequence alignment
  • My sequence alignment compared to Figure 3 of the Wan et al. (2020) paper
    • Listed below are the amino acids that Wang et. al (2020) emphasized in their paper.
QDF43825.1      RQIAPGQTGVIADYNYKLPDDFMGC-VLAWNTRNIDATSTGNYNYKYRSLRHGKLRPFER
AGZ48818.1      RQIAPGQTGVIADYNYKLPDDFTGC-VLAWNTRNIDATQTGNYNYKYRSLRHGKLRPFER
ALK02457.1      RQIAPGQTGVIADYNYKLPDDFTGC-VLAWNTRNIDATQTGNYNYKYRSLRHGKLRPFER
AAS10463.1      RQIAPGQTGVIADYNYKLPDDFMGC-VLAWNTRNIDATSTGNYNYKYRYLRHGKLRPFER
AAP13441.1      RQIAPGQTGVIADYNYKLPDDFMGC-VLAWNTRNIDATSTGNYNYKYRYLRHGKLRPFER
AAP13567.1      RQIAPGQTGVIADYNYKLPDDFMGC-VLAWNTRNIDATSTGNYNYKYRYLRHGKLRPFER
QHD43416.1      RQIAPGQTGKIADYNYKLPDDFTGC-VIAWNSNNLDSKVGGNYNYLYRLFRKSNLKPFER
AVP78031.1      RQVAPGQTGVIADYNYKLPDDFTGC-VIAWNTAKQD---VGNYF--YRSHRSTKLKPFER
ABD75323.1      RQVAPGQTGVIADYNYKLPDDFTGC-VIAWNTAKQD---VGSYF--YRSHRSSKLKPFER
QDF43835.1      RQVAPGETGVIADYNYKLPDDFTGC-VIAWNTAKQD---QGQYY--YRSSRKTKLKPFER
ABD75332.1      RQVAPGETGVIADYNYKLPDDFTGC-VIAWNTAQQD---QGQYY--YRSYRKEKLKPFER
QDF43820.1      RQVAPGETGVIADYNYKLPDDFTGC-VIAWNTAKQD---TGHYY--YRSHRKTKLKPFER
AAZ67052.1      RQVAPGETGVIADYNYKLPDDFTGC-VIAWNTAKQD---QGQYY--YRSHRKTKLKPFER
AFS88936.1      SDLSVSSAGPISQFNYKQSFSNPTC-LILATVPHNLTTITKPLKYSYINKCSRLLSDDRT
YP_0010399      SYIRPGSAGNIPLYNYKQSFANPTCRVMASVLANVTITKPHAYG--YIS-KCSRLTGANQ
                  :  ..:* *. :*** .     * ::     :            *       *

QDF43825.1      DISNVPFSPDGKPCTPP-AF-NCYW-----------PLNDYGFFTTNGIGYQPY
AGZ48818.1      DISNVPFSPDGKPCTPP-AF-NCYW-----------PLNDYGFYITNGIGYQPY
ALK02457.1      DISNVPFSPDGKPCTPP-AF-NCYW-----------PLNDYGFYITNGIGYQPY
AAS10463.1      DISNVPFSPDGKPCTPP-AP-NCYW-----------PLNGYGFYTTSGIGYQPY
AAP13441.1      DISNVPFSPDGKPCTPP-AL-NCYW-----------PLNDYGFYTTTGIGYQPY
AAP13567.1      DISNVPFSPDGKPCTPP-AL-NCYW-----------PLNDYGFYTTTGIGYQPY
QHD43416.1      DISTEIYQAGSTPCNGVEGF-NCYF-----------PLQSYGFQPTNGVGYQPY
AVP78031.1      DLSSDE---------------NGVR-----------TLSTYDFNPNVPLEYQAT
ABD75323.1      DLSSEE---------------NGVR-----------TLSTYDFNQNVPLEYQAT
QDF43835.1      DLTSDE---------------NGVR-----------TLSTYDFYPNVPIEYQAT
ABD75332.1      DLSSDE---------------NGVY-----------TLSTYDFYPSIPVEYQAT
QDF43820.1      DLSSDDG--------------NGVY-----------TLSTYDFNPNVPVAYQAT
AAZ67052.1      DLSSDE---------------NGVR-----------TLSTYDFYPSVPVAYQAT
AFS88936.1      EVPQLVNANQYSPCVSI-VP-STVWEDGDYYRKQLSPLEGGGWLVASGSTVAMT
YP_0010399      DVETPLYINPGEYSICRDFSPGGFSEDGQVFKRTLTQFEGGGLLIGVGTRVPMT
                ::                   .               :.  .
    • These important amino acids seem to have been mutated throughout the bottom half of the sequences. Even the 5 critical amino acids had mutations in many of the sequences.
  • Compare your tree to Figure 2 of the Wan et al. (2020) paper.
    • The two trees have different outgroups which make the trees somewhat difficult to compare. Additionally, there are quite a few sequences i my tree that are not contained in Wan et al. (2020) tree; thus, direct tree comparison is difficult.
  • Was enough information provided by Wan et al (2020) in their paper for us to reproduce their analysis?
    • There was not enough information in the Wan et al. (2020) paper to reproduce the results. FOr example, my tree had two outgroups because the accession number for Wan's phylogenetic tree did not yield results for a protein sequence. This typo/error paired with a limited "methods" section made the results very hard to replicate. Wa et al. did not follow open science protocol.

Conclusion

GenBank is a public database that provides scientists a way to share various genomic/proteomic sequences. In the midst of the COVID-19 pandemic, databases such as GenBank and software such as phylogeny.fr present valuable ways by which scientists can share/interpret data. Many of the coronavirus spike protein sequences share conserved amino acids; however, there are mutations that have allowed these viruses to evolve over time.

Acknowledgements

  • I contacted my homework partner, Ian Wright, via text to discuss the phylogenetic tree
  • I contacted my professor, Dr. Dahlquist via email to discuss the outgroups of the phylogenetic tree
  • I copied and modified the procedures shown on the Week 4 Page
  • I used the Wan et al. (2020) paper compare my phylogenetic tree and sequence alignment Figure 2 and 3 respectively
  • I used sequences from GenBank
  • I used Phylogeny.fr to construct my phylogenetic tree and sequence alignment via the information on Week 4 Talk page.
  • Except for what is noted above, this individual journal entry was completed by me and not copied from another source

Owen R. Dailey (talk) 19:41, 30 September 2020 (PDT)

References
