Purpose

The purpose of this assignment is to analyze the structure and sequence of the SARS-CoV-2 spike glycoprotein and become familiar with the biological tools to do so.

Methods/Results

Converting spike protein DNA sequence into a protein sequence

Used spike protein DNA sequence from QHD43416.1: spike protein (Severe acute respiratory syndrome coronavirus 2 isolate Wuhan-Hu-1)
FASTA DNA Sequence:

>spike protein (Severe acute respiratory syndrome coronavirus 2 isolate Wuhan-Hu-1) DNA sequence
ATGTTTGTTTTTCTTGTTTTATTGCCACTAGTCTCTAGTCAGTGTGTTAATCTTACAACCAGAACTCAAT
TACCCCCTGCATACACTAATTCTTTCACACGTGGTGTTTATTACCCTGACAAAGTTTTCAGATCCTCAGT
TTTACATTCAACTCAGGACTTGTTCTTACCTTTCTTTTCCAATGTTACTTGGTTCCATGCTATACATGTC
TCTGGGACCAATGGTACTAAGAGGTTTGATAACCCTGTCCTACCATTTAATGATGGTGTTTATTTTGCTT
CCACTGAGAAGTCTAACATAATAAGAGGCTGGATTTTTGGTACTACTTTAGATTCGAAGACCCAGTCCCT
ACTTATTGTTAATAACGCTACTAATGTTGTTATTAAAGTCTGTGAATTTCAATTTTGTAATGATCCATTT
TTGGGTGTTTATTACCACAAAAACAACAAAAGTTGGATGGAAAGTGAGTTCAGAGTTTATTCTAGTGCGA
ATAATTGCACTTTTGAATATGTCTCTCAGCCTTTTCTTATGGACCTTGAAGGAAAACAGGGTAATTTCAA
AAATCTTAGGGAATTTGTGTTTAAGAATATTGATGGTTATTTTAAAATATATTCTAAGCACACGCCTATT
AATTTAGTGCGTGATCTCCCTCAGGGTTTTTCGGCTTTAGAACCATTGGTAGATTTGCCAATAGGTATTA
ACATCACTAGGTTTCAAACTTTACTTGCTTTACATAGAAGTTATTTGACTCCTGGTGATTCTTCTTCAGG
TTGGACAGCTGGTGCTGCAGCTTATTATGTGGGTTATCTTCAACCTAGGACTTTTCTATTAAAATATAAT
GAAAATGGAACCATTACAGATGCTGTAGACTGTGCACTTGACCCTCTCTCAGAAACAAAGTGTACGTTGA
AATCCTTCACTGTAGAAAAAGGAATCTATCAAACTTCTAACTTTAGAGTCCAACCAACAGAATCTATTGT
TAGATTTCCTAATATTACAAACTTGTGCCCTTTTGGTGAAGTTTTTAACGCCACCAGATTTGCATCTGTT
TATGCTTGGAACAGGAAGAGAATCAGCAACTGTGTTGCTGATTATTCTGTCCTATATAATTCCGCATCAT
TTTCCACTTTTAAGTGTTATGGAGTGTCTCCTACTAAATTAAATGATCTCTGCTTTACTAATGTCTATGC
AGATTCATTTGTAATTAGAGGTGATGAAGTCAGACAAATCGCTCCAGGGCAAACTGGAAAGATTGCTGAT
TATAATTATAAATTACCAGATGATTTTACAGGCTGCGTTATAGCTTGGAATTCTAACAATCTTGATTCTA
AGGTTGGTGGTAATTATAATTACCTGTATAGATTGTTTAGGAAGTCTAATCTCAAACCTTTTGAGAGAGA
TATTTCAACTGAAATCTATCAGGCCGGTAGCACACCTTGTAATGGTGTTGAAGGTTTTAATTGTTACTTT
CCTTTACAATCATATGGTTTCCAACCCACTAATGGTGTTGGTTACCAACCATACAGAGTAGTAGTACTTT
CTTTTGAACTTCTACATGCACCAGCAACTGTTTGTGGACCTAAAAAGTCTACTAATTTGGTTAAAAACAA
ATGTGTCAATTTCAACTTCAATGGTTTAACAGGCACAGGTGTTCTTACTGAGTCTAACAAAAAGTTTCTG
CCTTTCCAACAATTTGGCAGAGACATTGCTGACACTACTGATGCTGTCCGTGATCCACAGACACTTGAGA
TTCTTGACATTACACCATGTTCTTTTGGTGGTGTCAGTGTTATAACACCAGGAACAAATACTTCTAACCA
GGTTGCTGTTCTTTATCAGGATGTTAACTGCACAGAAGTCCCTGTTGCTATTCATGCAGATCAACTTACT
CCTACTTGGCGTGTTTATTCTACAGGTTCTAATGTTTTTCAAACACGTGCAGGCTGTTTAATAGGGGCTG
AACATGTCAACAACTCATATGAGTGTGACATACCCATTGGTGCAGGTATATGCGCTAGTTATCAGACTCA
GACTAATTCTCCTCGGCGGGCACGTAGTGTAGCTAGTCAATCCATCATTGCCTACACTATGTCACTTGGT
GCAGAAAATTCAGTTGCTTACTCTAATAACTCTATTGCCATACCCACAAATTTTACTATTAGTGTTACCA
CAGAAATTCTACCAGTGTCTATGACCAAGACATCAGTAGATTGTACAATGTACATTTGTGGTGATTCAAC
TGAATGCAGCAATCTTTTGTTGCAATATGGCAGTTTTTGTACACAATTAAACCGTGCTTTAACTGGAATA
GCTGTTGAACAAGACAAAAACACCCAAGAAGTTTTTGCACAAGTCAAACAAATTTACAAAACACCACCAA
TTAAAGATTTTGGTGGTTTTAATTTTTCACAAATATTACCAGATCCATCAAAACCAAGCAAGAGGTCATT
TATTGAAGATCTACTTTTCAACAAAGTGACACTTGCAGATGCTGGCTTCATCAAACAATATGGTGATTGC
CTTGGTGATATTGCTGCTAGAGACCTCATTTGTGCACAAAAGTTTAACGGCCTTACTGTTTTGCCACCTT
TGCTCACAGATGAAATGATTGCTCAATACACTTCTGCACTGTTAGCGGGTACAATCACTTCTGGTTGGAC
CTTTGGTGCAGGTGCTGCATTACAAATACCATTTGCTATGCAAATGGCTTATAGGTTTAATGGTATTGGA
GTTACACAGAATGTTCTCTATGAGAACCAAAAATTGATTGCCAACCAATTTAATAGTGCTATTGGCAAAA
TTCAAGACTCACTTTCTTCCACAGCAAGTGCACTTGGAAAACTTCAAGATGTGGTCAACCAAAATGCACA
AGCTTTAAACACGCTTGTTAAACAACTTAGCTCCAATTTTGGTGCAATTTCAAGTGTTTTAAATGATATC
CTTTCACGTCTTGACAAAGTTGAGGCTGAAGTGCAAATTGATAGGTTGATCACAGGCAGACTTCAAAGTT
TGCAGACATATGTGACTCAACAATTAATTAGAGCTGCAGAAATCAGAGCTTCTGCTAATCTTGCTGCTAC
TAAAATGTCAGAGTGTGTACTTGGACAATCAAAAAGAGTTGATTTTTGTGGAAAGGGCTATCATCTTATG
TCCTTCCCTCAGTCAGCACCTCATGGTGTAGTCTTCTTGCATGTGACTTATGTCCCTGCACAAGAAAAGA
ACTTCACAACTGCTCCTGCCATTTGTCATGATGGAAAAGCACACTTTCCTCGTGAAGGTGTCTTTGTTTC
AAATGGCACACACTGGTTTGTAACACAAAGGAATTTTTATGAACCACAAATCATTACTACAGACAACACA
TTTGTGTCTGGTAACTGTGATGTTGTAATAGGAATTGTCAACAACACAGTTTATGATCCTTTGCAACCTG
AATTAGACTCATTCAAGGAGGAGTTAGATAAATATTTTAAGAATCATACATCACCAGATGTTGATTTAGG
TGACATCTCTGGCATTAATGCTTCAGTTGTAAACATTCAAAAAGAAATTGACCGCCTCAATGAGGTTGCC
AAGAATTTAAATGAATCTCTCATCGATCTCCAAGAACTTGGAAAGTATGAGCAGTATATAAAATGGCCAT
GGTACATTTGGCTAGGTTTTATAGCTGGCTTGATTGCCATAGTAATGGTGACAATTATGCTTTGCTGTAT
GACCAGTTGCTGTAGTTGTCTCAAGGGCTGTTGTTCTTGTGGATCCTGCTGCAAATTTGATGAAGACGAC
TCTGAGCCAGTGCTCAAAGGAGTCAAATTACATTACACATAA

Copied and pasted sequence into NCBI Open Reading Frame Finder
Protein sequence:

>lcl|ORF1
MFVFLVLLPLVSSQCVNLTTRTQLPPAYTNSFTRGVYYPDKVFRSSVLHS
TQDLFLPFFSNVTWFHAIHVSGTNGTKRFDNPVLPFNDGVYFASTEKSNI
IRGWIFGTTLDSKTQSLLIVNNATNVVIKVCEFQFCNDPFLGVYYHKNNK
SWMESEFRVYSSANNCTFEYVSQPFLMDLEGKQGNFKNLREFVFKNIDGY
FKIYSKHTPINLVRDLPQGFSALEPLVDLPIGINITRFQTLLALHRSYLT
PGDSSSGWTAGAAAYYVGYLQPRTFLLKYNENGTITDAVDCALDPLSETK
CTLKSFTVEKGIYQTSNFRVQPTESIVRFPNITNLCPFGEVFNATRFASV
YAWNRKRISNCVADYSVLYNSASFSTFKCYGVSPTKLNDLCFTNVYADSF
VIRGDEVRQIAPGQTGKIADYNYKLPDDFTGCVIAWNSNNLDSKVGGNYN
YLYRLFRKSNLKPFERDISTEIYQAGSTPCNGVEGFNCYFPLQSYGFQPT
NGVGYQPYRVVVLSFELLHAPATVCGPKKSTNLVKNKCVNFNFNGLTGTG
VLTESNKKFLPFQQFGRDIADTTDAVRDPQTLEILDITPCSFGGVSVITP
GTNTSNQVAVLYQDVNCTEVPVAIHADQLTPTWRVYSTGSNVFQTRAGCL
IGAEHVNNSYECDIPIGAGICASYQTQTNSPRRARSVASQSIIAYTMSLG
AENSVAYSNNSIAIPTNFTISVTTEILPVSMTKTSVDCTMYICGDSTECS
NLLLQYGSFCTQLNRALTGIAVEQDKNTQEVFAQVKQIYKTPPIKDFGGF
NFSQILPDPSKPSKRSFIEDLLFNKVTLADAGFIKQYGDCLGDIAARDLI
CAQKFNGLTVLPPLLTDEMIAQYTSALLAGTITSGWTFGAGAALQIPFAM
QMAYRFNGIGVTQNVLYENQKLIANQFNSAIGKIQDSLSSTASALGKLQD
VVNQNAQALNTLVKQLSSNFGAISSVLNDILSRLDKVEAEVQIDRLITGR
LQSLQTYVTQQLIRAAEIRASANLAATKMSECVLGQSKRVDFCGKGYHLM
SFPQSAPHGVVFLHVTYVPAQEKNFTTAPAICHDGKAHFPREGVFVSNGT
HWFVTQRNFYEPQIITTDNTFVSGNCDVVIGIVNNTVYDPLQPELDSFKE
ELDKYFKNHTSPDVDLGDISGINASVVNIQKEIDRLNEVAKNLNESLIDL
QELGKYEQYIKWPWYIWLGFIAGLIAIVMVTIMLCCMTSCCSCLKGCCSC
GSCCKFDEDDSEPVLKGVKLHYT

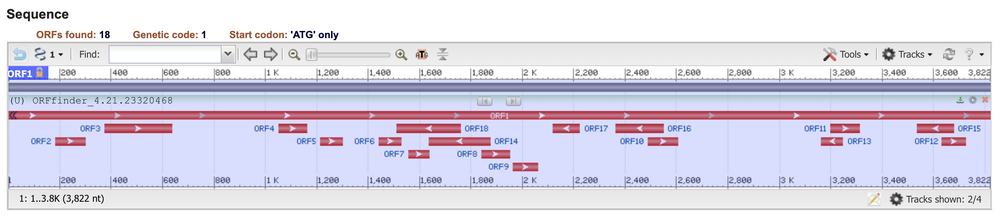

Sequence diagram:

Also copied and pasted nucleotide sequence in ExPASY Translate tool

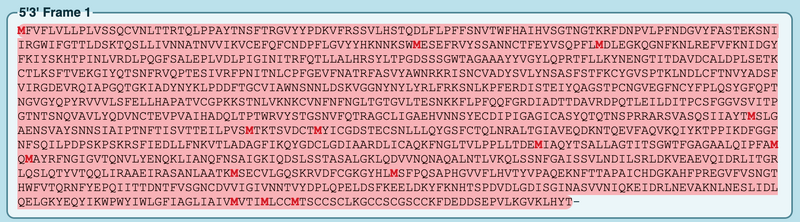

5'3' Reading frame 1:

The correct reading frame is reading frame 1, or ORF1 because it runs the span of the entire sequence, goes 5' to 3' and starts with M at the beginning, denoting an AUG start codon.

UniProt KB database search

Searched for "SARS-CoV" in UniProt Knowledgebase (UniProt KB).
- Received 818 total results (70 reviewed, 748 unreviewed)
Used the entry with accession number "P59594", which was for the SARS-CoV spike protein.(reviewed)
- Information provided:
  - function of each subunit
  - molecular functions
  - biological processes its involved in
  - taxonomy
  - virus hosts
  - proteomes
  - subcellular location
  - structural topology
  - cellular components
  - pathology and biotech
  - molecular processing locations
  - amino acid modifications
  - post-translational modifications
  - family and domains
  - cleavage sites
  - structure visualizations
  - protein interactions
  - genomic sequence
  - similar proteins
  - cross-references

Predicting the SARS-CoV-2 spike protein sequence

From Walls, A. C., Park, Y. J., Tortorici, M. A., Wall, A., McGuire, A. T., & Veesler, D. (2020). Structure, function, and antigenicity of the SARS-CoV-2 spike glycoprotein. Cell. DOI: 10.1016/j.cell.2020.02.058
- 6VXX(spike glycoprotein closed state)
  - Pasted FASTA amino acid sequence into PredictProtein server.
  - Sequence length: 1281
  - 84 aligned proteins and 31 matched PDB structures

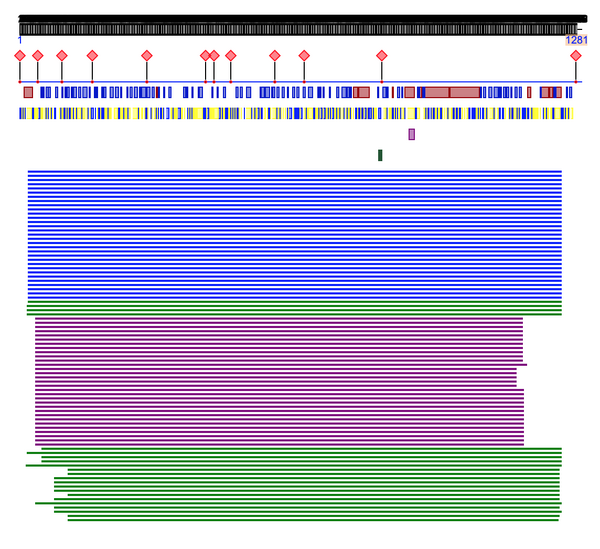

  - Predicted protein:

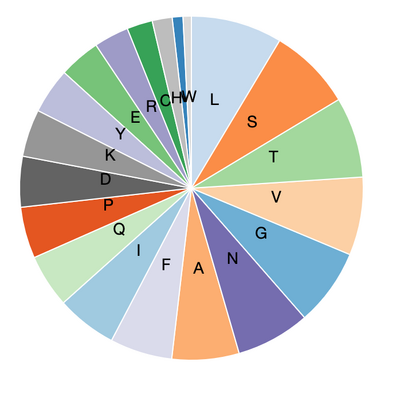

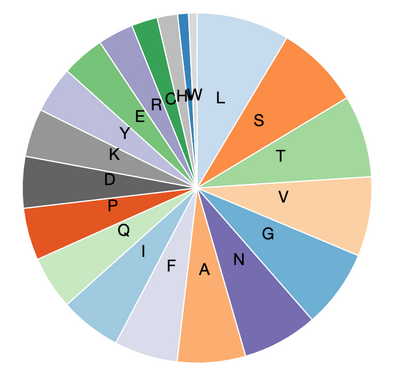

  - Amino acid composition:
- 6VYB(spike glycoprotein open state)
  - Pasted FASTA amino acid sequence into PredictProtein server.
  - Sequence length: 1281
  - 86 aligned proteins and 31 matched PDB structures

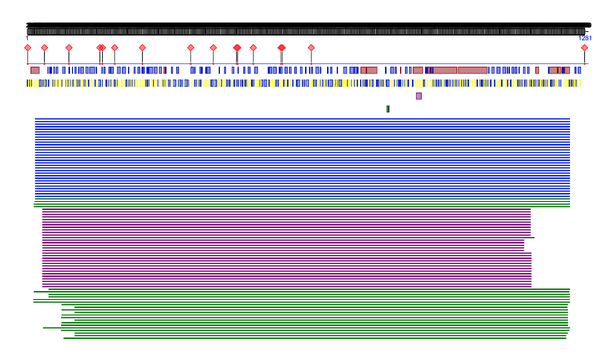

  - Predicted protein:
  - Amino acid composition:
Structure annotations(left side of page):
- solvent accessibility and secondary structure
- transmembrane helices
- protein disorder and flexibility
- disulphide bridges
Function annotations(left side of page):
- effect of point mutations
- gene ontology terms
- subcellular localization
- binding sites
The UniProt database contains information that has been already gathered about a specific protein while the PredictProtein server can predict the result of different structural or functional annotations to the known sequence, such as disulphide bridges or point mutations.

Analyzing the structure of the spike protein

From Walls et al. (2020): 6VYB
- This is the SARS-CoV-2 spike ectodomain structure (open state)
- In PDB: Under 3D view, clicked "structure"
- Changed view to JSmol

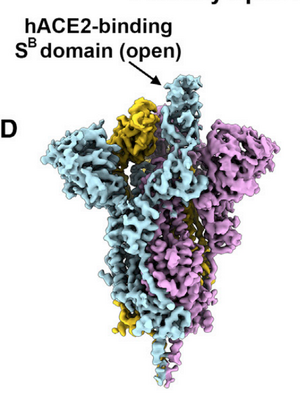

- Figure 3D from Walls et al. (2020)(left) and screenshot from PDB(right)

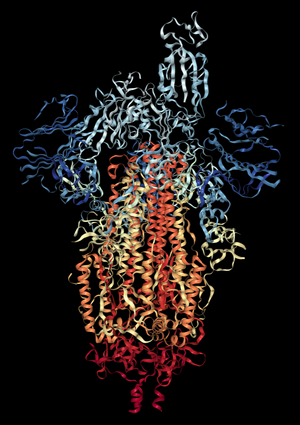

- Under NGL view on PDB - N and C terminus can be seen, denoted as blue and red, respectively
  - Black background, cartoon style, rainbow color

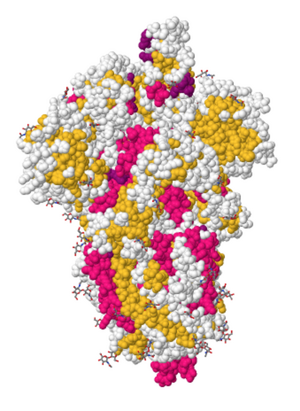

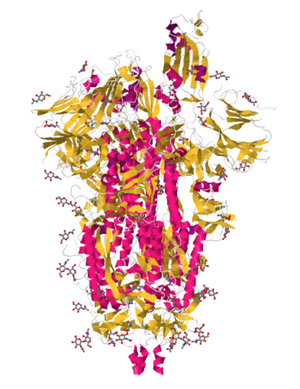

- Under JSmol view on PDB - alpha helices(pink) and beta sheets(yellow)
  - Secondary structure color, cartoon style
  - The findings do match what was found by the PredictProtein server

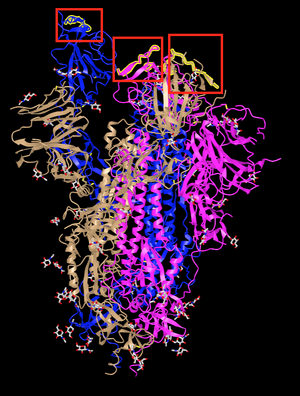

- Searched for "6VYB" in NCBI Structure home page and clicked on "full-featured 3D viewer"
- In the upper right corner, searched for the amino acid sequence from positions 486 to 505 in figure 2C in Walls et al. (2020)
- The boxed and highlighted portions are 9 of the 14 key residues for binding hACE2

Data and Files

Research project

In Yan et al. (2020), the difference in residues in RBD-PD complex of SARS-CoV and SARS-CoV-2 resulted in weaker molecular interactions between the virus and the receptor. Interactions are important because, as found in Walls et al. (2020), the 2003-04 SARS reemergence was much less deadly than the 2002 outbreak because the virus had a weaker interaction with ACE2, and thus the patients showed milder symptoms. This research project will further explore the role that certain amino acids play in the structure-function relationship of SARS-CoV-2 and ACE2.
We will analyze sequences from ACE2 sequences from humans, mice, and bats, since it is found or theorized that the virus can infect them.
The sequences will be taken from UniProt and we will compare them through a multiple sequence alignment. Their 3D structures will also be compared using the NCBI structure function, the protein data bank, or other programs to see if any structural make an impact on the ability of the virus's S protein to interact with the host environment.

Scientific Conclusion

This week we used several tools, such as the NCBI open reading frame finder and the Protein databank to view sequences and structures of the SARS-CoV-2 spike glycoprotein. The data that was found was compared to the findings in the paper from the previous week. By doing this exercise, the we have now read about the function and have visualized the structure of the spike glycoprotein. The goal is to put them both together in a final project.

Acknowledgements

My homework partners for the week were Drew Cartmel and Jack Menzagopian
I followed the protocol on BIOL368/S20:Week 13 to complete this assignment
- I also copied the links to the tools and pages from the assignment page
Followed the wiki syntax on Wikipedia:Manual of Style/Images to format screenshots
I texted Madeleine King for help on finding the amino acid sequences on the SARS-CoV-2 S structure
Except for what is noted above, this individual journal entry was completed by me and not copied from another source

Nyeo2 (talk) 20:45, 22 April 2020 (PDT)

References

ExPASy. (2020). Translate. Retrieved April 22, 2020 from https://web.expasy.org/translate/.
NCBI. (2020). PDB ID 6VYB: SARS-CoV-2 spike ectodomain structure (open state). Retrieved April 22, 2020 from https://www.ncbi.nlm.nih.gov/Structure/pdb/6VYB
OpenWetWare. (2020). BIOL368/S20:Week 13. Retrieved April 22, 2020, from https://openwetware.org/wiki/BIOL368/S20:Week_13.
PredictProtein. (2020). PredictProtein Open. Retrieved April 22, 2020 from https://open.predictprotein.org/.
RCSB Protein Data Bank. (2020). 6VYB and 6VXY. Retrieved April 22, 2020 from https://www.rcsb.org/structure/6VYB and https://www.rcsb.org/structure/6VXY
UniProt KB. Retrieved April 22, 2020 from http://www.uniprot.org
Wikipedia:Manual of Style/Images. Retrieved April 22, 2020 from https://en.wikipedia.org/wiki/Wikipedia:Manual_of_Style/Images#Horizontal_placement
