Using YEASTRACT to Infer which Transcription Factors Regulate a Cluster of Genes

In the previous analysis using STEM, we found a number of gene expression profiles (aka clusters) which grouped genes based on similarity of gene expression changes over time. The implication is that these genes share the same expression pattern because they are regulated by the same (or the same set) of transcription factors. We will explore this using the YEASTRACT database.

  1. Open the gene list in Excel for the profile/cluster that you analyzed for the Week 11 Assignment.
    • Copy the list of gene IDs onto your clipboard.
  2. Launch a web browser and go to the YEASTRACT database.
    • On the left panel of the window, click on the link to Rank by TF.
    • Paste your list of genes from your cluster into the box labeled ORFs/Genes.
    • Check the box for Check for all TFs.
    • Accept the defaults for the Regulations Filter (Documented, DNA binding plus expression evidence)
    • Do not apply a filter for "Filter Documented Regulations by environmental condition".
    • Rank genes by TF using: The % of genes in the list and in YEASTRACT regulated by each TF.
    • Click the Search button.
  3. Answer the following questions:
    • In the results window that appears, the p values colored green are considered "significant", the ones colored yellow are considered "borderline significant" and the ones colored pink are considered "not significant". How many transcription factors are green or "significant"?
    • List the "significant" transcription factors on your wiki page, along with the corresponding "% in user set", "% in YEASTRACT", and "p value".
Name  % in user set  % in Yeastract p-value
Sfp1p 80.05 7.13 0.0000000
Stb5p 32.90 10.93 0.00000000
Cse2p 25.13 12.50 0.00000000
Yhp1p 43.52 13.05 0.00000000
Yox1p 44.82 12.11 0.00000000
Cyc8p 0.52 100 0.00000000
Snf7p 0.26 100 0.0000000
Swi5p 43.52 8.64 8.11E-13
Ace2p 82.38 6.66 2.362E-12
Msn2p 64.51 7.30 7.806E-12
Fkh2p 20.73 11.46 1.1274E-11
YLR278C 14.77 13.41 2.8142E-11
Snf2p 43.78 8.12 1.8901E-10
Gcr2p 30.31 8.94 1.90866E-9
Rif1p 12.18 13.13 3.21758E-9
Mig2p 10.62 13.36 1.87403E-8
Swi3p 37.82 8.02 2.14366E-8
Hap1p 10.88 12.80 4.49265E-8
Snf6p 50.00 7.31 4.95452E-8
Pdr1p 30.38 8.28 1.48334E-7
Mcm1p 34.46 7.96 2.07286E-7
Pib2p 11.40 11.86 2.20858E-7
Snf5p 29.53 8.30 2.54205E-7
Tup1p 49.48 7.18 2.90462E-7
Met28p 8.03 13.54 6.33075E-7
Mig1p 12.69 10.91 6.466642E-7
Ino4p 19.69 9.13 1.10712E-6
Mga2p 24.09 8.40 2.73303E-6
Yap6p 21.76 8.62 3.32925E-6
Ssn2p 9.33 11.65 3.88274E-6
Zap1p 30.38 7.78 4.42149E-6
Spt20p 37.05 7.38 6.41052E-6
Sko1p 20.47 8.54 9.55647E-6
Met31p 10.88 10.32 1.6205E-5
Cst6p 47.93 6.86 1.62379E-5
Cbf1p 30.05 7.62 1.73361E-5
Msn4p 45.85 6.90 2.17067E-5
Spt2p 10.36 10.36 2.27764E-5
Rlm1p 16.32 8.86 2.63352E-5
Srb8p 13.73 9.27 3.36974E-5
  • Are CIN5, GLN3, HMO1, and ZAP1 on the list?
      • ZAP1 is on the list
  1. Copy and paste the list of transcription factors you identified (plus CIN5, GLN3, HMO1, and ZAP1) into both the "Transcription factors" field and the "Target ORF/Genes" field.
    • We are going to generate several regulation matrices, with different "Regulations Filter" options.
      • For the first one, accept the defaults: "Documented", "DNA binding plus expression evidence"
      • Click the "Generate" button.
      • In the results window that appears, click on the link to the "Regulation matrix (Semicolon Separated Values (CSV) file)" that appears and save it to your Desktop. Rename this file with a meaningful name so that you can distinguish it from the other files you will generate.
      • Repeat these steps to generate a second regulation matrix, this time applying the Regulations Filter "Documented", "Only DNA binding evidence".
      • Repeat these steps a third time to generate a third regulation matrix, this time applying the Regulations Filter "Documented", DNA binding and expression evidence".
  2. For the mathematical model that we will build in class, we need to define a gene regulatory network of transcription factors that regulate other transcription factors. We can use YEASTRACT to assist us with creating the network. We want to generate a network with approximately 15-30 transcription factors in it.
    • You and your partner will need to analyze the same gene regulatory network for your modeling project. Compare the lists of "significant" factors that you and your partner generated. How many of the transcription factors appear in both of your lists? You will use these transcription factors and add CIN5, GLN3, HMO1, and ZAP1 if they are not in your list. If the overlap in the lists between you and your partner does not add up to the 15-30 factors required, use your discretion to add transcription factors from either of your lists (the non-overlapping ones) until you reach a list of 15-30 factors. Explain in your electronic notebook how you decided on which transcription factors to include. Record the list and your justification in your electronic lab notebook.
    • List of Transcription Factors
      • CIN5
      • HMO1
      • GLN3
      • ZAP1
      • ACE2
      • FKH2
      • HAP1
      • SWI3
      • TUP1
      • MGA2
      • CYC8
      • MSN4
      • YOX1
      • SWI5
      • MIG2
      • MET28
      • RIF1
      • YLR278C
      • YHP1
      • SFP1
      • GRC2
      • INO4
      • STB5
      • MCM1
      • MSN2
    • Go back to the YEASTRACT database and follow the link to Generate Regulation Matrix.
    • Copy and paste the list of transcription factors you identified (plus CIN5, GLN3, HMO1, and ZAP1) into both the "Transcription factors" field and the "Target ORF/Genes" field.
    • We are going to generate several regulation matrices, with different "Regulations Filter" options.
      • For the first one, accept the defaults: "Documented", "DNA binding plus expression evidence"
      • Click the "Generate" button.
      • In the results window that appears, click on the link to the "Regulation matrix (Semicolon Separated Values (CSV) file)" that appears and save it to your Desktop. Rename this file with a meaningful name so that you can distinguish it from the other files you will generate.
      • Repeat these steps to generate a second regulation matrix, this time applying the Regulations Filter "Documented", "Only DNA binding evidence".
      • Repeat these steps a third time to generate a third regulation matrix, this time applying the Regulations Filter "Documented", DNA binding and expression evidence".

Analyzing and Visualizing Your Gene Regulatory Networks

We will analyze the regulatory matrix files you generated above in Microsoft Excel and visualize them using GRNsight to determine which one will be appropriate to pursue further in the modeling.

  1. First we need to properly format the output files from YEASTRACT. You will repeat these steps for each of the three files you generated above.
    • Open the file in Excel. It will not open properly in Excel because a semicolon was used as the column delimiter instead of a comma. To fix this, Select the entire Column A. Then go to the "Data" tab and select "Text to columns". In the Wizard that appears, select "Delimited" and click "Next". In the next window, select "Semicolon", and click "Next". In the next window, leave the data format at "General", and click "Finish". This should now look like a table with the names of the transcription factors across the top and down the first column and all of the zeros and ones distributed throughout the rows and columns. This is called an "adjacency matrix." If there is a "1" in the cell, that means there is a connection between the trancription factor in that row with that column.
    • Save this file in Microsoft Excel workbook format (.xlsx).
    • Check to see that all of the transcription factors in the matrix are connected to at least one of the other transcription factors by making sure that there is at least one "1" in a row or column for that transcription factor. If a factor is not connected to any other factor, delete its row and column from the matrix. Make sure that you still have somewhere between 15 and 30 transcription factors in your network after this pruning.
    • For this adjacency matrix to be usable in GRNmap (the modeling software) and GRNsight (the visualization software), we need to transpose the matrix. Insert a new worksheet into your Excel file and name it "network". Go back to the previous sheet and select the entire matrix and copy it. Go to you new worksheet and click on the A1 cell in the upper left. Select "Paste special" from the "Home" tab. In the window that appears, check the box for "Transpose". This will paste your data with the columns transposed to rows and vice versa. This is necessary because we want the transcription factors that are the "regulatORS" across the top and the "regulatEES" along the side.
    • The labels for the genes in the columns and rows need to match. Thus, delete the "p" from each of the gene names in the columns. Adjust the case of the labels to make them all upper case.
    • In cell A1, copy and paste the text "rows genes affected/cols genes controlling".
  2. Now we will look at some of the network properties. Again, repeat these steps for each of the three gene regulatory matrices you generated above. See this file for an example of how to do the following instructions.
    • Create a new worksheet and call it "degree". Copy and paste your adjacency matrix from the "network" sheet into this new worksheet.
    • In the first empty cell in column A, type "Out-degree". In the cell to the right of that in Column B, type the equation =SUM( and select the range of cells in column B that has 1's and 0's in it, close the parentheses, and press Enter. This quantity is the number of genes that the transcription factor in that column is controlling, or the out-degree. Copy and paste that equation across all of the columns.
    • In Cell 1 of the first empty column to the right of the adjacency matrix, type "In-degree". In Cell 2 of this column, type the equation =SUM( and select the entire row of 1's and 0's, close the parentheses, and press Enter. This quantity is the number of transcription factors that regulate the gene in that row, or the in-degree. Copy and paste the equation down the entire column, including the row that contains the out-degree sums.
    • The number in the lower right-hand corner, the sum of sums, is the total number of edges in the adjacency matrix. We would like to see about 50 (40-60 or so) edges in the matrix. If the matrix is too dense, it will slow down the modeling program because it will be difficult to estimate the parameters in the model.
    • We want to plot the degree distributions for each of your gene regulatory networks. In the "degree" worksheet, create three columns to the right called "Frequency", "In-degree total", and "Out-degree total". In the "Frequency" column, number sequentially from 1 to the largest degree number in your calculations above. In the "In-degree total" column, type the number of genes with that in-degree for each of the frequencies. In the "Out-degree total" column, type the number of genes with that out-degree for each of the frequencies.
    • Select the "Frequency", "In-degree total", and "Out-degree total" columns. Go to the "Insert" tab and select the column chart type to insert a plot of the degree distribution. Copy and paste the charts for each gene regulatory matrix into your PowerPoint presentation.
    • Deleted Genes For ONLY DNA BINDING EVIDENCE
      • Deleted:
      • CSE2
      • SNF7
      • SSN2
      • SPT2
    • The following TFs were deleted from the medium-scaled GRN. There were deleted because while they were included - the nodes were equal to 38 and there were 102 edges. We deleted the following and were able to get 26 nodes with 58 edges.
      • SRB8
      • RLM1
      • SPT20
      • MIG1
      • CST6
      • MET31
      • SPT2
      • SNF5
      • PIB2
      • SNF6
      • SNF2
      • CBF1
      • SSN2
      • SKO1
      • YAP6
    • Deleted Genes For BINDING and EXPRESSION
      • STB5
      • CSE2
      • YHP1
      • YOX1
      • CYC8
      • SNF7
      • RIF1
      • GCR2
      • SWI3
      • PIB2
      • SNF5
      • MIG1
      • MGA2
      • SSN2
      • ZAP1
      • SPT20
      • CST6
      • SPT2
      • SRB8
      • GLN3
      • HMO1
    • The following were also deleted due to not being a part of the major/main regulatory network:
      • HAP1
      • RML1
      • SNF2
    • For the degree sheet, I entered the said formula into my cells. However, for the in degree column, a different approach was used where I just entered the numbers manually.
    • For the frequency, I calculated the max number for the out degree and in degree and from there, the frequency of the number went from 0 to the max. After that, I entered:
      • =COUNTIF(range,"=0,1,2,..,max")
    • I was then able to get the frequencies of certain numbers for how many genes regulate vs. are regulated.
  3. Now we will visualize what these gene regulatory networks look like with the GRNsight software.
    • Go to the GRNsight home page (you can either use the version on the home page or the beta version, which has slightly different visualization properties).
    • Select the menu item File > Open and select one of the regulation matrix .xlsx file that has the "network" worksheet in it that you formatted above. If the file has been formatted properly, GRNsight should automatically create a graph of your network. Move the nodes (genes) around until you get a layout that you like and take a screenshot of the results. Paste it into your PowerPoint presentation. Repeat with the other two regulation matrix files. You will want to arrange the genes in the same order for each screenshot so that the graphs can be easily compared.

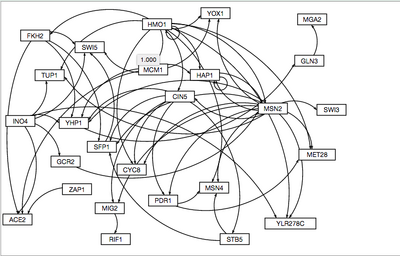

This image is the visualization of the resulting network from the Only DNA binding evidence option. There are 58 edges - or connections.

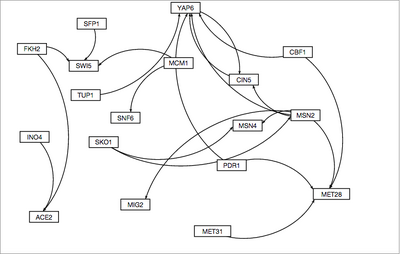

This image is the visualization of the resulting network from the DNA binding and expression evidence. There are 21 edges.
  1. Write a paragraph discussing and explaining the results of each aspect of today's work.
    • Determining candidate transcription factors that regulate a cluster of genes from your dataset.
    • Creating three candidate gene regulatory networks.
    • Determining the total number of edges and degree distribution of your three gene regulatory networks.
    • Visualizing the networks.
    • Choosing a particular gene regulatory network to pursue for the modeling.
We determined candidates for our transcription factors that regulate a cluster of genes from out dataset based on knowledge I have with the WT data for S. cerevisiae. When there was overlap for genes on the list, we chose them. Furthermore, in searching the literature for information about cold shock when writing my research proposal, certain genes were mentioned such as TUP1, which we have also chosen. For others such as CYC8, their % in Yeastract was 100, so we believed that it would interesting to include these factors. We also wanted variety with our TFs with regards to their p-value. For instance, YOX1 is 0.000000 versus MSN4, which is 2.17067E-5.
The GRNs were created from the generated list from Yeastract. From the resulting network, we measured the in and out degree distribution frequencies. From those, I created a graph from my those numbers. The first sheet contained 41 genes with 384 edges - too many connections to be mapped out by GRNmap. Therefore, this would not be a potential GRN. The second sheet was modified to have 26 nodes and 58 edges. The last sheet - binding and expression evidence - contained 17 genes with 21 connections. From these distributions we chose to look at the medium-scaled GRN. However, the medium-scaled GRN underwent modifications and various deletions to bring the number of nodes between 15 - 30 with 50-60 edges. Like previously stated, we now have 26 nodes with 58 edges.
