CHEM-ENG 535: Microfluidics and Microscale Analysis in Materials and Biology

Home        People        Wiki Textbook

Hydrodynamic focusing is when a fluid of interest with a low flow rate is entered into a system of sheath fluid with higher flow rates. The fluid of interest is compressed by the sheath fluids. Compressed fluids have smaller diffusion lengths and as an effect, they see shorter mixing times [1].

Passive vs. Active Mixing

Figure 1. schematic representations of some active and passive mixers.

In microsystems energy can be applied to fluids to induce mixing using two major methods. Active mixing makes use of external energy input to create vibrations within the system. Energy sources used for this are ultrasound, magneto-hydrodynamic action, piezoelectric vibrating membranes, acoustic vibrations, and electro kinetic instabilities. Mixing can also be induced by methods of passive mixing, which uses energy from pumping and hydrostatic potential to modify aspects of fluid flow along channels to stretch streamlines and improve mixing. At the microscale turbulence is uncommon and flow after junctions often consists of separate lamellae. For this reason, considerations for mixing strategies are important. Complex flow patterns may be used to achieve complete mixing however it becomes difficult to model the fluid flows. For cases where the exact position and duration of mixing are of interest, it is desirable to achieve mixing without interfering with laminar flow since it can be modeled with high precision. This can be achieved with hydrodynamic focusing [2].

Hydrodynamic Focusing

Figure 2. The width of the focused stream is determined by the ratio of the pressure in the side inlets and central inlet. α = Ps/Pi. (a) 0.5 (b) 1.0 (c) 1.1 (d) 1.2.
Figure 3. Electronic schematic representation of the Knight et al. device. Graph of focused stream width (Wf) vs. ratio of inlet pressures (α). Line on graph analytically determined by equation in text. Experimental data points plotted on graph.
Figure 4. Hydrodynamic focusing device. The white fluid flows from the left to right and is focused by the top and bottom steams that intersect perpendicularly.

Hydrodynamic focusing is a way of controlling continuous flow mixing by confining streams to small geometries where mixing is dominated by diffusion. The major advantage of this mixing strategy is the achievement of very short complete mixing times while maintaining a highly controllable system which can be precisely modeled. In addition to knowing the distance and duration of mixing, the distance post mixing is proportional to time since the mixing point. In this system, there are commonly three inlet streams: one central stream to be focused and two streams that converge perpendicularly to the central stream. This will cause the width of the central channel to decrease, increasing the surface area and decreasing the distance needed to travel for diffusion [4]. Figure 2 shows the principal of hydrodynamic focusing. This page covers hydrodynamic focusing in terms of passive mixing but it can also be used for flow cytometry and cell sorting, sensors and separations.

The important parameters here are the inlet pressures. In order to achieve narrow focusing of the inlet fluid, the side streams should have a higher pressure. The degree of focusing of the central lamella is not dependent on the applied pressure to the system but rather on the ratio of the pressures of the side channels to the central channel. In the literature is ratio is denoted by α = Ps/Pi. There is an upper and lower limit on the value of α for which focusing is effective. For a system with α > αmax the central stream is pinched off and the side channels flow into the inlet channel. For a system with α<αmin the central inlet is not focused but rather flows into the side streams. The parameters αmin and αmax are determined by the geometry of the system, and the overall magnitude of the pressure of the whole system. Figure 3 below shows the effect of α on the focusing stream.

The system described by Knight et al. was modeled by an electric circuit, shown in Figure 4. In the analogy to an electric circuit, flow is driven by the voltage Vi (central inlet) and αVi (side inlets) and the channel resistance by R (side inlets) and γR (central inlet) and σR (outlet). The parameters γ and σ reflect differences in geometry and were determined analytically according to resistance to volumetric flow in rectangular channels. Sigma and gamma are used to determine αmin and αmax by the relationship αmin=σ/(σ+γ) and αmax=(1+2σ)/2σ. Figure 4 also contains a graph of width of focused channel (Wf)vs. α.

If the assumption is made that ratio of inlet fluid flux to outlet fluid flux is the same as the inlet current and outlet current in the circuit analogy, then an expression for the focusing width can be achieved: [math]\displaystyle{ \frac {W_f}{W_c} = \frac {B*(1+2\sigma-2\sigma \alpha)}{(1+2\sigma \gamma \alpha)} }[/math] where Wf is the width of the focused lamellae and Wc is the width of the channel and B is a correctional constant that depends on channel geometry. This relationship provides the insight that increasing the resistance of the central inlet channel in relation to the side channel (increase γ) will result in a more focused stream. Knight et al. also did an analysis on the mixing time of their system. They found that [math]\displaystyle{ \tau_{mix}= \frac {W_f^2}{\pi^2 D} }[/math] where \tau;mix is the time and D is the diffusion constant of the fluid being mixed. By increasing α to approach αmax, τmix approached 0. They found that a mixing time of 10 μs was easily reproducible [4].

Diffusional Mixing

Fick’s first law is an expression for the diffusive flux in terms of the concentration gradient and the diffusivity coefficient. Diffusional flux is the amount of a fluid that will flow through a unit area per unit time and is expressed as: [math]\displaystyle{ J = -D \Delta C }[/math]. Observing Fick’s law it is apparent that microsystems are ideal for maximizing diffusional mixing.

The Reynolds number, Péclet number and the Fourier number are dimensionless quantities that are used to model convective or diffusive systems.

[math]\displaystyle{ Re = \frac {inertial forces}{viscous forces} = \frac {Ud}{u} }[/math] where U is the average fluid velocity, d is the characteristic length, and μ is the viscosity of the fluid. With Re < 2100 flow is considered laminar.

[math]\displaystyle{ Pe = \frac {advective transport}{diffusive transport} = \frac {Ud}{D} }[/math] where D is the diffusional coefficient. At low Pe the mas transport is considered to be primarily diffusional as opposed to convectional.

[math]\displaystyle{ Fo = \frac {avg residence time}{diffusive mixing time} = \frac {Tr}{Tm} =\frac {L/U}{d2/D} }[/math] where L is longitudinal length [3].

Veenstra et al. demonstrated that the channel width may be decreased in order to increase mixing. The equation [math]\displaystyle{ t = \frac{pi\cdot x^{1/2}}{4\cdot D} }[/math] describes the time it takes for a particle to diffuse across a distance depending on the diffusion constant in 1-D [3].

The equation [math]\displaystyle{ l = \frac{t U}{h w} }[/math] (2) describes the necessary length, width and height for complete mixing where U is volumetric flow rate, l is length, w is width and h is height of the channel.

Therefore, when the distance (x) is decreased, the time needed for the particle to travel that distance (t) decreases too. As shown in Figure 5, two streams would be flown parallel into the same chamber and then the width of the channel will contract causing increased mixing. As shown in Figure 6, it was recorded that the diffusion time was reduced from 35 to 4 seconds when the channel width was reduced from 300 µm; to 100 µm;. In addition, the pressure drop was increased dramatically as the channel width was reduced too, as shown in Figure 7 [3].

Figure 5. Design of a mixing device. By narrowing the channel width diffusive mixing can be increased.
Figure 6. Time for mixing as a function of channel width. See equation in text.
Figure 7. Pressure drop as a function of channel width. The length over which pressure measurements were taken are at the length required for complete mixing. See equation for length for complete mixing in text.

Device Architectures

Coaxial Tube Devices

Coaxial devices can compress the central solution in both the vertical and horizontal planes, allowing more defined, three-dimensional focusing. Common devices comprise of concentric capillary tubes, with the inner tube housing the central flow of desired test mixture, and the outer housing the inert sheath fluid (Figure 8). The dimensions of the tubes can be adjusted, along with flow conditions, to determine the flow pattern. The ability of this technique to create tightly defined flow has value in the development of nanoparticles [1].

Figure 8. Schematic of coaxial tube hydrodynamic focusing [1].

Planar On-Chip Devices

Planar devices are simple to make, and can be easily included in experiments. They lack the vertical compression of coaxial tubes, leaving most with only two-dimensional (2D) focusing. 2D focusing creates a sheet of the fluid of interest between the planes of sheath fluid. These 2D devices are produced using soft lithography and are low cost (Figure 9). They are easy to make, even with complex designs, and can be integrated easily into larger on-chip designs. Hydrodynamic focusing is induced on the central solution by introducing sheath flows on either side of the central flow, compressing it in the horizontal plane [1]. The central flow can be “decentralized” or manipulated by inducing asymmetric focusing. Asymmetric focusing uses sheath flows with different flow rates to adjust the position of the central flow [5]. Bifurification can be used to separate the products from the inert sheath fluid.

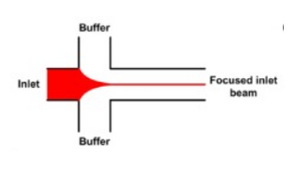

Figure 9. Schematic of two-dimensional hydrodynamic focusing with sheath inlets at 90° [1].

3D focusing on a chip is possible, but more challenging. These designs require multiple layers on-chip. This would allow sheath flow to squeeze the central flow not only from the side, like in the 2D model, but from the top and bottom as well. This is more complicated, more difficult to make, and more expensive to produce. To achieve 3D focusing on a single layer planar chip, multiple inlets must be used to introduce the sheath fluid [1].

3D Model Studies

Nagi proposed a model, using a circular cross section sample inlet and surrounded by a conical shaped sheath inlet, to study the optimum conditions for the system to have the best hydrodynamic focusing[12]. The COMSOL program was used for simulation

Firstly, with the fixed channel overall length and radius of sample inlet, they examined the effects of sample to sheath flow velocity ratio and the radius of conical sheath inlet[12]. Results in Figure 10 showed that the focusing width ratio decreased as the radius of conical sheath inlet increased, which promoted the more focused channel for ions to pass through; the velocity ratio showed that the higher sheath flow velocity, the ion can be more focused. In the second part, they examined the effects of velocity ratio and the radius of sample inlet[12]. Similar results were displayed that the increase of focusing width ratio led to the less focused channel, and higher velocity ratio led to the more focused channel. In addition, they compared their model to Kamali‘s model (square cross section sample inlet and column shaped sheath inlet) with same channel volume, sheath cross section area, and flow velocity ratio[12][13]. Results showed that the their model has a more focused channel than Kamali‘s model.

In conclusion, the three main ways to decrease the focusing width are: (1) Decrease the angle between sample and sheath flow to 60oC or less (2) Decrease the radius of sample inlet and sheath inlet (3) Decrease the sample to sheath flow velocity ratio[14].

Figure 10. Performances of hydrodynamic focusing by different radius of conical sheath inlet and flow velocity ratio[12].

Microfluidic Drifting

Microfluidic drifting can be used to induce hydrodynamic focusing by implementing a curved microfluidic channel on the device. Microfluidic drifting is when the flow of the fluid of interest experiences drift in the lateral direction. This drift is caused by the curve of the channel, which causes a centrifugal effect and influences secondary flow within the fluids. The extent of the microfluidic drift depends on the flow rate of the sheath fluid and the flow rate of the fluid of interest. For three-dimensional hydrodynamic focusing the fluid of interest can be flattened into a vertical sheet using the microfluidic drifting method and then compressed in the horizontal direction using traditional methods of introducing streams of sheath fluid [7].


The major applications of hydrodynamic focusing are flow cytometry and fast mixing.

Flow Cytometry

Cytometry is the counting of cells in a solution. It is very important to the study of life sciences involving biological components. Hydrodynamic focusing allows for accurate cell population sizing [6]. Controlling the width of the central flow is crucial to cell characterization procedures, because it must match the size of the cell of the measurements will be inaccurate [5]. The downside to cytometry with 2D focusing is the inability to produce uniform velocity which can result in undetected particles. Additional details on this technique can be found here.

Fast Mixing

Laminar mixing is an asset that draws researchers to the microfluidic scale. Mixing that is otherwise impossible or dangerous to the sample can be completed in the microscale because mixing can occur quickly without having to introduce turbulence. This ability is brought to the next level using hydrodynamic focusing. In already small channels (on the order of 10 µm), hydrodynamic focusing allows streams of the fluid of interest to reach sizes in the order on nanometers. Molecules introduced through side flow can diffuse into the stream easily at this scale and mixing occurs quickly and without turbulence. Devices utilizing this can be made using standard photolithography [9]. One particular example of this is the study of protein folding [8].

Protein Folding

Figure 11. Hydrodynamic focusing device intended for fast mixing of a protein from a denaturant solution to a buffer solution, allowing protein to begin folding. A confocal microscope is used for detection of protein along the observation channel post mixing.

One significant application of hydrodynamic focusing in the context of passive mixing is the study of protein folding. There has been a lot of research done on the kinetics of protein folding but mixing times have limited research done on proteins with folding times with less than 10 µs. The folding time of proteins may vary from nanoseconds to seconds or even longer. When studying the kinetics of protein folding, hydrodynamic focusing may be used. Hydrodynamic dynamic focusing uses laminar flow with small mixing times as opposed to turbulent flow which would have small mixing times but does not allow precise numeric simulations [10]. As seen in Figure 11, a solution of protein and denaturant is flown in the middle as the focused stream and buffer is flown in the sides as the focusing streams. Due to the small size of the denaturants, they diffuse out much faster than the proteins allowing the proteins to fold. Waldauer et al. was able to diffuse denaturant ~100 fold in ~8 µs [11]. For more details, view the page on Microfluidics for Studying Protein Folding Diseases.

Dual-Neodymium Magnet-based Separation

The dual-neodymium magnet-based hydrodynamic focusing device used positive magnetophoresis to separate particles in the diamagnetic medium[15]. The main purpose of dual-neodymium magnets is to promote high quality & efficiency of separation and minimize the damage of particles by shaping and optimizing magnetic fields[15]. The system is able to load all types of particles and to optimize different particles by varying magnetic susceptibility. Many diseases encounters cell deformation, such as the red blood cell deforms to sickle cell, and property changing, and the hydrodynamic focusing separation helps with removing and filtering cells that is beneficial for the biomedical and health care[16]. Al-Zareer's study proposed a model shown in Figure 12; the experiment separated 10 & 16 µm particles with a sheet flow rate of 75 µm/s and 40 particles/s, the separation efficiency of the system reached 21% by a 92% quality.

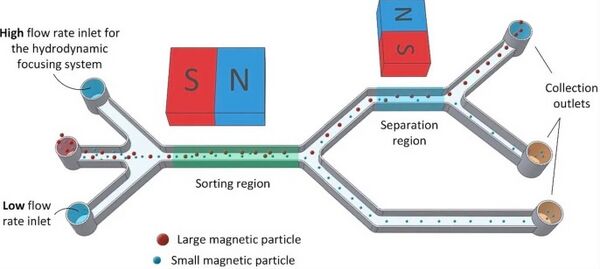

Figure 12. Dual-magnet hydrodynamic focusing separation device. Middle inlet injects the particle solution and two side inlets are for hydrodynamic focusing. In the first sorting region, larger particles will be attracted by magnet and smaller particle leave the sorting region to the collection outlet, which is the same procedure for the second sorting region[15].

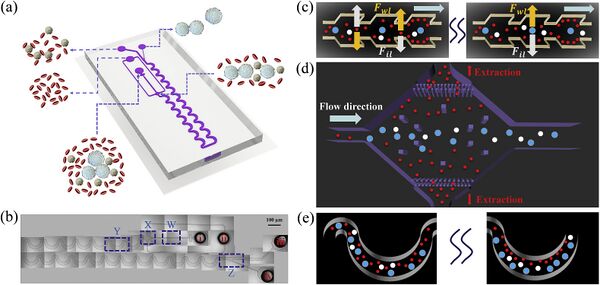

Figure 13. Multistage CTC Separation Microfluidic Device. The first stage includes 45° symmetric fishbone units, the second stage reservoir elutes non-target cells and the third stage applies inertial forces to migrate the flow route of tumor cells for main separation[16].

Case Study

Efficient Separation of Tumor Cells by Multistage Hydrodynamic Focusing

Circulating tumor cells (CTC) are rare cells that come from original or metastatic tumors, and it is an efficient early stage marker for non-invasive cancer detection[16]. Traditional methods used either positive or negative enrichment to capture CTC. For positive enrichment, it captures CTC and isolates other cells based on physical or biological properties with high purity, but it might lead to isolation bias; for negative enrichment, it has relatively low purity and high cost for various antibody capturing CTC[16]. Other problems occurred during CTC capturing include: diagnosis accuracy, separation efficiency, throughput, and negative effect on cell function and gene expression.

The researchers designed a label-free hydrodynamic focusing separation microfluidic device with a multistage channel shown as Figure 13[16]. The device utilizes the cell size and deformation difference to maximize the lateral migration of cells[16]. Results showed that the average separation efficiency reached 90% (with maximum over 90%) with 84.96% purity of CTC collected and a viability over 95%[16]. Also the survivability of CTC for visualizing heterogeneity and identification proved that the technique is powerful for early cancer detection.
