## Purpose

The purpose of this investigation is to determine how the changes in structure of non-human primate ACE2 compared to human ACE2 may affect interactions between SARS-CoV-2 and its target receptor ACE2.

## Methods/Results

### Finding Relevant Residues

• I retrieved the FASTA protein sequences for the following primate species from UniProtKB from searching "ace2": Rhinopithecus bieti, Macaca nemestrina, Homo sapiens, Aotus nancymaae , Saimiri boliviensis boliviensis, Macaca mulatta, Propithecus coquereli, Tarsius syrichta, Rhinopithecus roxellana, Papio anubis, Macaca fascicularis, Chlorocebus sabaeus, Nomascus leucogenys, Pan paniscus, Pongo abelii, Pan troglodytes

• First, I aligned the human, sumatran orangutan (Sumat), chimpanzee (Chimp), and bonobo (Bonob) ACE2 sequences together to see if they have residue differences in the areas highlighted by Yan et. al. I chose these species because the latter 3 are very closely related to humans. The results of the alignment are displayed below:
CLUSTAL FORMAT: MUSCLE (3.8) multiple sequence alignment

ACE2_Sumat      MSGSSWLLLSLVAVTAAQSTIEEQAKTFLDKFNHEAEDLFYQSSLASWNYNTNITEENVQ
ACE2_Human      MSSSSWLLLSLVAVTAAQSTIEEQAKTFLDKFNHEAEDLFYQSSLASWNYNTNITEENVQ
ACE2_Chimp      MSGSSWLLLSLVAVTAAQSTIEEQAKTFLDKFNHEAEDLFYQSSLASWNYNTNITEENVQ
ACE2_Bonob      MSGSSWLLLSLVAVTAAQSTIEEQAKTFLDKFNHEAEDLFYQSSLASWNYNTNITEENVQ
**.*********************************************************

ACE2_Sumat      NMNNAGDKWSAFLKEQSTLAQMYPLQEIQNLTVKLQLQALQQNGSSVLSEDKSKRLNTIL
ACE2_Human      NMNNAGDKWSAFLKEQSTLAQMYPLQEIQNLTVKLQLQALQQNGSSVLSEDKSKRLNTIL
ACE2_Chimp      NMNNAGDKWSAFLKEQSTLAQMYPLQEIQNLTVKLQLQALQQNGSSVLSEDKSKRLNTIL
ACE2_Bonob      NMNNAGDKWSAFLKEQSTLAQMYPLQEIQNLTVKLQLQALQQNGSSVLSEDKSKRLNTIL
************************************************************

ACE2_Sumat      NTMSTIYSTGKVCNPNNPQECLLLEPGLNEIMANSLDYNERLWAWESWRSEVGKQLRPLY
ACE2_Human      NTMSTIYSTGKVCNPDNPQECLLLEPGLNEIMANSLDYNERLWAWESWRSEVGKQLRPLY
ACE2_Chimp      NTMSAIYSTGKVCNPNNPQECLLLEPGLNEIMANSLDYNERLWAWESWRSEVGKQLRPLY
ACE2_Bonob      NTMSAIYSTGKVCNPNNPQECLLLEPGLNEIMANSLDYNERLWAWESWRSEVGKQLRPLY
****:**********:********************************************

ACE2_Sumat      EEYVVLKNEMARANHYEDYGDYWRGDYEVNGVDSYDYSRGQLIEDVEHTFEEIKPLYEHL
ACE2_Human      EEYVVLKNEMARANHYEDYGDYWRGDYEVNGVDGYDYSRGQLIEDVEHTFEEIKPLYEHL
ACE2_Chimp      EEYVVLKNEMARANHYEDYGDYWRGDYEVNGVDGYDYSRGQLIEDVEHTFEEIKPLYEHL
ACE2_Bonob      EEYVVLKNEMARANHYEDYGDYWRGNYEVNGVDGYDYSRGQLIEDVEHTFEEIKPLYEHL
*************************:*******.**************************

ACE2_Sumat      HAYVRAKLINAYPSYISPIGCLPAHLLGDMWGRFWTNLYSLTVPFGQKPNIDVTDAMVDQ
ACE2_Human      HAYVRAKLMNAYPSYISPIGCLPAHLLGDMWGRFWTNLYSLTVPFGQKPNIDVTDAMVDQ
ACE2_Chimp      HAYVRAKLMNAYPSYISPIGCLPAHLLGDMWGRFWTNLYSLTVPFGQKPNIDVTDAMVDQ
ACE2_Bonob      HAYVRAKLMNAYPSYISPIGCLPAHLLGDMWGRFWTNLYSLTVPFGQKPNIDVTDAMVDQ
********:***************************************************

ACE2_Sumat      AWDAQRIFKEAEKFFVSVGLPNMTQRFWENSMLTDPGNVQKVVCHPTAWDLGKGDFRILM
ACE2_Human      AWDAQRIFKEAEKFFVSVGLPNMTQGFWENSMLTDPGNVQKAVCHPTAWDLGKGDFRILM
ACE2_Chimp      AWDAQRIFKEAEKFFVSVGLPNMTQGFWENSMLTDPGNVQKAVCHPTAWDLGKGDFRILM
ACE2_Bonob      AWDAQRIFKEAEKFFVSVGLPNMTQGFWENSMLTDPGNVQKAVCHPTAWDLGKGDFRILM
************************* ***************.******************

ACE2_Sumat      CTKVTMDDFLTAHHEMGHIQYDMAYAAQPFLLRNGANEGFHEAVGEIMSLSAATPKHLKS
ACE2_Human      CTKVTMDDFLTAHHEMGHIQYDMAYAAQPFLLRNGANEGFHEAVGEIMSLSAATPKHLKS
ACE2_Chimp      CTKVTMDDFLTAHHEMGHIQYDMAYAAQPFLLRNGANEGFHEAVGEIMSLSAATPKHLKS
ACE2_Bonob      CTKVTMDDFLTAHHEMGHIQYDMAYAAQPFLLRNGANEGFHEAVGEIMSLSAATPKHLKS
************************************************************

ACE2_Sumat      IGLLSPDFQEDNETEINFLLKQALTIVGTLPFTYMLEKWRWMVFKGEIPKDQWMKKWWEM
ACE2_Human      IGLLSPDFQEDNETEINFLLKQALTIVGTLPFTYMLEKWRWMVFKGEIPKDQWMKKWWEM
ACE2_Chimp      IGLLSPDFQEDNETEINFLLKQALTIVGTLPFTYMLEKWRWMVFKGEIPEDQWMKKWWEM
ACE2_Bonob      IGLLSPDFQEDNETEINFLLKQALTIVGTLPFTYMLEKWRWMVFKGEIPKDQWMKKWWEM
*************************************************:**********

ACE2_Sumat      KREIVGVVEPVPHDETYCDPASLFHVSNDYSFIRYYTRTLYQFQFQEALCQAAKHEGPLH
ACE2_Human      KREIVGVVEPVPHDETYCDPASLFHVSNDYSFIRYYTRTLYQFQFQEALCQAAKHEGPLH
ACE2_Chimp      KREIVGVVEPVPHDETYCDPASLFHVSNDYSFIRYYTRTLYQFQFQEALCQAAKHEGPLH
ACE2_Bonob      KREIVGVVEPVPHDETYCDPASLFHVSNDYSFIRYYTRTLYQFQFQEALCQAAKHEGPLH
************************************************************

ACE2_Sumat      KCDISNSTEAGQKLLNMLRLGKSEPWTLALENVVGAKNMNVRPLLDYFEPLFTWLKDQNK
ACE2_Human      KCDISNSTEAGQKLFNMLRLGKSEPWTLALENVVGAKNMNVRPLLNYFEPLFTWLKDQNK
ACE2_Chimp      KCDISNSTEAGQKLFNMLRLGKSEPWTLALENVVGAKNMNVRPLLNYFEPLFTWLKDQNK
ACE2_Bonob      KCDISNSTEAGQKLFNMLRLGKSEPWTLALENVVGAKNMNVRPLLNYFEPLFTWLKDQNK
**************:******************************:**************

ACE2_Sumat      NSFVGWSTDWSPYADQSIKVRISLKSALGNKAYEWNDNEIYLFRSSVAYAMRKYFLEVKN
ACE2_Human      NSFVGWSTDWSPYADQSIKVRISLKSALGDKAYEWNDNEMYLFRSSVAYAMRQYFLKVKN
ACE2_Chimp      NSFVGWSTDWSPYADQSIKVRISLKSALGDKAYEWNDNEMYLFRSSVAYAMRQYFLKVKN
ACE2_Bonob      NSFVGWSTDWSPYADQSIKVRISLKSALGDKAYEWNDNEMYLFRSSVAYAMRQYFLKVKN
*****************************:*********:************:***:***

ACE2_Sumat      QMILFGEEDVRVANLKPRISFNFFVTAPKNVSDIIPRTEVEKAIRMSRSRINDAFRLNDN
ACE2_Human      QMILFGEEDVRVANLKPRISFNFFVTAPKNVSDIIPRTEVEKAIRMSRSRINDAFRLNDN
ACE2_Chimp      QMILFGEEDVRVANLKPRISFNFFVTAPKNVSDIIPRTEVEKAIRKSRSRINDAFRLNDN
ACE2_Bonob      QMILFGEEDVRVANLKPRISFNFFVTAPKNVSDIIPRTEVEKAIRKSRSRINDAFRLNDN
********************************************* **************

ACE2_Sumat      SLEFLGIQPTLGPPNQPPVSIWLIVFGVVMGVIVVGIVVLIFTGIRDRKKKNKARNEENP
ACE2_Human      SLEFLGIQPTLGPPNQPPVSIWLIVFGVVMGVIVVGIVILIFTGIRDRKKKNKARSGENP
ACE2_Chimp      SLEFLGIQPTLGPPNQPPVSIWLIVFGVVMGVIVVGIVILIFTGIRDRKKKNKARSEENP
ACE2_Bonob      SLEFLGIQPTLGPPNQPPVSIWLIVFGVVMGVIVVGIVILIFTGIRDRKKKNKARSEENP
**************************************:****************. ***

ACE2_Sumat      YASIDISKGENNPGFQNTDDVQTSF
ACE2_Human      YASIDISKGENNPGFQNTDDVQTSF
ACE2_Chimp      YASVDTSKGENNPGFQNTDDVQTSF
ACE2_Bonob      YASVDTSKGENNPGFQNTDDVQTSF
***:* *******************

• Then, I copied the aligned sequences into Word, and used the sequences highlighted in Figure 4 of the Yan et. al. (2020) paper to determine if all of the sequences were the same by highlighting the relevant residues in yellow.
• From this analysis, I found that all of these species had the same residues in the same locations highlighted by Yan et. al. (2020)
• I then went ahead to align the other primate species ACE2 sequences to human ACE2 to see if any of the primates had unique changes at the relevant positions.
• RESULTS SUMMARY: Many of the primates had sequences aligned and identical to the sequences seen at the critical spots in human ACE2. However, some species had alterations at the following positions identified in the Yan et. al. (2020) publication: Y41, Q42, K353, and R357.

### Visualizng ACE2 and SARS-COV-2

1. I found a protein structure visualization and manipulation program called UCSF Chimera. I downloaded the program on to my computer and did the following to visualize the hACE2 structure and SARS-CoV-2:
• Go to File -> Fetch by ID… -> entered 6M0J (the ID to attain the SARS-CoV-2 with hACE2 pictured in Yan et. al. (2020)
• The protein structure appeared in the program.
2. First, I wanted to change the color to better distinguish SARS-CoV-2 from hACE2
• To select the SARS-CoV-2 go to Select-> Chain -> A. hACE2 should be selected in green.
• To change the color, go to Actions -> Color -> . hACE2 became light sea green
• To stop selecting hACE2, go to Select -> Clear selection
3. Next, I wanted to view the actual residues that the Yan et. al. paper highlighted.
• To select the individual residues, I went to Select -> Atom specifier... -> ::(Single-Letter residue abbreviation):(Position) (ex. ::Y:41)
• The residue would become outlined in green to show it was selected.
• To select multiple residues, I held down the shift and control buttons, then clicked the desired residues with my mouse
• I selected the residues highlighted in the Yan et. al. paper, then changed the colors of the important residues to yellow in ACE2 and green in SARS-Cov-2.
• For all residues I looked at, I showed the heteroatomic coloration by selecting the residues and going to Actions -> Color -> by heteroatom
4. Then I wanted to determine how the interactions would change if the ACE2 residues in hACE2 were altered to reflect the sequences in primates that had sequence differences. First I wanted to create the Y41H alteration that is seen in S. bolivensis bolivensis
• I held control key, then click to select residue Y41 in ACE2
• With Y41 selected, I went to Tools -> Stucture Editing -> Rotamers
• A window should pop up. Then, I went to Rotamer type -> HIS (H is the single-letter abbreviation for histidine, HIS is the 3 letter abbreviation for histidine). Then I selected Rotamer library -> Dunbrack 2010. Once those parameters were selected, I clicked apply.
• A new window should pop up with the probabilities listed for the possible rotamers. I selected the rotamer with the highest probability (this will be the one listed first usually). I went to existing side chain -> retain to keep the original residue visible. Then I clicked "apply"
• This should show the original side chain and the new residue alteration. Then I clicked "Ok" and the window closed.
• I held down the control key and clicked on the altered side chain. I changed the color by going to Action -> Color -> orange then Action -> Color-> by heteroatom
• To change the residues for Q42E, K353L, and R347D, I repeated this process. The Y41H and Q42E alterations were done together to reflect the structure of S. bolivensis bolivensis. the K353L and R357D alterations were done together to reflect the structure of R. bieti.
5. Finally, I wanted to superimpose the normal hACE2 structure on top of the altered structure I created so that the location changes of the altered amino acids could be easily seen.
• I went to File -> Open...
• A new window popped up. I selected the file "" which had the normal hACE2 structure
• The new window closed, but a popup appeared asking "". Click "no"
• The result should be that the 2 hACE2 SARS-CoV-2 models are superimposed on each other since most of the resiudes are in the same position. The only residues that should not be the same are the Rotamer alterations, which will be out of place and in orange.
• To focus on the amino acids mentioned by Yan et. al. (2020), I held down both the control and shift keys so I could select multiple amino acids. I clicked all of the orange, yellow, and green residues.
• With the desired residues selected, I went to Actions -> Focus. The window should now focus on the selected residues, with most of the extra ribbon from SARS-CoV-2 and hACE2 not in sight
• If there was extra ribbon blocking my view, I held down shift and control, and I clicked on the ribbon I wanted to remove to select those parts. Then I went to Actions -> Atoms/Bonds -> hide. With the same parts still selected, I went to Actions -> Ribbons -> hide. These two operations should remove ribbons that block the view of the amino acids and was repeated to remove additional ribbons until I had a good view of the residue alterations.
• I rotated and zoomed in and out of the view until I had a good view of the original hACE2 residues (yellow), altered hACE2 residues (orange), and SARS-CoV-2 residues (green)
• To save the window image as a .PNG image, I went to File -> Save Image... and then saved the image with the desired name in a folder (but it can be saved anywhere)
• To save the sesion, go to File -> Save Session or File -> Save Session As...
6. After doing these steps to show the alterations in R. bieti and S. bolivensis bolivensis, I went to File -> Close session and then exited out of Chimera by closing the program

### Primate Alteration Molecular Models

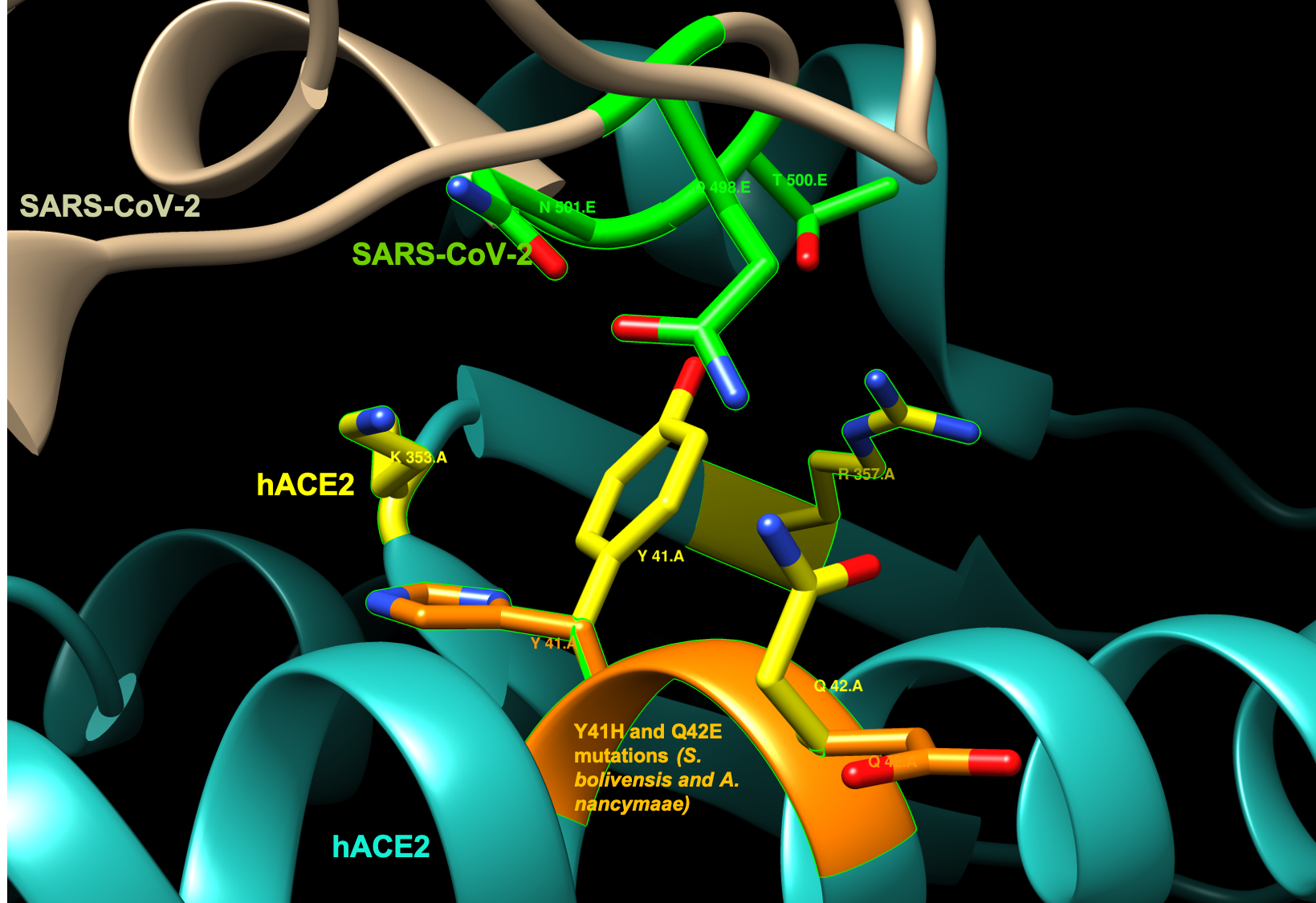

• Saimiri boliviensis boliviensis and Aotus nancymaae: Y41H and Q42E
• Both the Y41H and Q42E alterations seen in S. boliviensis and A. nancymaae position the amino acids in positions that are not optimal for interaction with the SARS-CoV-2. In addition, the alteration Y41H changes a nonpolar aromatic side chain (tyrosine) chain to a positive side chain (histidine), while the alteration Q42E changes an uncharged polar side chain (glutamine) to a negatively charged side chain (glutamate).

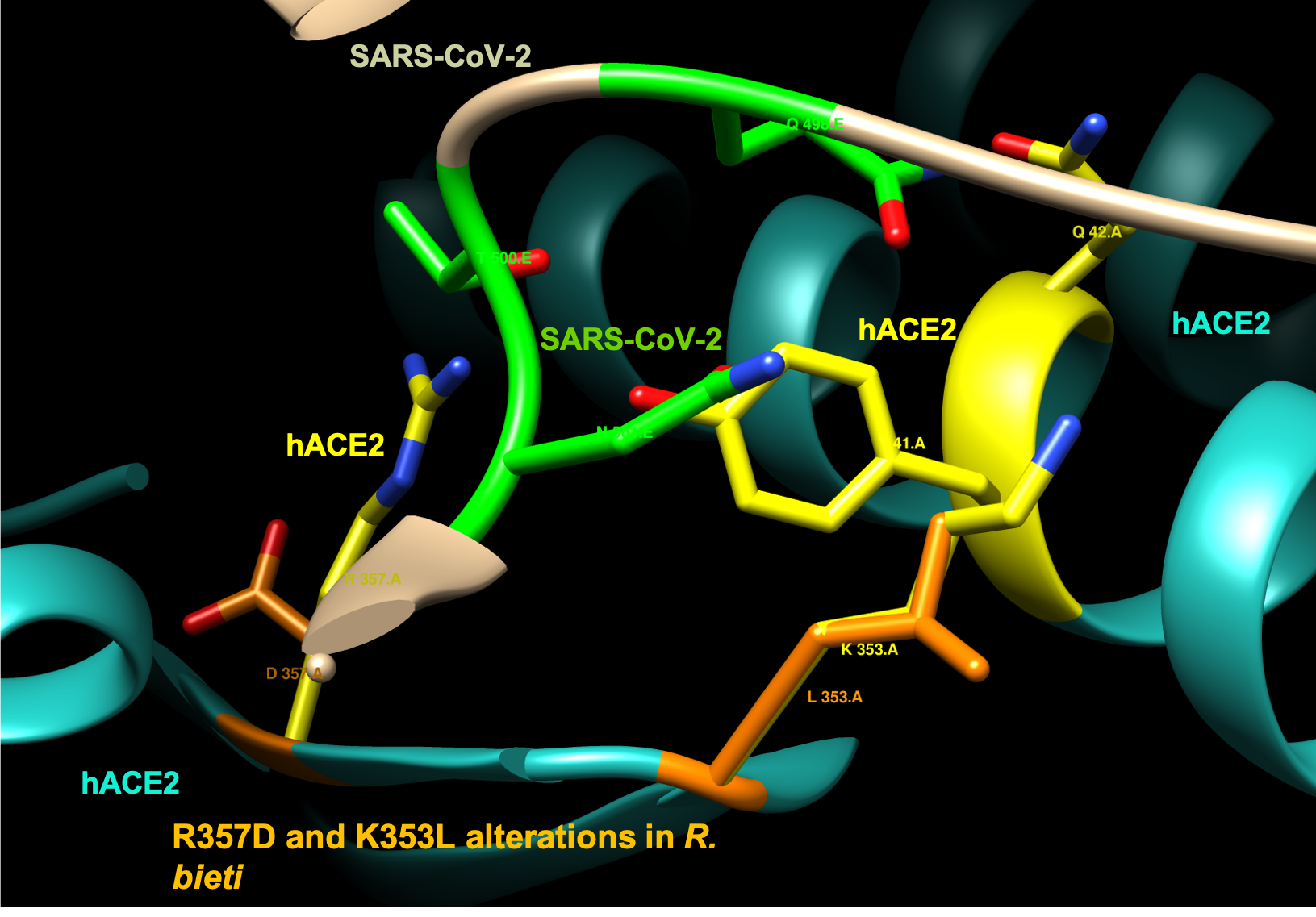

• Rhinopithecus bieti: R357D and K353L alterations
• Both the R357D and K353L alterations seen in R. bieti position the amino acids in positions that are not optimal for interaction with the SARS-CoV-2. In addition, the alteration R357D changes a positive side chain (arginine) chain to a negative side chain (aspartate), while the alteration K353L changes a positive side chain (lysine) to a non-polar side chain (leucine).

## Scientific Conclusion

The purpose of this investigation was to determine how structural differences in the ACE2 receptor of human and non-human primates may affect how SARS-CoV-2 interacts with the receptor in the species. The residues examined were the nine residues of ACE2 featured in Figure 4 of the Yan et. al. (2020) paper. Overall, as expected, at the positions highlighted by Yan et. al. (2020) many non-human primate ACE2 structures have the same 9 residues observed in human ACE2. However, in primates that do have pairs of alterations at these positions, the altered residues may drastically lead to changes in interactions with residues 498, 500, and 501 in SARS-CoV-2. These pairs of altered residues (Y41H and Q42E; R357D and K353L) are not only positioned away from the relevant SARS-CoV-2 residues but also have different chemical properties. Based on this work, more research and modelling should be done to see if these alterations lead to greater structural changes that make non-human primates less or more likely to be vulnerable to SARS-CoV-2.
