Lab Book Write-up


When writing your lab book, you should include all details, but in a concise manner. The reason for keeping a lab book is so that the people who come after you can understand and replicate what you have done. You are writing it for them, not for me.

Your lab book must be written in pen, not pencil. You must never remove or add pages. Mistakes must be crossed out lightly, so that they may still be read. Do not use white-out/Tippex. All lab book pages must be dated somewhere, and when complete, should be signed. Ideally periodically you should get another member of the group to sign and date your lab book pages.

Each new experiment must be assessed for safety. Instructions on how to do this are given in the School's safety handbook here where you can also download templates for doing risk assessments.

All relevant TLC’s must also be drawn in pen, and RF values given to two decimal places, as well as the solvent system used for each. (Drawing TLC’s allows you to throw away your TLC plates)

The write up should look something like this:

Examples of Lab Book Write-up

Points to note here:

  • The first line of the write up for each reaction contains a brief remark about the reason for doing the reaction, to aid your memory when you come to write up your work, e.g. ‘Scale-up of MHT 5-4-36’ or ‘MHT 7-4-98 at increased temp.’
  • Some information about where the chemicals have come from is given
  • Some incidental detail about what happened is given, and you have to judge what is useful and what is not. Unexpected things should always be included (e.g. ‘now-yellow’ above)
  • ‘Benzaldehyde’ is listed in the text with no quantities, because these have already been given in the reaction scheme above
  • References are given for the reaction. Here they are literature papers, but if the reaction has relevance to a previous reaction you have done (which is most of the time) then that unique identifier should be given here
  • Try to minimise use of the word ‘then.’ This word is often redundant
  • ‘Concentrated in vacuo’ implies hivac. ‘Concentrated under reduced pressure’ implies rotavap
  • When typing this up, the formatting has to be exactly right. There are spaces between quantities and units for everything except % and degrees C. So we write ‘3 h’ and ‘1 M’ but ‘49%.’ Remember also that millilitres are abbreviated ‘mL’ not ‘ml’

Sample Characterization

If you want to make a molecule, the first thing to do is check whether it’s been made before. Use SciFinder frequently (often you'll need to use it daily). You can access previously-used methods, characterization data etc. It’s the most important resource we have. Besides being able to search for literature examples of reactions you may be attempting, it's also a very rapid way to find characterization data for compounds you're making (from the "experimental properties" link).

If you want to know how to handle a reagent, check e-EROS online. All of the Chemistry databases are here

When you use a starting material for the first time, acquire a 1H spectrum of it to check its purity and to compare with your reaction product.

In general there are two kinds of characterization required for molecules before we can publish the work. The first is for known compounds, i.e. compounds previously synthesized either in the group or by others in the chemical community. For these compounds we require three pieces of characterization that match the literature (usually a 1H NMR, IR and low resolution mass spectrum). For crystalline solids we need a melting point and a comparison with the literature value, which can count as one of the three pieces of data. For enantiopure or scalemic compounds we require an optical rotation and a comparison with the literature value.

For novel compounds, we require the full level of characterization. This includes 1H and 13C NMR and IR spectra. We also need a low-resolution mass spectrum. For crystalline solids we require a melting point. If you have distilled a liquid, we require the boiling point. The ‘killer’ bit of characterization that finishes off the data is either a high-resolution mass spectrum or (better) an elemental (CHN) analysis (not both). For enantiopure or scalemic compounds we require an optical rotation and some indication of the level of enantiopurity - this must come from chiral HPLC or NMR shift reagent analysis.

For any compounds that undergo some form of further evaluation (e.g. biological evaluation) we need some assessment of purity, which is usually gained from comparison of melting points (for known compounds) or analytical HPLC analysis (for novel compounds).

RF values are important for internal purposes, but have questionable reproducibility between labs. Thus while we need these values in lab books and internal reports, we do not generally report them in publications.

Spectra should be kept in order of their unique identifier in folders. The identifier and structure should be written clearly so that someone browsing the file can locate the appropriate spectrum quickly. Think about the people who will come after you. Generally if you're asked to produce a spectrum, you should be able to find it in a few seconds.

For NMR spectra, expand regions of interest - typically maybe 3-4 expansions for a 1H, one aromatic and one alkyl for a 13C. For writing up the data you will need the exact J values for each well-defined peak, and an accurate J needs ppm values for the relevant peaks to an accuracy greater than 2 decimal places. You must make sure the integrals for peaks have horizontal start and end lines, so that the values are real. Draw the structure of the molecule on the front page of the spectrum. Assign the peaks. If the spectrum shows a byproduct, draw this structure also. If the spectrum shows an unidentified product, draw the intended reaction and product on the front page, and indicate that the spectrum does not show this product. (It’s all about putting yourself in somebody else’s shoes and asking yourself whether your spectra would be clear to them – no mental notes)

For publication purposes, we almost always require scanned copies of 1H and 13C NMR spectra for the supporting information. Thus you must examine and assign spectra very carefully to ensure that there are no ‘rogue’ peaks and no large solvent peaks. Obtaining clean NMR spectra and assigning them is the most important skill of the synthetic chemist. Once you've done all the above with your spectrum, you can show it to Mat.

Instructions for producing jcamp.dx files coming...

Report Write-up

Progress reports are due on the last days of April, August and December. Put these dates in your diary and plan ahead to get them in on time. If your report’s late, you will owe Mat one pint of Coopers Red. For each further 12-hour period that elapses, you owe Mat a further pint. That could get very expensive for you, and really great for Mat, but reports still need to be in on time.

Initially paper copies are required, Times New Roman, double-spaced, unstapled. Reports should be double line-spaced and double-sided, ideally with the facing page devoted to schemes. Mat does not want to correct English language mistakes. If you feel you might make such mistakes, ensure you have your report read by someone else before you give it to Mat. Obviously no part of your report should be copied/plagiarised from any source. Everything needs to be in your own words.

Once you've been through the report with Mat, and you've corrected the report, you should provide a corrected electronic copy that will be archived. The main purpose of the report is to summarize what you have achieved. However, these reports should contain everything that has gone through your chemical mind in the previous three months, and are useful places to record references and project ideas for the future. Time and effort spent on this is very helpful in minimizing the work involved in submitting publications. This is particularly the case for your descriptions of experimental work, and the documentation of spectra. Use the group characterization form to keep track of what characterization you have for a compound, and which experiments you did which generated a given compound.

Write-up check-list for reports/procedures:

  • Spaces between numbers and their units except for percentages and degrees C
  • NMR spectroscopy, mass spectrometry; spectrum vs. spectra
  • Compound numbers in bold
  • Minimization of the use of the word ‘it’; don't start sentences with the word 'this'
  • The words Figure, Scheme and Table capitalized in main body of text
  • Make sure your spellchecker is on, to catch simple typos and double spaces etc. Mat didn't get a PhD in order to correct dumb things.
  • "Dropwise", "portionwise" and "semisolid" are one word
  • Minus signs/hyphens should be real minus signs (–) and not just the dash on the keyboard (-). On many keyboards this can be inserted by holding down an option key at the same time as using the dash key.
  • If you allow a solution to cool you need to say "was allowed to cool" and not just "was cooled" which implies you forced the reaction mixture to cool.
  • The times symbol needs to be used (e.g. in "3 × 20 mL) and not the letter "x". In Word you can find this in the symbol menu.
  • If you use abbreviations for chemicals, these need to be added to an abbreviations section
  • Be consistent with descriptions of chemicals, e.g. DCM vs CH2Cl2
  • Don't just say you obtained "crystals" - give a description of what they look like, i.e. prisms, plates, stars or needles.
  • Stereochemical descriptors are italicized but their brackets are not, e.g. (S)
  • The N for nitrogen on the front of molecule names is italicized, e.g. N-benzylmethyl amine
  • In procedures (but not in the main body of a report/thesis/paper) shorten words when possible, e.g. rt for room temperature, h for hours, min for minutes. Use numbers rather than words when possible, e.g. 5 rather than five.
  • Reduce repetition if procedures are the same for multiple compounds, e.g. say things like "The procedure employed for the synthesis and purification was the same as for compound X, giving the amide as a white solid (mass, yield%)" or by writing a general procedure for a group of compounds and just listing the data for each compound in the same section.
  • Be consistent with accuracy. Thus within one preparation (but not necessarily within one report/paper) amounts should be reported with consistent accuracy. Usually this means reporting masses to three significant figures (e.g. 354 mg), and calculating moles to the same level of accuracy (e.g. 1.30 mmol - not 1.304658 mol, since this is more accurate than the mass measurement). But be sensible. Reporting concentrations of solutions used in work-up to three significant figures is clearly unnecessary, since nobody cares (e.g 0.5 N HCl is fine for a work-up, 0.507 N HCl is silly unless the solution is being used as a reagent).

Examples of experimental procedures

The way you write up a synthetic procedure should look a little like the lab book page above, but there are a few differences. The best way to see how to do it is to look at some recent theses, but here are some examples to give you an idea. Spot the difference!

Sample procedure which contains errors:

5.2.2 Selective mono-BOC protection of 1R,2R-diaminocyclohexane (16)14

OWW sample write up structure bad.tif

Conc HCl (36%, 0.78 mL, 9.07 mmol) was added to MeOH (100 mL) at 0 °C, the mixture was stirred for 15 min and slowly added to a solution of 1R,2R-diaminocyclohexane (1.035g, 9.07 mmol) in MeOH (100 mL) at 0 °C. After the addition is complete, the mixture was allowed to warm to rt. Stirring was continued for 15 min at rt before adding water (30 mL). The resultant solution was stirred for another 30 min at rt followed by (Boc)2O (2.38 g, 10.88 mmol) in MeOH (25 mL) The reaction mixture was stirred for 1 h, concentrated in vacuo to remove MeOH. Un reacted diamine was removed by partitioning with diethyl ether (100 mL×3). The aqueous layer was treated with 2N NaOH until it became pH 10. The liberated free amine was extracted in to DCM (50 mL×4) and combine extracts were washed with brine (100 mL) dried over Mg2SO4 and solvents were removed in vacuo to obtain t-butyl ((1R,2R)-2-amino cyclohexyl)carbamate as a white sticky solid (1.6 g, 82%).

The same procedure after Mat has hacked at it:

tert-Butyl ((1R,2R)-2-aminocyclohexyl)carbamate (16)14

OWW sample write up structure good.tif

Conc. HCl (36%, 0.78 mL, 9.1 mmol) was added to MeOH (100 mL) at 0 °C. The mixture was stirred for 15 min and slowly added to a solution of (1R,2R)-diaminocyclohexane (6, 1.04 g, 9.07 mmol) in MeOH (100 mL) at 0 °C. The mixture was allowed to warm to rt. Stirring was continued for 15 min at rt before the addition of water (30 mL). The resultant solution was stirred for another 30 min at rt. (Boc)2O (2.38 g, 10.9 mmol) in MeOH (25 mL) was added. The reaction mixture was stirred for 1 h and concentrated under reduced pressure to remove MeOH. The solution was washed with diethyl ether (3 × 100 mL) to remove unreacted diamine. The aqueous layer was taken to pH 10 by the addition of 2 N NaOH and extracted with DCM (4 × 50 mL). The combined extracts were washed with brine (100 mL), dried over Mg2SO4 and concentrated in vacuo to give the protected amine as a white sticky solid (1.60 g, 82%).

Examples of experimental data

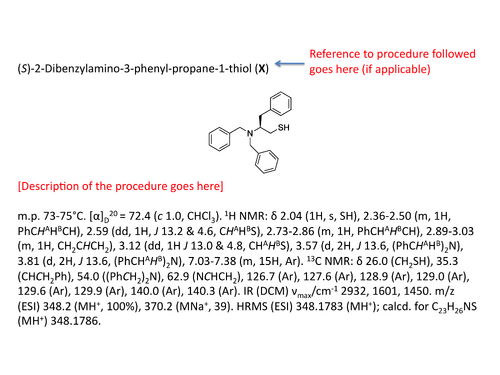

Novel compound:

How to write up a novel compound

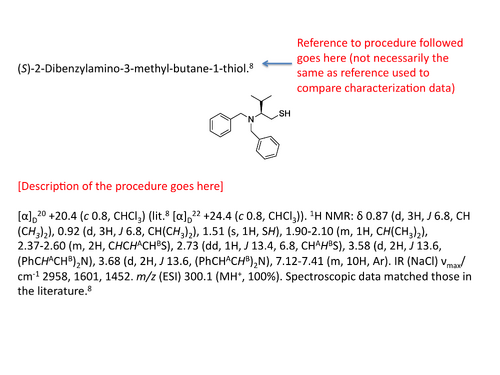

Known compound:

How to write up a known compound

It’s important you check write-ups against these examples.

Things to note for writing up characterization data:

  • NMR spectra peaks listed in increasing value and must be assigned.
  • 1H values given to two d.p., 13C to one.
  • 13C NMR frequency is one quarter of the 1H frequency for spectra acquired on the same machine. (Why?)
  • J is italicized; when there are multiple couplings, use ‘&’ to separate them and give the largest first, e.g. J 12.4 & 3.5
  • No space between value and H for integrals, i.e. ‘1H’ not ‘1 H’
  • Only give the large, important peaks for MS, and give % height for them.
  • HRMS should be correct to within 0.0008 for small molecules.
  • CHN should be correct to within 0.4%
  • Reference given after the name of the compound is for the procedure followed (if any) not necessarily for that particular compound. Thus a novel compound can have a reference for a general procedure that was followed.
  • Known compounds require a final "Spectroscopic data matched those in the literature." and a reference.
  • Molecular formula given for HRMS includes extra H for MH+.
  • AB quartets: these can be written in two ways. First (usual): 2.54 (d, 1H, J 17.4, PhCHHN), 2.65 (d, 1H, J 17.5, PhCHHN). Second (less usual, but cleverer): 3.45 (ABq, 2H, J 15.9, ν 79.5, PhCH2N) where the ppm value given is the midway point of the two doublets, and the ν describes the separation of the doublets in Hertz. The second way is described in Williams & Fleming.
