General Instructions for Writing Scientific Papers or Lab Reports

Prior to writing a summary paper for lab experiments, you may discuss the laboratory experiment with your peers or your instructor. However, the final content, organization, and wording of the paper must be of your own design. You may not use figures and graphs or statistical analyses prepared by others and presented to the class in the oral presentations. All data analysis must be your own.

Late papers will be penalized 5% per day.

How to get started? Our suggestion for writing in science laboratory is to start by analyzing your data and working on the Results section’s presentation of these data. You should finish with the abstract. It is best to start with the Results section, since you must thoroughly understand your results to form conclusions. When you know what you are able to conclude about the plants or beetles, it is easier to see what background information is appropriate for the introduction. The Methods and Materials section, which should be fairly straightforward, can be written at any point. Use the checklist below after you have written your first draft.

You might also refer to the Carlton College lab writing guide as an additional source for science writing suggestions (

Lab Paper Format

A report written in the correct format in most courses will have the following sections, in this order:
Methods and Materials
Results: Tables, Figures and separate results text
Acknowledgment (optional)
References (or Literature Cited)


Compose a title that provides specific information about the variables being tested and reflects the major conclusion of the paper. The major conclusion is often called "the take-home message".

Compare and contrast these potential titles:
"Response of patients to different doses of ice cream"
"Frequent administration of ice cream boosts patients' morale"
“Morale in hospital patients is improved by serving more ice cream”

As you analyze the titles consider these questions:

  1. Can you easily identify the main topic and the variable that was tested?
  2. Is the take home message clear?
  3. Think about the word choices: Are any words in the titles ambiguous e.g. What was the patient response? What doses were used?


The abstract is a concise summary of: 1) the rationale and goal or hypothesis of your investigation (1-2 sentences), 2) the general methods used (1-2 sentences), and 3) the specific, major findings of your study. The main results make up the major part of the abstract. The abstract should also include a concluding sentence that interprets your results relative to the specific questions addressed. The abstract should be one paragraph and single spaced.


The Introduction gives the reader a sense of "why" you did the research and its importance, its general theme, and how your study fits into existing research. One of the most important aspects of your complete paper should be thematic continuity. Once you identify your theme, carry it throughout the paper, creating a "story" that leads logically to each new piece of information you present in the Results, and interpret in the Discussion. The introduction incorporates references to existing work of other scientists to help the reader understand how your investigation and its goal/hypothesis fit into this body of work. Be sure to cite these references properly. The Introduction is double spaced.

A useful strategy is to begin broadly, and narrow down as you go. Start with general statements regarding adaptation, evolution, the thrust and nature of previous studies, etc., then move to more specific topics and research questions pertinent to your study. Become very specific at the end of the Introduction (see below).

Background information:
Most of the information in the introduction will be based on outside readings, and other peoples' work. These sources must be acknowledged. For example in the plant lab, you may want to include relevant information about the species that were the focus of your study, or, in the population lab, you will likely include information from the literature about population growth and/or the interactions of populations in different environmental conditions.

Paraphrase (do not quote) what you have read, and cite at the end of the statement or paragraph.

In-text Citations (within the text):
Be sure you cite the source of all background information in proper “in-text” format. Here are 3 examples of options for citing in your written text:
Albie (2004) found that … In contrast, Hummel and John (2000) reported that ...... Others have found that … (Hold, 2004; VandenBos et al., 2001; Mayer, pers. comm., 2005) .

Note the proper in-text citation format for various numbers of authors of publications:
- one author: (Albie, 2004)
- 2 authors (Albee and VanderBos, 2008)
- more than 2 authors (VandenBos et. al, 2001) The first author is the only name reported here, but all authors are listed in the References Cited section of your report.
- You may also include page numbers, particularly for books, (VanderBos et. al, 2001, 781).

The experimental question:
Because the background information is the rationale for your question or hypothesis, the hypothesis should follow logically from that flow of information. The last paragraph of the Introduction should clearly and succinctly state the goal/hypothesis of the experiment you conducted. You might say, “ because…and…I (or we) expected that…”. Try to avoid “the hypothesis is…”.

Do not report your findings or interpret them in the Introduction.


In this section, use paragraphs rather than lists, to accurately summarize the final procedures/methods that were employed to collect and analyze your data. The materials (your plants or insects, controlled conditions, equipment used, etc.) are incorporated into the narrative. Provide enough detail so that a reader following this section can evaluate and repeat your experiment. The Methods section is double spaced.

The Carlton College lab report guide is a great reference if you are struggling with this section. (

Subheadings: Using subheadings helps organize your method section particularly in big experiment with multiple parts such as the plant lab. Again examine the reference articles you have read for lab for ideas on organizing a methods section. Have a separate paragraph (not a list!) for each subheading. The actual dial settings of equipment used, final concentrations of solutions, number of initial beetles, greenhouse conditions, etc. are reported in the Methods section, as they will influence the results and their interpretation. It is impossible for your reader to evaluate the results if s/he cannot figure out how you did the experiment. It is important to be honest and accurate in describing your procedures. Many experimental errors can be explained by “mistakes” made in methodology.

One subheading, often forgotten, is Data Analysis: a section on the mathematical calculations and statistical analyses you used. Tell your reader the variables that were compared, the types of statistical tests used, and for what they were used. What alpha level (threshold significance probability) was used? Were the data transformed in any way (by taking their logarithms, etc.)?

Citations: If you followed a procedure EXACTLY as described in the lab manual you may cite the lab manual for that procedure (don’t forget to include the lab manual in the references cited section).

For example, a subheading identified as photosynthetic rate might be written: “The photosynthetic rates of leaves were measured at 25 degrees C and light intensities between 0 and 1000 µmol photons m-2 s-1 using a Qubit Model 3750 Infra red gas analyzer (BISC 111, 2009).”


The text of this section should be double spaced, except for the table/figure captions which should be single spaced. Begin this section with a narrative text, not with tables or figures.

The result section should contain your data presented in the form of figures and tables and must include an equally important narrative description of the results. Interpretation of your data (why you obtained these results, possible errors, etc.) belongs in the Discussion and should not be reported in the results.

Text of Result Section: The most salient (noteworthy, striking, contrasting) results must be described in a narrative. Reading the results sections from published papers will give you a feel for how results should be presented in text. You should describe general trends, and you should refer specifically to figures and/or tables that pertain to the trends you are describing.

Referring to tables and figures in text: You should eliminate redundancy. You do not need to repeat in text form the values that you list in a table or show in a figure –- these should stand on their own. The reader should be made aware of the main results by reading the narrative without having to look at the figures or tables. The purpose of this section is to draw the reader’s attention to what you think is important about the data.

Example: “The mean transpiration rate was higher for Eichhornia crassipes than Rhoeo (Fig. 1).” Note here you don’t say “Figure 1 shows…” or “As can be seen in Figure 1…” Just tell the reader what you found, then cite the figure (as “Fig.”, or “Figs.” if more than one) or table in parentheses.

Reporting statistics in text: The question often arises as how best to present the results of statistical tests, for example, a t-test. One way to do this, especially if reporting several test results, is to construct a table with appropriate headings. If expressing such a result in Results text form, there are many ways to phrase this. You want to give the basic results of the test and enough detail so that readers can understand the structure of the test data or could check P-values themselves.

When reporting the statistical significance of your results in the Results text, include the name of the test, the test statistic, the degrees of freedom and the P-value.


Citing results of a t-test: “The mean number of beetles in population E was significantly higher than in population D (t-test, tstat = 2.87, df = 8, P = 0.02.”

“In Helianthus (sunflowers), the mean stomatal density was 50% higher on the upper than on the lower leaf surface. This difference was significant (t-test, tstat = 3.21, df = 3, P = 0.0023.

Citing results of an ANOVA - Tukey statistical test: If we quantified total leaf thickness (by measuring cross-sections of leaves) and if there was a significant difference between two or more of the plants, you might summarize this as:

"Leaf thickness was compared in four plant species adapted to a range of natural habitats from very dry to aquatic. Average leaf thickness ranged from 342 µm in Helianthus to 925 µm in Rhoeo and was significantly different among the four plants (ANOVA, F = 24.4, df = 3, 35, P < 0.0001; Tukey HSD, P < 0.05) (you should also cite the table or figure showing these data). Scindapsus leaves were significantly thicker than Helianthus but thinner than Rhoeo while Eichhornia crassipes overlapped with both Scindapsus and Helianthus."

Or if you were comparing beetle growth in different types of flour:

"After 70 d, the mean number of adult beetles in the starting population (20) had increased by a factor of 20 in wheat flour but only by a factor of 10 in corn and 7 in white flour (Fig. 1). Mean population sizes in corn and white flour were not significantly different from each other but were significantly different from the mean population size in wheat flour (ANOVA, F = 22.7, df = 2, 6, p = 0.002; Tukey HSD test, P < 0.05)."

Useful tip: Avoid using the term “significant” in most scientific expression, unless referring to the results of a statistical test. This word has a very specific meaning in a scientific paper, as we have seen.

Figures and Tables: The narrative text of Results describes your findings while the data that document those findings are processed and presented in tables and figures. Tables and figures should be able to stand alone in a scientific paper, meaning that the reader should be able to understand, generally, the experiment and the data’s meaning without reading either the Methods section or the narrative description.

Effective figures present information in a format that is easily evaluated by the reader. Remember that tables and figures summarize results, and they do not present large amounts of raw data (the individual measurements made). Usually, means or medians are what are displayed in figures. When possible, the results should provide some way of evaluating the precision (e.g., using error bars) and/or statistical significance of any numbers presented. Graphs, pictures, drawings, and computer-generated images are all represented as figures. Figures are numbered consecutively (Figure 1, Figure 2, etc.) in the order that they are cited in the text.

Examples of tables and figures and their legends/captions are available throughout this lab manual in addition to the examples presented here. It is very helpful to refer to scientific publications for additional examples.

Most Figures in your reports will be graphs that were prepared using a computer program. Label the axes carefully and specify the units. Put the explanatory (independent) variable on the X-axis (the horizontal axis or abscissa). The experimenter controls the values of the explanatory variable. Put the response (dependent) variable on the Y-axis (the vertical axis or ordinate). The experimenter measures the response variable. Use proper formatting of axis units (use actual sub- and superscript notation, not "^").

If more than one set of data is plotted on a single graph (e.g., data from different species), be certain to identify each data set plotted using a key. The "key" (called a legend in some graphing programs, such as Excel) to identifying the different data may appear imbedded in the graph itself (labeling the curves or columns) or in the text caption below the graph. Font sizes in figures (and tables) should be such that text is easily readable when printed. Generally, all fonts should be ≥ 12-point.

Data may also be effectively presented in figures as images. Many times, these photos will be taken of specimens under a microscope. Often, the most effective way to use photomicrographs (photos taken of a specimen or sample under a microscope) in figures is to present more than one of them in a single figure with one legend (different photos labeled A, B, etc. representing different levels of your explanatory variable). This is called a composite figure. Composite figures invite comparisons; therefore, such figures are able to visually and effectively make the point that some aspect of your dependent variable (stomatal density/aperture length/structure of cross section) changed with the explanatory variable (plant species). That change is easily visible by labeling the relevant parts in the photos presented for comparison.

Tables are used to present numerical data and are numbered separately from figures (Table 1, Table 2, etc.). The numerical data in the table are most often displayed as means ± SD or means ± SE (n= number of replicates) rather than including all measurements. Reporting raw data from each replicate of an experiment is not usually acceptable. Each column of data should have a heading that describes completely what is in that column including the units of measurement. Some columns may need a double heading. For example, when reporting data from different species, you should specify which column of data was collected from each species. It will also be necessary to give an additional heading over all of the species’ data columns indicating what type of data are in these columns. Enter data values so that decimal points are vertically aligned, and align and space all entries for maximum clarity.

Legends/headings/captions (single space): Tables and figures should be able to stand-alone in a scientific paper and should be single-spaced. Each table and figure must have a number and a legend/heading/caption, a brief text description that tells the reader what the table or figure presents, and a brief, general description of how the data were obtained. This description is called a heading in a table (it goes above the table) and a caption in a figure (below the figure), but both descriptions can generally be described as a legend. Each scientific journal has its own rules for the detail to be included in a legend, and here we offer some general guidelines. Excessive reporting of methodology is unnecessary in legends if methods have been described adequately elsewhere in the paper (remember, eliminate redundancy).

The information identifying and describing a table is usually placed above the table whereas figure numbers and legends are placed below the graph or picture. In the legend/caption, be sure to explain the meaning of any ambiguous symbols not shown in a figure key. It is also helpful to summarize results of statistical analyses in captions, especially if Tukey test results are presented in the figure rather than in a separate table. If error bars are included in the figure, the caption should tell the reader whether they represent SD or SE.

The legend/caption does not include any interpretation of the data or statement of conclusions. Avoid redundancies; present either a figure or a table as shown below. Similarly, if you cite t-test/ANOVA results in the legend/caption of your illustrations, you do not need to include them in the narrative of the results section.

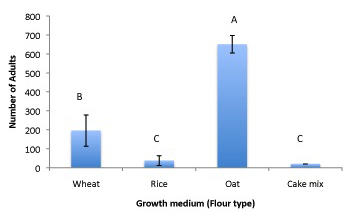

Figure 1. Population size (mean ± SE) of adult Tribolium castaneum beetles raised in different flour types. Twenty unsexed beetles were placed in three replicate jars containing 1 g of flour per individual. The beetles were cultured at 29°C and 50% humidity for 70 d, at which point adult beetles were counted. ANOVA, F = 107.9, df = 3, 8, P < 0.0001. 1Means not sharing the same letter are significantly different (Tukey HSD, P < 0.05).

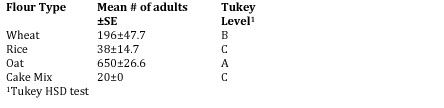

Example of table representing means +/- SE, Tukey HSD test results and an appropriate caption:

Table 1. Test of the hypothesis that food type affects adult flour beetle (Tribolium castaneum) population growth. Twenty unsexed beetles were placed in a jar containing 1 g of flour per individual. Three replicates per flour treatment were cultured at 29 °C and 50% humidity for 70 d. ANOVA, F = 107.9, df = 3, 8, P < 0.0001. 1Means not sharing the same letter are significantly different (Tukey HSD, P < 0.05).

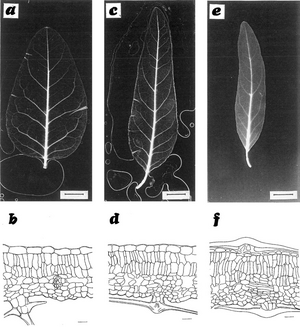

Example of a Composite Figure: Composite figures show connected information using multiple formats. The figures should agree with the final conclusions illustrated by your data and represented in graphs/tables. In other words, if your numerical data show that plant A has a relatively high stomatal density, be sure to choose a photo of an epidermal peel for your photomicrograph that shows plant A has a high stomatal density relative to the other species of plants. The following is an example of a composite figure from Klich, M.G. (2001):

Fig. 2. Cleared leaves of E. angustifolia and drawings of transverse sections. (a,b) Lower shade leaves; (c,d) medium half sun-exposed leaves; (e,f) upper sun-leaves. (For a,c,e, bar: 1 cm; for b,d,f, bar: 50 µm).

Note in Fig. 2 that each photo or drawing in the figure has a bar with its scale noted in the caption of the figure. The caption also describes the contents of each section of the figure and labels specific pictures/drawings with letters to denote different groups. You may also choose to use arrows with labels to point out specific components of the figure that you think should be highlighted for your reader.


Writing a good Discussion section is the most challenging part of composing a scientific paper. Organize your Discussion around the major points (conclusions) that you want to make from your data. Use your results to support these points without restating them, and try to relate your results to the expectations in the introduction.

The discussion is the appropriate place in the paper to evaluate your findings. In this section you try to explain what the data mean. Show your reader what your results mean in the context of the whole biological system with which you’re working. Begin this section with a general restatement of your experimental goals as a topic sentence to frame the entire discussion; then summarize your main findings, using specific references to tables and figures in your results section. When organizing the discussion, it is best to follow the pattern of organization that you established in the 'Results’ narrative. You might compare your data to published reports from similar experiments (CITE them).

Look at your data: Do they support your hypothesis? Do they agree or conflict with published research? Mention the results from your experiments that support or conflict with your hypothesis or related studies, and offer plausible explanations. The Discussion is where you "make your case", much as a lawyer might do in a trial, based on the evidence you have presented. Considering the overall goal of our plant labs, your "case" might consider: How do these plant species illustrate evolutionary adaptation to environment?

An excellent way to organize your Discussion, as well as your Results and Introduction sections, is to lead off each paragraph with a topic sentence, a sentence that summarizes the main point, or “take-home message”, of the paragraph. This is a straightforward statement that basically condenses all that is to follow in the paragraph. Then, the rest of the information in each paragraph flows in illustration of those main points.

As an example – this is a topic sentence appropriate for a Discussion section paragraph: There are pronounced effects on the number of adult Tribolium beetles when grown in different types of flour. In order to maintain beetle populations in laboratory conditions, researchers generally use wheat flour with 5% yeast. Access to oat flour provided significantly higher populations suggesting ...... (This is perhaps due to?... Describe possible reasons for the effects of the different flours, include comparisons between flours and findings and reasons suggested by previous studies. Describe possible application and implications of greater growth in the oat flour, for example, when might it be useful or desirable to compare higher numbers of beetles and why might you want slower growth when maintaining a population for experimental use).”

The bolded sentence is the topic sentence here. It is the "take-home" message of the paragraph. Try to do this for all paragraphs you write, especially in the Introduction, Results, and Discussion.

Start the Discussion with the most important finding of your research and its interpretation. Don’t dwell on difficulties encountered in the study. Another useful rule of thumb to help you compose your Discussion is to answer the question: “What are three principal findings I can discuss here?” Of course, there may be more or fewer than three, but the point is to focus on the main results and their implications.

Possible experimental or human errors should be mentioned in the discussion, but they should not be the focus of your Discussion. You should suggest further studies that you think should be conducted on this topic, additional questions that could be posed, or ways to modify the present study.

Emphasize the “take-home’ messages of the paper in a concluding paragraph. Your conclusion should summarize the principal findings, interpretations, and implications of your work.


This is an optional section in which you could mention people (and funding agencies if your research was supported by a grant) who were particularly important to the completion and success of the research.

Literature Cited

Only references actually cited in the paper are included in the Reference section at the end of the paper. This should not be a bibliography of “interesting” sources.

List the references in alphabetical order by first author, or title if an anonymous document. In addition to books and the lab manual, scientific studies or reviews in peer-reviewed journals provide excellent information. Be careful when using information from the Internet since it is unscreened and could be biased or unreliable. Avoid including or citing a “.com” web address.

Nearly every journal has different requirements for listing sources consulted in the writing of a research paper. The important point is to follow consistently the format required.

For the BISC 111 reports we will use the American Psychological Association (APA) Citation Style. A clear and complete APA style guide can be found at:

For additional information refer to the Wellesley College library’s suggestions for citing electronic sources found in the Style Manual section of the WC library web site:

General notes on references • Single-space references.
• Use sentence-case for titles.
• Spell journal names out completely (no abbreviations).
• Include all authors.
• Arrange the items on your reference list alphabetically by (first) author, interfiling books, articles, etc.
• Indent the second and following lines 5 to 7 spaces or one half inch.
• Use only the initials of the authors' first (and middle) names; never use first or middle names.
• If no author is given, start with the title and then the date.
• Underline or italicize all genus and species names.
• Magazine and newspaper (not scientific journal) articles: include the month (and day).
• Websites: if the date the page was created is not given, use (n.d.).
