Honeycomb Lattice Framework

  • Our designs are primarily based on the "honeycomb lattice" framework. This serves as a means of abstracting away many of the details of nanostructure design by restricting ourselves to specific angle constraints when linking helices together.
  • Python code is available to implement nanostructures using the honeycomb lattice framework

Container Designs

Implemented Designs

  • Design 3 rectangular core, continuous 1-ply lids

    Design 3
    rectangular core, continuous 1-ply lids

  • Design 4 hexagonal core, separate 1-ply lids

    Design 4
    hexagonal core, separate 1-ply lids

  • Design 5 double-ply hexagonal barrel (one scaffold), separate double-ply lids (second scaffold)

    Design 5
    double-ply hexagonal barrel (one scaffold), separate double-ply lids (second scaffold)

  • Design 6 double-ply hexagonal barrel, no lids

    Design 6
    double-ply hexagonal barrel, no lids

Earlier Designs

  • Design 1 hexagonal core, separate 1-ply lids

    Design 1
    hexagonal core, separate 1-ply lids

  • Design 2 hexagonal core, separate 2-ply lids

    Design 2
    hexagonal core, separate 2-ply lids

Latch Designs

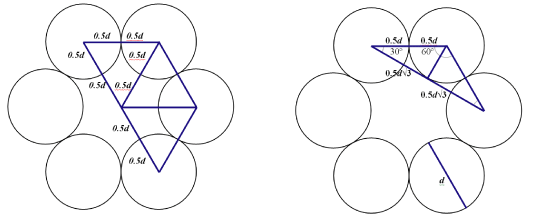

Honeycomb Dimensions
