Overview

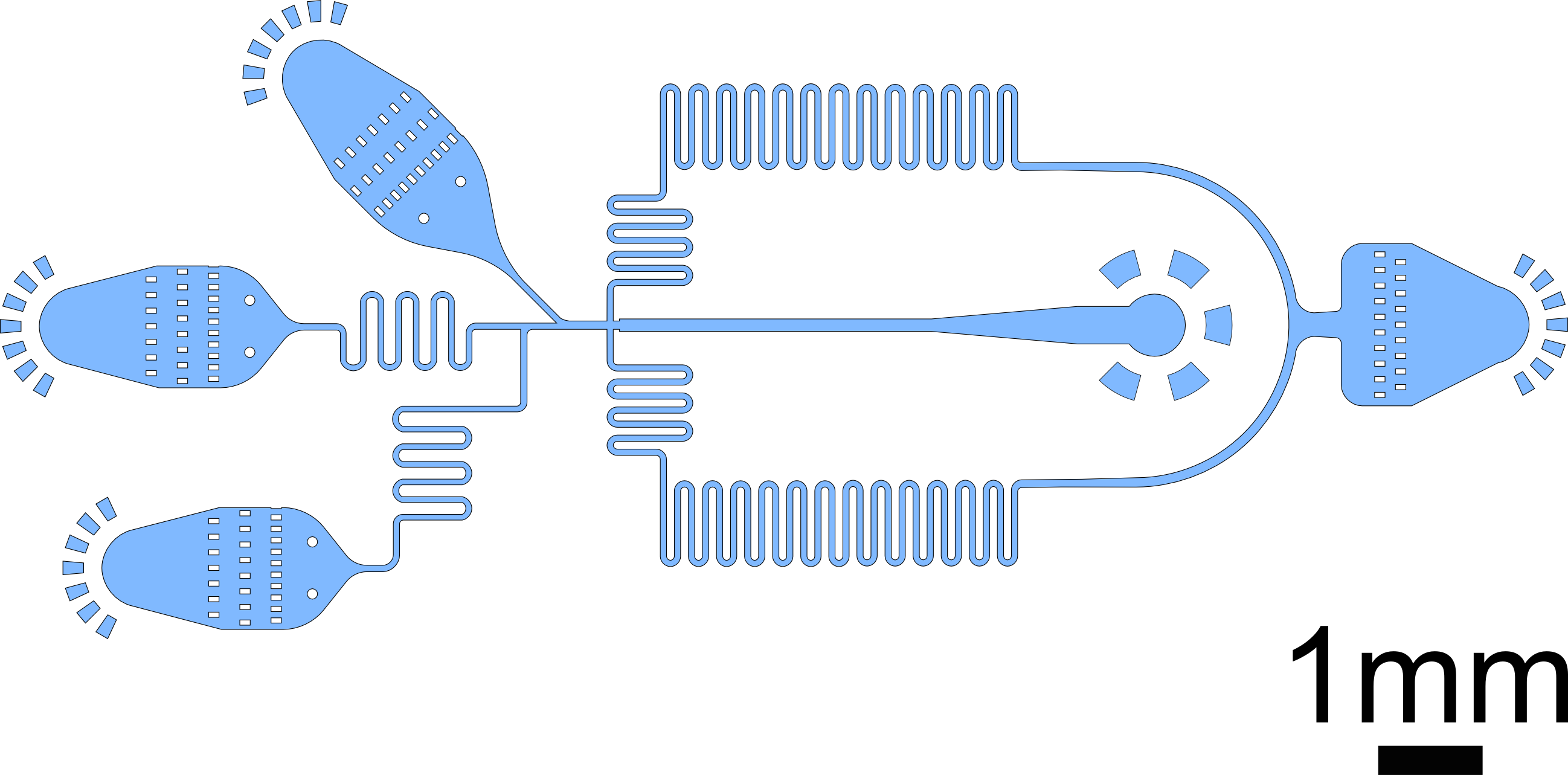

VASA generator.png

Description

• 3 aqueous inlets flow-focusing junction
• modified version of a device from Klein A. M., et al. (2015) Cell 161: 1187-1201
• The example shown has a 80 μm wide junction

Reference

F. Salmen, J. De Jonghe et al. 'Droplet-based single-cell total RNA-seq reveals differential non-coding expression and splicing patterns during mouse development', bioRxiv. 2021,(https://www.biorxiv.org/content/10.1101/2021.09.15.460240v1)

Designed by: Tomasz Kaminski

Downloads

  • Droplet generation device: png, dxf
