• Device for generation of three droplet populations with a flow focusing section of 50 µm
• The height of the channels was 50 µm
• Zig-zag post generation for mixing of droplets
• Ideal for calibration or synergy assays


Ladeveze et al, Versatile Product Detection via Coupled Assays for Ultrahigh-Throughput Screening of Carbohydrate-Active Enzymes in Microfluidic Droplets, ACS Catal, 2023, doi: 10.1021/acscatal.3c01609

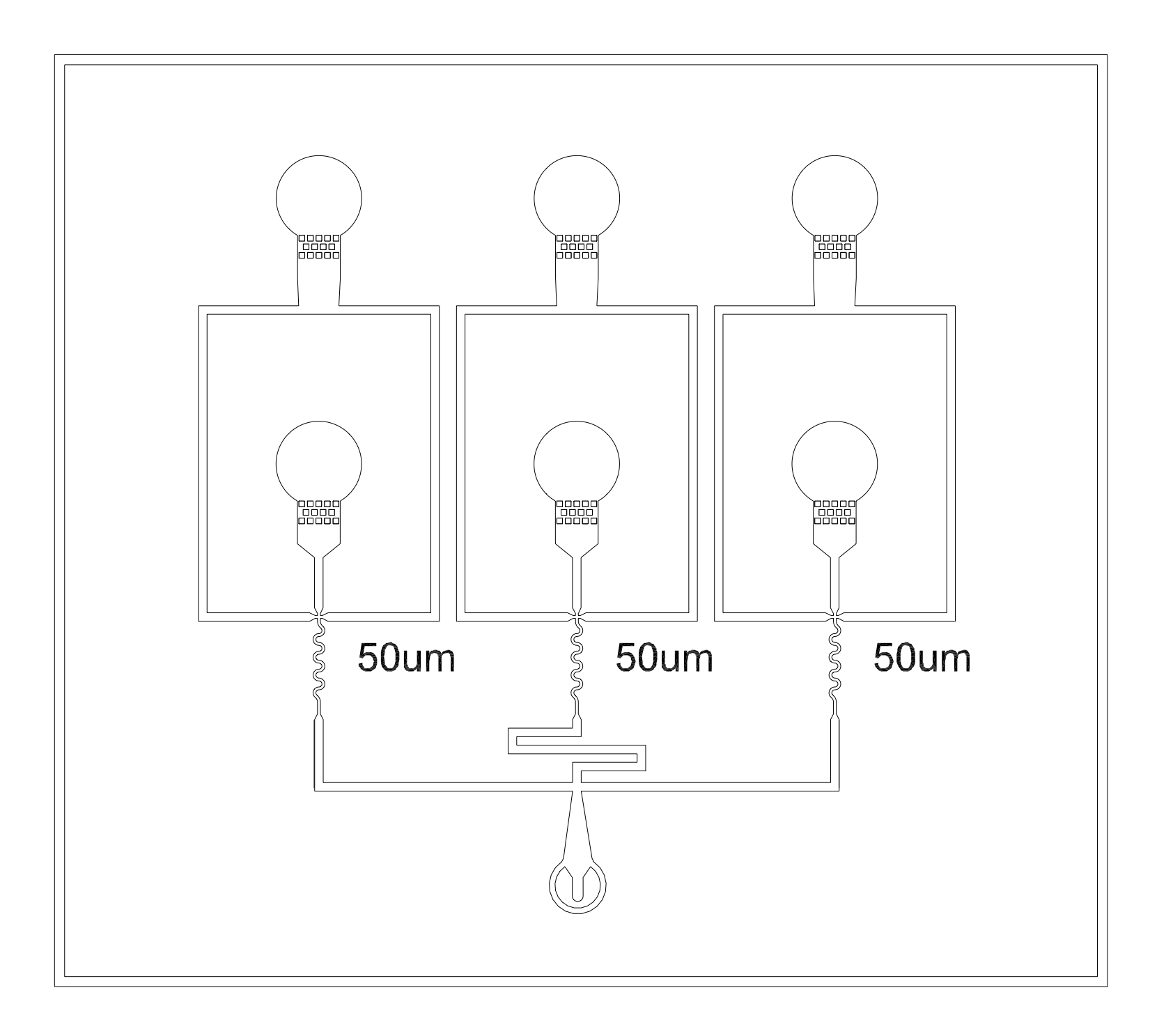

  • Triple flow-focussing device for 50 µm droplets: png, dwg

  • Usage Notes

    Please enter any comments that other users may find useful below this note (such as flow rates that worked well for particular oil/aqueous phases). When providing usage notes please provide as much detail as useful. We would request that you 'sign' any comments with your initials.

    • We recommend starting with the oil flow at 30 µL/min and the aqueous phases at 2 µl/min each. SL
