• Devices to generate 20µm double emulsions or Water-Oil-Water droplets for analysis by Flow Cytometry or sorting by FACS
• The first chip has 3 inlets for (i) Cells (ii)Substrate and (iii) the carrier oil+ surfactant phase
• The second chip has 2 inlets for (i) the first emulsion and (ii) a carrier aqueous phase.

Reference Tauzin, A.S., Pereira, M.R., Van Vliet, L.D. et al. Investigating host-microbiome interactions by droplet based microfluidics. Microbiome 8, 141 (2020). https://doi.org/10.1186/s40168-020-00911-z

Designed by: Martin Fischlechner

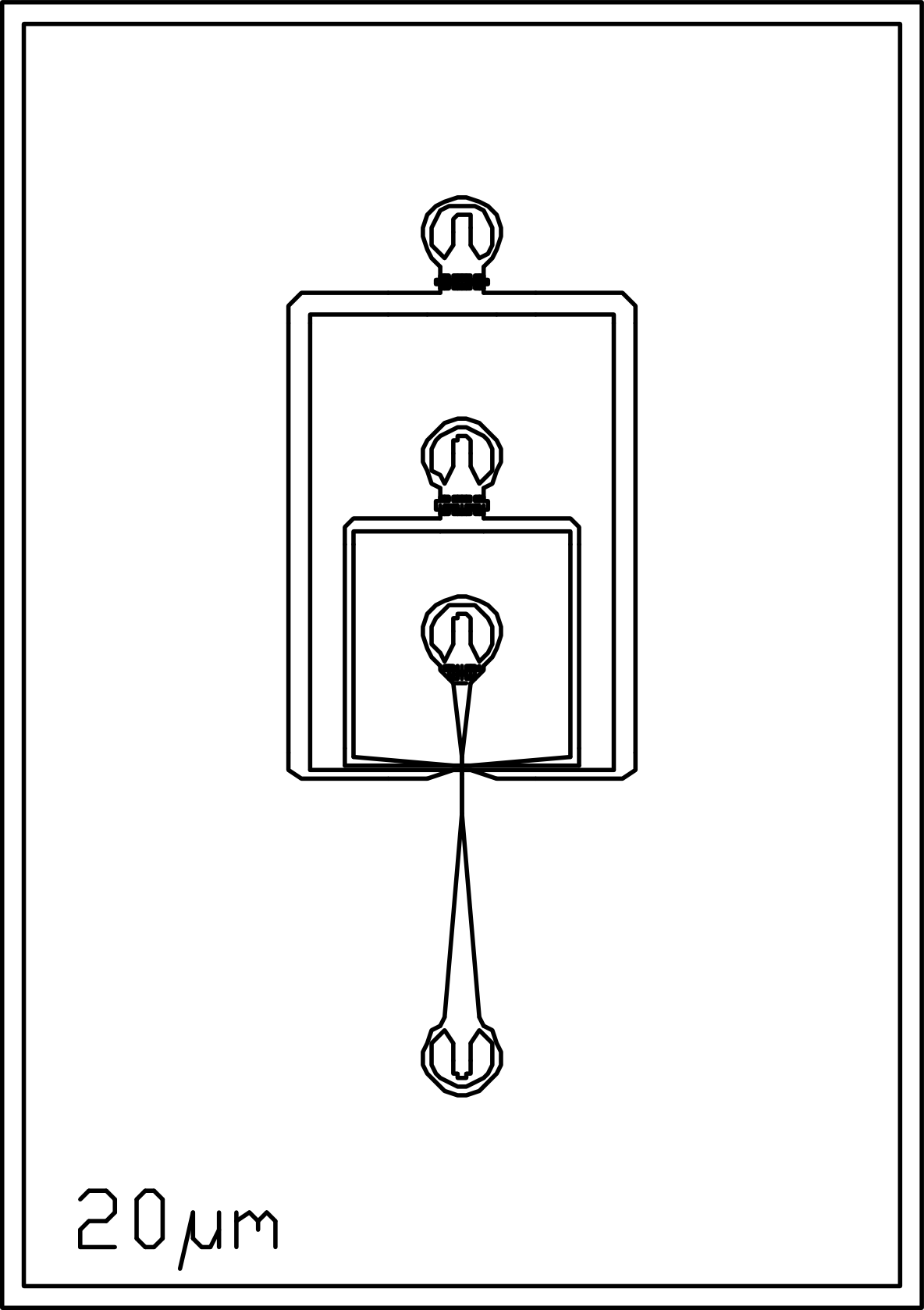

  • Triple inlet FF - 20 µm: png, dwg

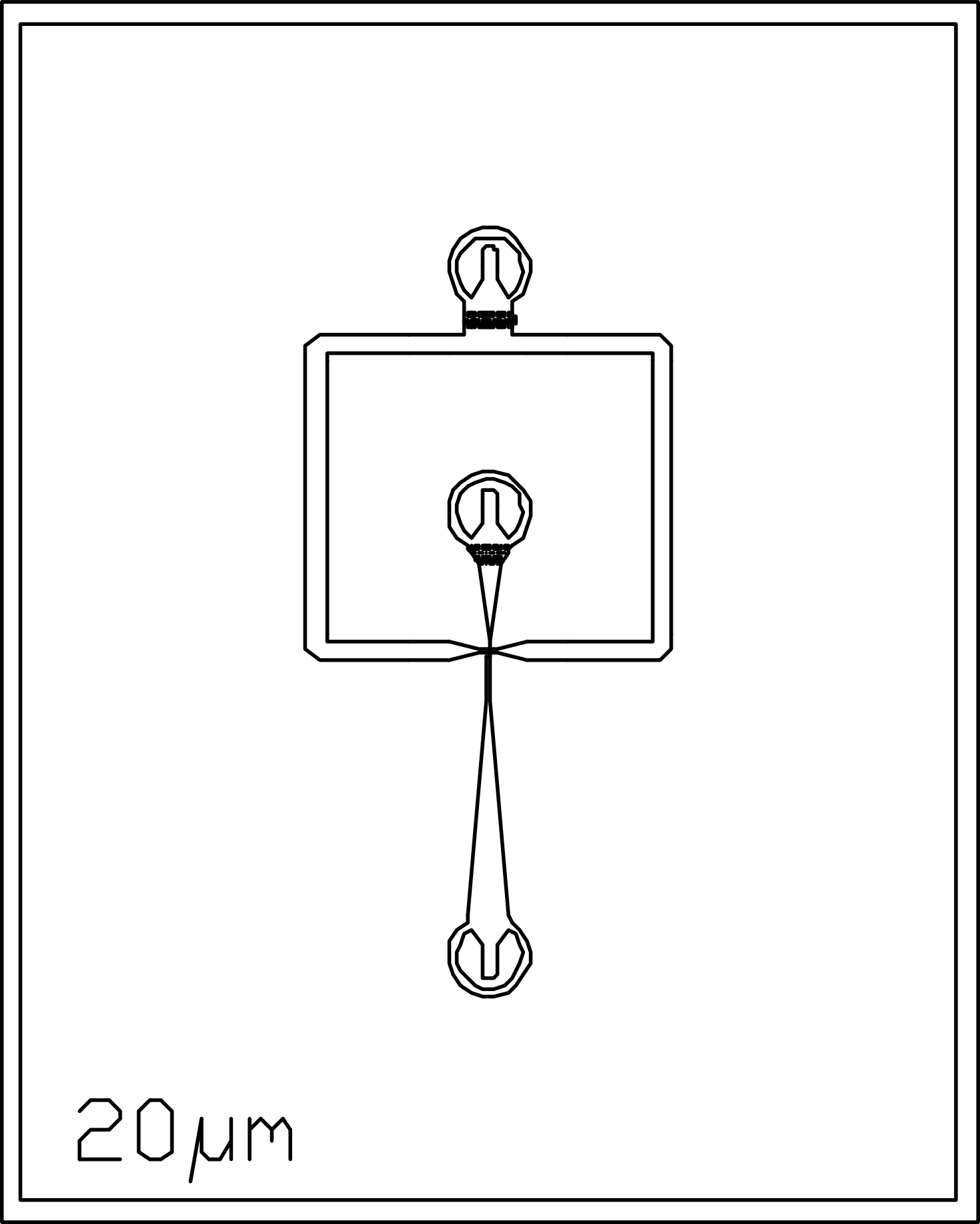

  • Double inlet FF - 20µm: png, dwg

  • Usage Notes

    Please enter any comments that other users may find useful below this note (such as flow rates that worked well for particular oil/aqueous phases). When providing usage notes please provide as much detail as useful. We would request that you 'sign' any comments with your initials.

    The second chip should be rendered hydrophilic following the procedure detailed in the publication. First chip: flow rates were 1 μL/min total for the aqueous phases (cells and substrate) and 8 μL/min for the carrier oil phase. Seconde chip: start with 1µL/ min for the emulsion and 3µL/min for the aqueous phase. LvV, 2020
