• Device for generation droplets with a flow focusing section of 70 µm
• The height of the channels was 75µm
• Zig-zag post generation for mixing of droplet


Kleine-Brüggeney, H., van Vliet, L. D., Mulas, C., Gielen, F., Agley, C. C., Silva, J. C. R., Smith, A., Chalut, K., Hollfelder, F., Small 2019, 15, 1804576. https://doi.org/10.1002/smll.201804576

Designed by: Fabrice Gielen

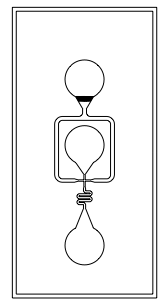

  • Flow focusing device for 70µm droplets: png, dwg

  • Usage Notes

    Please enter any comments that other users may find useful below this note (such as flow rates that worked well for particular oil/aqueous phases). When providing usage notes please provide as much detail as useful. We would request that you 'sign' any comments with your initials.

    • We recommend starting with the oil flow at 30 µL/min and the aqueous phase at 6 µl/min. LvV
