Name: Madison Ryder
Name: Georgia Sullivan
Name: Erik Halsband




  • Lab coat and disposable gloves
  • PCR reaction mix, 8 tubes, 50 μL each: Mix contains Taq DNA polymerase, MgCl2 and DNTP's
  • DNA/ primer mix, 8 tubes, 50 μL each: Each mix contains a different template DNA. All tubes have the same forward primer and reverse primer
  • A strip of empty PCR tubes
  • Disposable pipette tips:only use each only once. Never reuse disposable pipette tips. If you do, the samples will become cross-contaminated.
  • Cup for discarded tips
  • Micropipettor
  • OpenPCR machine: shared by two groups

PCR Reaction Sample List

Tube Label PCR Reaction Sample Patient ID
G1 + Positive control none
G1 - Negative control none
G1 1-1 Patient 1, replicate 1 29486
G1 1-2 Patient 1, replicate 2 29486
G1 1-3 Patient 1, replicate 3 29486
G1 2-1 Patient 2, replicate 1 76146
G1 2-2 Patient 2, replicate 2 76146
G1 2-3 Patient 2, replicate 3 76146

DNA Sample Set-up Procedure

  1. Extract a sample of DNA from the patients through blood, saliva, skin, or hair follicles
  2. Move the extracted DNA into a special PCR tube with a pipette
  3. Add Primer 1 to the PCR tube with a different pipette tip, remember to dispose each pipette tip into the designated cup after using it
  4. Add Primer 2 to the PCR tube with a different pipette tip
  5. Add nucleotides to the PCR tube with a different pipette tip
  6. Add DNA polymerase to the PCR tube with a different pipette tip
  7. Place the closed PCR tube into the DNA thermal cycler, click start

OpenPCR program

  • Heated Lid: 100°C
  • Initial Step: 95°C for 2 minutes
  • Number of cycles: 25 (Denature at 95°C for 30 seconds, Anneal at 57°C for 30 seconds, and Extend at 72°C for 30 seconds)
  • Final Step 72°C for 2 minutes
  • Final Hold: 4°C

Research and Development

PCR - The Underlying Technology

A PCR reaction has four main components: Template DNA, Primers, Taq Polymerase, and Deoxyribonucleotides (dNTP's). Template DNA provides the desired genetic sequence to be copied. The Primers attach to the desired single-stranded DNA segment at sites on either end of the desired genetic sequence. Taq Polymerase is a certain type of DNA polymerase able to withstand the high heat of PCR reactions necessary to denature DNA strands. It locates primers attached to DNA and reads the genetic code of the DNA to attach complimentary nucleotides to that strand. Lastly, the dNTP's are the components that make up the DNA's genetic code, and are the building blocks used to create copies of the desired genetic sequence.

Within a PCR reaction, there are six thermal cycling steps. The procedure begins with heating the container at 95°C for 2 minutes, which brings it to the necessary temperature for the PCR process to begin. The next three - Denature, Anneal, and Extend - are the majority of the process, and repeat for a total of 30 cycles. During the Denature step, the container is heated to 95°C for 30 seconds, causing the double-stranded DNA to lose its double helix shape and separate into single-stranded DNA. In the Anneal step, the container is cooled to 57°C for 30 seconds. At this temperature, the single-stranded DNA molecules attempt to pair up, however, the large concentration of primer sequences attach to the strands before they can rejoin. The final of the three step cycle is the Extend step, during which the container is heated to 72°C for 30 seconds. The DNA polymerase is activated at this temperature, which locates primers attached to single-strand DNA segments and begins adding the complimentary nucleotides to the strand until it falls off the end. This completes the main three step cycle, which usually repeats for 30 cycles. After this, the container is held at 72°C for 2 minutes, while the DNA polymerase finishes adding complimentary nucleotides to the single-stranded DNA segments. Lastly, the container is cooled to 4°C, allowing the single-stranded DNA to cool, pair back up into double stranded DNA segments, and reform a double helix shape.

DNA is made up of four types of molecules called nucleotides, of which Adenine (A) and Thymine (T) anneal to one another, and Cytosine (C) and Guanine (G) also anneal to one another.

This base pairing occurs during the Anneal and Extend steps. This is because during the Anneal step, primers base pair with single-stranded DNA segments, and during the Extend step, the DNA polymerase adds complimentary nucleotides to the single-stranded DNA segments.

A diagram showing the amplification of DNA through the use of Taq Polymerase.

(The above image demonstrates the amplification of DNA through the use of Taq Polymerase.)

SNP Information & Primer Design

Background: About the Disease SNP

The SNP rs1044498 is found on the sixth chromosome in Homo sapiens. It is located on the gene that codes for ENPP1, or ectonucleotide pyrophosphatase/phosphodiesterase 1. The functions of this gene include 3' phosphadenosine 5' phosphosulfate binding, ATP binding, and NADH pyrophosphatase activity. The SNP occurs at the 131,851,228th position on the chromosome, where the codon AAG becomes CAG. This SNP is related to type II diabetes, and specifically bone disorders associated with type II diabetes.

Primer Design and Testing

Non disease forward primer: 5' TTC AGA TGA CTG CAA GGA CA 3'

Non disease reverse primer: 5' TGT TTA AAA GTT TCT TTA AT 3'

Disease forward primer: 5' TTC AGA TGA CTG CAA GGA CC 3'

Disease reverse primer: 5' TGT TTA AAA GTT TCT TTA AT 3'

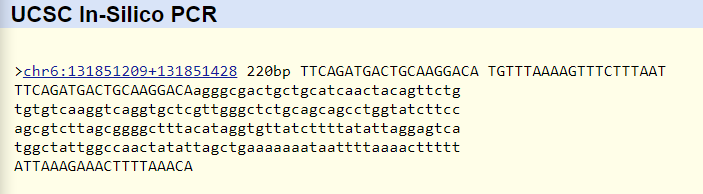

The primer test demonstrated that the primers were located on the correct chromosome and in the correct location. The non disease primers were located on chromosome 6, 220 base pairs apart. This is the correct distance because the forward primer and reverse primer were separated by 200 base pairs, and were 20 base pairs long. The disease primers were not recorded to exist in the human genome. This makes sense because those primers were the result of the SNP mutation.
