Module 2

Lecturer: Noreen Lyell
Instructors: Leslie McClain and Maxine Jonas

TA: Andee Wallace
Lab manager: Hsinhwa Lee

Overview

In this experiment, you will modify a protein called inverse pericam (developed by Nagai et al.) in order to affect its function. Inverse pericam (IPC) comprises a permuted fluorescent protein linked to a calcium sensor. The “inverse” in the name refers to the fact that this protein shines brightly in the absence of calcium, but dimly once calcium is added at sufficient concentration. The dissociation constant Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://api.formulasearchengine.com/v1/":): {\displaystyle K_D} of wild-type IPC with respect to calcium is reported to be 0.2 μM (see also figure below). Your goal will be to alter the binding curve by mutating a single residue in IPC. You will modify inverse pericam at the gene level using a process called site-directed mutagenesis, express the resultant protein in a bacterial host, and finally purify your mutant protein and assay its calcium-binding activity via fluorescence. You may find that you shift the titration curve, which corresponds to altering Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://api.formulasearchengine.com/v1/":): {\displaystyle K_D} ; or you might change its steepness, which corresponds to changing cooperativity (and thus concentration dynamic range); finally, you might affect the maximum and/or minimum fluorescence values, thus changing the sensor's signal:noise profile (fluorescence dynamic range). You might even obliterate the response to calcium entirely! In the course of this module, we will consider the benefits and drawbacks of different approaches to protein design, and the types of scientific investigations and applications enabled by fluorescently tagged biological molecules.

We gratefully acknowledge 20.109 instructors Natalie Kuldell and Prof. Alan Jasanoff for helpful discussions during the development of this module, as well as for their prior work in developing a related module.

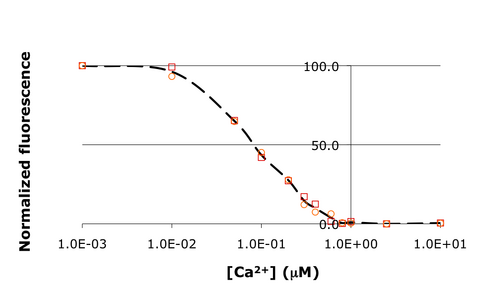

Raw titration curve for IPC. Shown here is sample data from the teaching lab: normalized fluorescence for wild-type inverse pericam as a function of calcium concentration. As you will later learn, an apparent Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://api.formulasearchengine.com/v1/":): {\displaystyle K_D} can be estimated from such a plot: it is the point on the x-axis where the curve crosses y = 50%, or ~0.1 μM here.

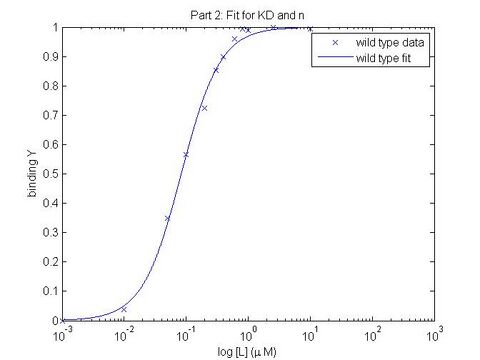

Fitted titration curve for IPC. A more sophisticated analysis using curve-fitting indeed reveals Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://api.formulasearchengine.com/v1/":): {\displaystyle K_D} to be ~ 0.1 μM, close to the reported value for inverse pericam.

Lab links: day by day

M2D1: Evaluate mutations and site-directed mutagenesis
M2D2: Prepare expression system
M2D3: Induce protein and evaluate DNA
M2D4: Purify protein
M2D5: Journal Club I
M2D6: Characterize protein expression
M2D7: Assess protein function
M2D8: Journal Club II

TA notes, M2

Assignments

Protein engineering report: Assignment description
