LAB 6 WRITE-UP

Computer-Aided Design

TinkerCAD

TinkerCAD is a program used to create a 3-dimensional design of an object or invention. It allows you to contort, change and alter the shapes in the free space provided. We utilized it, with pre-generated parts of our machine, to create a new and more effective design. Usually, the physical model created is then manufactured. In our case, we used the different parts of the OpenPCR machine to make a more effective and user-friendly machine.


Our Design

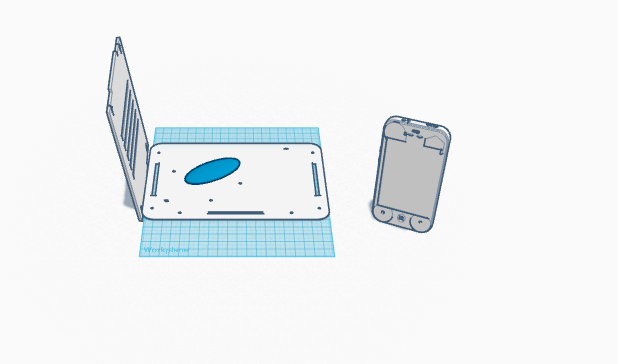

Screen Shot 2014-04-16 at 10.35.06 AM.png
Our design change for the OpenPCR machine is that we have created a wireless system. Instead of using a USB cable to connect it to the computer, a smartphone will connect through bluetooth to a mobile application (to avoid any connectivity issues through Wi-Fi). This application will include a self-timer capability and imageJ mobile software. The specifically designed app will accurately present a read-out of the information produced by the OpenPCR machine. In addition, within the app the data will be recorded and compiled in a format that can be easily transferred to other devices.



Feature 1: Disease SNP-Specific Primers

Background on the cancer-associated mutation

The single nucleotide polymorphism rs237025 is found in the human chromosome 6:149721690. A sequence of alleles is changed from 'GTG' to 'ATG'. This variation occurs in the gene SUM04. This gene is responsible for encoding ubiquitin-related modifiers. These modifiers attach themselves to proteins to control activity, stability, and/or localization. Changing just that one small allele can cause effects with rheumatoid arthritis or type 1 diabetes.


Primer design

  • Disease SNP-specific Forward Primer: 5'TGAACCACGGGGATTGTCAA
  • Reverse Primer: 5'CGTAAGAGTTAATCTTGTGA


How the primers work: The forward primer is disease sequence specific. It contains twenty bases, ending with the first nucleotide from the disease-associated allele. Because the primer ends with the disease nucleotide 'A' rather than the non-diseased 'G', only DNA sequences with the disease will be able to replicate. The reverse primer is not disease specific. It is also twenty bases long and ends 200 bases after the forward primer.

Feature 2: Consumables Kit

Our consumables kit will come in an organized container in sections that are clearly labeled as opposed to the original design which can cause clutter and confusion. It will include the plastic tip cartridges, a redesigned pipettor, and the necessary reagents to begin the experiment right away.

The redesigned pipettor will now allow quicker pipetting of the reagents. It will remove the need of reattaching each individual plastic tip. Instead, a cartridge will be loaded into the pipettor and each time the plastic tip is ejected, a new tip will automatically discharged and become ready to use. This tip will also be sterile, preventing any type of error while using the OpenPCR machine.


Feature 3: Hardware - PCR Machine & Fluorimeter

The OpenPCR machine and fluorimeter will come in a clearly labeled package side-by-side with the consumables. The slides will be packaged in a way that will prevent breaking during transport. All the necessary equipment will be included to begin immediately. Clear instructions will also be provided.

The redesigned PCR machine will now include bluetooth capability, allowing for the removal of a transfer cable between the machine and the computer. Bluetooth is being used instead of Wi-Fi in order to prevent any connectivity issues. Instead, a smartphone app will be utilized in order to provide an accurate visualization of the recorded data. Within our packaging, we will provide a QR code that will allow for easy and quick installation of the application. This extensive application will include a self-timer camera and imageJ software. This will allow for mobile analysis of DNA.
