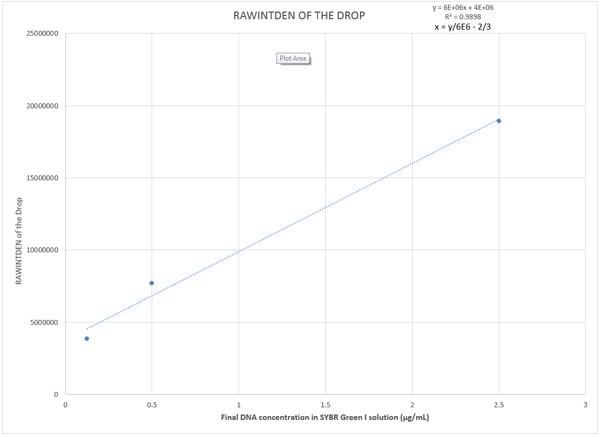

OUR TEAM Error creating thumbnail: File missing Name: Casey Weigel Error creating thumbnail: File missing Name: Spencer Brown Error creating thumbnail: File missing Name: Kevin Haas Error creating thumbnail: File missing Name: Mariama Salifu Error creating thumbnail: File missing Name: Davis Matthews LAB 5 WRITE-UP Background Information SYBR Green Dye SYBR green dye binds to double stranded DNA. The dye absords blue light and emits green light. Single-Drop Fluorimeter A fluorometer or fluorimeter is a device used to measure parameters of fluorescence: its intensity and wavelength distribution of emission spectrum after excitation by a certain spectrum of light. How the Fluorescence Technique Works Once you turn the fluorimeter on and place it on the table you put the glass slide on smooth side down. Next set up the camera in the cradle so you are looking level at the slide, you might need to adjust the height. Turn your photo app on to be ready to take pictures. Next place 80 uL drop of SYBR Green I solution on first two clear circles in the middle of the slide. After that place 80 uL drop of DNA sample on top of the SYBR green I solution. Then adjust slide so that the light illuminates the center of the drop and the drop focuses the light on the other side. Finally find the distance between the camera and the fluorimeter to get a clear and well focused picture. Then record the distance and the pictures taken of each sample. Procedure Smart Phone Camera Settings Type of Smartphone: Iphone 4 Flash: Off ISO setting: >800 White Balance: Auto Exposure: High Saturation: High Contrast: Low Calibration Set the cradle so that when the phone is placed, it will be perpendicular to the slide. Make sure that the camera can only see a small portion of the slide; the drop is the focus here. If necessary, raise the fluorimeter so that the slide is mostly unseen by the camera. Record the distance between the camera and the drop. Distance between the smart phone cradle and drop = approximately 4 cm Solutions Used for Calibration Initial Concentration of 2X Calf Thymus DNA solution (micrograms/mL) Volume of the 2X DNA solution (uL) Volume of the SYBR GREEN I Dye solution (uL) Final DNA concentration in SYBR Green I solution (ug/mL) 5 80 80 2.5 2 80 80 1 1 80 80 .5 .5 80 80 .25 .25 80 80 .125 0 80 80 0 Placing Samples onto the Fluorimeter Place 80 microliters of SYBR green dye on the slide, on either end but between two of the circles. Then add 80 microliters of the DNA containing solution. Move the slide so that the drop is being hit by the blue LED light. Cover the system and take a delayed photo to allow time to close off most external light. Do not move the camera for any reason. Remove the drop that is on the slide and move to the next two circles on the slide. Return to step 1. Data Analysis Representative Images of Samples Sample Without DNA Error creating thumbnail: File missing Sample With DNA Error creating thumbnail: File missing PCR Results Summary PCR INTDENS Values and Concentrations Using Fluorescence PCR Product TUBE LABEL AVERAGE INTDENS VALUE PCR Product Concentration, µg /mL Corrected PCR Product Concentration, µg /mL PC 14842638.67 1.807106444 21.68527733 P11 2559170.667 -0.240138222 -2.881658667 P12 1636496.667 -0.393917222 -4.727006667 P13 3100538.667 -0.149910222 -1.798922667 NC 2579499.333 -0.236750111 -2.841001333 P21 3109118 -0.148480333 -1.781764 P22 2270145.667 -0.288309056 -3.459708667 P23 2761933 -0.2063445 -2.476134 Instructor's summary: You completed 8 PCR reactions in a previous lab. You used the SYBR Green I staining and imaging technique to measure the amount of amplified DNA in each PCR reaction. You used a standard curve (based on known concentrations of calf thymus DNA) to convert INTDEN values into DNA concentration. Your positive control and negative control samples should be used as threshold values for determining whether an unknown (patient) sample is truly positive or negative. Your positive control PCR result was 21.685 μg/mL Your negative control PCR result was -2.841 μg/mL Patient 74963 : The images for this patient had an absence of a reaction from the SYBR green dye, so it was a clear droplet. The final result was -3.136 μg/mL. Patient 97208 : The images for this patient had an absence of a reaction from the SYBR green dye, so it was a clear droplet. The final result was -2.573 μg/mL. Patient 74963 : The images are more closely related to the negative control because there was an absence of reaction with the SYBR green dye. The image did not resemble the positive control, the positive control had a green color and the patients was clear. Thus the drop was clear of the target DNA sequence. Patient 97208 : The images are more closely related to the negative control because there was an absence of reaction with the SYBR green dye. The image did not resemble the positive control, the positive control had a green color and the patients was clear. Thus the drop was clear of the target DNA sequence. Image J Values for All Samples Final DNA concentration in SYBR Green I solution (µg/mL) AREA (pixels) Mean Pixel Value RAWINTDEN of the drop RAWINTDEN of the background 2.5 50642 168.114 8513611 385684 2.5 50642 166.193 8416341 409557 2.5 50642 164.364 8323742 395546 1 50642 114.938 5820701 360584 1 50642 111.45 5644030 358166 1 50642 117.598 5955383 370618 0.5 50642 78.451 3972933 336693 0.5 50642 77.921 3946083 381415 0.5 50642 86.987 4405175 349967 0.25 50642 47.199 2390227 331595 0.25 50642 45.2 2289040 321962 0.25 50642 49.111 2487086 355290 0.125 50642 28.418 1439120 347140 0.125 50642 30.182 1528457 423950 0.125 50642 30.072 1522889 330093 0 50642 13.81 699375 335796 0 50642 14.619 740329 398902 0 50642 14.501 734349 374002 Fitting a Straight Line Fluorimetry Calibration with Equation Error creating thumbnail: File missing
