LAB 6 WRITE-UP

Bayesian Statistics

Overview of the Original Diagnosis System

BME 100 students began by receiving two different DNA samples from two separate patients. PCR master mix and the forward and reverse primers were then added to the samples as well as the positive and negative controls. There were a total of 8 microtubes that were then placed into the PCR machine. One tube had the positive control, one tube had the negative control, three tubes contained patient one's DNA, and the final three tubes contained patient two's DNA. After the PCR machine ran to completion the tubes were removed and buffer was added to each sample. 160µL drops of each sample were then placed in the middle of a glass slide. This slide was then placed on top of a fluorimeter in a dark box where a picture was taken in order to show the light intensity of solely the singular drop. If the drop glowed green to the naked eye then the sample was classified as containing the disease-associated SNP. ImageJ was also utilized to determine the exact presence of the green color and make the data quantitative. Multiple pictures and trials(three pictures per drop and three drops per patient) were used in order to limit human error in the experiment. Challenges that were encountered included the placement of the drop in the exact center of the glass slide; therefore, our new design of the fluorimeter accounted for this possible error and made the placement more standardized.

G91030 Table 123.png

G91030 Table 1234.png

G91030 Table 12345.png

G91030 Table 123456.png

G91030 Conclusion Chart.png

What Bayes Statistics Imply about This Diagnostic Approach

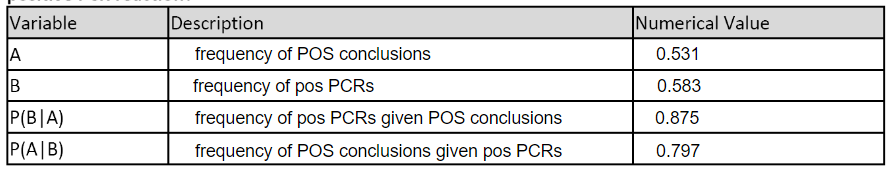

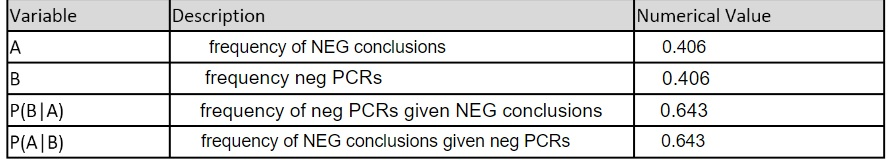

According to calculations 1 and 2 it is more likely that a patient that has the disease SNP receives a positive PCR result than it is that a patient that is negative for the disease SNP receives a negative PCR result. This is because the calculation 1 values are closer to 1.00, while the calculation 2 values are closer to 0.50.

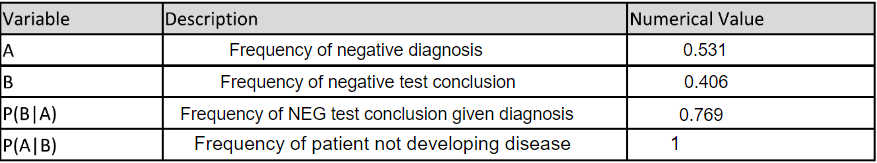

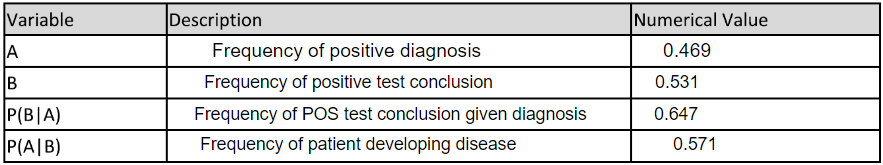

According to calculation 3 there is close to a 50% chance that the patient will develop the disease if they receive a positive PCR diagnosis. In contrast, according to calculation 4 a patient that receives a negative PCR diagnosis has a 100% chance that they will not develop the disease.


Possible sources of error in the experiment could have occurred when pipetting the solutions into one another. The slight differences between the first and the second stop could cause a slight difference in the ratios of solution and, therefore, affect the final results. Another error could have been caused by the slight movement of the drop on the glass slide. The placement of the different drops was not always exactly centered and could have caused discrepancies between the images of the drops based on angle. Error could have also occurred in between pipetting of the different drops. A leftover residue could have interfered with the calculations and images of the new drop that was placed.

Intro to Computer-Aided Design

3D Modeling

The software used to design our device was SolidWorks. This software allowed us to add measurements and details to a three-dimensional model of our device. It includes features that change the material of the device or the background, which gives a more accurate display of the different parts. It effectively communicates the main idea of our device to others, specifically investors and consumers of the product. In order to adequately utilize this software, some basic skills such as sketching, editing dimensions, extruding, and cut extruding are needed. With these skills, SolidWorks provides a simple and quick way to accurately display a proportional model of any desired part or design.

Our Design


Fourimeter G91030 1115.png

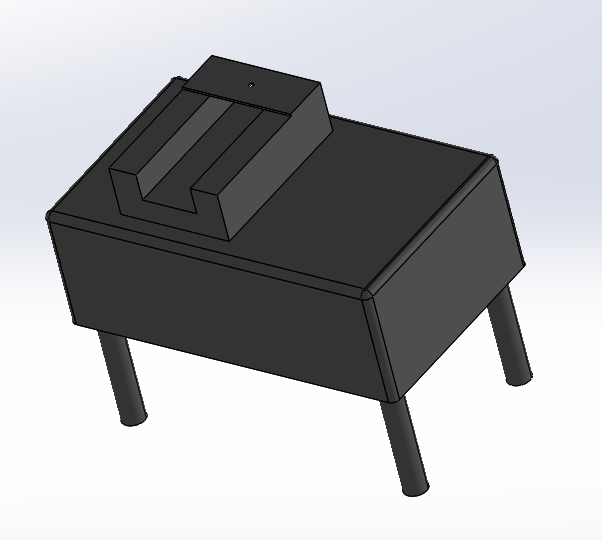

This new design is to make the fluorimeter an easier tool for OpenPCR lab. The new fluorimeter possess detachable leg stands and a place holder for the micro pipette. The detachable legs are to compensate for varying phone sizes. The legs extend out and have a notch system for length and lock. The place holder is located on the top of the fluorimeter and above the area where samples are placed. It is detachable and has a designated hole in the center to place the micro pipette through. Using this will allow the sample to be dropped exactly on the center. This is to prevent misplacement of sample and to correct for shakiness of the scientist's hand.


Feature 1: Consumables

In the new Open PCR kit, specific consumables will be included in the package. Such consumables will include small plastic microtubes, a pipettor, and various reagents of PCR mix and primers. The microtubes will be adjusted from their current state by being pre-labeled with the titles "negative control", "positive control", and the various possibilities of patient numbers to ensure that samples remain distinct from each other and are easy to identify. The pipettor, however, will be adjusted for easier use by adding user friendly directions directly on the device such as diagrams of how to properly utilize the first and second stop mechanisms when retrieving and transporting PCR solutions. The reagents will remain the same as those in current kits since they are necessary for DNA replication. These alterations in the consumables will decrease human errors made in the preparation of PCR and will be more user friendly.

Feature 2: Hardware - PCR Machine & Fluorimeter

The current PCR machine will not be changed from current models. This is because its existing state is generally compact, accurate, and efficient once the samples have been prepared and placed inside the Open PCR machine. The PCR machine does require an external power source (wall outlet) that could be considered inconvenient. However, an alternative power source would be dependent on the user's preference and can be altered without affecting the integrity of the PCR machine. Therefore, it is not necessary to change the power source (i.e. plug to batteries) as this can lead to unnecessary costs of continuously purchasing batteries without altering the outcome of the PCR process.
