  • Personal Protective Equipment which includes lab coats, gloves and etc.
  • 8 tubes of PCR reaction mix. Each tube contains a total of 50 μL of Taq DNA polymerase, MgCl2 and dNTP's.
  • 8 tubes of DNA/Primer mix. Each tube contains a total of 50 μL of a different DNA sample and the same forward and reverse primers.
  • A set of empty PCR tubes
  • Disposable pipette tips
  • Cups for disposing used pipette tubes
  • Micropipettor
  • OpenPCR machine

PCR Reaction Sample List

Tube Label PCR Reaction Sample Patient ID
G7 + Positive control none
G7 - Negative control none
G7 1-1 Patient 1, replicate 1 97085
G7 1-2 Patient 1, replicate 2 97085
G7 1-3 Patient 1, replicate 3 97085
G7 2-1 Patient 2, replicate 1 52014
G7 2-2 Patient 2, replicate 2 52014
G7 2-3 Patient 2, replicate 3 52014

DNA Sample Set-up Procedure

  1. Adding the DNA sample into the corresponding PCR tube
  2. Adding the forward primer to the same tube
  3. Adding the reverse primer to the aforementioned tube.
  4. Adding dNTP's to the PCR tube.
  5. Adding taq DNA polymerase enzymes to the PCR tube.
  6. Repeating the aforementioned steps for the remaining DNA samples
  7. Placing the PCR tubes in the thermal cycler device

OpenPCR program

The PCR program is run by having the heated lid at 100 degrees Celsius. The initial step is set the program to 95 degrees C for 2 minutes. This will be done for 25 cycles, denaturing at 95 degrees C for 30 seconds, annealing the DNA at 57 degrees C for 30 seconds, and extending the DNA at 72 degrees C for 30 seconds. The final step is the keep the sample at 72 degrees C for 2 minutes, and set the final hold to 4 degrees C.

Research and Development

PCR - The Underlying Technology

Function of Each Component

The DNA sample acts as a template for replication. The goal of PCR reactions is to target a certain sequence of DNA and replicate it; This sequence is located on the template DNA. Primers are short RNA sequences specific for the targeted DNA sequence. PCR utilizes 2 primers: reverse primer and forward primer. Primers are designed in a way that they contain the paired sequence of the beginning and end part of the desired target sequence and can bind to the DNA sample. Taq polymerase is a DNA polymerase obtained from heat-resistant organisms. The role of DNA polymerase is to attach to both primers and elongate the targeted sequence of DNA. For this process to happen, dNTP's need to be added to the mixture for DNA polymerase elongation.

Steps of Thermal Cycling

During the first step of this procedure, the sample is slowly heated to 95 C. This process weakens the intermolecular forces between base pairs located between 2 DNA strands. In the denaturing step, hydrogen bonds and other intermolecular forces break and 2 strands of the template DNA are separated. During the annealing phase, the sample is cooled down to 57 C for 30 seconds. This step enables primers to bond to the targeted DNA sequence. Primers are designed to contain the complementary sequence of the beginning and ending target sequence of DNA. During the annealing step, primers locate their complimentary sequence on the DNA (beginning and end of the targeted sequence at the 5' and 3' end) and form hydrogen bonds with the complimentary strand through base pairing. Base pairing occures between A -T and G-C. At the extension step, the mixture is reheated to 72 C for 30 seconds. During this step, DNA polymerase attaches to the previously added primers and creates a new strand of DNA. DNA polymerase cannot initiate DNA synthesis without an initial primer and will only add nucleotides to the 3' end of primer. Once attached to the primer, DNA polymerase uses the dNTP's in the mixture and pairs them with the complimentary nucleotide on the DNA. In other words, it pairs each T with an A and each G with a C. After the process is finished, DNA polymerase is removed from the newly synthesized DNA strands, the mixture is cooled down to 4 C and new hydrogen bonds are formed between DNA strands thus creating a newer, shorter DNA. As mentioned previously, Base pairing occurs a the annealing and extension phase of PCR. During the annealing phase, nucleotides on the primer pair with corresponding sequences on the DNA thus making a hybrid structure. In the extension phase, DNA polymerase uses dNTP's from the sample to make a complimentary strand for each template strand of DNA.

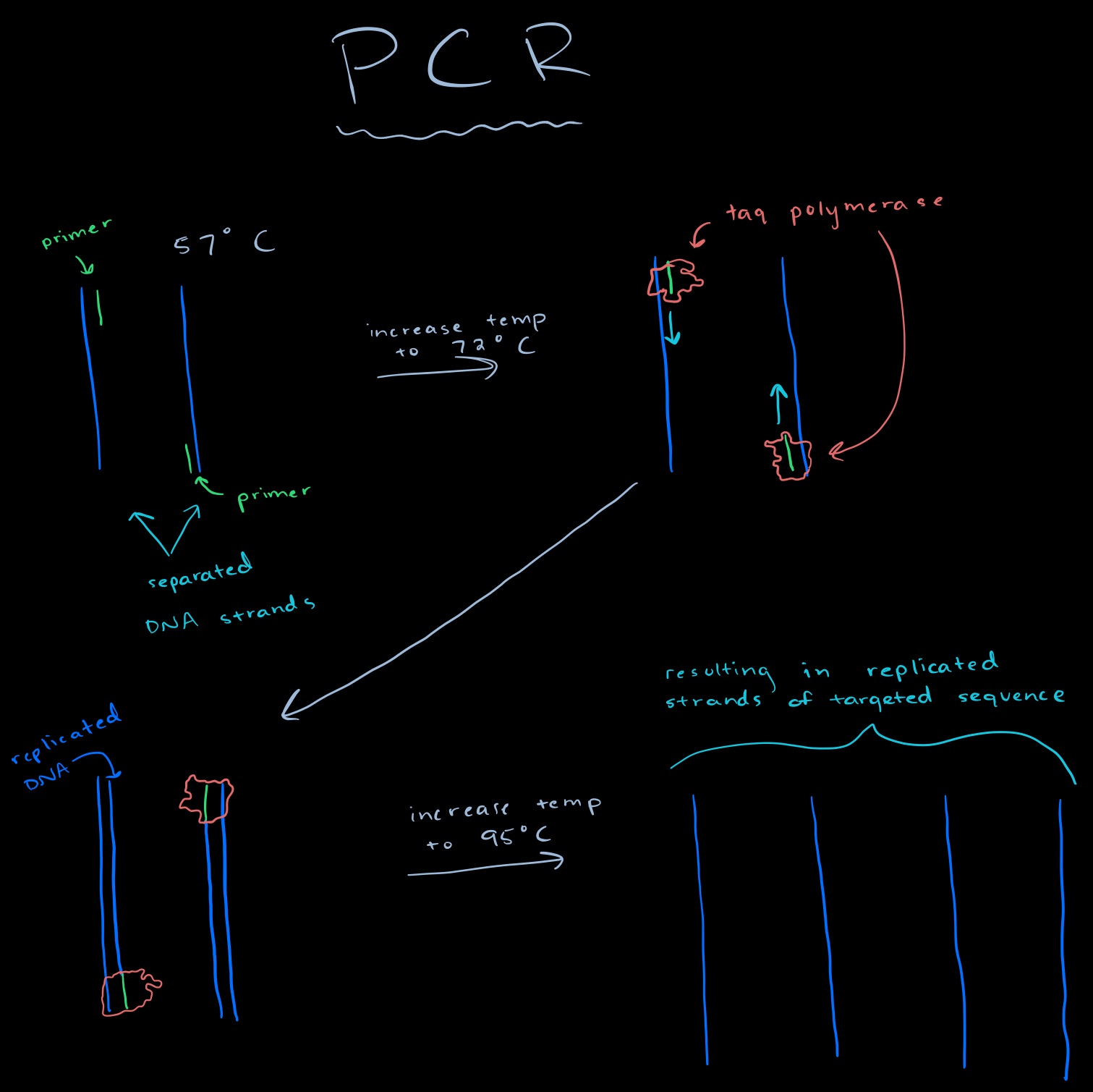

PCR imagewgroves.jpg

SNP Information & Primer Design

Background: About the Disease SNP

The basic building blocks of DNA are nucleotides (Adenine, Guanine, Thymine, Cytosine). When a mutation in one of these pairs along the DNA molecule occurs, it is called a single nucleotide polymorphism (SNPs). Some of these SNPs can cause severe damage to the function of the cell if it occurs in an area of an important gene. The disease SNP we are looking at today is due to a nucleic acid change of a Thymine to a Cytosine in chromosome 19, location 44907853. It is pathogenic meaning it is caused by either viruses, bacteria, or other types of germs and only affects homo sapiens. This SNP is located on a gene that codes for Apolipoprotein E (APOE) which is a protein that is essential for the normal catabolism of triglyceride-rich lipoprotein constituents. Specifically, it is responsible for Amyloid-beta binding, antioxidant activity, and cholesterol binding. Studies have shown that this allele of the APOE gene is linked to conditions of Alzheimer’s and stroke.

Primer Design and Testing

Each PCR reaction needs both a forward primer and a reverse primer. The forward primer has the SNP as the 20th and last base in its sequence and the reverse primer begins 200 bases right of the SNP. Both of these primers need to be read from the 5' to 3' direction.

The following primers are from the healthy and mutated nucleotide sequence of the disease mentioned above

Forward Non-disease Primer: 5’- A G C G G C C A G C G C T G G G A A C T - 3’

Reverse Non-disease Primer: 5’- C A G G C C C C C C A A G A C T T A G C - 3’

Forward Diseased Primer: 5’- A G C G G C C A G C G C T G G G A A C C - 3’

Reverse Diseased Primer: 5’ - C A G G C C C C C C A A G A C T T A G C - 3’

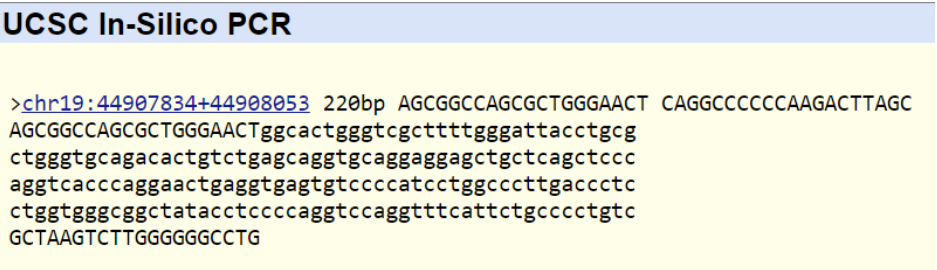

The non-diseased primer matched with a sequence of DNA. As for the diseased primer, there was no DNA sequence that matched it. This was the expected result of the test as a diseased primer would have no match with a healthy human genome.
