LAB 6 WRITE-UP

Bayesian Statistics

Overview of the Original Diagnosis System

BME 100 tested patients for the disease-associated SNP by running various PCR experiments and analyzing the photos of DNA samples with amplified replicants of data for various patients. This process was split among sixteen groups of students, with each group testing two patients (three DNA replicates per patient). The approach can be summarized as follows: within each group, two patients were assigned and three replicates of each patient’s DNA was tested. To complete the PCR reactions for both patients, the following materials were added together in a test tube which was then inserted into a thermocycler for completion of the experiment: replicate DNA (specific to each patient), PCR reaction mix and DNA primer mix. After placement in the thermocycler, the PCR reaction was completed, where DNA replicates were replicated billions of times. There were a total of six PCR reactions for every group (for 16 groups) and a total of 32 patients. To ensure that error was minimized during these experiments, the exact micropipetting technique was used, and correct measures were followed to ensure proper measurements made within each test tube and proper disposal of all materials. Additionally, during the ImageJ analysis portion of these experiments, pictures were taken using the proper camera settings (as designated by the lab workbook) and through the use of a fluorimeter, where the flap was closed so each DNA sample- paired with SYBR Green 1 for mutation identification- was seen as clearly as possible. Three pictures were taken of both 1) the six calibration concentrations (seen in lab write-up 5) and 2) both positive/ negative controls and all six replicate DNA samples for both patients. These photos were analyzed in ImageJ to determine RAWINTDEN values and therefore, both quantitatively and qualitatively, the results of disease presence could be determined with as little error as possible. Three replicate DNA samples were used for each patient, and three pictures were taken for each sample, to minimize error within the experiment.
The final class data spreadsheet displays fairly successful identification of disease presence of the SNP- these conclusions were drawn based on the ImageJ analysis. 32 conclusions were drawn- corresponding to the total 32 patients analyzed in the PCR experiments- and only two were deemed inconclusive. There was some blank data found in DNA concentrations and positive/ negative control results, but the majority of the data is present. Some issues that could have caused these discrepancies include inconsistent procedure when taking photos of samples, in addition to variability in measurements which has an overall effect on the DNA concentration analyzed after the PCR reaction takes place.


What Bayes Statistics Imply about This Diagnostic Approach

Calculations 1 and 2

Calculations 1 and 2 refer to the sensitivity and specificity of the system (individual PCR replicates) respectively, with regard to the ability of detecting the disease SNP. Calculation 1 reveals a very high probability (close to 100%) ​ ​that​ ​a​ ​patient​ ​will​ ​get​ ​a​ ​positive​ ​final​ ​test​ ​conclusion,​ ​given​ ​a positive​ ​PCR​ ​reaction. Calculation 2 reveals an even higher (very close to 100%) probability that ​a​ ​patient​ ​will​ ​get​ ​a​ ​negative​ ​final​ ​test​ ​conclusion,​ ​given​ ​a negative​ ​diagnostic​ ​signal. Therefore, the individual PCR replicates are very reliable in terms of detecting the disease SNP.

Calculations 3 and 4

Calculations 3 and 4 refer to the sensitivity and specificity of the system (individual PCR replicates) respectively, with regard to the ability of predicting ​the disease​. Calculation 3 reveals a moderate probability (close to 50%) that ​a​ ​patient​ ​will​ ​develop​ ​the​ ​disease,​ ​given​ ​a​ ​positive​ ​final​ ​test conclusion. Calculation 4 reveals an extremely high (100%) probability that a​ ​patient​ ​will​ ​not​ ​develop​ ​the​ ​disease,​ ​given​ ​a​ ​negative​ ​final test​ ​conclusion. Therefore, individual PCR replicates are more reliable in diagnosing when the diagnosis is negative, rather than positive. About half the time, a positive diagnosis is effective in predicting the development of the disease.

Sources of Error

Sources of error lie in inaccurate pipetting prior to the PCR reaction process, where inaccurate volumes of PCR reaction mix, DNA primer mix or the replicates themselves could have been added to the test tubes, or the incorrect mix could have been added (human error). Additionally, error may have occurred during the thermocycler process, or in the imaging process where the fluorimeter may have been partially open, allowing light to pass through the reaction mix and the SYBR Green 1 when taking photos to detect the mutation. These errors may have led to false detection of the presence of the mutation- the disease SNP- in each replicate and thus, Bayes values may have been influenced.

Intro to Computer-Aided Design

3D Modeling
Our team ended up deciding to use Tinkercad this time around for our 3D modeling. We found that this 3D modeling software was very user friendly. Its bright colors and toolbar made it easy to navigate through the different stages of designing our new Open PCR. The tutorial was very helpful and provided just the right information needed to complete this 3D model. Also, the easy to move parts worked seamlessly when navigating the grid. This helped make the whole process much easier, as most of it was putting together parts provided. Being new to 3D modeling, our group found it very beneficial to use Tinkercad as it was made to make the 3D modeling process as easy as possible.

Our Design

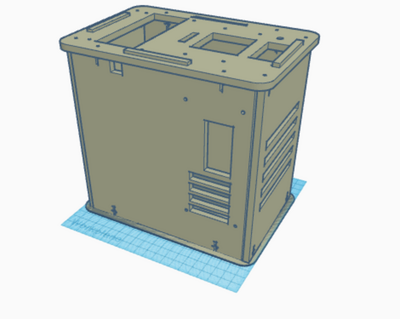

AJS LabGroup1 FinalBox.png

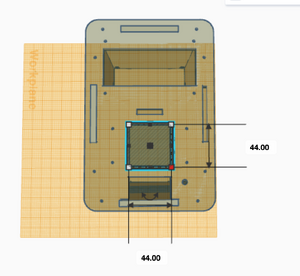

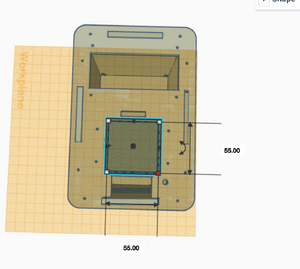

Our new design does not change much of the initial design that was provided to us. We saw very little that could be done to vastly improve the machine in a practical way. Our group ended up deciding that one of the biggest downfalls to the initial design was that you could only run 16 PCRs at once. To combat this, we decided to increase the capacity size of the tube holder from a 4x4 box to a larger 5x5 box. This would allow for 25 PCRs to be run at a time instead of a measly 16. This increase in size would not affect heating and cooling, as the temperature is presumably controlled by an electric heating element, which is accurate even over a large area. Also, the design with the bigger area for the PCR tubes does not effect any other of the components or holes in the design, making it a small but ideal change that could boost the productivity of a single Open PCR by 56%.

AJS LabGroup1 4x4Box.png AJS LabGroup1 5x5Box.png



Feature 1: Consumables

Because our new design—a thermocycler with the capability of running 25 reactions at a time (rather than the original 16)—has more open space and requires more tubes for a single reaction, our consumables kit will package 25 tubes and more pipette tips. Additionally, the volume of PCR mix and primers included in the consumables kit will be doubled, because each kit must have the materials necessary to run more reactions at one time. The number of tips will not be doubled from its original size, however, because there were too many tips in the consumables kit from BME 100, creating unnecessary costs and waste. The following is a complete list of materials included in the packaged consumables kit for our design:

  • 25+ test tubes (depending on the specific reaction taking place)
  • small box of 50 tips
  • 5 glass slides
  • 1 micropipettor with adjustable volume
  • 16 tubes of PCR reaction mix, 50 μL each
  • 16 tubes of DNA/ primer mix, 50 μL each
  • small sharps container or cup for disposal

Feature 2: Hardware - PCR Machine & Fluorimeter

Both the Open PCR machine and fluorimeter will be included in our new design, called PCR4U; the PCR machine will have increased capability of running more reactions at one time and the fluorimeter will be designed with a new cradle for a smartphone and a new appendage that is to be folded over the phone during the imaging process. The previous fluorimeter had a closing flap on the outside to keep its inside dark as images were taken of the resulting PCR reaction mixes; however, the new design will have a cut-out within the flap to be folded over the smartphone, where there will be just enough space for the phone to sit beneath the flap and the inside area will remain dark enough for the images to be taken. From this new design, it will be much more efficient for photos to be taken in a dark space without having to set a timer on the camera or fold the flap over the phone. Additionally, this cut-out will be made adjustable to any camera placed on the cradle beneath it, so that the user has the flexibility to use different cameras other than a smartphone.

PCR4U is a PCR design product that adheres to the needs of researchers on a distinct time schedule, with multiple reactions that they desire to run at one time. It is more efficient than the previous design and the newly improved fluorimeter design allows for modern technology to be used during the imaging process, making it much easier for researchers to take quality pictures of their samples to be analyzed by software such as ImageJ. Additionally, the consumables kit will be as cost-efficient as possible, further catering to the desires of our customer, as it holds an increased amount of materials necessary to carry out additional PCR reactions, but fewer tips than before (relative to the quantity of other materials packaged in the kit) to reduce relative cost and waste.

Our complete design will include both pieces of hardware—the Open PCR machine, with the capability to run 25 reactions at one time, and the fluorimeter, with a redesigned exterior for increased imaging efficiency—and a newly-packaged consumables kit outlined in the section above.
