LAB 3 WRITE-UP

Descriptive Stats and Graph

Mean of Gold Standard for Heart Rate: 98.08977

Standard Deviation of Gold Standard for Heart Rate: 11.31371

Mean of Spree Device for Heart Rate: 92

Standard Deviation of Spree Device for Heart Rate: 14.14124

Mean of Gold Standard for Temperature: 96.647

Standard Deviation of Gold Standard for Temperature: 1.923

Mean of Spree Device for Temperature: 95.531

Standard Deviation of Spree Device for Temperature: 0.870



Inferential Stats

Pearson's r coefficient for Heart Rate: 0.690806

T-test p-value for Heart Rate: .427116

Pearson's r coefficient for Temperature: 0.192798089

T-test p-value for Temperature: 1.09676E-21

Graphing

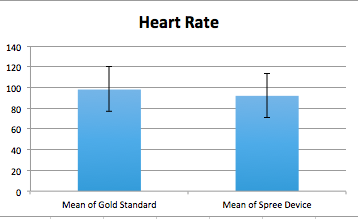

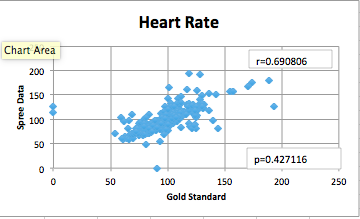

Heart Rate:

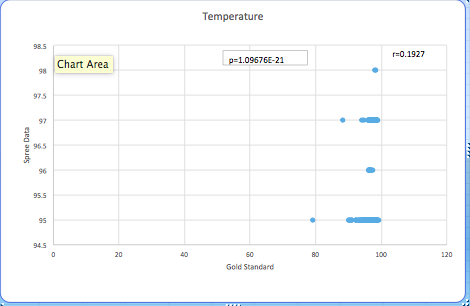

Temperature:



Summary of Results

Data was gathered from both the Spree technology and the Gold Standards for measuring both Heart rate and temperature. The mean values from the Spree technology used to measure heart rate differed by approximately 6 beats per minute from the gold standard pulse ox measurement. The mean values from the Spree technology used to measure body temperature differed by approximately 1 degree Fahrenheit. These values however do not properly represent the accuracy of the Spree device in measuring heart rate and temperature. By analyzing the correlation coefficients and the values obtained from a t-test, heart rate was found to be accurately measured by the Spree technology, while body temperature values were significantly different than the values obtained from the gold standard. This data supports the conclusion that the Spree technology may be used to accurately measure heart rate but not body temperature.




Experimental Design of Own Device

Sample Size: 300 randomly selected residents of Tempe, AZ and surrounding areas.

Procedure: The subjects vitamin levels will be tested once a week for six weeks. Each subject will be tested using our device, as well as a blood test testing vitamin levels. These test will happen at the same time. The vitamin levels will be compared to see if our device properly measures vitamin levels, with the blood test as the gold standard.
