# 20.109(S07): Start-up expression engineering

20.109: Laboratory Fundamentals of Biological Engineering

## Introduction

From your work so far this term, you have a good understanding of (at least) two fundamental concepts. From our first experimental module it should be clear that the genetic program for running a cell is readable (through sequencing), writable (through molecular biological techniques and synthesis) and somewhat, though not perfectly understandable. Recall how a genetic part can be as small as 13 base pairs, BBa_B0032 for example, to help carry out the work of protein production by enabling a huge protein/RNA complex, the ribosome, to bind an RNA molecule. From our second experimental module, it should be clear that a cell's programming doesn't end at protein production but rather that proteins are dynamic (chemically and spatially). They react to changes in the environment with great speed and sensitivity. We saw that proteins could be considered "digital" information, either present or absent, but are perhaps better thought of as "tunable" analog data since, as far as the cell is concerned, proteins are relevant only when functional, and function can be governed by regulating protein stability, localization and modifications. Thus, from the work we've done so far this term, you may have the idea that gene expression is powered by the central dogma (DNA making RNA making protein) and then modulated by varying the properties of proteins once they are made. This strategy minimizes reaction times but is, energetically speaking, quite wasteful. Why make a protein if it's not useful? In this experimental module we'll see how nature has refined the genetic programming language so a cell's proteins are not all constitutively expressed but rather are finely regulated at the level of transcription initiation. This turns out to be only one of many points for regulation but it's an important one.

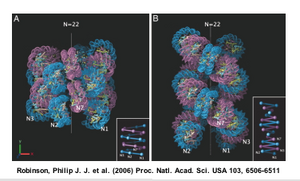

30 nm chromatin fiber, from Robinson et al PNAS 2006

In the upcoming experiment we'll also see how nature has overcome another design issue, namely space constraints. A cell's dimensions do not increase linearly with DNA content. Instead, eukaryotic cells remain compartmentalized and compact the DNA by wrapping it around assemblies of histone proteins called nucleosomes. Nucleosomes wrap around eachother to form chromatin. This solves the space issue, allowing a meter or so of DNA to be crammed into a space perhaps 10 um across, but creates a new problem. Wrapped DNA is less accessible to the transcription and replication machinery. Gene expression becomes newly and intimately related to chromatin dynamics. This new problem is overcome by other multiprotein complexes that interact with the DNA-wrapping proteins. Nucleosomes are redistributed around genes that are "active" though it remains unclear if this redistribution is a cause or a consequence of the activity. We'll study one chromatin-remodeling complex called SAGA in this experimental module.

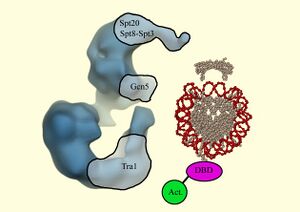

a model for SAGA's interaction with transcription factors and nucleosome-bound DNA, image courtesy of P. Schultz

The name "SAGA" is an acronym for "Spt-Ada-Gcn5-acetyltransferase." Before describing each of these components, it's important to note that biochemically similar complexes are found in many (all?) of the eukaryotic cells that have been studied. Even more remarkable, these SAGA complexes have similar (identical?) numbers of protein subunits and the proteins have noteable sequence homologies, suggesting conserved functions even in cells with diverse life-styles like yeast and human cells. Natural processes like development and division and disease states like cancer can be understood at the level of transcription (mis)regulation. Chromatin remodeling is required for appropriate gene expression which is, in turn, required for healthy cell behaviors. Thus, there is good reason to believe that an understanding of how SAGA works in yeast can give us insight into its role in cells more medically relevant, like human.

A combination of biochemical and genetic data initially suggested that an enzymatic activity, namely a histone-acetyl transferase, encoded by the GCN5 gene in S. cerevisiae existed as a large protein complex that the authors named "SAGA" [Grant et al 1997]. Nineteen proteins, including GCN5, associate to form SAGA, though surprisingly not all the proteins are absolutely required for the cell to live. Delete a nonessential subunit and the cell can still grow and divide, although sometimes with impaired functions. A table of all 19 SAGA subunits, including information about their essential or non-essential nature, is included as part of today's protocol. A recent structure for the complex was elucidated through electron microscopy [Wu et al 2004]. The SAGA structure, as shown above, can be imagined to "dock" with the DNA and associated proteins, allowing us to propose some very elegant models for how chromatin-modifications might be performed and regulated. Many terrific and exciting experiments can be designed to test these models. Your experiment will be a systematic examination of the non-essential SAGA subunits and their role in gene expression. Today you will design some primers to delete from the yeast genome a nonessential subunit of your choosing. Later in this experimental module, you will examine your mutated strain for changes in gene expression, looking for new phenotypes associated with the SAGA-subunit deletion as well as looking by DNA microarray for genes whose expression is affected by the loss of this subunit.

## Protocols

### Part 1: Choosing a SAGA subunit

You should begin by learning a little about the different classes of SAGA subunits. What does "Spt" stand for (and how do you pronounce that?!)? What is a TAF? Why is Ada5 also called Spt20?

The nomenclature for S. cerevisiae is precise and helpful. Wild type genes are normally given an italicized, three letter acronym based on the phenotype of a mutation in that gene. So a HIS gene is unable to make histidine if the gene is defective (of course, dead cells all have only one phenotype so this presumes loss of the gene product doesn't kill the cell...). Since there exist several genes that can give rise to similar phenotypes, related genes are given a number as well, e.g. HIS3, HIS4, etc. To describe recessive mutant alleles, lower case letters are used. So a strain that is his3 has a mutation that affects the function of the HIS3 gene. Since there can be several different mutations described for any given gene, a second number gets associated with the mutant, e.g. his3-1 or his3delta200. Proteins are distinguished from DNA by capitalizing only the first letter of the gene product: the HIS3 gene makes the His3 protein. Naturally there are exceptions to these rules, but in general you can pretty confidently follow them.

Begin acquainting yourself with the SAGA subunits by copying the following tables to your wiki userpage, then finding relevant information in the Saccharomyces Genome Database for the subunits. You can also search Pubmed to find out a little more about the role of the subunits in gene expression. Do not shortchange yourself on this part of the experiment, since you will be working with the subunit you choose today for the rest of the module.

#### SAGA subunits, S. cerevisiae

Ada1 (aka HFI1, SUP110, SRM12, GAN1) 1.467 kb/489 aa, Chr. XVI,
viable
Ada2 (aka SWI8) 1.305 kb/434aa, Chr. IV,
viable
Ada3(aka NGG1, SWI7) 2.109 kb/702aa, Chr. IV,
viable
Gcn5 (aka ADA4, SWI9) 1.32 kb/439aa, Chr. VII,
viable
Ada5 (aka SPT20) 1.815 kb/604aa, Chr. XV,
viable
Spt subunits size, chromosome, null p-type notes
Spt3 1.014 kb/337aa, Chr. IV,
viable
Spt7(aka GIT2) 3.999 kb/1332aa, Chr. II,
viable
Spt8 1.809 kb/602aa, Chr. XII,
viable
Spt20 (aka Ada5) 1.815 kb/604aa, Chr. XV,
viable
TAF subunits size, chromosome, null p-type notes
TAF5 (aka TAF90) 2.397 kb/798aa, Chr. II, inviable
TAF6 (aka TAF60) 1.551 kb/516aa, Chr. VII, inviable
TAF9 (aka TAF17) 0.474 kb/157aa, Chr. XIII, inviable
TAF10 (aka TAF23, TAF25) 0.621 kb/206aa, Chr. IV, inviable
TAF12(aka TAF61, TAF68) 1.620 kb/539aa, Chr. IV, inviable
Tra1 subunit size, chromosome, null p-type notes
Tra1 11.235 kb/3744aa, Chr. VIII, inviable
other subunits size, chromosome, null p-type notes
Sgf73 1.974 kb/657aa, Chr. VII ,
viable
Sgf29 0.779 kb/259aa, Chr. III,
viable
Sgf11 0.3 kb/99aa, Chr.XVI,
viable
Ubp8 1.416 kb/471aa, Chr. XIII,
viable
Sus1 gene with intron, Chr. II,
viable

### Part 2: Designing deletion oligos

Everyone's starting strain is called FY2068, which has the following genotype:

MAT(alpha) ura3-52 his3D200 leu2D1 lys2-128delta

This genotype tells you that the strain is haploid and of the "alpha" mating type. The genotype also tells you that the strain cannot make its own uracil, histidine, leucine or lysine due to the indicated mutations in the URA3, HIS3, LEU2 and LYS2 genes. These mutations have insignificant effects when the strain is grown on rich or "complete" media but no growth occurs when one of those needed media components is left out, or "dropped out" as such media is usually described.

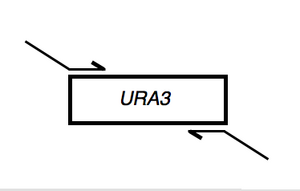

design of deletion oligos

Everyone will delete a SAGA subunit of their choosing by replacing it with a selectable marker, namely the URA3 gene. Successful replacement of the SAGA subunit with the URA3 gene will restore growth of the strain on "SC-ura," which is media lacking uracil ("SC" for "synthetic complete;" "minus ura" for the absence of uracil). The primers you design today will have sequences identical to the URA3 gene, which you will find on the internet. The homology will enable the primers to anneal to the URA3 gene and amplify it during the polymerase chain reactions you will perform at the end of lab today. These reactions will be more fully explained later in the experimental module.

Everyone's primers will also include "tails" that will later allow the amplified URA3 gene to replace the SAGA subunit gene of interest. These tails must be at least 39 bases long to allow sufficient specificity and recombination frequency once the amplified fragment is transformed into yeast cells. The total length for the primer you're designing will be 59 since oligonucleotide synthesis companies change their pricing structure and recommendations for oligos 60 bases and longer. This leaves you 20 bases for the "landing" sequence that will annealing to the URA3 gene during PCR. Limitations in the synthesis technology impose the 59 base limit, but fortunately this turns out to be minimally intrusive for experiments like the one you'll start today.

#### Designing the "forward" primer

1. You and your partner should begin by opening a new MSWord document to create a "primer record" for the sequences you are designing. Put your names at the top, your team color, today's date and a short description of what you are trying to do.
2. Begin your primer design by retreiving the genomic DNA sequence for the URA3 gene as it's listed at SGD. You will need 20 bases from the start of the gene to serve as the "landing sequence" for this primer. Copy these 20 bases to your MSWord document.

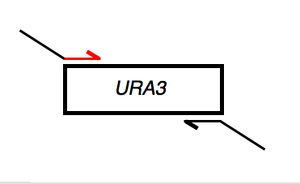

landing sequence for forward primer
3. It is extremely important to know the melting temperature for this 20 base landing sequence. The first few rounds of PCR must be performed at a temperature below the melting temperature (5° below is the rule of thumb) if these 20 bases are to bind the template DNA. Later you will add 39 base "tails" to the primers which will still be present during the PCR but during the first rounds of PCR, they will have no complementary sequences to which they can anneal. Thus the reactions must start below the melting temperature ("Tm") of the landing seqeunce. The Tm depends on the length of the landing sequence, its GC content, and any secondary structures that the primer can adopt. A well-designed primer will have short hairpins (if any), its melting temperature will be around 60°C, and if possible its GC content will be about 50%. There are several websites to help you evaluate these aspects of your primer. Try to copy the 20 bases of landing sequence into the Cybergene website. Note on your MSWord document relevant information retrieved from this query.
4. Next you must add the primer "tail."

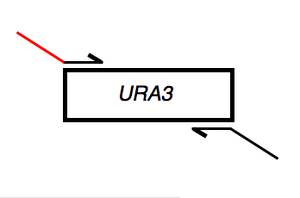

tail sequence for forward primer
. This is the sequence that will recombine with the region just upstream of the SAGA subunit you have decided to delete. Retrieve the sequence for this subunit from SGD, including 39 bases upstream of the ATG. There is a "custom retrieval" option from a dropdown menu that is particularly useful for this purpose. You can view the sequence in GCG or FASTA format.
5. Paste these 39 bases to the 20 URA3 bases in your forward primer. Will you paste the 39 bases to the left (i.e. "upstream" or "5'") or to the right (i.e. "downstream" or "3'") of the URA3 landing sequence? If you are unsure, please ask one of the teaching faculty.
6. Distinguish the landing sequence from the tail by making one part uppercase and the other lower case. Alternatively underline or italicize one part. Note how they are distinguished on your the MSWord document you have started as the primer's record.
7. Use the Cybergene website or the OligoAnalyzer from Integrated DNA Technologies to find the Tm and GC content for the full forward primer you've designed. Note these values on the primer record.
8. Great. Now you're ready to design the second of the primer pair. Many of the same steps are involved but it's a little trickier since you will have find the complementary sequence to the ones listed by SGD, and you'll have to reverse the primer at the very end so it reads in the conventional 5'to 3' direction.

#### Designing the "reverse" primer

1. Note that this protocol for designing the reverse primer is just one method of many that can work. For example, taking the reverse complement can be done at any stage, making an identical primer. So if these steps don't seem sensible to you, try a way that does.
2. Retrieve the URA3 sequence again from SGD and copy the last 20 bases into your MSWord primer record. Be sure to note the 5' end of the sequence and whether you have the "top" strand as you did before, or the "bottom" strand as you will need for this reverse primer.

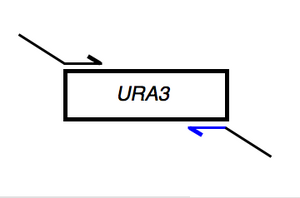

landing sequence for reverse primer
3. Use either the Cybergene website or OligoAnalyzer to find the Tm, GC content etc for this landing sequence. Does it matter if you're looking at the top strand sequence or its complement?
4. Next retrieve the tail sequence for the reverse primer by finding the 39 bases that follow ORF for the SAGA subunit you've chosen. Again the custom retrieval option from SGD is a great tool for this.
5. Add the tail sequence to the landing. Note which end is the 5' end of the tail and that you have recorded the top strand. Think carefully about which end of the landing sequence you should paste it to, realizing that this entire sequence will be the reverse complement in the final primer you design. If you have questions or are uncertain here, please ask. Distinguish the landing sequence from the tail in the same way you did for the forward primer.

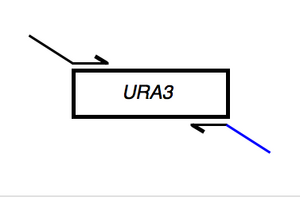

tail sequence for the reverse primer
6. Use the OligoAnalyzer to take the reverse complement of the entire primer you've designed and note the final Tm and GC content.
7. Paste the sequences for the primers you've designed into the table of SAGA-related information on your wiki userpage. You should also print out copies of the primer record for your lab notebooks and one copy for your team to hand in.
8. The last thing to do is to compare the sequence of the primer pair you've designed to the ones we have pre-ordered for the class. These are the ones that are available for you to use for PCR today and they are listed among the reagents list at the end of today's lab.

### Part 3: PCR

If you are unfamiliar with the Polymerase Chain Reaction (PCR) you can take a peak at some nice animations of the process, for example DNAi (follow the links through “techniques” and "amplifying DNA”) or try DNA learning. More details about PCR will be presented later in this experimental module.

The power of PCR is its potential to generate many copies of a particular DNA sequence starting with a very few. This is also its Achilles’ heel. It is extraordinarily easy to amplify contaminating DNA sequences, generating undesired products from the reaction. Before you begin this portion of the lab, it is a great idea to wash the barrels of your pipetmen with a paper towel and 70% EtOH. You could also wash your bench area.

All the components necessary for performing PCR are available from the teaching faculty, including primers like the ones you just designed. Your reactions will contain the following:

Template       		1 ul pRS406 (=100 ng)
Forward Primer 		1 ul (=100 pmol)
Reverse Primer 		1 ul (=100 pmol)
PCR Master Mix*		20 ul of 2.5X stock (see REAGENTS LIST)
H2O            		to final volume of 50 ul

• The PCR Master Mix contains buffer, dNTPs and Taq Polymerase.

You will assemble two PCR tubes, one complete reaction and another without template. The second reaction serves as a control for contamination.

1. Begin by adding the correct amount of water to a 200 ul PCR tube. Add that amount +1 ul to a second PCR tube.
2. Next add the primers to each reaction. Be sure to change tips between additions.
3. Next add template to the first reaction tube.
4. Finally add PCR Master Mix to each tube, pipetting up and down to mix. Leave your tubes on ice until the entire class is ready to load reactions into the thermal cycler.
5. The reactions will undergo the following PCR cycle:
• 95° 4 minutes
• 95° 1 minute
• 40° 1 minute
• 72° 3 minute
• repeat steps 2-4 5 times
• 95° 1 minute
• 45° 1 minute
• 72° 3 minute
• repeat steps 6-8 5 times
• 95° 1 minute
• 50° 1 minute
• 72° 3 minute
• repeat steps 10-12 30 times
• 72° 10 minutes
• 4° forever (or until one of the teaching faculty removes the reactions and stores them in the freezer)

DONE!

## For next time

1. Explain the following aspects of the PCR cycle you ran:
• What start the cycling with a 4 minute 95° step?
• Why did you start the annealing reactions at 40° then gradually move up to 50°?
• Why do the extension reactions go for 3 minutes rather than just one?
• Extra credit: how might the outcome of these reactions differ if you started with a URA3 gene on genomic DNA from S. cerevisiae as your template? You can assume the same number of starting URA3 genes from plasmid and genomic DNA templates.
2. Your major assignment for this experimental module will be a formal lab report describing your work. The requirements for this report are detailed on the class wiki. Start by reading these guidelines carefully. You'll write part of the introduction today, first reading the relevant primary literature, and then writing three paragraphs according to the suggested scheme below. This scheme is just a rough framework to help you organize your thoughts. Naturally you are free to apply your personal style and writing approach. One thing everyone must do: keep track of the sources for your information to properly reference them in your final paper.
• Paragraph 1: most general of all. You don't have to start with the dawn of creation or how the first cell came to exist but you might consider framing the experiments around some larger questions like:
• why is gene expression important?
• how do nucleosome positions relate to gene expression?
• what relevant modifications of nucleosomes have been described?
• what tells nucleosomes where to bind?
• what tells nucleosomes when and where to move?
• Paragraph 2: introduction of SAGA as a chromatin remodeling complex. This paragraph can't possibly cover all that's known about SAGA but some relevant and interesting aspects you might address are the:
• distribution of the complex: is S. cerevisiae the only SAGA-containing cell on the planet? is SAGA found at every gene in S. cerevisiae?
• biochemistry of the complex: number of subunits, how these were identified, are they all necessary for SAGA stability? for SAGA structure? do they form subcomplexes? are there shared subunits with other chromatin remodelers?
• genetics of the complex: what happens when you delete subunits? what about pairwise deletions? are there traditional phenotypes associated with SAGA mutations? are there disease states associated with mutations in any of the subunits in organisms more complex than yeast?
• structure of the complex: how was this determined? are there other structural views that are supportive or contradictory? does the structure support any genetic or biochemical data?
• genes regulated by the complex: has SAGA been associated with every gene? with particular transcription factors? with particular cellular responses? how were such experiments performed? are there supportive or contradictory studies?
• Paragraph 3: introduction to the subunit you'll delete. You chose your subunit for some reason; here's the chance to say why. In addition to your personal interest in the subunit you should provide some fundamental information about the gene and protein, like:
• chromosomal location
• protein size
• protein features (acidic patches, structural or sequence motifs, etc)
• phenotypes associated with deletion of the gene (if any are known)
• synthetic phenotypes associated with deletion of gene in presence of other mutationss (if any are known)
• interaction data from experiments like two-hybrid or GST-pull downs?

You and your lab partner can and should discuss the papers you find and you should help eachother understand them. You can also ask the teaching faculty if you are unclear on the details of some technique you read about. When it comes time to write, you must do so on your own. You and your lab partner will hand in individual assignments. Please submit this part of the assignement electronically to both nkuldell and breindel AT mit DOT edu. Good luck and have fun!

## Reagents list

• PCR Master Mix (2.5X)
• 62.5 U/ml Taq DNA Polymerase
• 125 mM KCl
• 75 mM Tris-HCl, pH 8.3
• 3.75 mM Mg(OAc)2
• 500 uM each dNTP
• Std PCR reactions
• ~100 ng template
• ~100 pmole each primer
• 1X concentration of all reagents in 2.5X mix
• denature 94-95°C
• anneal 5°C less than lowest primer hyb temp
• extend 1’/kb to be amplified

## Deletion Primers

primer name primer number sequence
gcn5_URA3_KO_fwd NO163 5' AAAAGTCTTCAGTTAACTCAGGTTCGTATTCTACATTAGatgtcgaaagctacatataa
gcn5_URA3_KO_rev NO164 5' CTTCGAAAGGAATAGTAGCGGAAAAGCTTCTTCTACGCAttagttttgctggccgcatc
spt3_URA3_KO_fwd NO165 5' ACAAGGTACCGTGCCAAAATTCAAGAGATTAGGGCAGGAatgtcgaaagctacatataa
spt3_URA3_KO_rev NO166 5' GGAAACCCATGCACCTCCATGATGAAATTATACAAAAATttagttttgctggccgcatc
spt7_URA3_KO_fwd NO167 5' CTTTAAACTGTAACACTACAAAGAAATTAAGTCTGAATAatgtcgaaagctacatataa
spt7_URA3_KO_rev NO168 5' TTAATTAAAGATAAAATATTCAACTATTTAGCGCGCTCAttagttttgctggccgcatc
spt8_URA3_KO_fwd NO169 5' ACTAAAGGCTCAGTTTTTTTTTTTTTCTTCTTTTACGTAatgtcgaaagctacatataa
spt8_URA3_KO_rev NO170 5' TATGATTATGATTATGGTTATGATTATTATTACAACTCAttagttttgctggccgcatc
spt20_URA3_KO_fwd NO171 5' GGAATAGTTACGGTTAATTTGCGCCTATATATTTCAGGGatgtcgaaagctacatataa
spt20_URA3_KO_rev NO172 5' ATATATATATATAAGGAATGATAACTCTATTTAAGTAGAttagttttgctggccgcatc
sgf73_URA3_KO_fwd NO99 5' TGAACACACAAGAGAAGCGCAAAAGAGTAAAGAGCTAAAatgtcgaaagctacatataa
sgf73_URA3_KO_rev NO100 5' CTCACTTCGTGAACATGCTGGATAACGTGCATGATTCAAttagttttgctggccgcatc
sgf29_URA3_KO_fwd NO101 5' GACTTTTTCACAGCAAAACACACGGTCACCTTTCTTATTatgtcgaaagctacatataa
sgf29_URA3_KO_rev NO102 5' AGAAGATCTTATGATATGTAGTAAATGTTAACCACCATTttagttttgctggccgcatc
sgf11_URA3_KO_fwd NO173 5' TCCTTCAAATTCTTTAGGTTACGGGGTTTTCCTGTTGCGatgtcgaaagctacatataa
sgf11_URA3_KO_rev NO174 5' TCTGTGCCTTTTCAATTACCCATAAACCACCACCTAGTGttagttttgctggccgcatc
ubp8_URA3_KO_fwd NO175 5' TACTTGAAACCCTGCTTTTTTTATTTGTTATTAATAATTatgtcgaaagctacatataa
ubp8_URA3_KO_rev NO176 5' TTTTTGTTTTATTATTATTGTTGAATGCTATTTGCTGAAttagttttgctggccgcatc
sus1_URA3_KO_fwd NO177 5' GCGACAAAATCAGAAGTAACAATTCTGGCCTTCACTCCAatgtcgaaagctacatataa
sus1_URA3_KO_rev NO178 5' TGTAATAATATTGGGAATTAAGGTGCATTTTCGTATCCTttagttttgctggccgcatc
