DNA can be put into mammalian cells in a process called transfection. If you wanted to make a mouse cell fluoresce green, you could transfect it with DNA carrying the EGFP open reading frame, a promoter directing transcription of EGFP and a signal sequence for polyadenylation of the mRNA. The promoter tells the cell that the EGFP sequence should be transcribed by RNA polymerase. The polyadenylation sequence assists in the export and stability of the mRNA so that it gets translated by the ribosome. The coding sequence tells the ribosome which amino acids should be joined together.

Mammalian cells can be transiently or stably transfected. For transient transfection, DNA is put into a cell and the transgene is expressed, but eventually the DNA is degraded and transgene expression is lost (transgene is used to describe any gene that is introduced into a cell). For stable transfection, the DNA is introduced in such a way that it is maintained indefinitely. Today you will be transiently transfecting your cultures of mouse embryonic stem cells.

There are several approaches that researchers have used to introduce DNA into a cell's nucleus. At one extreme there is ballistics. In essence, a small gun is used to shoot the DNA into the cell. This is both technically difficult and inefficient, and so we won't be using this approach! More common approaches are electroporation and lipofection. During electroporation, mammalian cells are mixed with DNA and subjected to a brief pulse of electrical current within a capacitor. The current causes the membranes (which are charged in a polar fashion) to momentarily flip around, making small holes in the cell membrane that the DNA can pass through.

The most popular chemical approach for getting DNA into cells is called lipofection. With this technique, a DNA sample is coated with a special kind of lipid that is able to fuse with mammalian cell membranes. When the coated DNA is mixed with the cells, they engulf it through endocytosis. The DNA stays in the cytoplasm of the cell until the next cell division, at which time the cell’s nuclear membrane dissolves and the DNA has a chance to enter the nucleus.

Today you will lipofect several DNA samples into your mouse embryonic stem cells. As a positive control, you will transfect one sample with a plasmid encoding full-length EGFP. This plasmid will cause any transfected cells to fluoresce green. Next time we will measure fluorescence of your positive control to assess the success rate of the transfection.

You will also be transfecting two experimental plasmids, one of which you have been constructing for weeks. The EGFP coding sequence on these plasmids is truncated at either the 5’ or 3’ end of the gene. Cells expressing these truncated EGFPs should not fluoresce green. The plasmids provide a wonderful tool for studying recombination since a cell will fluoresce green if it has been transfected with both plasmids and has recombined the genes to regenerate a full-length EGFP. Finally, you will be using the truncated EGFP plasmids to investigate the effect of double strand breaks on the frequency of recombination.

Elaborate mechanisms for coping with DNA breaks have evolved since these forms of DNA damage are so dangerous for the cell. You should (re)familiarize yourself with these mechanisms by (re)reading the excellent review by Thomas Helleday that you can find in the References section of the Module 1 frontpage. You should also check out the animations of repair mechanisms that are linked there. These animations were made by Justin Lo, a class of '08 Course 20 student and a former UROP student in Professor Engelward's laboratory.

One kind of DNA damage with particularly catastrophic consequences for the cell is double stranded breaks. The broken ends of the DNA must be correctly repaired (literally here re-paired) without loss of any encoded information. The model for such repair is called to the Szostak model, named after the person who first described it. According to this model, illustrated below, a gap in one chromosome is repaired through an interaction with its homologous chromosome. The repair first requires “homology searching” and invasion of the gapped DNA (blue) into the undamaged copy (red). The undamaged DNA serves as a template for missing sequences, which are copied and then resolved as indicated by the open triangles on the figure below. Resolution can lead to exchange of sequences flanking the original double strand break, resulting in recombination of genetic information. Alternatively the integrity of the original genetic material is preserved when the repaired strands resolve without crossover.

Szostak model for double strand break repair

Different, and far simpler means of repair are possible if the broken ends of the DNA can be held together, either through base pairing of the overhangs or through the chromatin structure surrounding the damage. Your investigation today will assess recombination rates for different DNA lesions and conditions for homology searching.


Part 1: Lipofection

In anticipation of your lipofection experiment, one of the teaching faculty plated 1x105 cells in 6 wells of a pregelatinized 24-well dish 24 hours ago. A special media formulation without antibiotics was used.

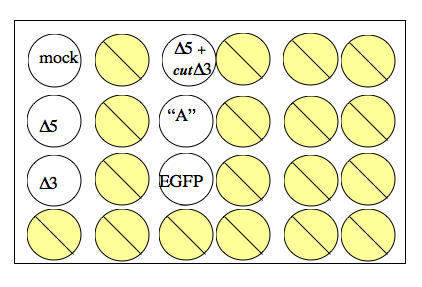

A schematic for your experiment is shown below. We will discuss in class different things we might test, and we will use well labeled 'A' to test a parameter that might affect the frequency of inter-plasmid homologous recombination.

Lipofection schematic

All manipulations are to be done with sterile technique in the TC facility.

Timing is important for this experiment, so calculate all dilutions and be sure of all manipulations before you begin.

For each lipofection you will need

DNA:	 	0.2 μg (of Δ3) and/or 0.2 μg (of Δ5) or 0.2 μg EGFP in 50 μl OptiMEM
Carrier: 	2.5 μl Lipofectamine 2000 in 50 μl OptiMEM
  • 1. For each lipofection you'll need 50 ul of diluted carrier (= Lipofectamine 2000). Dilute enough carrier for 6.5 lipofections. Let the dilution sit in the hood undisturbed for at least 5 minutes but not more than 30.
  • 2. For each lipofection, you’ll need 50 ul of DNA in OptiMEM.
Tube [DNA] stock DNA/lipofection Volume DNA Volume OptiMEM
mock NA NA NA 50ul
Δ5 0.05 ug/ul 0.2 ug
Δ3 (intact or cut) 0.05 ug/ul 0.2 ug
Δ5 plus Δ3 (cut) 0.05 ug/ul each 0.2 ug each
your experimental variable 0.05 ug/ul
EGFP 0.05 ug/ul 0.2 ug

  • 3. You should now have six eppendorf tubes with 50 ul of OptiMEM +/- DNA. Add an equal volume of diluted lipofectamine to each eppendorf. Pipet up and down to mix.
  • 4. Incubate the DNA and lipofectamine cocktails at room temperature for 20 minutes. To allow the DNA/carrier complexes to form, it is important that you do not disturb the tubes during this incubation. During this time, aspirate the media from the cells in your 24-well dish, wash the wells with 0.5 ml PBS, then put 0.5 ml of fresh media on the cells. The PBS and media can be aliquoted with a 5 ml pipet.
  • 5. After the 20 minute incubation is over, use your P200 to add 95 ul of the appropriate DNA:lipofectamine complexes to each well. Since the carrier is quite toxic to the cells it’s a good idea to gently rock the plate back and forth after each addition.
  • 6. Return the plate to the 37°C incubator.
  • 7. Tomorrow, one of the teaching faculty will remove the lipofection media from your cells and will replace it with 1 ml of fresh media. Approximately 48 hours after performing the lipofection, you and your partner will collect the cells and analyze their fluorescence by FACS. Before you leave today, sign up for time to run your samples on the BioAnalyzer here

Part 2: Practice data analysis

While half of the class works in tissue culture, the other half will have a brief lecture on statistics followed by a practice exercise. Please download this file


For next time

You will have the opportunity to turn the data you collect in these last few days of Module 1 into a "PowerPoint Pitch". This assignment can be no more than 10 powerpoint slides long to address the following questions:

  • What assay are you developing
  • Why a scientific advisory board or a funding agency should care
  • What data you have so far
  • How robust your data appears (include performance of any controls as well as any relevant statistics here!)
  • What the weaknesses of your approach are
  • Why this approach might be taken over others (this requires you identify competing technologies)
  • What further applications you envision for your assay

Begin to sketch these slides, remembering that your goal is to present a persuasive argument in support of the assay you're developing to measure homologous recombination. Your slides will need to balance images with text. An effective P3 will have slides that are easy to understand without your verbal explanation of what's what. You'll need to put forth your scientific ideas and data in the best light possible without hiding from or dismissing real pitfalls or alternatives. In addition, you'll have to anticipate the questions your audience will have and address them in a timely and self-evident way without actually being present to explain things.

  • You do not have to turn this draft of your assignment in to the faculty but by beginning this work today, you'll have time to get feed back and have questions answered. You will have to turn in a final P3 after you collect your flow cytometry data next time.
