DESCRIPTION

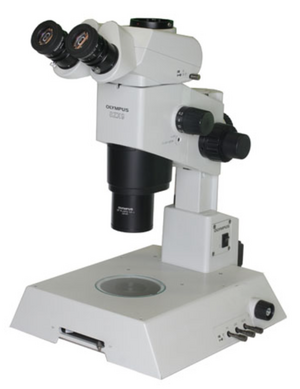

Olympus SZX9 is a stereo microscope on brightfield darkfield stand.


FEATURES
Base Frame 10x Adjustable Eyepieces
DFPLAPO 1x Plan Apo Objective NA 0.10 WD 87.5MM
SZX-FOF Fine and coarse focus mount
Illumination SZX-ILLD 30w Brightfield and Darkfield Transmitted Light Stand
Observation Head SZX-TR30 Trinocular viewing head
Magnification From 6.3X to 57X

CAMERA: Nikon D5200

Olympus SZX9 can be used together with Nikon D5200. Use LM-Scope Digital Universal Widefield Adapter to connect the microscope and the camera.

Below there are parameters to use to get good images.

Mag (obj.)

t (s)

ISO

Δx (mm)

Δy (mm)

6.3X

1/25

100

23.0

15.5

57X

1.3

100

2.5

1.7

Mag (Obj.)

Magnification of the microscope

t (s)

Exposure time of the camera

ISO

Shutter speed of the camera

Δx and Δy

Length and height of the final image
