DESCRIPTION

Digital Widefiel Adapter connects a digital camera to a microscope.


INSTRUCTIONS

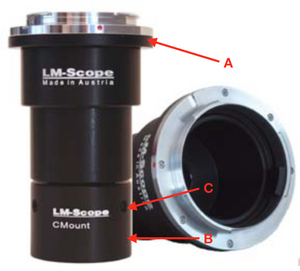

  1. Attach the LM digital adapter to your camera using the bayonet mount A. Make sure that the tip of the bayonet thread is exactly on the tip of the camera thread before turning clockwise until it lock into place. If necessary, hold down the button for releasing the camera thread.
  2. Screw the C-mount extension B onto the phototube of the microscope in a clockwise direction.
  3. Connect the entire unit (LM digital adapter and camera) onto the C-mount photoport of the microscope.
  4. Adjust the distance between C-mount extension and LM digital adapter to the achieve optimum focus putting an Allen key into C.
