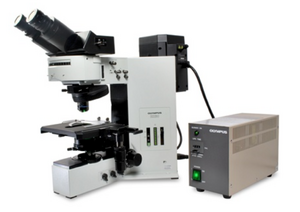

XAS:Equipment/Olympus BX60

From OpenWetWare

DESCRIPTION


FEATURES
Base Frame6 position objective turret with DIC/Analyzer slide slot
4 position FL cube turret
StageX-Y drive 75mm x 50mm travel
IlluminationTransmitted: 100 Watt Quartz Halogen Illuminator
Transmitted condenser: Aplanat Achromatic 1.4
Reflected/Epi-Fluorescence: 100 Watt Mercury Illuminator
Reflected/Epi-Fluorescence Power Supply: 100 Watt with hour meter
Observation Head3 Position Trinocular with one focusable eye-tube and one fixed eye-tube
(100% Eyes, 80%-Camera/20%Eyes, 100% Camera)

CAMERA: Nikon D5200

Olympus BX60 can be used together with Nikon D5200. Use LM-Scope Digital Universal Widefield Adapter to connect the microscope and the camera.

Below there are parameters to use to get good images.

Mag (obj.)

t (s)

ISO

Δx (µm)

Δy (µm)

5X

1/160

100

3200

2150

10X

1/30

100

1400

950

20X

1/13

100

700

470

50X

1/2

100

280

190

100X

2

100

140

95

Mag (Obj.)

Magnification of the microscope

t (s)

Exposure time of the camera

ISO

Shutter speed of the camera

Δx and Δy

Length and height of the final image
