Mock Tweezers

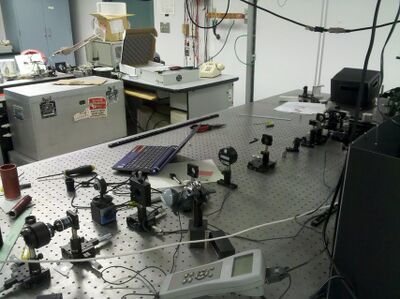

Pranav designed a mock tweezer with the objective and condenser in our optical path (not on the microscope). It is pretty sweet.

  • Not shown; QPD
    Not shown; QPD
  • Close up of the objective-condenser pair. We couldn't get oil to stay between the two.
    Close up of the objective-condenser pair. We couldn't get oil to stay between the two.

Power Measurements

  • Power after lenses: 1W
  • Power after objective-condenser: 250mW
  • Power after objective only: 340mW
  • Power after condenser only: 800mW

Man we need that new objective bad!

Efficiency of the Dichroics

We are seeing like 99% power reflected. So that is good.
