Schematic

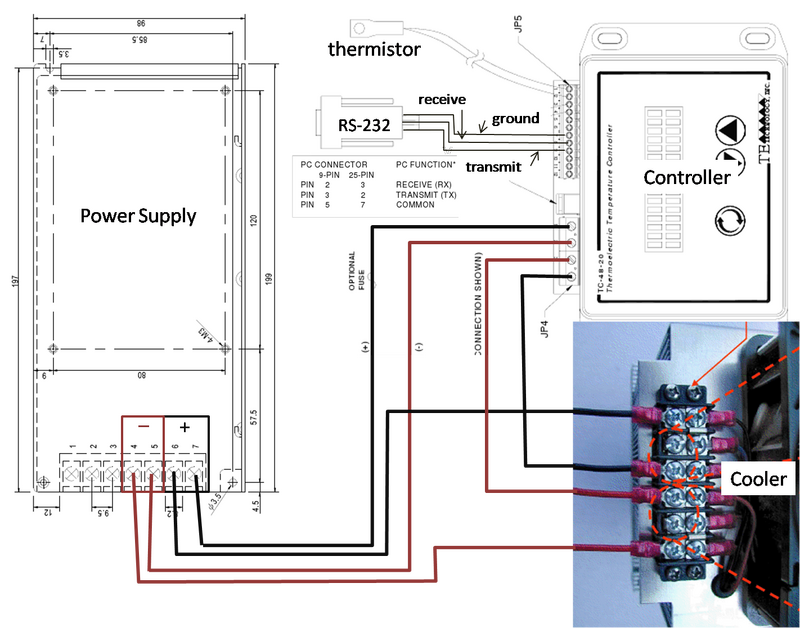

I ripped pictures from all the product manuals I have and combined them and the verbal instructions to form Voltron, I mean this.

Power setup for TEC system.png

Notes

  • Can we use BNC instead of RS232?
  • We can get an RS232 to USB converter and control via USB. Also there is some special protocol for doing it this way.
    • I also am thinking 2 bnc's to replace the rs232 - one for input and one output
  • I have to get a box to house the power supply and the controller.
