Sub Parts RBS (Elowitz) BBa_B0034 Double terminator (B0010-B0012) BBa_B0015


Motivations

  • Device simulates a basic AND gate with one inverted input.
  • HrpR and HrpS are controlled by a single promoter serving as the excitatory input to HrpL.
  • HrpV expression is dependent on a different promoter and serves as an inhibitory input.

Part interface

INPUTS OUTPUTS
PoPS (HrpV strand) PoPS (pHrpL)
PoPS (HrpR & HrpS)

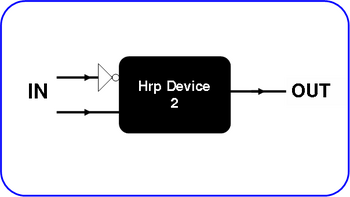

IC2007 Hrp Dev2BB.PNG

Expected behavior and performances

(try to write your specifications in tables. Here are just 2 examples)

Interface specifiactions
Characteristics Input 1 Input 2 Input 3 Output 1 Output 2
Range [X1,Y1] [X2,Y2] [X3,Y3] [X4,Y4] [X5,Y5]
Tolerance T1 T2 T3 T4 T5
Transfer function n/a n/a n/a insert image insert image
Latency


System level specifications
Properties Comments
Range
Transfer function
Latency
Robustness
Variability
properties 3
properties 4

Open issues

  • list known issues
