Name: Tamara Gajanovic
Name: Allison Michael
Name: Eduardo Huapaya
Name: Bryce Richards
Name: Harrison PUffer
Name: Maitha Alkatheeri




  • a. Lab coat and disposable gloves
  • b. PCR reaction mix, 8 tubes, 50 µL each: Mix contains Taq DNA polymerase, MgCl₂ and dNTP's
  • c. DNA/ primer mix, 8 tubes, 50 µL each: Each mix contains a different template DNA. All tubes have the same forward primer and reverse primer
  • d. A strip of empty PCR tubes
  • e. Disposable pipette tips: only use each only once. Never re-use disposable pipette tips or samples will be cross-contaminated
  • f. Cup for discarded tips
  • g. Micropipettor
  • h. OpenPCR machine: shared by two groups

PCR Reaction Sample List

Tube Label PCR Reaction Sample Patient ID
G9 + Positive control none
G9 - Negative control none
G9 1-1 Patient 1, replicate 1 12678
G9 1-2 Patient 1, replicate 2 12678
G9 1-3 Patient 1, replicate 3 12678
G9 2-1 Patient 2, replicate 1 53171
G9 2-2 Patient 2, replicate 2 53171
G9 2-3 Patient 2, replicate 3 53171

DNA Sample Set-up Procedure
Step 1: Extract DNA from cells and place it in the special PCR test tube.
Step 2: Add Primer 1 to the PCR test tube. The primers will attach to specific sites on the DNA strand.
Step 3: Add Primer 2 to the PCR test tube. These primers will attach to the second site.
Step 4: Add nucleotides to the PCR test tube.
Step 5: Add DNA polymerase into the PCR test tube.
Step 6: Put the PCR test tube into the thermal cycler.

OpenPCR program HEATED LID: 100 ℃
INITIAL STEP: 95 ℃ for 2 minutes

  • Denature at 95 ℃ for 30 seconds, Anneal at 57 ℃ for 30 seconds, and extend at 72 ℃ for 30 seconds

FINAL STEP: 72℃ for 2 minutes FINAL HOLD: 4℃

Research and Development

PCR - The Underlying Technology

  • The components of PCR

Template DNA: This is the sample DNA that you want to duplicate Primers: Primers are attached to the end of the segment of DNA you would like to copy. Tag Polymerase: Act like tiny machines that read the DNA and then attach matching nucleotides to create the DNA copies. Deoxyribonucleotides (dNTP’s): The nucleotide bases added to the growing DNA by the DNA polymerase

  • What happens to the components (listed above) during each step of thermal cycling?

Initial Step: 95°C for 3 minutes: Causes the DNA to get ready to be separated to create two single-stranded DN
Denature ​at 95°C for 30 seconds: DNA double helix separates to make two single-stranded DNA molecules
Anneal​ at 57°C for 30 seconds: This is when primers bind with the single-strand DNA sequence
Extend​ at 72°C for 30 seconds: DNA polymerase begin to activate and locate the primer
FINAL STEP: 72°C for 3 minutes: It then adds nucleotides to the DNA strand
FINAL HOLD: 4°C: You would freeze it, to help the DNA fully anneal

  • What anneals to what?

Adenine anneals to Thymine
Cytosine anneals to Guanine

  • When does base pairing occur?

During the anneal at 57°C, where the primers attach. And also during step two.

SNP Information & Primer Design

Background: About the Disease SNP SNP's as defined, today, are markers of genetic variation found within the DNA of humans. These variation in DNA bases can warn doctors of disease or lead them to it, and while not all SNP's have direct negative health results, they can be indicative of very much about the body. The SNP examined in this experiment is located on the 19th human chromosome and it associated with the gene B3GNT3. This specific SNP is linked with the disease Non Hodgkin Lymphoma. The disease associated allele contains a change in sequence from CGC to CAC, at the numerical position 17811986 within the gene.

Primer Design and Testing

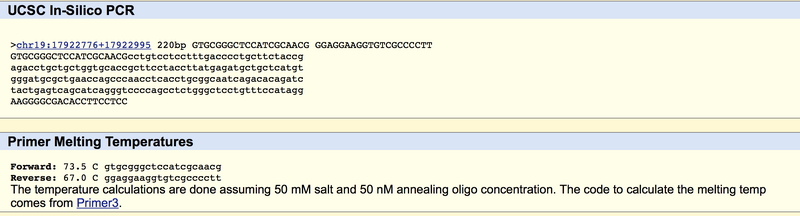

The forward and reverse primers found from the DNA near this SNP were GTGCGGGCTCCATCGCAACG and GGAGGAAGGTGTCGCCCCTT respectively. The IN SILICO PCR test, used to insure that the right forward and reverse non-disease primers were formulated, provided a 220 bp sequence, meaning that the primers created from the gene work correctly. (Click on image below to see results of test.)

silico test results
