Adjust the camera settings on the smartphone if possible.
Turn on camera.

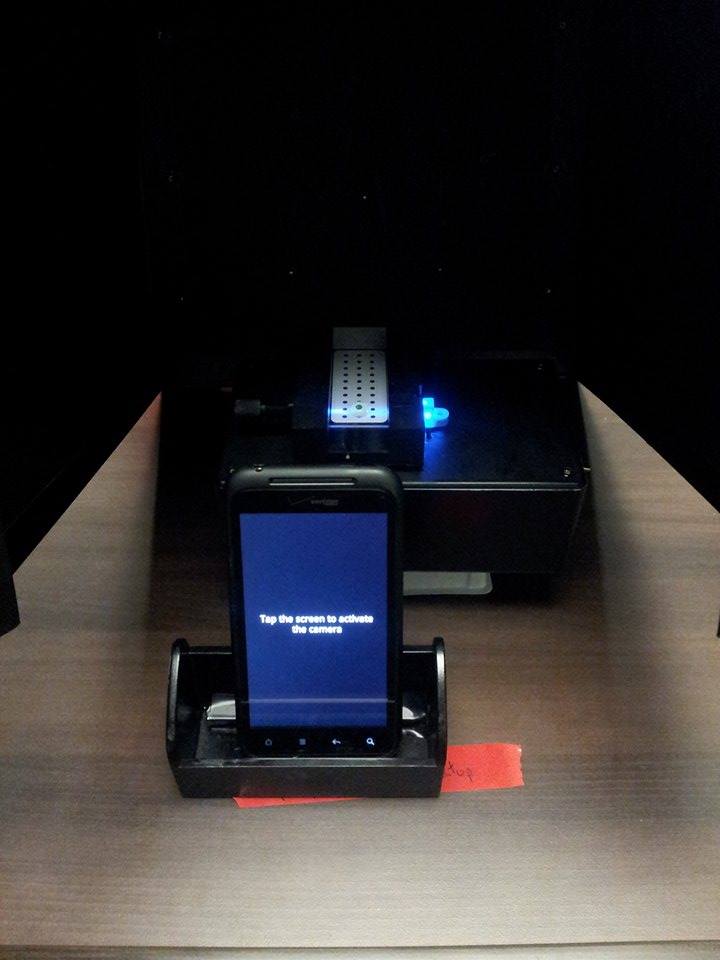

Place the smartphone on the cradle and adjust its distance from the fluorimeter and record it.
Use plastic trays to adjust the height of the fluorimeter so the smartphone take a picture of the side of the slide.
Be careful to keep the position of the smartphone consistent, otherwise the results could be affected.
Distance between the smart phone cradle and drop = 6 cm
Solutions Used for Calibration
Initial Concentration of 2X Calf Thymus DNA solution (micrograms/mL)
Volume of the 2X DNA solution (µL)
Volume of the SYBR GREEN I Dye solution (µL)
Final DNA concentration in SYBR Green I solution (µg/mL)
5
80*
80*
2.5
2
80*
80*
1
1
80*
80*
0.5
0.5
80*
80*
0.25
0.25
80*
80*
0.125
0
80*
80*
0
'Placing Samples onto the Fluorimeter
Use a micro pipettor to transfer 80 microliters of SYBR Green onto the rough side of the slide. Make sure to apply the solution between two circles in order to form a spherical shape.
Replace micropipettor tip.
Add 80 microliters of one of the calf thymus solutions to the SYBR green drop.
Move the slide so the solution is aligned with the blue LED.
Take a picture by using the timer tool on the camera.
Cover the fluorimeter from any light while taking the picture by placing a lid on the box.
Take 3 pictures of every sample of the drop while the camera is focused.
Once finished taking the picture, carefully remove the lid on the box. Try not to change the position of the smartphone.
Remove the 160 microliters of solution using a micropipettor.
Replace micropipettor tip.
Repeat steps 7-14 for all of the concentrations of calf thymus DNA.
Data Analysis
Representative Images of Negative and Positive Samples

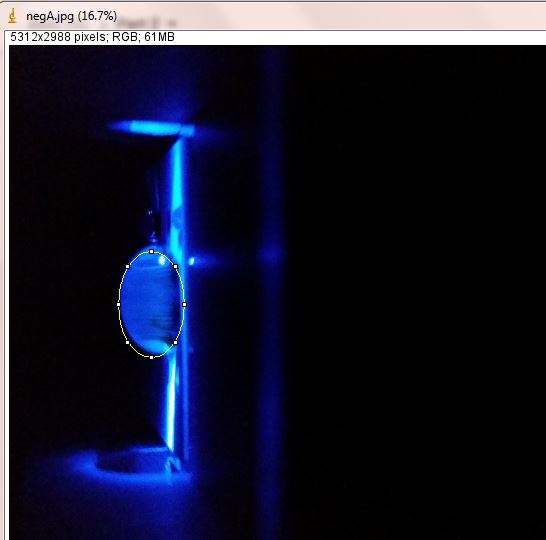

Negative Sample:

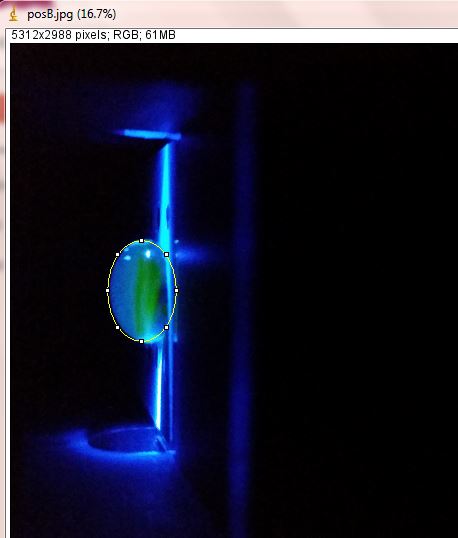

Positive Sample:
Image J Values for All Calibrator Samples
Final DNA concentration in SYBR Green I solution (ug/mL)
AREA
Mean Pixel Value
Rawintden of the drop
Rawdinten of the background
Rawdinten drop - background
5
134997
84.524
11454707
153690
11301017
5
136212
86.704
11810103
158792
11651311
5
136613
85.68
11705069
135600
11569469
1
154664
61.984
9586727
190422
9396305
1
163276
65.584
10708223
210737
10497486
1
162561
64.813
10536084
234323
10301761
0.5
159526
40.806
6509655
179213
6330442
0.5
154390
42.281
6527715
189658
6338057
0.5
147508
42.307
6240665
198054
6042611
0.25
132456
30.609
4054351
155804
3898547
0.25
133620
29.464
3936991
123573
3813418
0.25
132628
31.968
4239909
140205
4099704
2
151695
89.107
13517048
217071
13299977
2
149465
91.944
13742408
244300
13498108
2
154378
91.811
14173670
232948
13940722
0
125700
12.048
1514380
142304
1372076
0
140865
11.92
1679060
165324
1513736
0
144596
12.457
1801259
158680
1642579

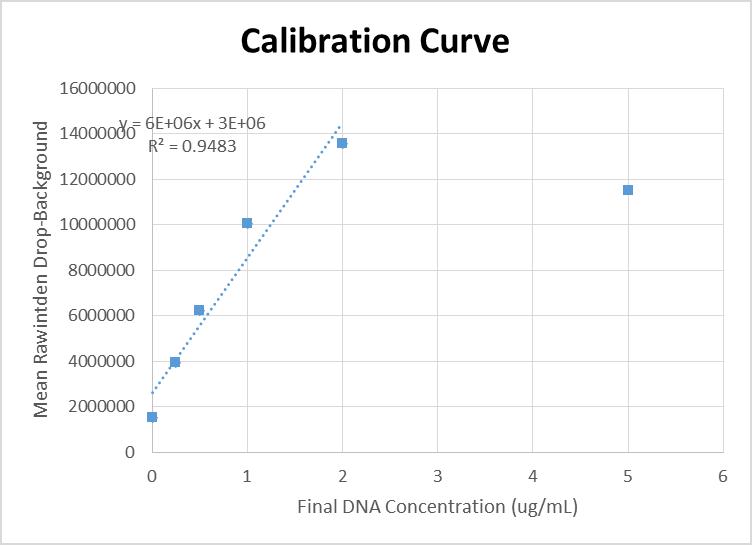

Calibration curve
***Note: Our camera was not sensitive enough to capture the high concentrations of SYBR green. As a result we elected to exclude the last data point in order to obtain a more accurate trend line.***
PCR Results Summary
PCR Product
TUBE LABEL
RAWINTDEN DROP- BACKGROUND
PCR Product Concentration (ug/mL)
Initial PCR Product Concentration (ug/mL)
10+
18002353
2.500392167
1.5002353
10 1-1
18046396
2.507732667
1.5046396
10 1-2
19446937
2.741156167
1.6446937
10 1-3
20715534
2.952589
1.7715534
10 -
10348475
1.224745833
0.7348475
10 2-1
9226110
1.037685
0.622611
10 2-2
7733764
0.788960667
0.4733764
10 2-3
9526790
1.087798333
0.652679
Our positive control PCR result was 1.500 μg/mL
Our negative control PCR result was .7348 μg/mL
Observed results
Patient 67713 : This patient's samples were fluorescent (green). The average initial PCR product concentration was 1.64(μg/mL), which is above the initial PCR concentration of the positive control of 1.500 (μg/mL), like all samples of this patient.
Patient 89702 :The images for patient two looks darker than our negative control for these samples. Also, our values for the μg/mL were .62, .47, .65 for each sample of this patient. Since all the values were under our negative control, it is correct to assume that this patient did not suffer from the SNP.
Conclusions
Patient 67713 : Based on the similarities of the initial PCR concentrations of the positive control and patient 67713, it is safe to assume that the patient tested positive for SNP. As mentioned above, the high fluorescence and the values of PCR concentration of the positive control closely matched this patient.
Patient 89702 :As mentioned above, each concentration calculated from the calibration curve yielded a concentration lower than that of our negative control. Thus we ascertained that this patient did not have the SNP, based on the low numbers in the previous section.

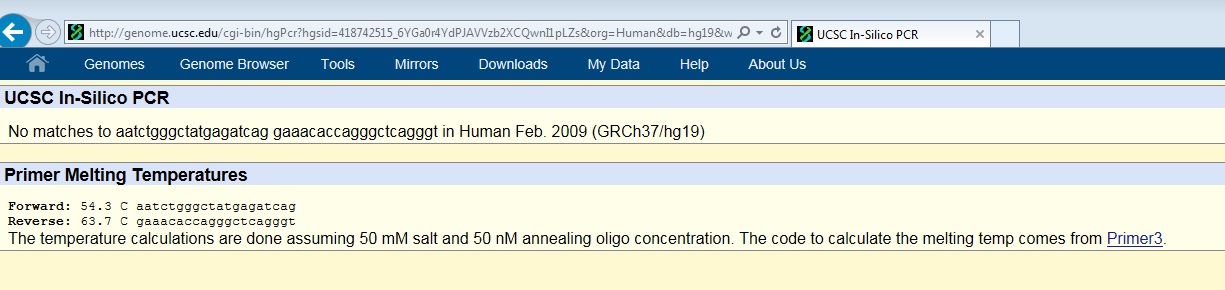

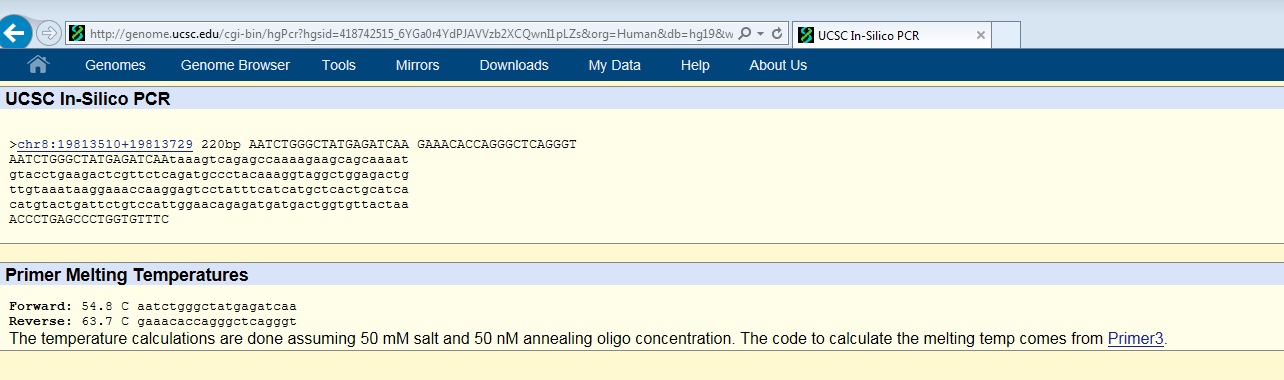

SNP Information & Primer Design
Background: About the Disease SNP
SNP stands for "single nucleotide polymorphism". This occurs when there is a discontinuous genetic variation on a single nucleotide, resulting in different types of individuals. This variation is found in Homo sapiens on chromosome 8. Variations in SNP can cause Hyperlipidemia. This SNP is associated with genes LIPD and HDLCQ11. According to summaries of research on PubMed, SNP is linked to coronary heart disease. It is believed to affect cholesterol levels, which in turn can lead to stroke and other related illnesses.
