OUR TEAM

Name: Robert Rye
Name: John Richards
Name: Vivian Vuong
Name: Steven Nye
Name: Leo Santos

LAB 3A WRITE-UP

Descriptive Statistics

Average and Standard Deviation of Observed Data
Oral (thermometer) Sensor (RAIING App)
Average (degrees Fahrenheit) 97.53242424 95.08181818
Standard Deviation (degrees Fahrenheit) 5.426823935 5.542740327

(Descriptive statistics for the data set)





Results

(Well-labeled graph with error bars and significance)

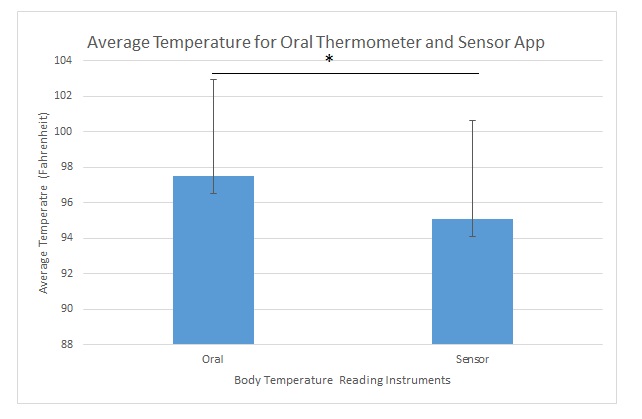

Average Temp graph.jpg




Analysis


(Perform inferential statistics described in assignment.)





Summary/Discussion

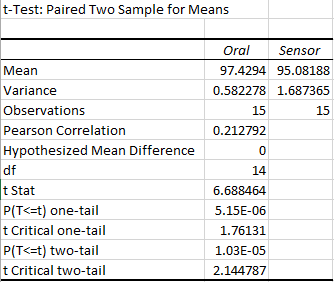

This product is inaccurate in its readings when compared to those of an oral thermometer. As shown by the t-test, the t-value is far lower than the standard measure of p>0.05, which means that there is a statistically significant difference between the oral thermometer readings and those of the tested device.

Reasons for this could be experimental error, but is more likely due to several key design flaws.

The first major design flaw was that the sensor needed to be constantly readjusted and reattached, which could have easily been solved by creating an armband or some such support structure that would keep the sensor in place.

A second flaw is that this device has an apparent maximum temperature reading, which is far below that of the average human body. This flaw is more of an error in production or creation of the device.

The third and final flaw is the consistency in which the device read temperatures. Our subject went through several different stages of motion such as walking, jogging, stair-climbing, and sitting in a chair, yet the device read the same temperature in all stages. This flaw leads to a conclusion that the device is very reliable, but is not accurate when compared to the conventional oral thermometers.

LAB 3B WRITE-UP

Target Population and Need

The "ThermoBand" temperature-recording device targets athletes/active people in need of an easy way to measure their body temperature. We want to help athletes take care of their bodies by providing them with accurate body temperature data while they're performing various physical activities including running, lifting, cycling, etc. Most body temperature sensors are big, inaccurate, inconvenient and require their own personal device. With our '"ThermoBand", taking and recording temperature will be easier and more accurate than ever.

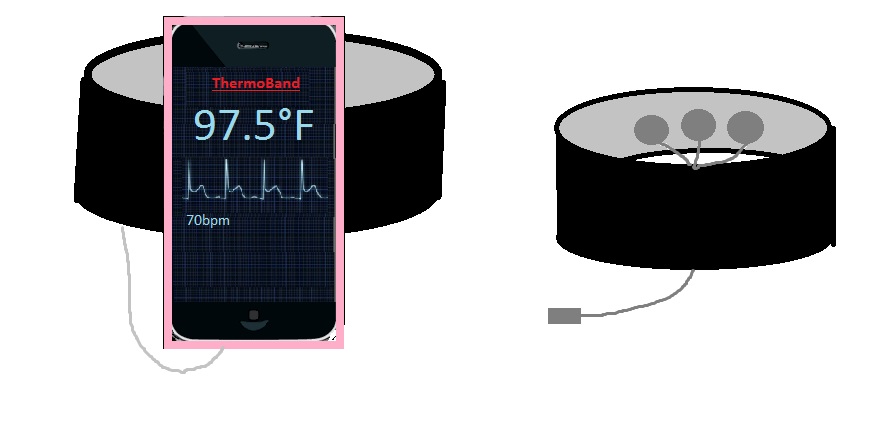

Device Design

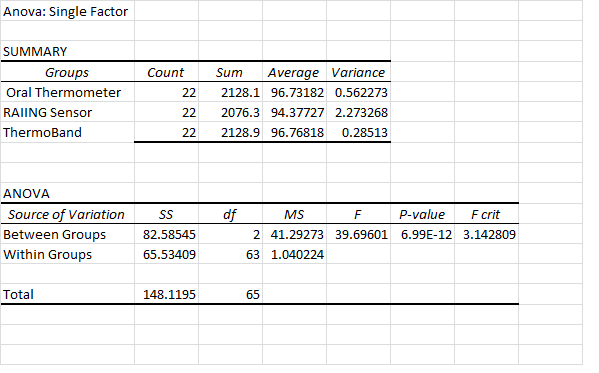

Inferential Statistics

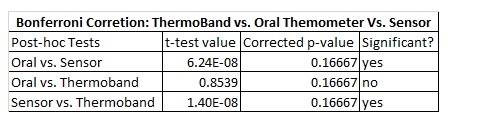

Bonferroni Corretion-Thermoband.jpg

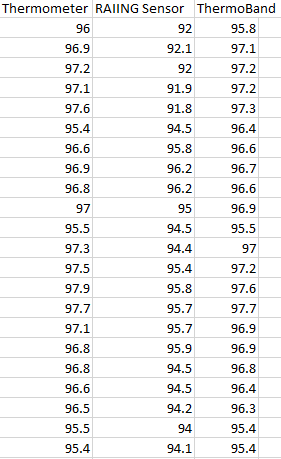

The data above shows that the "ThermoBand" is more accurate (in comparison to a thermometer) than the competing brands.



Graph

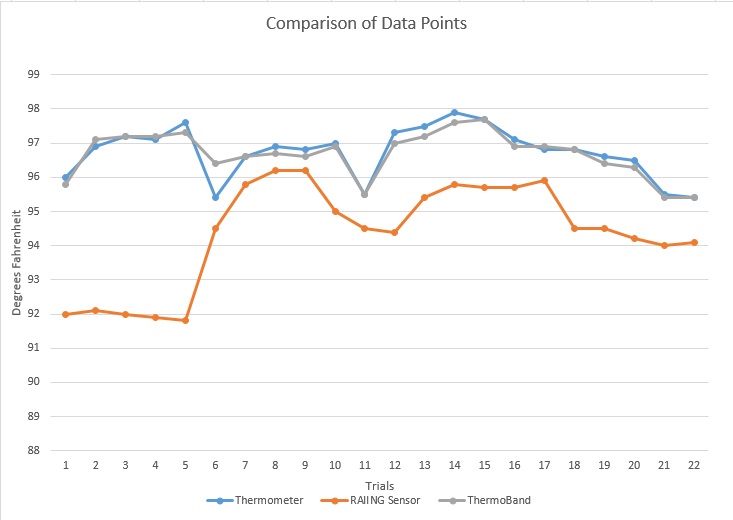

As shown from the line chart above, our "ThermoBand" is much more accurate in relation to the thermometer than competing brands (RAIING Sensor).


Vivian 10/11/13 9PM: Almost forgot. Credits to John for editing and filming the video.
