LAB 5 WRITE-UP

Background Information

SYBR Green Dye
SYBR Green dye is a cyanine dye that is used in biology. It is used as a nucleic acid stain that binds to double stranded DNA. It can also be used to view single stranded DNA and RNA but with lower performance. The dye can be used to stain DNA in PCR reactions.


Single-Drop Fluorimeter
The single drop fluorometer is used to measure the amount of fluorescence in each sample by emitting a blue LED light. It is a small box, and the slides with the samples go on the top. The LED light can shine across the slides to light up the samples.
There are two pictures of the fluorometer. The one on the right shows the set up, with the device, and the stand holding the phone/camera upright. The photo on the left shows the shade over the device which is what is would look like while actually performing. Bmepic2.jpg Bmepic3.jpg


How the Fluorescence Technique Works
Start with the smooth side of the slide down, and place it at the height of the camera. Add 80 uL of dye and 80 uL of DNA between the circles on the slide. The LED light will focus on the sample and the dye will bind with the DNA. The timer needs to be set on the camera to allow time to close the shade and block out any light. Analyzing the photos will show the amount of fluorescence and the concentration of the sample.



Procedure

Smart Phone Camera Settings

  • Type of Smartphone: HTC EVO 4G LTE
    • We weren't able to adjust the settings of the camera on the smartphone. No flash was used. The ISO, white balance, exposure, saturation and contrast were all on the auto setting.


  • Type of Smartphone: LG Spectrum 2
    • We weren't able to adjust the settings of the camera on the smartphone. No flash was used. The ISO, white balance, exposure, saturation and contrast were all on the auto setting.


Calibration

First, to calibrate the set up the excitation light, the blue LED, is switched on. The camera is turned on and placed in the cradle that holds the phone upright at a decent angle and height for viewing the sample. The flourimeter and the sample is adjusted vertically through the use of plastic trays. This is done to ensure the photo of the drop would be of the sample from the correct viewing angle. The distance of the cradle from the sample is adjusted in order to be as close as possible without blurring of the image.

  • The distance between the smart phone cradle and drop was .4 centimeters.




Solutions Used for Calibration

Calf Thymus DNA Solution concentration (µg/mL) Volume of the 2X DNA solution (µL) Volume of the SYBR GREEN I Dye solution (µL) Final DNA concentration in SYBR Green I Assay (ng/mL)
5 80 80 2.5
2 80 80 1
1 80 80 0.5
0.5 80 80 0.25
0.25 80 80 0.125
0 80 80 blank


Placing Samples onto the Fluorimeter

  1. Place a clean slide in the fluorimeter with the rough hydrophobic side facing up.
  2. Use a micropipette to obtain 80 µL of SYBR Green I solution and dispense the drop on the first two clear circles in the middle of the slide.
  3. With a clean tip, use the micropipette to measure and obtain 80 µL of the sample solution. Dispense the drop in the same position and on top of the SYBR Green I drop.
  4. Position the slide in the fluorimeter so that the light goes through the center of the drop.
  5. Place a smartphone in the cradle at a distance that is less than 4 cm so that a side view is obtained when an image is taken.
  6. Place the lightbox over the device and set the phone timer to take an image of the slide.


Data Analysis

Representative Images of Samples

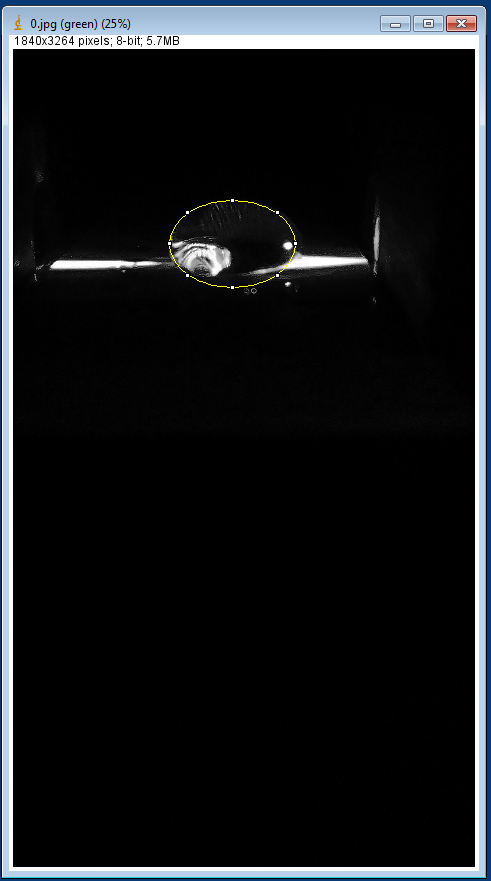

Screenshot of a sample with no DNA:

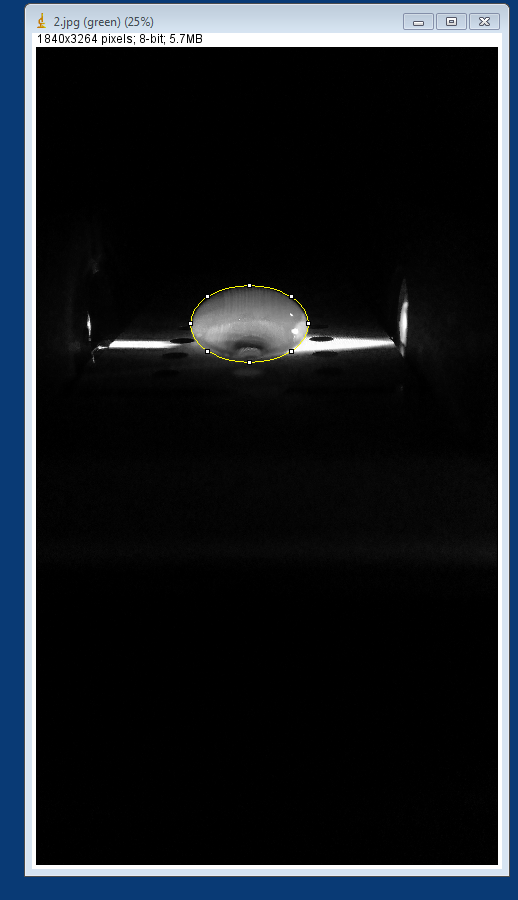

Screenshot of a sample with DNA:



Image J Values for All Samples


DNA concentration area mean pixel value RAWINTDEN OF THE DROP RAWINTDEN OF THE BACKGROUND
0 137764 47.709 6572538 47374
0.25 71900 21.916 1575730 10917
0.5 133928 62.233 8334693 17069
1 114176 86.578 10154005 26149
2 50900 114.32 13052648 35108
5 50900 104.588 5323542 35606
0 159348 29.5 4701724 103184
0.25 164859 31.534 5103921 53714
0.5 195754 69.125 13531488 219064
1 153040 77.054 11792353 107546
2 171008 105.575 18054220 95208
5 73048 108.262 7908290 39732

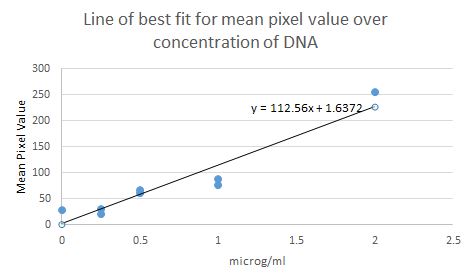

Fitting a Straight Line


Data from one of the 2.5 µg/mL sample and both of the 5 µg/mL samples were ignored as the procedures were done incorectly and including them would result in improper calibration.
