XAS:Equipment/KETEK: SDD 01691

From OpenWetWare

DESCRIPTION

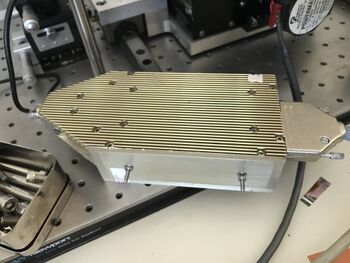

SDD 01691 is a X-ray silicon drift detector.


FEATURES
FWHM

130 eV

Peak to background

> 15.000

Peak to tail

> 2.000

Optimal peaking time at max. cooling

1 µs

Absorption depth

450 µm Si

Peak shift stability up to 100 kcps

< 1 eV

Max. input countrate

2.000 kcps

Windows

8 µm Be

Cooling performance at +30°C heat silk temperature

ΔT > 75 K
