DESCRIPTION

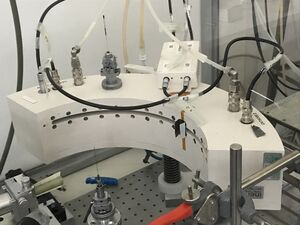

INEL CPS 180 is a curved position sensitive detector.

INEL CPS180.JPG

FEATURES
Curvature radius180 mm
Angular range in 2θ110°
Resolution (degrees 2θ at FWHM)0,12°
Dynamic range200.000 cps/sec
Maximum count rate200.000 cps
Read noise4 cps overall
Minimum measure time1 second
Power115/230 V 50/60 Hz
Temperature range15–25 °C
Quantum efficiencyUp to 90%
Energy range5–17 KeV max 40 KeV
Counts/channel1000
Gas mixAr / CO2 for Mo Kα

Other info here: File:INEL CPS.pdf and INEL CPS
