DESCRIPTION

IHR 320 is a spectrometer.

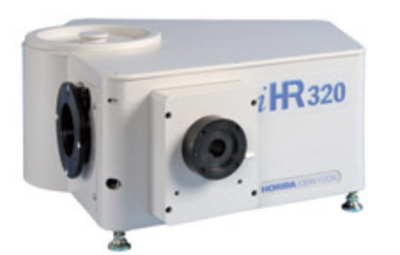

HORIBA IHR320.png

FEATURES
Design

Czerny-Turner

Aperture

f/4.1

Focal Length

320 mm

Input slit

max: 2 mm
precision: 1 µm

Coupler

Uses only mirrors (no lenses)
optimized to reduce Stray Light

DIFFRACTION GRATING

TypeSpectral RangeUse

1800 R/mm

Holographic

Plane Achromatic Correction

400-1000 nm

High resolution measures for large portion of the spectrum in sequential mode

600 R/mm

Blazed

500 nm

Measure of all the interval

The two diffraction gratings are placed on a motorized tower and can be selected through the software.
