DESCRIPTION

FLUKE 52 is a digital thermometer designed to use external J- and K- type thermocouples as temperature sensors.

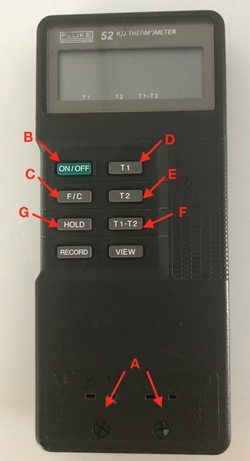

FLUKE52 1.png

FEATURES

Thermocouple

Materials

Range (°C)

Range (°F)

J-Type

Iron-Constantan

from -200 to 760

from -328 to 1400

K-Type

Chromel-Alumel

from -200 to 1370

from -328 to 2498

INSTRUCTIONS

  1. Plug the thermocouple(s) into the input connector(s) A.
  2. Press B to turn on the thermometer.
  3. After 1 second the thermometer displays the first reading. If no thermocouple is plugged into the selected input or the thermocouple is "open", the display shows "- - - -"
  4. Press C to select the correct temperature scale.
  5. Hold or attach the thermocouple(s) to the measurement location. The temperature reading appears in the primary display.
  6. Press D, E or F to toggle between showing the T1, T2, and T1-T2 (differential temperature measurement) readings.
  7. Press G to freeze or unfreeze the displayed readings.
