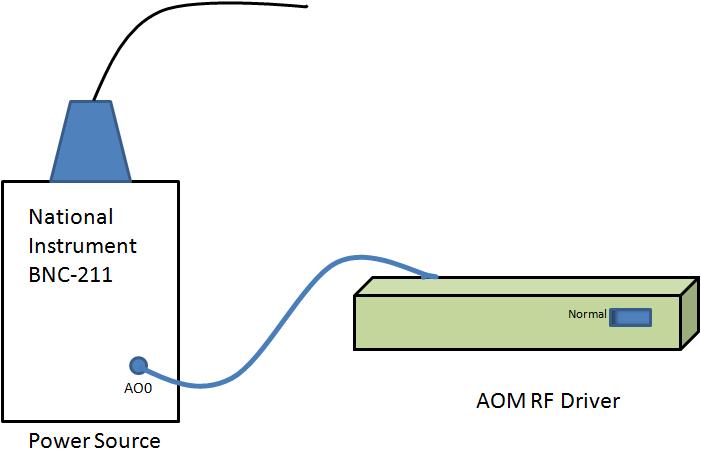

Characteristics of Analog power source and AOM driver input and ouput for RF power
Error in widget Google Presentation: Unable to load template 'wiki:Google Presentation'
| Power Source NI-DAQmx (port BNC outlet AO0) | |
| Impedance | 11 ohms |
| Current | 10.35 mAmps |
| Voltage | 1 – 5 Volt max |
| Power at 5V max | .05W (old setting:.01W) |
| AOM Driver old settings (for input RF power) | |
| Impedance | 50 ohms |
| Current | 20mAmps |
| Voltage | 1 Volt max |
| Power at 5V max | .02W |
| AOM Driver new settings (for input RF power) | |
| Impedance | 3000 ohms |
| Current | 1.7mAmps |
| Voltage | 1-5 Volt max |
| Power at 5V max | .0085W |
| AOM Driver RF output Vs input voltage | |
| Input Volts | Output RF Watts |
| 5 | 2.0500 |
| 4.5 | 1.9700 |
| 4 | 1.8600 |
| 3.5 | 1.7400 |
| 3 | 1.3900 |
| 2.5 | .8500 |
| 2 | .3600 |
| 1.5 | .0600 |
| 1 | .0002 |
