Part 1: The Volvocine Line


What differences can be observed between the various types of organisms in the Volvocine line? What are some possible explanations for these observed differences?


1)My lab group obtained a clean slide 2)we used a transfer pipette to add one drop of water containing Chlamydomonas to the slide 3)we added a drop of Protoslow solution in order to make the organisms easier to observe 4)we placed a cover slip over the drops and placed the slide under the lens of a microscope 5)we observed the organism - after viewing the organisms at several lens objectives, we were able to see individual colonies of cells 6)we repeated this procedure for the Gonium and Volvox subjects.


When my lab group observed the Chlamydomonas population, we saw single-celled organisms that were grouped into colonies of about 25.

When we observed the Gonium population, we saw organisms composed of about six cells each, in colonies of 6 or so organisms.

When we observed the Volvox population, we saw organisms made up of around 150 cells each, in colonies of one to three organisms.


The organisms of the Volvocine line that were observed could be seen as getting progressively more complex; this exhibits the way in which related organisms can descend from a common ancestor and adapt in order to fill a particular ecological niche. The more complex organisms in the volvocine line are observed as having different types of cells serving specialized functions within each individual organism.

Part 2: The AU Transect


What biotic/abiotic components can be found within your given transect, and how do they interact with one another?


My lab group walked out to our transect, which takes form as a 20'x20' square of land on American University's campus. We visually studied the area from a variety of angles and took a sample of soil and vegetation for further study in the future.


Our transect can be found between American University's main road, Hughes Hall, and the Amphitheater. It is located in the middle of the garden, between two of the winding cement paths. This area is shaded by small trees and bushes, and many organisms can be observed. The terrain is fairly flat, and the ground is covered by soil, mulch, and low plants in the places where it is not paved.

As far as biotic components of our transect, my group observed a bird, several squirrels, a low, green, leafy ground cover plant, patches of tall, tan grass, and several large shrubs. When looking for abiotic components, we observed two metal light poles, some loose trash (chip bags, etc.), a cement sidewalk, soil, and mulch.

Transect map photo.JPG


We observed a number of biotic and abiotic components in our transect. Today, we focused on the larger, visible components, but we collected a sample in order to observe the microscopic elements of our transect in the future. Upon further observation, we should be able to see what microscopic organisms inhabit this part of American University's campus.

Very good Lab 1 entry. Nice description of tasks and conclusions. SK

Lab 2: Identifying Algae and Protists

Questions: Can protists be identified under microscopy by noting their size, movement, shape and color? What microorganisms can be found in various niches of a hay infusion culture produced from our transect last week? Are certain organisms specific to certain niches, or are some of them found everywhere?


Part 1) Identifying Protists: For this stage my group studied and identified three different protists. We measured them under a microscope and took note of their color and the speed they moved. Using a chart of protists, we attempted to identify each organism.

Part 2) Studying Hay Infusion Cultures: We used basic sight and smell to take general observations of our hay infusion culture, then we used pipettes to take water samples from several niches in the ecosystem and observed their microorganism content with microscopy.

Part 3) Serial Dilutions and Agar Plating We also performed a set of serial dilutions in order to prepare agar plates for the organisms to grow on in various concentrations. We plated these dilutions onto agar plates with and without the antibiotic tetracyclin. These were set aside for future study, once they have developed.


Part I: The first organism we studied was a medium-speed, three hundred micron long green protist that we determined to be a paramecium. The second organism was a fast, thirty micron long protist that appeared to be a pandorina. The third was a medium-speed, green, ovular protist, about seventy microns long, that we determined to be a euglena.

Bio lab 1 photo 1.jpg

Part II: At first look, we noticed a rotting smell coming from our hay infusion culture and a thin, elastic film across the surface of the liquid. We then took samples from two different niches, near the plants at the bottom and just beneath the film at the surface. We found three types of organisms by the film at the top. One of them was a seventy micron, medium speed protist. Another was a forty micron, fast moving protist that we determined to be a pandorina. The third was an eighty micron, immobile or very slow organism that we determined to be a calpidium.

In the second niche, near the plant material toward the bottom, we found a 100 micron, gree, slow calpidium, a light green, eighty micron, fast-moving pandorina, and a very fast, light green, 180 micron long paramecium aurelia.

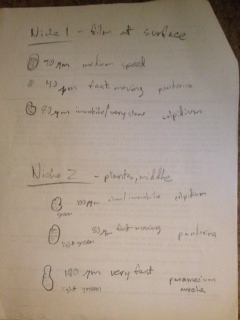

Bio lab 1 photo 2.jpg

Conclusions: From our observations, we can infer that paramecium aurelia prefer to reside in a niche that is farther underwater, near plant material. We can also infer that calpidium and pandorina are comfortable in a variety of niches within the hay infusion culture, as they were found in two separate niches. I would assume that if the hay infusion were allowed to develop for another two months, the microorganisms would be found to reside in more segregated, specific niches instead of mixed around as some of them were.

Lab 3 - Microbiology and Identifying Bacteria with DNA


Will any Archaea have grown on the agar plates? Why will hay infusion culture appearance or smell change over the course of a week? What bacteria can be observed in the cultures, how are they affected by the presence of antibiotic, and how do they respond to gram staining?


We observed our hay infusion culture and noted any further observable changes.

We then observed the agar plates on which we plated samples from our hay infusion culture. Since they have been allowed to grow for a week, we will expect to see some bacteria growth on some of the plates. We noted whether the presence of the antibiotic tetracyclin had any effect on the growth of bacterial colonies on the agar plates.

We then used a loop to take a small bacteria sample from each agar plate and prepare wet mount slides for microscopy. We observed the samples and noted their observable characteristics.

We then took a second bacterial sample from each plate and gram-stained them. By putting them through a series of dyes, we exposed the cells to safranin stain, which will stain the membrane of gram-negative cells, and crystal violet stain, which will stain the peptitoglycan of gram-positive cells. We observed the prepared slides under microscopes in order to determine whether they were gram-positive or gram-negative.


The hay infusion culture appeared about the same as it did a week beforehand (to the naked eye).

Figure 1: Bacterial Observations - Data Table

Biolab - bacteria data table.png

More colonies were observed on the agar plates without the tetracyclin, and the two tetracylin agar plates with lowest sample concentration did not exhibit any visible bacterial growth.

Figure 2: Bacterial Observations - Description Table

Biolab - bacteria description table.png

One of the agar plates had some fungal growth, but the bacterial colonies were undisturbed on some parts of the plate.


We can infer that the bacteria that were able to grow on one of the tetracyclin-infused-agar plates were antibiotic resistant. We can also infer certain properties about the bacterial colonies due to the gram staining: the cells that seemed to be colored with the red safranin dye most likely had two membranes and a thin peptidoglycan wall, while the cells that appeared purple from the crystal violet stain probably had a thicker peptidoglycan cell wall and no second membrane on the outside.

The bacteria that grew on the tetracyclin plate was gram positive while the bacteria on the other two plates was gram negative; this indicates that they are two entirely different types of bacteria. This is consistent with the fact that a different, antibiotic resistant strain of bacteria would be the only suitable occupant of the tetracyclin agar plate.

We did not observe any Archaea on the plates, but it is possible that there was some there with the bacteria that wasn't seen.

Lab 4: Plantae and Fungi


What plants can be found in the transect? What vascularization and leaf structure do they have? Are they monocots or dicots? What fungi are growing on the agar plates? What are fungi sporangia?


We began by collecting plant samples from the transect. We then described each plant sample, noted their vascularization, and attempted to identify whether each sample was a monocot or a dicot.

We examined fungi samples.

We then took our leaf and soil samples and put them in a funnel running into ethanol in order to separate out invertebrates that will be studied next week.

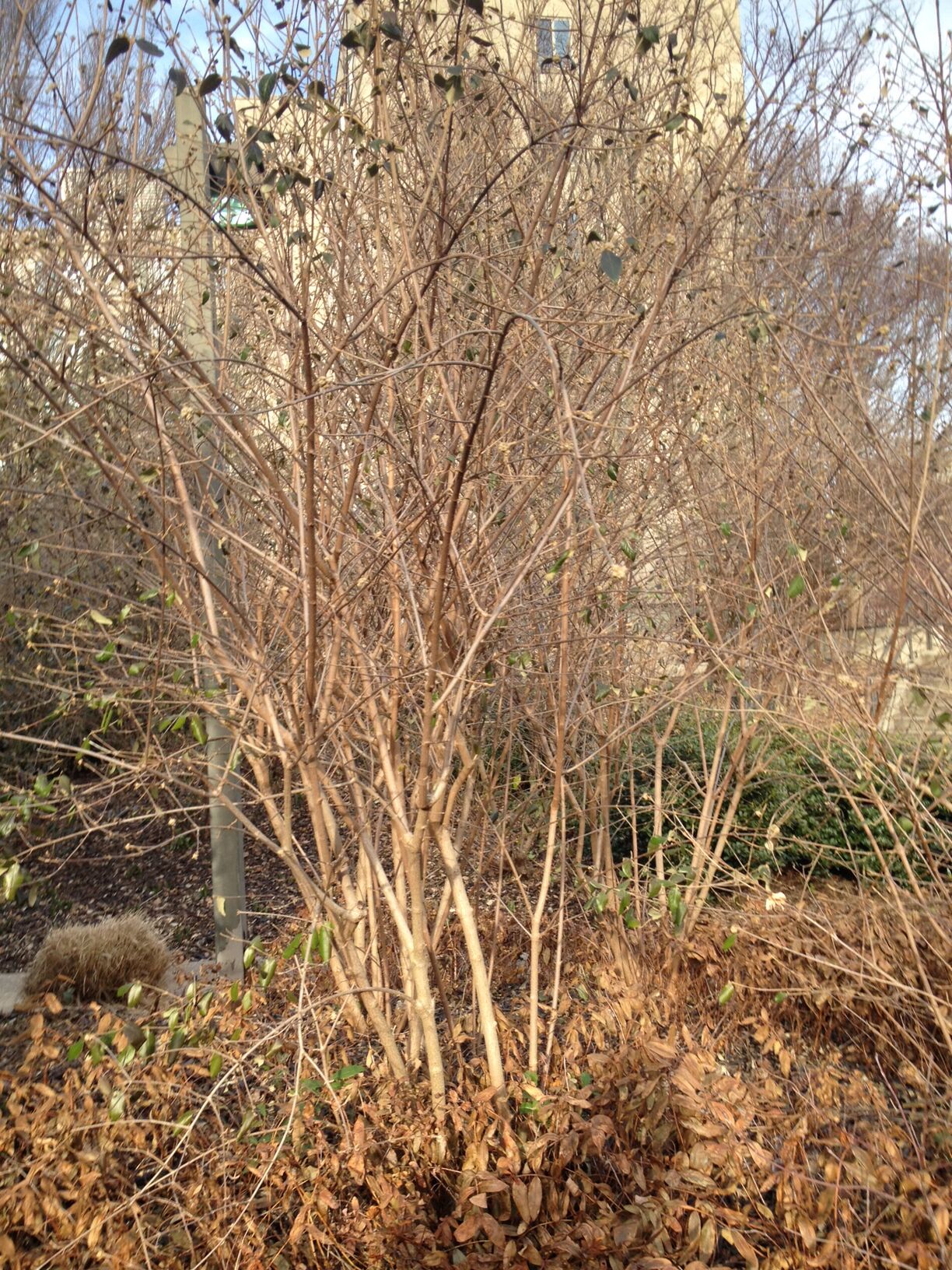

Plant Samples from Transect

Sample 1: faded green ground cover, visible simple vascularization,

Sample 2: light green, pointed, leafy ground cover, visible simple vascularization

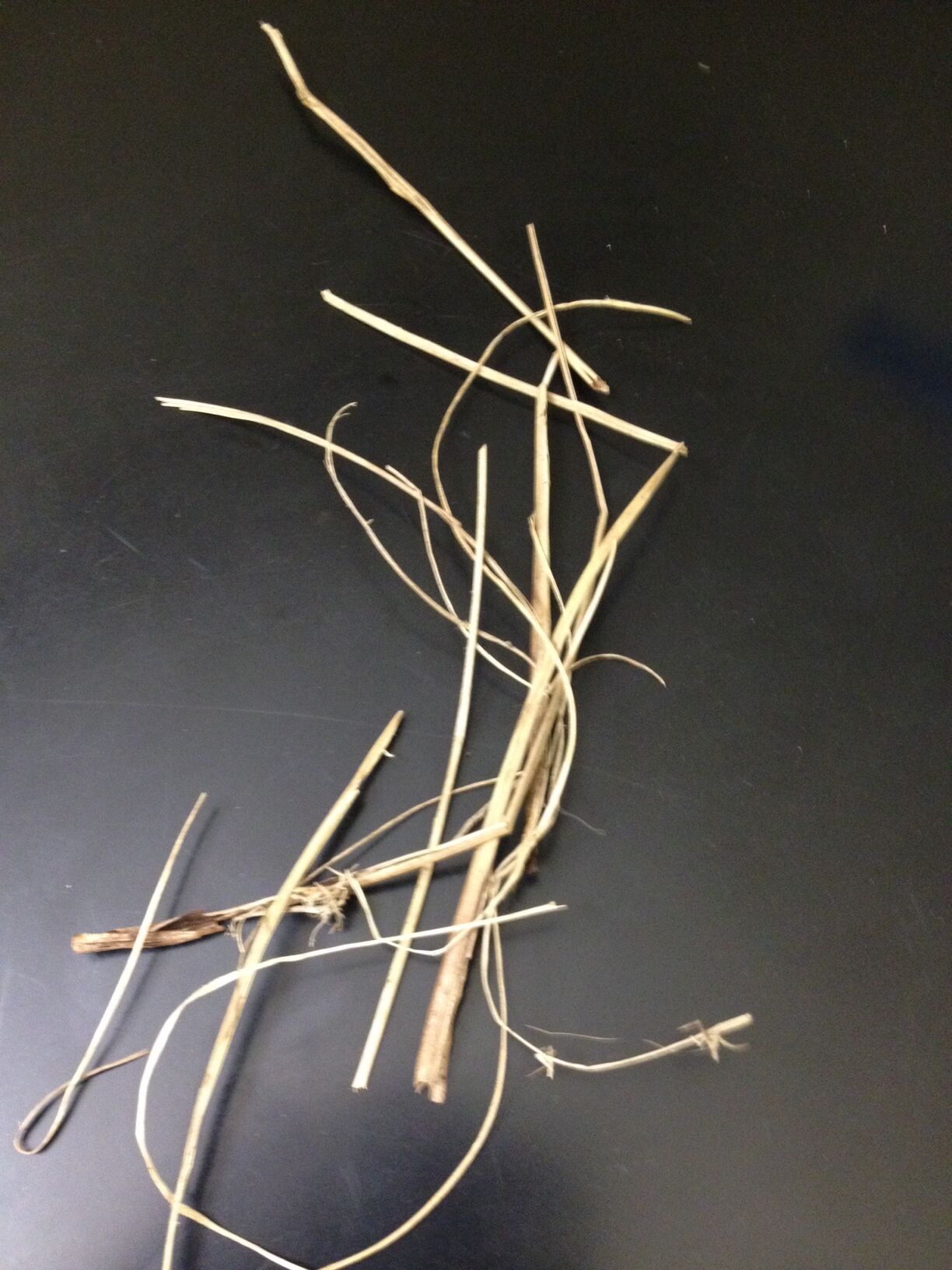

Sample 3: grass(mostly dried out), appeared to be a monocot

Sample 4: leaf from tree(dried out), appeared to be a dicot(fives)

Sample 5: vibrant, dark green leafy ground cover with light green running through it, red stem, appeared to be a monocot(threes)












Fungus Samples



Dicot Examples




We found four types of leafy plant and a grass species in our transect.

Several types of fungi were visible.

Fungi sporangia create spores that can release diploid or haploid cells, depending on the fungus species.

Lab 5: Invertebrates


How does movement vary among worms? What invertebrates can be found in the transect sample? How can arthropods be classified based on physical appearance?


Observe an annelid and an acoelemate and contrast their movement.

Take an invertebrate sample from the ethanol underneath the funnel. View the sample using a dissecting microscope and describe any invertebrates that can be found.

Categorize the arthropods at the five different stations based on wings, legs, antennae, and body segments.


The annelids we studied were earthworms. They were long and visibly segmented. They were somewhat slow, most likely due to dehydration, but their movement was intricate and developed. For our acoelemate subjects, we studied planeria. They were dark green and motile at a medium speed. Even though the planeria were more motile while we were studying them,

We were able to find two invertebrates in our sample. They were both arthropods.



These invertebrates appeared to be either fleas or lice. They did not appear to have wings, and had the rounded body shape indicative of fleas or lice.


This invertebrate was more difficult to classify; wings are not readily visible, but could be wrapped into a shell-like shape. Possibly some type of beetle.

Arthropod 1: 2 wings, 2 antennae, 6 legs, 3 body segments Class: Insect

Arthropod 2: no wings, 2 antennae, many legs (1 pair per segment), many body segments Class: Centipede

Arthropod 3: no wings, 2 antennae, 10 legs, one body segment Class: Crustacean

Arthropod 4: no wings, no antennae, 8 legs, 2 body segments Class: Arachnid

Arthropod 5: no wings, 2 antennae, many legs (2 pairs per segment), many body segments Class: Millipede


The annelids had more intricate movement abilities than the acoelemates, most likely due to their more developed internal structure.

Though invertebrates are likely plentiful and diverse in our transect, our sample only yielded two different types. One of the invertebrates was difficult to classify by physical appearance when dead, because we couldn't determine whether or not it had wings. The arthropods were far easier to classify based on physical appearance alone.

Lab 6: Embryology and Zebrafish Development


What stages of zebrafish development can be observed? How does a treatment of various concentrations of salt water affect the speed of development and mortality rate of zebrafish embryos? What states of development can be observed in frogs and chicks?

Hypothesis: Zebrafish in higher concentration salt solutions will develop more slowly, and some or all of them will die due to exposure to the salt solution if the salinity is too high.


For this experiment, four petri dishes were used. One petri dish contained distilled water (control), and the other three contained treatments of .03%, .3%, and 3% salt water solutions. The zebrafish were observed every few days, measurements were taken, dead eggs and embryos were removed, and evaporated water was replaced. At several interviews, live zebrafish were removed and placed in formaldehyde for preservation.

Additionally, developing chick embryos and preserved frog embryos were observed, and various development stages were noted.


This experiment was started with zebrafish eggs that were somewhat developed already. The eggs were observed before they hatched, shortly after they hatched, and as they grew.

Initially, too high of a concentration of salt solution was used, and it killed all of the embryos in that trial group.

All of the zebrafish died by the two week mark due to a lack of food, so development during the first week of the experiment was used as the trial period.

After observing the zebrafish for seven days, the various treatment groups had grown as follows:

Treatment: control Body Length: 400 micrometers Eye Diameter: 28 micrometers Formation: normal

Treatment: 0.03% salt water solution Body Length: 338 micrometers Eye Diameter: 28 micrometers Formation: normal

Treatment: 0.3% salt water solution Body Length: 400 micrometers Eye Diameter: 30 micrometers Formation: normal

Treatment: 3% salt water solution Body Length: 188 micrometers Eye Diameter: 28 micrometers Formation: some deformed zebrafish, including bent tails and enlarged midsections

3% NaCl Day 0 Zebrapic1.JPG

Control Day 7 Zebrapic2.JPG Day 7 Zebrapic3.JPG

0.3% NaCl Day 7 Zebrapic4.JPG Day 10 Zebrapic5.JPG

0.03% NaCl Day 7 Zebrapic6.JPG Day 10 Zebrapic7.JPG

Control Day 14 Zebrapic8.JPG Day 14 Zebrapic9.JPG

The mortality rates for the zebrafish groups increased progressively with salinity. Additionally, malformation occurred in some of the higher concentration treatment groups. The data after Day 7 was disregarded.


The hypothesis that the zebrafish in higher concentrations of salt water solutions would develop more slowly and fewer would hatch was supported by the results of this experiment. Lower concentrations of salt water did not have a significant negative effect on the zebrafish development, but the 3% salt solution killed off the zebrafish more quickly, and led to some malformation.
