Monday 22 January 2018
Prepare electrodes
- 80% Ag and 20% graphene.
- Firstly, wash the mixing vial with ethanol then acetone carefully to remove the remained Silver.
- Mix 4g Ag with 1g graphene homogeneously (before doing that, use 2 Al foil, 1 foil taking graphene to dry acetone and then take 1g graphene).
- Add 4uL acetone (after checking viscosity of the mixing solution).
Tuesday 23 January 2018
Wednesday 24 January 2018
Test HPV-16
- There are two wells, 1st well for adding HPV-16 and 2nd well for adding control (primers).

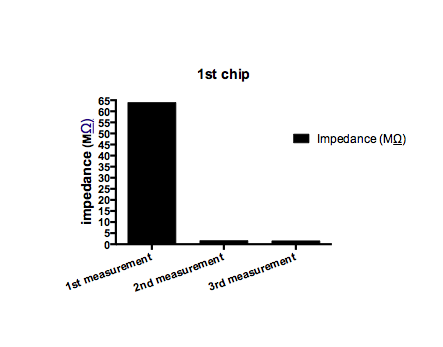

- Attach and first measure the chip. (1st measurement)
- Each well, do the same protocol: 4uL then dry, 4uL then dry, 2uL then dry completely.
- Add 4uL DI water (well 1), wait 30sec and then measure impedance (2nd measurement).
- Add 4uL DI water (well 2), wait 30sec and then measure impedance (3rd measurement).
- Result: 64MOhm, 1.67MOhm, 1.55MOhm
- Comment: result fits with concept.
LAMP experiment
- Continue as yesterday we delayed.
- Check protocol to make HPV-16 LAMP.
Monday 29 January 2018
HCV primers literature review
Primer Length Genome position Sequences F3 19 88–106 5’ -TCCCGGGAGAGCCATAGTG-3’ B3 21 254–274 5’ -CACTCGCAAGCACCCTATCAG-3’ FIP 43 148–166 108–127 5’ -GATCCAAGAAAGGACCCGGTTTTTCTGCGGAACCGGTGAGTAC-3’ BIP 43 179–197 232–25 5’ -CCTGGAGATTTGGGCGTGCTTTTAGTACCACAAGGCCTTTCGC-3’ LF 17 129–145 5’ -TCATCCTGGCAATTCCG-3’ LB 18 202–222 5' -GCGAGACTGCTAGCCGAG-3’
Tuesday 30 January 2018
Zika LAMP experiment
Wednesday 31 January 2018
Answer question: What is available commercialized enzyme that can digest double stranded DNA at high temperature (like 80 C degree?)
- Search on NEB website:
- ApeKI: Incubate at 75°C, no heat inactivation.
Thursday 1 February 2018
Sensitivity test with HPV sample
Monday 26 Mar 2018
HCMV Bubble project
PMMA chip fabrication
- two channels chip
- Setting:
- Red 40 40 50
- Black 80 2.3 100
- Adjust height for focusing
- Clean white powder on the top of the chip with ethanol.
- Attach DSA on the chip, after that we had to clean with H2O2 (avoid the buuble during adhesion process).
Nano probe
- 3mL of Pt NPs in glass bottle with magnetic beads, stirring at 110rpm. Cover in aluminium foil.
- Add drop-wise 500uL of Ab and PDPH.
- Incubate for 3 hours, room temperature, in dark at 110rpm.
- Concentration the solution using ultra-filltration 3000rpm at 10 mins.
- The remaining volume should be 300uL.
Antibody oxidation
- the stock is adjusted to 6.4 mg/mL
- 3.5uL of Ab + 96.5uL sodium acetate (at 0.1M pH 5.5)
- 100uL sodium metaperiodate (10mM), the total volume is now 200uL.
- 20 mins on ice and dark in Al foli.
- Add 1.5 times volume of PB at pH 7.4 300uL.
- total 500uL and the final concentration is 90ug/mL
- Add 500uL of 90ug/uL PDPH.
- Mix, incubate at room temperature, dark and total volume 1mL.
- Final concentration of Ab is 45ug/uL
Major steps in HCMC bubble projects
- Attach PMMA and DSA, clean slides with ethanol and silane.
- Proceed with oxygen plasma and silanization.
