Restriction Digest 8-3
Below is a mapping of the 21 constructs. All of the constructs except for 13 (C09ig0033 {<CPG_L6>}(dblterm)) check out. The constructs go from left to right in the below order:
# ID Construct Length 1 C09ig0027 {<VtaA11 AtD>}(dblterm) 378 2 C09ig0026 {<cl02365 AtD>}(dblterm) 963 3 C09ig0035 {<ehaB>}(dblterm) 1365 4 C09ig0028 {<Hag AtD>}(dblterm) 378 5 C09ig0024 {<azo1653 AtD>}(dblterm) 969 6 C09ig0029 {<Pcryo_1225 AtD>}(dblterm) 381 7 C09ig0025 {<OprF AtD>}(dblterm) 819 8 C09ig0030 {<Hia AtD>}(dblterm) 378 9 C09ig0031 {<upaG_short>}(dblterm) 405 10 C09ig0036 {<eCPX>}(dblterm) 612 11 C09ig0032 {<CPG_L2>}(dblterm) 999 12 C09ig0037 {<TshA>}(dblterm) 1710 13 C09ig0033 {<CPG_L6>}(dblterm) 999 14 C09ig0039 {<yuaQ AtD>}(dblterm) 1008 15 C09ig0034 {<espP(beta)>}(dblterm) 1488 16 C09ig0040 {<AIDA-1 AtD>}(dblterm) 1560 17 C09ig0019 {<Cub>}(dblterm) 273 18 C09ig0023 {<Tev C>}(dblterm) 513 19 C09ig0020 {<Nub>}(dblterm) 282 20 C09ig0021 {<caspace 3>}(dblterm) 969 21 C09ig0022 {<Tev N>}(dblterm) 495

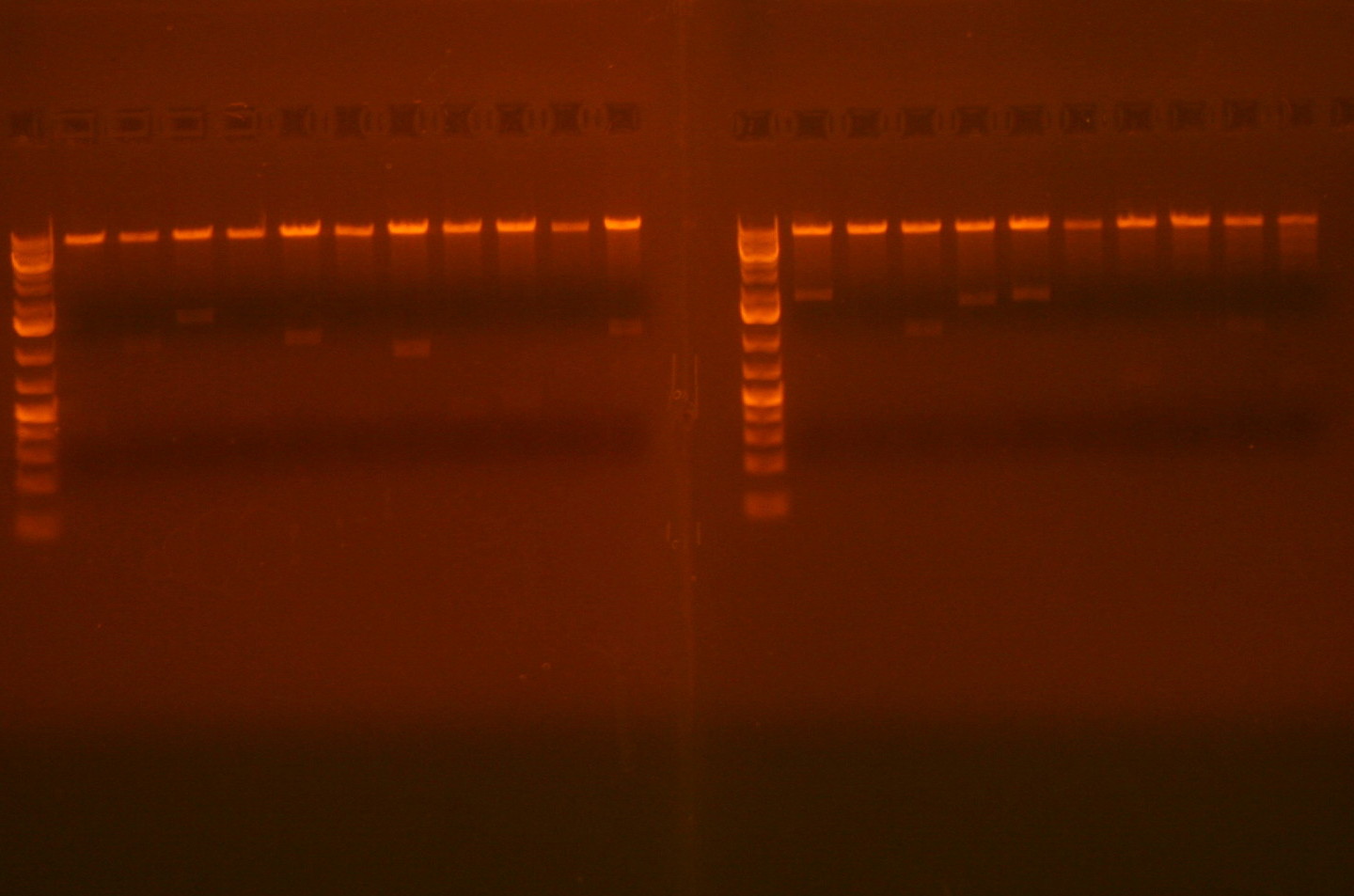

The gel on the left is slightly bent which is why all of the constructs are ~100bp above what they should be. The two missing were 13 and 17. All of the constructs minus 13 and 17 could be seen under the Treefort. A lot couldn't be seen from this picture. There also seemed to be a second faint band for 11 (other than the correct band on this picture) which can be seen from the treefort. The second band is just above the 500 bp ladder band.

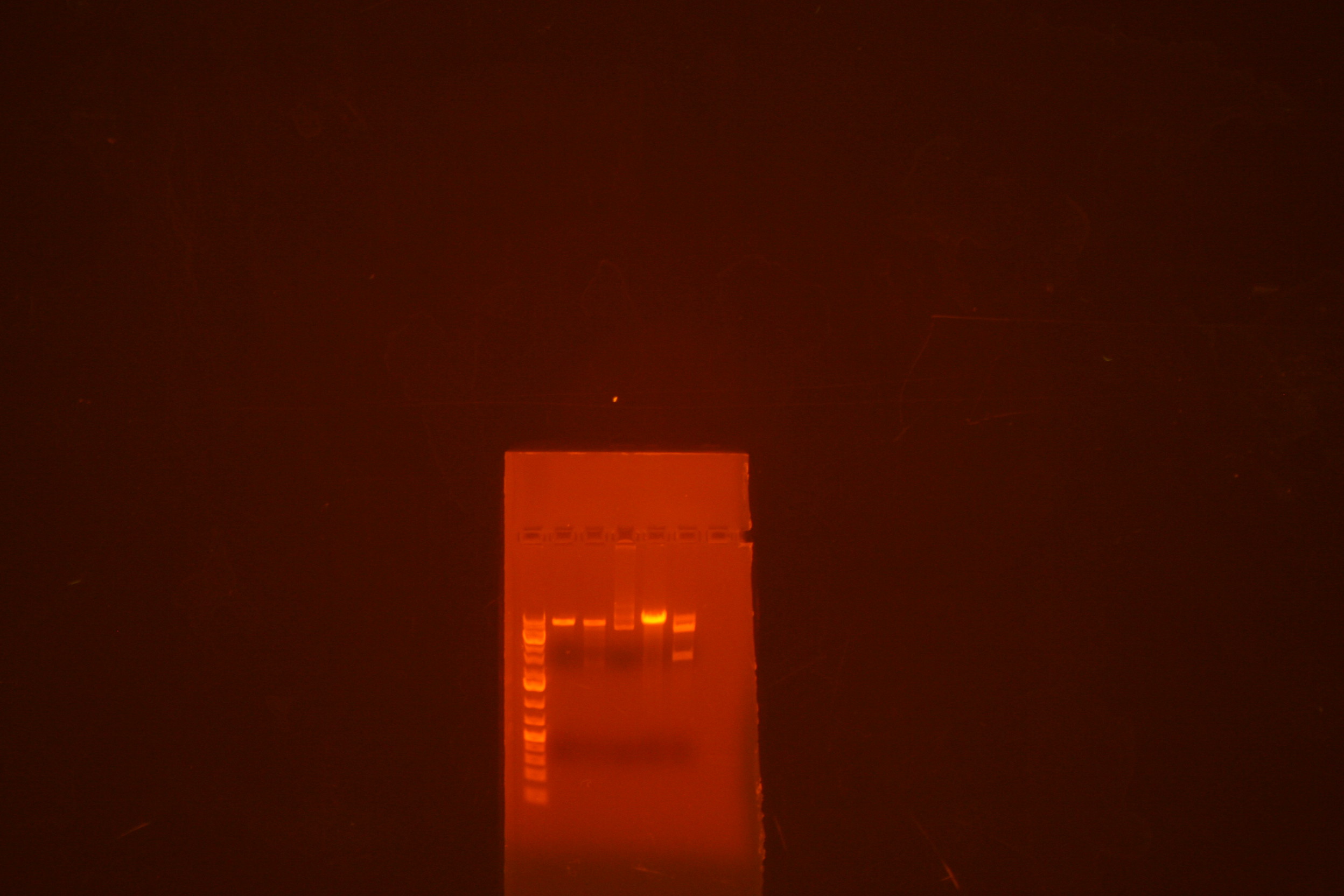

I ran another gel on just 11, 13 and 17. on the second gel, from left to right, the ordering goes:
# ID Construct Length 11 C09ig0032 {<CPG_L2>}(dblterm) 999 From first digestion 13 C09ig0033 {<CPG_L6>}(dblterm) 999 From first digestion 17 C09ig0019 {<Cub>}(dblterm) 273 From first digestion 13 C09ig0033 {<CPG_L6>}(dblterm) 999 New digestion 17 C09ig0019 {<Cub>}(dblterm) 273 New digestion
The first 3 lanes are digestons from the first gel that I had some left over. The last 2 lanes are constructs 13 and 17 redone. For 11, I couldn't confirm the second band at 600 this time. It was probably due to contamination from 10 right next to it which is at 600 bp. Under the Treefort, I could see construct 17 very, very faintly. I continued to see nothing for 13. I then proceeded to do a colony PCR for 13 and got nothing. The gel is blank so it isn't interesting.

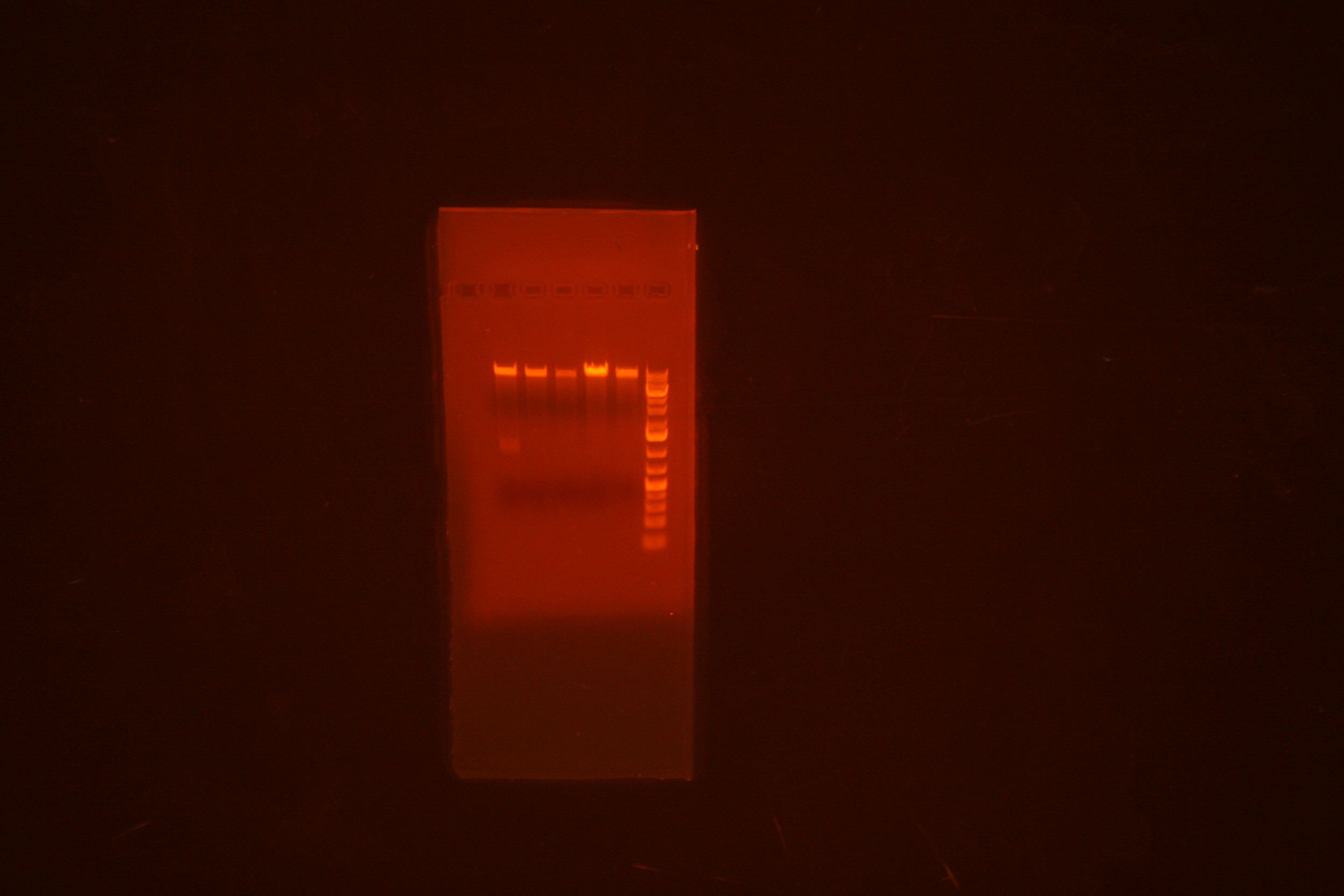

Just to confirm things. I also ran a Eco/XhoI digest on 13 and 17. 13 and 17 are the far right lanes. With 17 being the far right and 13 being second to far right. As you can see, 17 cuts with Eco/XhoI properly, but 13 fails to cut despite how bright the vector band is.
