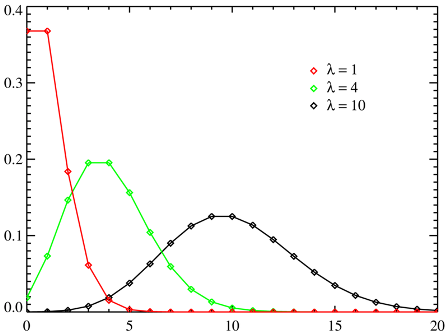

800px-Poisson distribution PMF2.png Poisson Statistics Lab <html><img src="/images/9/94/Report.png" border="0" /></html> Notebook


Lab Partner: Manuel Franco

In this lab we are going to detect random cosmic rays using the PMT and then we will see if those events fit the Poisson distribution.

We will also learn how the Poisson distribution relates to the Normal and Binomial distributions.


  1. Scintillator with NaI (Sodium Iodide) crystals
  2. PMT
  3. High Voltage Power Source
  4. A Cave of Lead bricks
  5. A MCA (MultiChannel Analyzer) card inside a computer
  6. A Computer
  7. BNC Cables
  8. A "hydra" breakout cable

Some images of the materials used

SJK 12:07, 11 November 2008 (EST)
12:07, 11 November 2008 (EST)
Great pictures!


First we familiarized ourselves with the instruments. We located the PMT and the scintillator which are one single unit.

We then observed the high voltage power source and we set it up to 1000 V as suggested in the manual.

We the proceed to manipulate the MCA to set it up in the MCS(Multichannel Scaling).

We saw that the hydra cable was already ready.

Then we started to manipulate the software and learn how to use. After mastering the use of the software we proceed to take many



All the colected data can be accesed in my notebook notes

Data Analysis

The excel spreadsheet used to analize the data can be found here. File:PoissonCalculations.xlsx

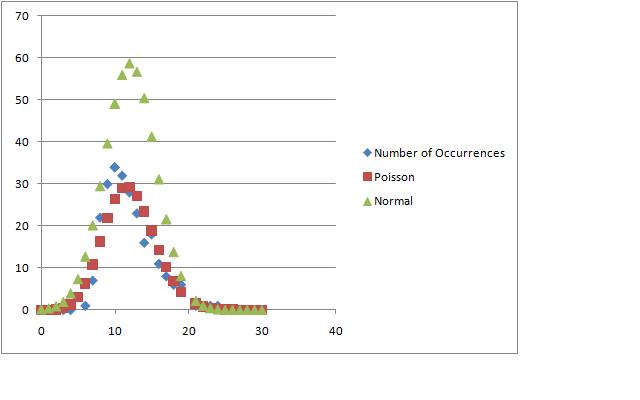

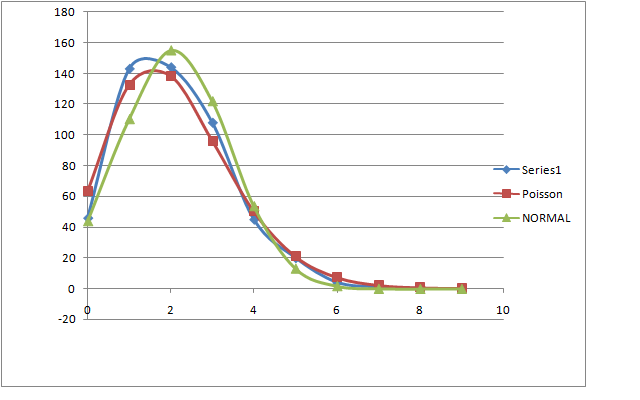

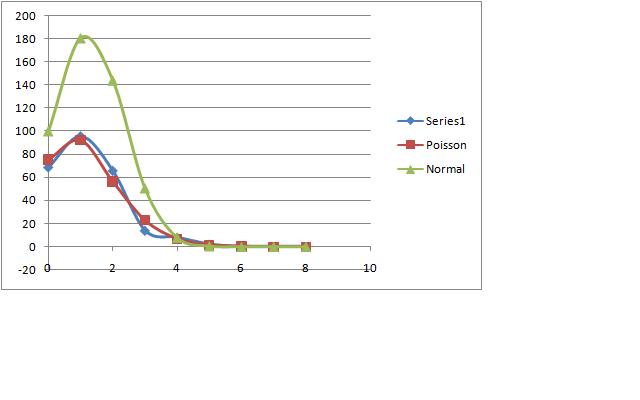

100 ms, 512 bins.


80 ms, 1024 bins.


800 ms, 256 bins.


1ms,256 bins.
SJK 12:48, 11 November 2008 (EST)
12:48, 11 November 2008 (EST)
You used the wrong normalization constant for the normal distribution on at least some of them. You use 512*NORMDIST() when 512 should be the number of channels. E.g., 256 channels in the final graph. When doing this, the fits are much better.



I don't really now if the graphs are correct since our we realized in the lab that the detection of cosmic rays was seriously flawed. However we can observe that some graphs do fit really well. I am not quite sure why this is, maybe just a coincidence. Anyway, even though our measurments were not the best, it does not prevent me for learning something. So here are some of the things I learned:

  • Since in the Poisson distributon has a standard deviation that is equal to the square root of the average, we can determine if our

data fits a poisson distribution if the standard deviation of the data is equal or close to the standard deviation of the average.

SJK 12:25, 11 November 2008 (EST)
12:25, 11 November 2008 (EST)
A lot of this is directly copied from wikipedia, and thus you need to put quotation marks and cite the source! I see that you cite the wikipedia article below, but that is not enough, since this is a direct quotation (copied exactly)...the way you formatted it, and since it was the majority of your conclusions, it looked like it was your own words.
  • The poisson ditribution can be called Poissonian.
  • The Poisson distribution can be derived as a limiting case to the binomial distribution as the number of trials goes to infinity and the expected number of successes remains fixed.
  • For sufficiently large values of λ, (say λ>1000), the normal distribution with mean λ, and variance λ, is an excellent approximation to the Poisson distribution. (


Dr. Gold's manual.

I based my analysis of the Poisson distribution on Annie's(from last year)analysis.
