Microfluidic biosensors

Biosensor is a kind of analytical device which combines biological sensitive recognition element (such as nucleic acids, enzymes, antibodies) with a physicochemical detector for analytes analysis within an experimental sample.^[1] The integration of microfluidic device and biosensor technologies provides new opportunities for biosensing applications such as; portability, real-time detection, increased sensitivity, and selectivity.^[2] A lot of microfluidic devices have been developed for biosensor applications. The three major groups of microfluidic biosensors include DNA-based microfluidic biosensors, enzymes-based microfluidic biosensors, and microfluidic immunosensors.

Video: Microfluidic Biosensors, New Frontier of Diagnosis

DNA-based microfluidic biosensors

DNA-based microfluidic biosensors often immobilize complementary sequences of target nucleic acid within the microfluidic device. Next, samples containing targeted nucleic acids are introduced into the microfluidic channels and the detection processes are achieved in the microfluidic device. The recognition process relies on the base pair of hybridization probes and target nucleic acid in the sample. Base pairing processes usually generate physicochemical signals which can be used to analyze the target DNA in the sample.

Generally, detection of DNA involves the amplification of the sample DNA via polymerase chain reaction (PCR) and the subsequent detection of DNA fragments based on their electrophoretic mobility on a gel substrate.^[3] By developing microfluidic device, polymerase chain reaction (PCR) and the subsequent detection steps can be integrated into certain microfluidic platforms, reducing risks of sample loss and contamination in general processes.

Error creating thumbnail: Unable to save thumbnail to destination

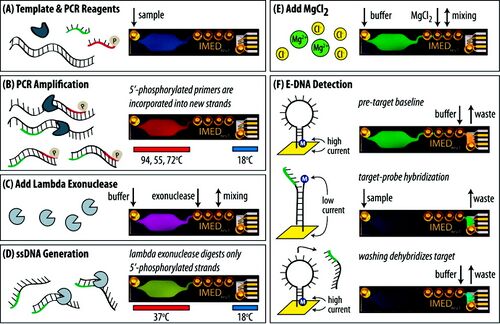

Figure 1: An overview of an integrated microfluidic electrochemical DNA (IMED) sensor. Integrated Microfluidic Electrochemical DNA assay overview. (A) Template DNA is added to a PCR reagent mixture containing phosphorylated reverse primers. (B) The template is PCR amplified. (C and D) Lambda exonuclease is mixed with the product and digests the phosphorylated strands. (E) Prior to electrochemical analysis in the detection chamber, MgCl₂ is added to the IMED chip to adjust the salt concentration from 1.5 mM to 50 mM to optimize the hybridization conditions. (F) Before introducing sample to the sensor, a baseline redox current is measured via alternating current voltammetry (ACV). Next, the ssDNA product hybridizes with the sequence-specific electrochemical DNA sensor (E-DNA) probe modulating the redox current signal. E-DNA probe is then regenerated to verify the hybridization event. Reprinted with permission from Ferguson, B. S.; Buchsbaum, S. F.; Swensen, J. S.; Hsieh, K.; Lou, X.; Soh, H. T. Integrated Microfluidic Electrochemical DNA Sensor. Analytical Chemistry 2009, 81 (15), 6503–6508. https://doi.org/10.1021/ac900923e. Copyright 2009 American Chemical Society. [4 ]

Figure 1 shows an overview of the Integrated Microfluidic Electrochemical DNA (IMED) sensor, which integrates three biochemical functionalities for DNA sensing: symmetric PCR amplification, enzymatic single-stranded DNA generation, and sequence-specific electrochemical detection. The microfluidic device is fabricated using a layer of PDMS and two glass wafers (as shown on the right side in Figure. 1A). In the sensing process, DNA and PCR reagents are introduced into the PCR chamber to rapidly amplify DNA. During PCR, the reverse primers generate phosphorylated strands, which are subsequently and selectively digested by lambda exonuclease to efficiently produce ssDNA targets for detection. MgCl₂ is then added for optimal hybridization. Sequence-specific electrochemical detection is performed with electrochemical DNA (E-DNA) probes where target hybridization causes a change in the redox current of the prob. This could be detected via alternating current voltammetry (ACV). The detection limit of this microfluidic device is less than 10 aM when measuring genomic DNA from Salmonella enterica serovar Typhimurium LT2.^[4]

Enzyme-based microfluidic biosensors

Enzyme, which is natural occurring proteins that catalyze biologically chemical reactions, are a popular type of bioreceptor used in microfluidic biosensors. Their selection is due to their specific binding capabilities and catalytic activity. In an enzyme-based microfluidic biosensor, enzymes are typically immobilized onto a suitable transducer within the microfluidic device. This setup produces a specific signal such as optical, electrochemical, or colorimetric upon reacting with a target analyte within the microfluidic channels.^[5] These signals can be used to measure important health parameters, like cholesterol and blood sugar levels. Monitoring these levels is crucial because they are linked to various diseases.

Error creating thumbnail: Unable to save thumbnail to destination

Figure 2: Schematic illustration of the principle of concentration gradient generation. (A) shows the electrochemical sensor based on microfluidic droplets, and (B) shows electrochemical detection of glucose in a droplet. Copyright 2024 Khiem Le [6 ]

An example of an enzyme-based microfluidic biosensor is shown in Figure 2. A droplet-based microfluidic biosensor is fabricated based on poly (dimethylsiloxane) (PDMS) using soft lithograph. Glucose oxidase (GOx) is the analyte, which catalyzes the oxidation of β-D-glucose to the product H₂O₂. In the testing process, the sample stream contains a combination of enzyme GOx and substrate glucose and is subsequently segmented into serial of droplets through intersecting streams of mineral oil. The enzyme activity of GOx can then be evaluated by measuring the concentration of reaction product hydrogen peroxide. Since hydrogen peroxide is electroactive, the enzyme activity of GOx is electrochemically detected based on measuring the electrochemical current on a Pt-black microelectrode responding to various glucose concentrations. This device provides a highly sensitive yet low-cost glucose sensor with linear response up to 43.5 mM.^[6]

Microfluidic immunosensors

Microfluidic immunosensors are based on the immunochemical reactions of antigen and antibody. Usually, antibody is spatially in contact with a transducer surface as recognition element to identify the antigen in the sample. Enzyme linked immunosorbent assay (ELISA) is the most widely used method for detection. Additionally, some microfluidic immunosensors can detect immunocomplex formation by changes in current, resistance, refractive index, etc.

Figure. 3 shows a microfluidic immunosensor using microfluidic enzyme linked immunosorbent assay (ELISA) platform for detection of antigen. The device is fabricated by three-layer PDMS/glass and contains four parallel assay units. In the sensing process, the capture antibody (Ab1) was first flowed through the assay chamber where the surface was silanized with APTES to enhance the immobilization of Ab1 through electrostatic interaction between the negatively charged antibodies and the positively charged amine group of 3-aminopropyl triethoxysilane (APTES). The antigen can be captured, recognized by the biotinylated detection antibody (BAb2), and quantified using b-galactosidase (b-gal) as the reporter enzyme for chemi-fluorescence detection.^[7]

Error creating thumbnail: Unable to save thumbnail to destination

Figure 3: Integrated microfluidic ELISA. (A) Schematic of the design of a three-layer PDMS/glass chip that integrates a three-valve pump and an assay chamber containing an array of femtoliter microwells (inset). The chip has four parallel units controlled by a single pneumatic control circuit for simultaneous protein assays. (B) Pneumatic actuation of the assay chamber for solid-phase immunoassay (upper) and chemi-fluorescence detection (bottom). Under the low pressure (30–70 kPa) applied to the pneumatic chamber, the microwell array membrane can be quickly deformed to create an array of femtoliter detection volumes interconnected by a thin layer of liquid. (C) Schematic of the procedure of the sandwich immunoassay on the APTES coated substrate surface inside the microfluidic chamber. b-gal was used as the reporter enzyme to convert non-fluorescent fluorescein di-b-D-galactopyranoside (FDG) to fluorescein products for fluorescence detection. Copyright 2024 Khiem Le [7 ]

Figure.4 illustrates another example of immunosensors using antibodies as the biological recognition element for the detection of antigen. The microfluidic chip was fabricated by using three layers of PDMS and a glass substrate. In the testing process, the microfluidic chip is coupled with the SPR phase imaging system. Anti-rabbit IgG solution is constantly pumped through the microfluidic channel for immobilization. Then the rabbit IgG sample was injected into the microchannels. Interaction between rabbit IgG with immobilized anti-rabbit IgG have been successfully measured by using employing SPR phase imaging. The relation between phase difference and the concentrations of rabbit IgG can be obtained. The detection limit could be 1×10^-4 mg/ml (0.67 nM).^[8]

Error creating thumbnail: Unable to save thumbnail to destination

Figure 4: (a) Schematic illustration of a microfluidic system integrated with a 2D SPR phase imaging system for the detection of a microarray immunoassay. (b) Schematic illustration of a microfluidic chip comprising of a 3-to-1 converging microchannels, microvalves, micropumps, flow sensors, heaters and temperature sensors. Copyright 2024 Khiem Le [8 ]
