Schistosomiasis

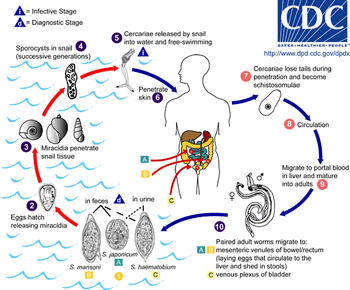

Life cycle of the schistosome parasite CDC (2010)

Schistosoma, from the class of trematodes constitute a genus commonly known as blood-flukes, are the parasites causing a disease called bilharzias or schistosomiasis which, according to the WHO (2010) is amongst the most devastating parasitic disease, second only to malaria, with 207 million infected and around 700 million at risk.

The most significant species of schistosoma are S. haematobium, S. mansoni, and S. japonicum, which combined cause a loss of over 1.5 million life years. Schistosomiasis shows typically a focal epidemiology and uniformly distributed amongst populations, with higher infection rates in children than in adults. Acute schistosomiasis, including symptoms such as fever and malaise, is most commonly found in primary infected individuals whereas chronic schitosomiasis and its accompanying complications such as hepatic or intestinal schistosomiasis, are more predominant in people with long lasting infection mainly in poor rural areas. This is caused by a slow process of immune acquisition as well as the long lasting effect of schistosomal eggs trapped in tissues leading to inflammatory reactions. Diagnosis is usually accomplished by microscopy of stool samples although in many cases, especially in rural settings, treatment with Praziquantel is done without individual diagnosis. Much progress has been made in the control of the disease through community based chemotherapy however these rely on political commitment and strong health systems. To understand the disease itself, as well as the possible approaches to improving its control we have to gain a deeper understanding of the complex life cycle of this parsite. Like many other eukryotic parasites, the schistosoma life cycle involving several stages in and outside two different hosts.

The Life Cycle

Infected people can pass out several thousands of parasite eggs in their stool (most species) or urine (Schistosoma haematobium). These eggs were first discovered in Egypt by Theodor Maximilian Bilharz, a German pathologist. Under the microscope one can see that they are around 110-170 µm long by 40 to 70 µm wide giving them an elongated shape with a distinctive terminal spine that is used for identification.

Egg of S. haematobium. Stanford University (2004)
Schistosomal cercaria. Loker Laboratory (2006)

These characteristically shaped eggs are viable for around week and once in contact with water they quickly hatch and release the first larval form called miracidia. These free-swimming, ciliated larvae cannot feed and will usually die within 24 hours if they fail to detect a suitable intermediary host, using light and chemical clues, and subsequently enter it. Different schistosoma species show preference for different host species but at this stage all rely on fresh water snails. Once inside the host the miracidia reproduce asexually and form multicellular sporocysts which later develop into cercarial larvae with embryonic suckers and a characteristic bifurcated tail.

This process takes between 4 and 6 weeks from which time on thousands of cercaria, a second larval form, can be shed from the snails daily for several month. this shedding is induced by light (Gryseels et al. 2006) and aims to maximise the likelihood of cercaria finding their second host. The larvae can survive in the water for up to 72 hours, although more commonly around 30 hours, during which time they use chemical stimuli as well as light and temperature to detect the skin of a suitable host. By far the most powerful stimulus to triggering invasive behaviour are skin lipids, in particular medium-chain free fatty acids (McKerrow and Salter 2002): Of the C18 fatty acids examined, stearic (18:0) is inactive, oleic (18:1) slightly active, linoleic (18:2) and linolenic (18:3) acids highly active (Austin et al. 1974). Once detected by the parasite these stimuli lead to signal-dependent breakdown of inositol phospholipids which is directly linked to activation of protein kinase C (via elevated diacylglycerol level) and mobilization of calicium (via elevated levels of inositol triphosphate) which in turn evokes subsequent cellular response (Matsumura et al. 1991) such as the release of enzymes from a specialized gland - called acetabular gland complex – at the posterior region of the head of the parasite (Fishelson et al. 1992).

These enzymes include number of proteases that target proteins in the host's skin such as keratin and elastin the latter of which is cleaved by the most essential and abundant protease called schistosomal elastase, which we use in our iGEM project to detect schistosoma. This process allows cercaria to burrow through the skin of their new host, where they leave their tail behind, into blood vessels.

There are six species of schistosoma known to successfully infect humans: Schistosoma mansoni , which uses Biomphalaria snails as intermediate host and can cause intestinal and hepatic schistosomiasis in Africa, the Arabian peninsula as well as South America; S. japonicum, a zoonotic parasite, which uses Oncomelania snails as intermediate host and can cause intestinal and hepatosplenic schistosomiasis, especially in South-East Asia; S. mekongi, S. intercalatum and related S. guineansis ,which are restricted to small areas an only of local importance; as well as S. haematobium, transmitted by Bulinus snails, which can give rise to urinary schistosomiasis in Africa and the Arabian peninsula

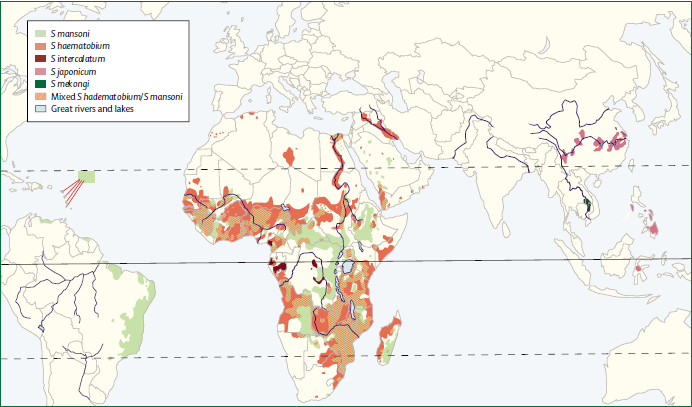

Map of the distribution and spread of schistosoma species. (Gryseels et al. 2006)

Additionally there is number of avian schistosoma species, especially in Northern Europe, the USA and Canada, that cannot infect humans but will still try to enter our skin giving rise to the harmless but unpleasant condition called swimmer's itch. However these conditions, like cercarial dermatitis often go unnoticed in endemic areas.

Once inside the human body, the cercaria travel through the blood via the lungs into the portal vein of the liver where they develop into schistosomulae. After a maturation period one to one and a half month after which they mate. The way schistosoma have evolved to mate is unique amongst the trematodes in that there is a significant sexual dimorphism, which also inspired their name which translates from Greek to 'split body'. This name describes the male anatomy as there is a long groove, called gynecophoral canal, along its body in which the female is held.

Adult males are between 10 to 15 mm long whereas females are longer, between 16 to 22mm, and thinner. Both sexes have two suckers – one on each end – to hold onto the walls of blood vessels where they feed on blood and globulins through anaerobic glycolysis. The debris is regurgitated in the host’s blood. After mating they migrate to their perivesicular (S. haematobium) or mesenteric (other species) destination where the female releases her eggs. With an average life span of 3 to 5 years, although up to 30 years is possible,” the theoretical reproduction potential of one schistosome pair is up to 600 billion schistosomes” (Gryseels et al. 2006).

Pictures of schistosoma. Top: Electron microscopy of schistosoma couple Link. Bottom: Artistic impression of schistosome parasite in blood vessel Link.

The eggs themselves secrete proteolytic enzymes that allow the eggs to reach their destination: the bladder (S. Haematobium) or intestines (other species) from which they are released by the host into the environment, allowing the cycle to continue.

Impact on human health

Acute symptoms

The first signs of infection can often be observed directly after penetration of the skin causing a temporary rash that can even persist for days as paulopruriginous lesions. This occurs in particular after primary infection with the parasite frequently found in migrants into and tourists returning from endemic areas as a study by Bottieau et al. 2006 showed. The more progressive stages of schistosomiasis, often referred to as Katayama fever, are also rarely diagnosed in the endemic population, maybe as a result of underdiagnosis, but more commonly found in migrants and tourists also. The trained immune system of healthy people living in endemic areas will often be able to fight off parasite infections naturally. Furthermore cord blood lymphocytes from newborns of schistosome-infected mothers are significantly more likely to amount a helminth Ag-driven B cell response than others, indicating in utero sensitisation takes place (King et al. 1998). Acute schistosomiasis is a systemic hypersensitivity reaction caused by the migration of schitosomulae within the host body and usually weeks or even months after primary infection. It is characterised by a sudden onset of symptoms ranging from fever, fatigue, and myalgia over malaise, non-productive cough, eosinophilia and patchy infiltrates on chest radiography. These can later also be accompanied by abdominal symptoms caused by movement of mature worms.

Long-term effects

Chronic pathology caused by schistosome infection is rarely evoked by the adult worms, but rather by lesion caused by the eggs that become trapped in the tissue during perivesical or perintestinal migration, or in other cases after embolisation by various organs including the liver, spleen, lung and cerebrospinal system. As a result of protease secretion, an eosinophilic inflammatory response and granulomatous reaction are provoked which are later replaced by fibrous deposits. The granulomatous responses are "strictly mediated by CD4+ T helper (Th) cells specific for egg antigens" Nascimento-Carvalho & Moreno-Carvalho 2005. The extent to which an individual suffers is therefore directly dependent on the disease burden but also the precise immune response mounted by the individual. Depending on the species of schistosome a person is infected with, a number of distinct conditions can be found, if the disease enters the chronic stages and is not treated timely.

In addition to the immunopathology that can be attributed directly to the parasite, it is although thought to be a major factor contributing to morbididy and accompanying problems such as aenemia, nutritional status and cognitive and physiological capacity, as well as fatigue (King et al. 2005). Older studies ailed to demonstrate this effect even in individuals, but more recent studies have shown a small, yet significant, effect of the parasite on human health in general.

Urinary schistosomiasis

This complication caused by schistosoma is most notably found in young children between 5 and 10 and is rare during and after adolescence. The eggs of S. heamatobium, which are excreted via urin as part of the parasite life cycle, can be trapped in the genitourinal system and elicit a granulomatous inflammation, ulceration or pseudopolyposis both in adjacent blood vessels and the ureteral walls. The early symptoms include dysuria, pollakisuria, proteinuria and most importantly haematuria. The later can vary from small amount of blood found in the terminal urine to darker colouration of the whole urine sample in more severe cases and the condition can often be exacerbate by bacterial superinfections or bladder stones. The proportion of untreated infected individuals with bladder complication to those without seems to vary significantly (between 0% and 97%) however after treatment with Praziquantel a full recovery is made in most cases. Notably this suggests that the renal parenchyma is usually compressed but not destroyed although schistosomiasis-induced renal damage can be fatal particularly for older patients (Gryseels et al. 2006).

Furthermore a study by Bedwani et al. 1998 also found urinary schistosomiasis to be a significant contributor to bladder cancer accounting for around 16% of the cases amongst the Egyptian population population and the IARC (1997) found that there is sufficient evidence for the carcinogenicity of infection with S. hematobium.

Intestinal schistosomiasis

Once again the eggs of the parasite induce an immune response in the form of mucosal granulomatous inflammation, pseudopolyposis, microulcerations, and superficial bleeding, with lesions mostly located in the large bowel and rectum. Symptoms include chronic as well as intermittent abdominal pain and discomfort, loss of appetite, diarrhoea, and bloody faeces. This condition manifests itself in chronically infected individuals at a relatively moderate level between 3-55% with 30-60% of diarrhoea cases attributable to schistosoma infection. However the statistical significance of these numbers is debatable as sampling techniques have varied across different studies.

Hepatic schistosomiasis

This is one of the most significant complications schistosoma can cause during chronic infection, which can cause long-lasting, potentially fatal health problems, even after treatment with Praziquantel. It is caused by S. mansoni, S. japonicum and S. mekongi. Technically early inflammatory and late fibriotic hepatic disease, also called Symmers' clay-pipestem fibrosis of the liver, are two distinct conditions, in terms of morbidity, clinical practise and immunological mechanism, although they are combined here as hepatic (and hepatosplenic) schistosomiasis Cheever (1968).

A mild inflammation is most common in young individuals especially during the early stages of infection and can be observed in around 80% of infected children. The main cause of hepatomegaly are ova which got caught in the presinusoidal periportal spaces of the liver, giving rise to sharp-edged enlargements of the left liver lobe as well as nodular splenomegaly reaching from the costal arch to the umbilicus or in extreme cases even to the pelvis. During chronic infection with schistosoma however fibrotic or chronic hepatic schistosomiasis can arise in a small proportion of mostly young to middle aged adults in particular those with a high parasite load, although immunogenetic predispostitions are thought to be the most significant risk factor (Chevillard et al. 2003). The disease is caused by heavy deposition of diffuse collagen in the periportal space leading to a hardening of the liver and obstruction of blood flow through the portal veins, which can result in portal hypertension, splenomegaly, and others including commonly fatal bleedings in that latest stages (Bica et al. 2000).

The liver complications caused by S. japonicum can progress much faster from early mild to chronic stages resulting in sudden onset of bleeding.

Neuroschistosomiasis

This condition is the second most common presentation of infection by S. mansoni also causing granulomatous inflammatory reaction due to schistosome eggs reaching the spinal cord or brain via the vascular system, mainly through "arterial or retrograde venous blood flow via the valveless perivertebral plexus of Batson", or by occasional migration of adult schistosomes. The main clinical syndromes are spinal cord neuroschistosomiasis divided into acute or subacute myelopathy and localized cerebral or cerebellar neuroschistosomiasis. The later gives rise to focal CNS impairment, seizures as well as increased intracranial pressure. Presumptive diagnosis of neuroschistosomiasis relies on confirmation of the presence of S. mansoni infection by stool microscopy for trematode eggs, and also serologic testing of blood and spinal fluid.

Because this condition is relatively rare in Western countries, it is often hard to diagnose. It should be considered if a patient has a history of exposure to schistosome-infected water and shows any of the following symptoms: seizure, ataxia, increased intracranial pressure, hemianopsia, nystagmus and vertigo or paraplegia, sphincter dysfunction, and sensory disturbances from the pelvic girdle down, as these are the neurological effects most commonly brought about neuroschistosomiasis. Other frequent complaints are leg weakness, bladder dysfunction and low back pain Nascimento-Carvalho & Moreno-Carvalho 2005.

Ectopic schistosomiasis

Schistosomiasis can les frequenttly also cause complications in other organs, such as lung or the genitalia. These as well are caused by the parasite eggs and the ensuing inflammatory reaction. Lesions in the genital areas such as vulva and vagina might have implications for sexual transmission, although this is not well documented. Additionally there is the risk of infertility in those cases where lesions and inflammations occur near the testicles or the fallopian tube and ovaries.

Immunology: WILL SEE HOW MUCH I FIND HERE

Diagnosis: PROBABLY SHORT, MIGHT GET LONG

Treatment: IS DONE BUT COULD GET BIGGER

Praziquantel

There are a number of drugs available to cure infection with schistosomes, for example amoscanate, chloroxylenol, meclonazepam and oxamniquine. However the by far most widely used helminticide to combat schistosomiasis is Praziquantel despite not being licensed for medical treatment of humans in the UK. It is effective agains schistosoma in a single treatment, although it should be followed up by a second treatment after 4-6 weeks, and is also used for some other parasitic trematodes such as liver flukes. Although the drug has been in use for over 20 years, the mechanism of its action is still not understood (Aragon et al. 2009). Side effects are usually mild, although in cases with high parasite load they can be more severe as a result of massive release of parasitic antigens from the dead worms.

"Praziquantel is the recommended treatment for schistosomiasis at 40 mg/kg body weight. The cost of a single 600-mg tablets is about US$ 0.08 and an average treatment is estimated to be between US$ 0.20–0.30. Praziquantel is now available free of charge to a few high-disease burden least developed countries (LDC), through a donation from Merck KGaA to the World Health Organization. The donation of praziquantel is based on a successful review of the national plan for schistosomiasis control and a commitment of resources for implementation." (WHO, 2010)

Communal approach to treatment

Because of the difficult nature of schistosomiasis diagnosis, treatment is often not provided after individual diagnosis, but instead it is very common to test only a sample of individuals in a community, especially school children, and if a certain proportion of the sampled people is infected, the whole community is treated with praziquantel. This measure allows control of the disease to some extend if done in a coordinated approach with treatment on a large scale with safe and effective drug, and at regular intervals (WHO, 2010). The communal approach aims at reducing the late stages of schistosomiasis that go along with malnutrition and often cause developmental problem in children. Based on the sampled disease burden is also the length of the period after which treatment is repeated. This method will not eradicate the disease but rather to lower the total number of infected people and prevent severe infection in order to reduce morbidity as well as socio-economic impact. In theory it is also possible to break the parasitic life cycle with this method and permanently prevent reinfection, however in practise it is well known that eradication does not take place for a number of different reasons, which is why treatment is repeated regularly. Even if schistosoma were completely eradicated from one area, due to the continuing presence of the water snail vector, recolonialisation by schistosoma would take place rapidly.

The Schistosomiasis Control Initiative based at Imperial College is involved in treatment of this and six other NTD in sub-Saharan Africa. Professor Alan Fenwick and Dr Wendy Harrison have also been a great help in the development of our project (make sure to read up on this on our human practices page) so if you are interested in their work, please follow the following link: Schistosomiasis Control Initiative - Homepage

Prevention and Control: DON'T KNOW IF I HAVE ENOUGH TIME FOR THAT

Epidemiology

Physical control methods

Chemical control methods

Biological control methods
