Testing DNA concentration of pTet-GFPmut3b In vitro


To determine if the optimum concentration of pTet-GFPmut3b in vitro.

Materials and Methods

Link to Protocols page

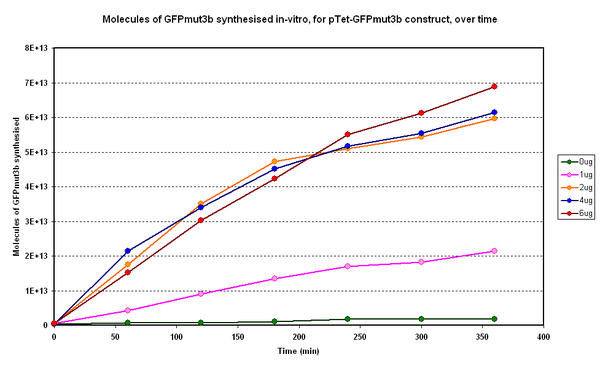

Fig.1.1:Molecules of GFPmut3b synthesised over time, for each DNA Concentration in vitro - The fluorescence was measured over time for each experiment and converted into molecules of GFPmut3b in vitro using our calibration curve.

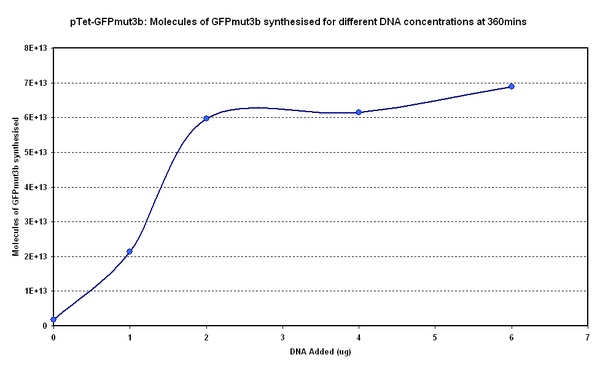

Fig.1.2:Molecules of GFPmut3b synthesised for each DNA Concentration in vitro, after 360 minutes


  • Negative Control- Nuclease Free Water was added instead of DNA


  • Temperature - 37°C
  • Total Volume - 60µl

Raw Data


Figure 1.1 and Figure 1.2. show us that the synthesis of GFPmut3b increases with DNA added. Though the molecules of GFPmut3b synthesised increases with increasing DNA concentration, even after a concentration of 4µg. This is not what was expected because of the nature of the cell free chassis which is optimum DNA concentration = 4µg. But the increase in fluorescent moecules synthesised by increasing DNA concentration is not very big. If DNA concentration is increased from 2µg to 6µg (a percentage increase of 200%), it reuslts in only about 15% increase (at 360min) in GFPmut3b molecules synthesised. Thus it was decided that a DNA concentration of 2 or 4&micor;g will be used for testing pTet-GFPmut3b construct.


To conclude the following approximations can be made:

Optimum DNA concentrations - 2 or 4µg of DNA
