Genetic Components of YtvA signaling

Promoter

pctc promoter


The promoter pctc from is a σB regulated promoter that has been extensively studied. In fact it has been used to design reporting vectors for measuring σB activity, this is achieved by a pctc-lacZ construct. Studies have shown that we require ~50bp upstream of the start site to allow functional transcription by σB[1]. The sequence of this stretch is shown below, along with the contact sites of σB and the start site.

YtvA Protein

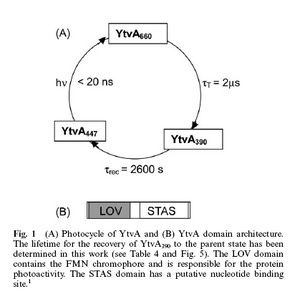

The recovery time of the YtzA protein

Previous studies have shown that if the YtvA protein is not overexpressed within B.subtilis then the response from a pctc reporter construct is low. Only when overexpression is high is there a significant increase in pctc expression in the prescence of blue light. The levels of light that the B.subtilis was exposed to was 30 microeinsteins m-2s-1. The relative response time of the pctc promoter has not been tested, a previous paper has shown that the expression of the YtvA protein and induction of the pctc promoter takes ~60 minutes.
A study of the recovery time of YtzA has shown that the initial sensing of blue light very quick, but the recovery of the chromophore takes around 45 minutes[2]. Here is a link to the sequence of the YtvA protein: Sequence

Chemical Kinetics of Blue-Light Receptor YtvA

Pathways

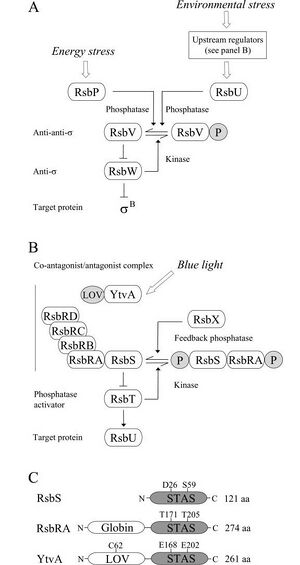

σB Transduction Network (Adapted from Price et al)

The model of the σB signal transduction network is shown on the right. Stress signals are conveyed to σB via a network that functions by a partner-switching mechanism. When B.Subtilis is not under stress, RsbV is phosphorylated and cannot interact with RsbW anti-σ which binds σB in an inactive complex. Under stress, RsbV-P is dephosphorylated, allowing it to bind to RsbW, stimulating the release of σB. Under environmental stress, RsbT phosphorylates RsbRA and RsbS, releasing RsbT to activate the RsbU phosphatase. The RsbX feedback phosphatase returns the system to its original unstressed state. [3]

Reactions Constants

  • The kinetics of the dark recovery reaction for YtvA-LOV is slower than for full-length YtvA, with τrec = 3900 and 2600 s at 25°C. [4]
  • YtvA and YtvA-LOV exhibited the same rate constant of the photoadduct formation, 4.0×10^2 s^-1, whereas the rate constant of dark reversion for YtvA-LOV was 2.7×fold faster than that for YtvA; 4.8×10^4 s^-1 and 13.0×10^4 s^-1 for YtvA and YtvA-LOV, respectively. [5]


References

  1. Igo MM and Losick R. Regulation of a promoter that is utilized by minor forms of RNA polymerase holoenzyme in Bacillus subtilis. J Mol Biol. 1986 Oct 20;191(4):615-24. PubMed ID:3100810 | HubMed [pr1]
  2. Losi A, Quest B, and Gärtner W. Listening to the blue: the time-resolved thermodynamics of the bacterial blue-light receptor YtvA and its isolated LOV domain. Photochem Photobiol Sci. 2003 Jul;2(7):759-66. PubMed ID:12911224 | HubMed [Recovery]
  3. Gaidenko TA, Kim TJ, Weigel AL, Brody MS, and Price CW. The blue-light receptor YtvA acts in the environmental stress signaling pathway of Bacillus subtilis. J Bacteriol. 2006 Sep;188(17):6387-95. DOI:10.1128/JB.00691-06 | PubMed ID:16923906 | HubMed [SigB]
  4. Losi A, Quest B, and Gärtner W. Listening to the blue: the time-resolved thermodynamics of the bacterial blue-light receptor YtvA and its isolated LOV domain. Photochem Photobiol Sci. 2003 Jul;2(7):759-66. PubMed ID:12911224 | HubMed [YtvA]
  5. Suzuki N, Takaya N, Hoshino T, and Nakamura A. Enhancement of a sigma(B)-dependent stress response in Bacillus subtilis by light via YtvA photoreceptor. J Gen Appl Microbiol. 2007 Apr;53(2):81-8. PubMed ID:17575448 | HubMed [YtvA2]
