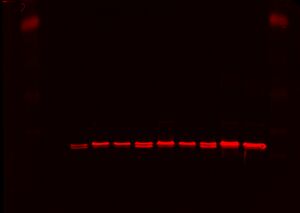

Western blot images
Western blot images without the annoying rectangle:
Miniprep of J36335 (KaiA + KaiC), J36832 (KaiB)
We performed 8 minipreps each of J36335 and J36832, eluted in 30 µL EB.
Digest of J36335\S-P (KaiA + KaiC), J36832\X-P (KaiB)
We did 8 digests each of J36335\S-P and J36832\X-P.
Reaction
J36335\S-P
- 7.6 µL DNA
- 1 µL 10x BSA
- 1 µL NEBuffer 2
- 0.2 µL SpeI
- 0.2 µL PstI
J36832\X-P
- 7.6 µL DNA
- 1 µL 10x BSA
- 1 µL NEBuffer 3
- 0.2 µL XbaI
- 0.2 µL PstI
Master mixes
J36335\S-P
- 76 µL DNA
- 10 µL 10x BSA
- 10 µL NEBuffer 2
- 2 µL SpeI
- 2 µL PstI
Aliquot 10µL into each tube.
J36832\X-P
- 76 µL DNA
- 10 µL 10x BSA
- 10 µL NEBuffer 3
- 2 µL XbaI
- 2 µL PstI
Aliquot 10µL into each tube.
Presentation notes
- More pictures in general-- picture of cyanobacteria
- Slide with Western blot: label it with conclusion of experiment
- Cut "Interaction experiments" slide; copy Kai model to results page, delete arrows to show predicted effect
- Conclusion slide, or at least say some closing words before going on to acknowledgements
