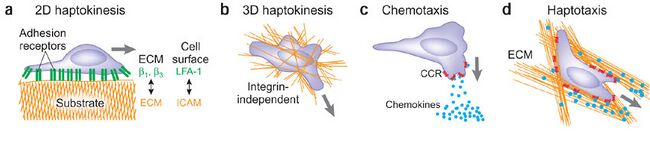

"Figure 1:""A comparison between Haptotaxis and Chemotaxis [2]

Haptotaxis is directed cell motion based on a cellular gradient [1] (Figure 1). Gradients can include a movement from a soft microenvironment to a stiffer microenvironment (durotaxis); movement from an environment with a low concentration of nutrients and/or growth factors to one of high concentrations (chemotaxis); movement from one a single cell environment to along cell tracks (Plithotaxis); and finally, movement from downstream in shear flow to upstream in shear flow (Rheotaxis).

The process of cellular migration is mediated by adhesion of molecules and cellular locomotion. Figure 2 displays the process of cell-ECM adhesion via integrin proteins. It should be noted that cell-cell adhesion is similar; however, cadherin proteins are the driving adhesive substrate.

Figure 2.Cellular Adhesion [12]

For further details of cellular adhesion, see Chapter 4 of the Wiki Pages. Cellular locomotion is mediated by several different forces. Figure 3 displays the process. For further information, see Chapter 8 in the Wiki Pages.

Figure 3.Cellular Locomotion [14]



▪1880s: First studies of chemotaxis (Engleman)

▪1892: Ramón y Cajal predicted axons navigate in response to gradients of cues

▪1914: Substrate is important to migration (Harrison)

▪1934: Contact guidance – migration directed by substrate topology during embryonic development (Weiss)

▪1965: Haptotaxis via Pd adhesion assay (Carter)

▪Late 20th century: ECM cues underlying Haptotaxis discovered

Today: Debate among scientists about the differences between Haptotaxis and Chemotaxis; applications of cellular process


Because this cellular process is important in the immune response, development and wound healing, it is an attractive candidate for exploitation in regenerative medicine. [3] For these reasons, there have been a surge of research in the attempt at creating cellular gradients to direct the process of tissue development [3, 4, 5, 6, 7, 8, 9] .

Stem Cell Differentiation

There have been several different developments among researchers in the use of Haptotaxis and its properties in tissue engineering and regenerative medicine efforts. Notably, the use of stem cells seeded certain grafts to induce tissue and differentiation proliferation [5] In these studies, there is an overarching goal to create tissue derived from human cells to be incorporated in vivo. These studies can affect a vast range of people, including those who with bone deficiencies and tissue deformations and/or deficiencies. [5].

As an example, there has been development in the creation of a human mesenchymal stem cell (hMSC) seeded polymer bone grafts. The grafts are designed to be porous to allow access to certain growth factors. In doing so, a chemical gradient is created, in which draws certain cells to certain areas to proliferate and differentiate. Further, stiff, rod-like fibers are incorporated into the graft to act as guides for the cell. By doing so, the hMSCs can differentiate into osteoblasts, allowing for incorporation in vivo [7].

Microfluids to create chemical gradients

There has also been work in using microfluids in the creation of a chemical gradient to exploit Haptotaxic properties [10]. By the creation of a gradient, cellular migration - along with differentiation and proliferation - can be studied and exploited in the use of regenerative medicine and tissue engineering.

As an example, one group varied adhesive ligands through a 3D collagen gel to create a Haptotaxis gradient. By planting a chick embryo dorsal root ganglion into the scaffold, the growth of neural cells was measured. The results suggested that the incorporation of gradients improved regeneration of axons -- suggesting the growth of neural tissue.

Haptotaxis in Cancer

Interestingly, tumor cells possess strong Haptotaxis properties. Tumor cells use the properties of Haptotaxis to metastasize and spread, furthering their effects on the body. Though not much is known about the process, it has been hypothesized that vibronectin, a glycoprotein of which promotes cellular spreading, helps create a gradient of which assists tumor cells mestastize. [4] However, work in understanding the process of cellular migration through Haptotaxis could lead to a greater understanding of cancer metastasis.


Work in tissue engineering and regenerative medicine by using Haptotaxis as a vehicle to create specific tissue regeneration is promising. With many different types of biocompatible grafts and the use of stem cell differentiation, and with promising results, it would seem in vivo generation of tissue might happen. However, there are pitfalls to this approach - first of which, specific stem cell differentiation is difficult and can often lead to different desired products. Further, the creation and maintenance of a chemical gradient is difficult in vivo. Additionally, the 3D microenvironment is incredibly influential to the properties of Haptotaxis and can be difficult to replicate [6]. However, technology is advancing in the creation of 3D hydrogels. Lastly, the use of people’s cells is expensive and difficult to procure.


[1] Lo, Chun-Min, et al. "Cell movement is guided by the rigidity of the substrate." Biophysical journal 79.1 (2000): 144-152.

[2]Friedl, Peter, and Bettina Weigelin. "Interstitial leukocyte migration and immune function." Nature immunology 9.9 (2008): 960-969.

[3]Basan, Markus, et al. "Alignment of cellular motility forces with tissue flow as a mechanism for efficient wound healing." Proceedings of the National Academy of Sciences 110.7 (2013): 2452-2459.

[4]Basara, Michael L., et al. "Stimulation of haptotaxis and migration of tumor cells by serum spreading factor." Cancer research 45.6 (1985): 2487-2494.

[5]Ricoult, Sébastien G., Timothy E. Kennedy, and David Juncker. "Substrate-bound protein gradients to study haptotaxis." Frontiers in bioengineering and biotechnology 3 (2014): 40-40.

[6]Subramony, Siddarth D., et al. "The guidance of stem cell differentiation by substrate alignment and mechanical stimulation." Biomaterials 34.8 (2013): 1942-1953.

[7]Chen Jianbo, Paetzell, Emily, Zhou, Jikou, Lyons, Lauren, & Soboyejo, Wole (Jun 2010). Osteoblast-like cell ingrowth, adhesion and proliferation on porous Ti-6Al-4V with particulate and fiber scaffolds. Materials Science and Engineering C, Biomimetic Materials, Sensors and Systems, 30(5), 647-656. doi:101016/jmsec201001005

[8] Holtorf, Heidi L., et al. "Flow perfusion culture of marrow stromal cells seeded on porous biphasic calcium phosphate ceramics." Annals of biomedical engineering 33.9 (2005): 1238-1248.

[9]DiMilla, Paul A., et al. "Maximal migration of human smooth muscle cells on fibronectin and type IV collagen occurs at an intermediate attachment strength." The Journal of cell biology 122.3 (1993): 729-737.

[10] Sundararaghavan, Harini G., Shirley N. Masand, and David I. Shreiber. "Microfluidic generation of haptotactic gradients through 3D collagen gels for enhanced neurite growth." Journal of neurotrauma 28.11 (2011): 2377-2387.

[11] Carter, Stephen B. "Haptotaxis and the mechanism of cell motility." Nature 213 (1967): 256-260.

[12] Murphy-Ullrich, Joanne E. "The de-adhesive activity of matricellular proteins: is intermediate cell adhesion an adaptive state?." The Journal of clinical investigation 107.7 (2001): 785-790.

[13]Baum, Jake, et al. "A conserved molecular motor drives cell invasion and gliding motility across malaria life cycle stages and other apicomplexan parasites." Journal of Biological Chemistry 281.8 (2006): 5197-5208.

[14]Grayson, Warren L., et al. "Engineering custom-designed osteochondral tissue grafts." Trends in biotechnology 26.4 (2008): 181-189.
