Endy:Victor3 plate reader/Plates
From OpenWetWare
Jump to navigationJump to search
The Endy Lab uses plates made by Greiner Bio One.
- Ordering page from ISC BioExpress. We get catalog no. T-3026-16
- Manufacturers product page.
- Plate and well dimensions (.pdf).

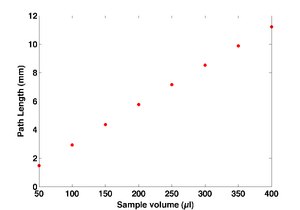

Path length as a function of volume added to a well
Calculated from the volume of a frustrum using the plate dimensions given in the link above.
| Volume (µl) | Path Length (cm) |
|---|---|
| 50 | 0.15 |
| 100 | 0.29 |
| 150 | 0.44 |
| 200 | 0.58 |
| 250 | 7.2 |
| 300 | 0.85 |
| 350 | 0.99 |
| 400 | 1.12 |
Converting absorbance of a 200μl sample to OD600 using the path length calculated above yields very different numbers than when using a calibration produced from samples measured in both the Endy Lab portable spec and the plate reader.
