CH391L/S2013 Tanya Raymond Jan 30 2013
Activation of DSB processing requires phosphorylation of CtIP by ATR
DNA Damage Response
DNA double strand breaks can arise from a variety of exogenous sources such as ionizing radiation (IR), chemical agents, ultra-violet (UV) exposure or from endogenous sources such as reactive oxygen species formed during normal metabolism as well as collapsed replication forks. It is essential for cells to repair this damage as it is highly cytotoxic, and inefficient repair can cause the accumulation of mutation, chromosomal instability and cell death [2,3]. One of the major pathways to deal with DSBs is homologous recombination (HR) in which the MRN complex acts as a sensor to recognize DNA lesions and initiates a signaling cascade through activation of ATM kinase that leads to DNA repair factor recruitment, cell cycle checkpoint initiation, or apoptosis. [4-7] ATM kinase is closely related to ATR, another signaling kinase responsible for coordination of the DNA damage response (DDR).

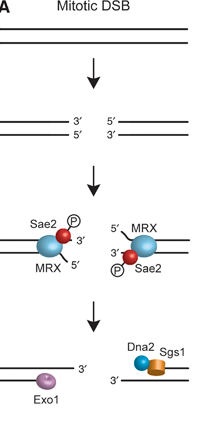

An important step in the initiation of HR is resection of the 5’ end to create long 3’ ssDNA overhangs that become coated in RPA ssDNA binding protein. There are three pathways responsible for DNA resection in HR. Exo1 is an exonuclease that has the ability to initiate resection and elongate resection for long stretches.  Mre11 of the MRN complex has endonucleolytic properties that in complex with CtIP can also initiate resection.  CtIP and MRN are particularly important in dealing with DNA ends that have blockages such as protein adducts like Spo11 capped meiotic DSBs. In fact, without CtIP or Mre11 cells are sensitive to topoisomerase poisons such as camptothecin (CPT) since they are unable to deal with the topoisomerase covalently attached to DNA.  DNA2 is an exonuclease that is incapable of initiating resection, but is responsible for long range resection in conjugation with BLM helicase activity.
In this study, cell free extracts from Xenopus laevis eggs were used to study the DNA resection pathways. Low-speed supernatant (LSS) from these cell extracts contained soluble proteins and lipids and undergoes DNA replication. High-speed supernatant (HSS) is membrane free extract, does not allow DNA replication, and was found to be absent or had inactive Exo1. Both of these extracts still contained active protein that was able to perform DNA resection and repair of DSBs. In their initial studies of DNA resection in these extracts, the authors immunodepleted CtIP from LSS and found an inhibition of resection. Upon immunodepletion of Exo1, a similar effect was observed, but upon depletion of both CtIP and Exo1 resection was abrogated, indicating parallel pathways. DNA2 depletion abrogated resection as well. In HSS, however, CtIP depletion abrogated resection suggesting that the Exo1 pathway in this extract was inhibited or absent.
The authors found that upon addition of a phosphatase inhibitor, okadaic acid (OA) a species of CtIP was visible with slower mobility in an SDS-PAGE gel upon DNA damage than CtIP from damage-free extract. Upon addition of lambda phosphatase, the bands of CtIP collapsed to a single high mobility band indicating the mobility shift was due to phosphorylation. Upon addition of PIKK inhibitor, caffeine, the mobility retardation lessened, indicating that a member of PIKK was responsible for phosphorylation of CtIP. Knowing this, the authors decided to affinity purify Flag-CtIP from extract containing OA with and without DNA damage and analyzed these with tandem mass spectrometry to identify the residues that were phosphorylated. Two DSB induced sites of phosphorylation were of particular interest T200 and T818 since they were at TQ sites which is the target for the PIKK family of kinases. Of these T818 was evolutionarily conserved in yeast and humans, and was chosen for further study. An antibody was created specific to pT818. Small molecule inhibitors for ATM, ATR, and DNA-PK were used to probe lysates after DNA damage in the presence of OA. ATR inhibitor caused a dramatic increase in the mobility of CtIP where the other inhibitors caused only slight increases in mobility, suggesting that ATR was responsible for CtIP phosphorylation. A loss of pT818 signal was also observed with ATR inhibition. These observations were also confirmed with immunodepletion of ATR, indicating that ATR was responsible for phosphorylation of T818 of CtIP. Also immunofluorescent antibodies were used to determine that pT818 CtIP co-localizes at the site of DNA damage, and that this co-localization is diminished upon ATR inhibition.
In order to determine the effect of CtIP phosphorylation on resection, chromatin was isolated from extracts that had been damaged and the levels of RPA accumulation (indicating lengths of ssDNA) were probed with antibodies as a measure of resection. In the presence of caffeine in LSS, CtIP did not associate with chromatin compared to untreated, and resection was inhibited greatly. Upon CtIP deletion, there was no difference in resection upon treatment with caffeine, indicating that this effect was specific to CtIP. In HSS, DNA was damaged and ATR inhibitor was added which abrogated CtIP binding to chromatin and nearly abolished resection. This experiment was confirmed with immunodepletion of ATR as well. T818E phosphomimic and T818A non phosphorylated mutant were also tested in HSS. T818E showed moderate recruitment to chromatin and resection, but T818A had abrogated recruitment to chromatin as well as resection. A known CDK phosphorylation site T806 was mutated in order to determine if CDK phosphorylation is a prerequisite for T818 phosphorylation. T806A had no phosphorylation at T818, but T806 and T806E had detectable T818 phosphorylation indicating that T806 phosphorylation was necessary for T818 phosphorylation.
The role of ATM in CtIP phosphorylation was also probed with ATM inhibitor on extract treated with DNA damage. ATM inhibition decreased CtIP recruitment to chromatin in LSS slightly but in HSS abolished CtIP recruitment to chromatin, and decreased resection significantly. Phosphorylation at T818 was undisturbed upon ATM inhibition, however. The authors hypothesized that ATM was required for initial DSB processing in the absence of Exo1.

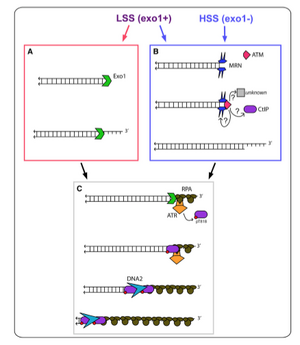

This paper showed compelling evidence of the importance of CtIP phosphorylation by ATR in Xenopus extracts. They were able to show that hyperphosphorylation of CtIP occurs after DSBs, and that ATR phosphorylation at T818 is critical for CtIP mediated resection. This finding is significant since it shows the importance of a signaling kinase on the processing of DNA ends and efficient repair by HR. The following figure shows the final model proposed by the authors showing that resection can be initiated by Exo1 or by CtIP and MRN in an ATM dependent manner. The authors found that DNA2 was critical for long range resection of DNA. The long 3' tails of DNA that are the result of 5' resection are coated in RPA whichs activate ATR which is then able to phosphorylate CtIP at T818. This is a circular model in which ATR activates its own recruitment to resection. It is also a novel observation that phosphorylation of CtIP is essential for stable binding of CtIP to chromatin and extension of resection in a DNA2 dependent manner.
It will be intriguing to untangle the exact mechanism of CtIP's involvement in resection through in vitro study using purified recombinant proteins as well as in these cellular extracts to determine if the same phenomena are observed.
1. Peterson, Shaun E. et al. Activation of DSB processing Requires Phosphorylation of CtIP by ATR. Molecular Cell In Press, Corrected Proof, Available online 27 December 2012.
2. Bartkova, J., et al., DNA damage response as a candidate anti-cancer barrier in early human tumorigenesis. Nature, 2005. 434: p. 864-870.
3. Friedberg, E.C., DNA damage and repair. Nature, 2003. 421: p. 436-440.
4. Banin, S., et al., Enhanced phosphorylation of p53 by ATM in response to DNA damage. Science, 1998. 281(5383): p. 1674-7.
5. Matsuoka, S., et al., Ataxia telangiectasia-mutated phosphorylates Chk2 in vivo and in vitro. Proc Natl Acad Sci U S A, 2000. 97(19): p. 10389-94.
6. Lim, D.S., et al., ATM phosphorylates p95/nbs1 in an S-phase checkpoint pathway. Nature, 2000. 404(6778): p. 613-7.
7. Lee, J.H. and T.T. Paull, Direct activation of the ATM protein kinase by the Mre11/Rad50/Nbs1 complex. Science, 2004. 304(5667): p. 93-6.
8. Hiom, K., DNA Repair: How to PIKK a Partner. Current Biology, 2005. 15(12): p. R473-R475.
9. Tsubouchi, H. and H. Ogawa, Exo1 roles for repair of DNA double-strand breaks and meiotic crossing over in Saccharomyces cerevisiae. Mol.Biol.Cell, 2000. 11: p. 2221-2233.
10. Paull, T.T. Making the best of the loose ends: Mre11/Rad50 complexes and Sae2 promote DNA double-strand break resection. DNA Repair, 2010 9: 1283-1291.
11. Akamatsu Y. et al. Molecular characterization of the role of the Schizosaccaromyces pombe nip1+/ctp1+ gene in DNA double-strand break repair in association with the Mre11/Rad50/Nbs1 complex. Mol. Cell. Biol., 2008. 28: p. 3639-3651.
12. Shim E. Y. et al. Saccharomyces cerevisiae Mre11/Rad50/Xrs2 and Ku proteins regulate association of Exo1 and Dna2 with DNA breaks. Nature, 2007. 450: p. 509-514.
