Aim of Simulation

Molecular robots works in meso-scale (from nm to sub-micro meter). In the meso-scale, characters of each molecule and cooperative movement of molecules could not be ignored. Without calculation of potentials or molecular dynamics simulations, it is difficult to predict the behaviors of the molecules in this scale. Thus, we calculated potentials to confirm the GATE effect, and simulated molecular dynamics of DNAs to strength reliability of our design.

Numerical Analysis of Electrostatic Potential

Electric potential of the GATE was calculated inside and outside the GATE.
The phosphate groups in the backbone of DNA are negatively-charged. Because the GATE is made by DNA origami, the GATE has the Coulomb force.

Model of DNA

A point-charge model is applied to DNA model. Each phosphate of a nucleotide was converted into one electric beads, which has elementary electoric charge (1.602176565 x 10^−19 [C]). In DNA helix, negative charges appear along the axis of the double helix every 10.4 base pairs.
Debye–Hückel equation was used to calculate electric potential. Electric potential of each point around the GATE was deduced from summation of all the Electric Potential for every phosphate presented on DNA.

Debye–Hückel equation:

Potential fomula.png

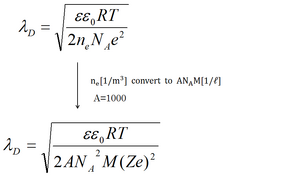

reference: Debye length

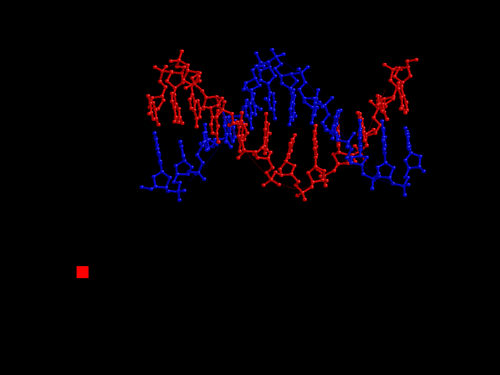

Following GIF animation shows the scheme of a point-charge model and potential calculations.
(It takes about 7 seconds to watch one cycle of the GIF animation)



Electric potential was calculated by using C language.
Under our conditions, the target DNA has 25 electric beads.
All calculation were performed under these condition: Temperature 298[K], Na+ 50mM.

Electric potential from the top of view of the GATE

The following figure shows electric potentials between the target DNA and the GATE from the top of view of the GATE.
The electric potentials were standardized by thermal energy, KBT (KB; Boltzmann constant).
Potential energies were shown by a heat map.

Electric potential from the top of view of the GATE

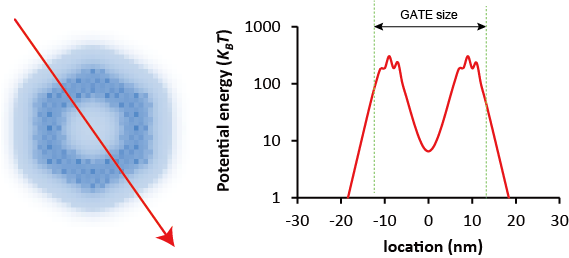

Potential energy along axis indicated by the arrows are shown as the following figure.
Together, electric potential is too high for the target DNA to enter inside the GATE.

Electric potential from the top of view of the GATE along an axis

Electric potential at the center of hole in the GATE

The difficulty to go through inside hole of the GATE was also indicated by following figures.

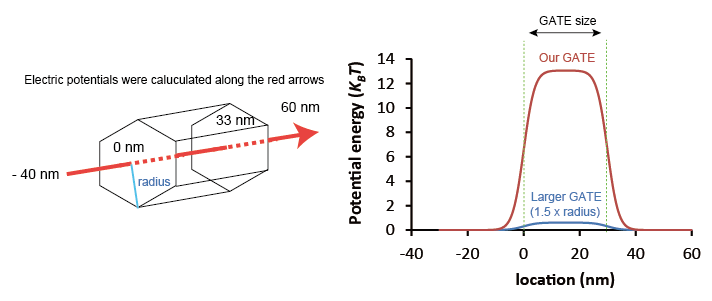

The next figures shows electric potential at the center of hole in the GATE.
Potentials were calculated along the axis indicated by the red arrow.
Blue lines shows electric potential in the case of 1.5 fold radius of the GATE.

Electric potential at the center of hole in the GATE

By the figure, we concluded
i ) Our designed size is suitable size for the GATE function
ii) Enlarging radius of the GATE decreases electric repulsion effect

Hybridization energy of Porters overcomes electric potential of the GATE

We expected the hybridization energy of the Porters overcomes the inhibition of entrance of the GATE by electric repulsion.
The Gibbs energies of hybridization was calculated by neighbor-joining methods.

The result of Gibbs energy of the fixed Porter were defined as the maximum length of each form of Porter. For examples, Porter 1 has three forms: Stretched form, 1 loop form, and 2 loop form. In this Porter 1 case, we defined Porter 1 has three Gibbs energy according to the hybridization state. Since the maximum lengths of each form were different, the minimum energy of possible length was selected.
Gibbs energies were calculated at the center of hole in the GATE.

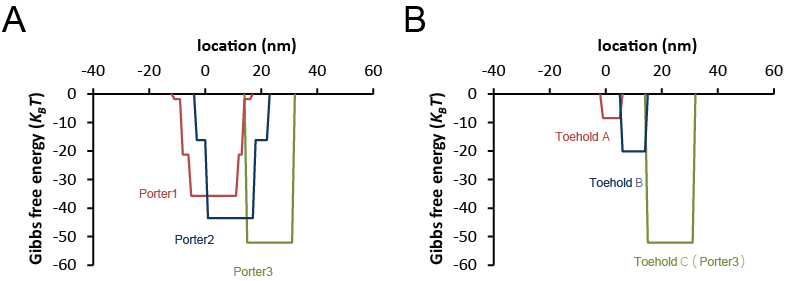

The following figure shows the calculated energy of Porters and Toehold DNA used as controls in our project.

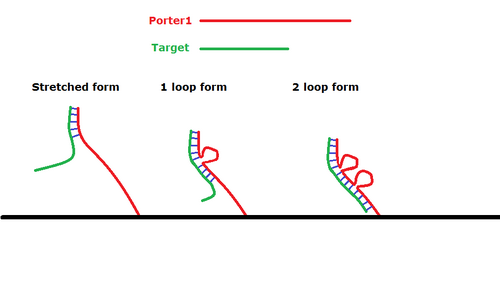

Three different form

Gibbs energies by the Porters in the GATE

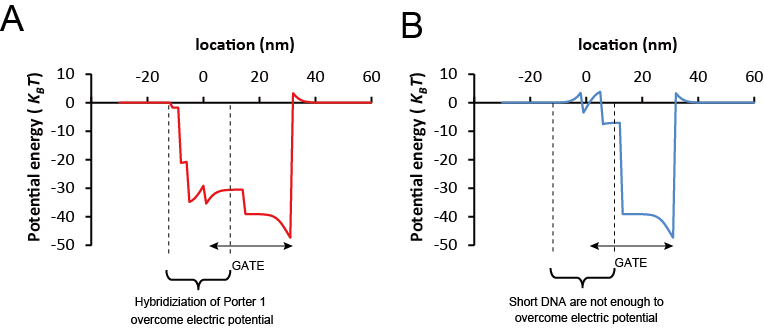

The Gibbs energies by the Porters shown above were summed with electric potential of the GATE.
The summation of energies were calculated at the center of hole in the GATE.
The result was shown in the next figure.

Electric potential from the top of view of the GATE

The results of calculation indicate that the outside Porter can catch the target DNA, and inner Porter can pull in the GATE step by step. On the other hand, short DNA like the toehold DNA we called n this study cannot catch the target DNA.

MD Simulation

To further strengthen feasibility of our design, we examined the capturing mechanism and the effectiveness of our structure “CELL GATE" by molecular dynamics (MD) simulation.

DNA Model

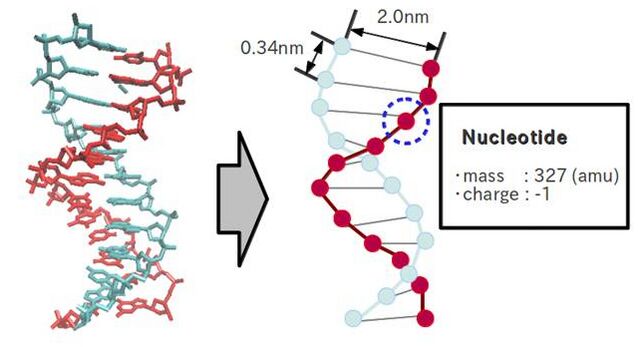

Format DNA rasen.jpg

For simplicity, a course-grained DNA model was used in our simulation. One DNA nucleotide was represented by one bead in the model and each bead can be hybridized with a complementary bead.

The potential energy of the system includes 5 distinct contributions.

Format suusiki1.jpg

The first three terms are intramolecular interactions, bonds, bond angles, and dihedral angles. These terms are important for maintaining structure. In order to express the “tether like structure”, only bond interactions are considered in our DNA model.

And the latter two terms are non-bonded interactions. Coulomb interactions are taken into account using the Debye-Huckel approximation which enables to internalize counter-ions contribution.

Parameters of these potentials were fit to the reference literature ; Thomas A. Knotts et al. A coarse grain model of DNA .

The force on bead i is given by a Langevin equation

Format suusiki2.jpg

The first term donates a conservative force derived from the potential Vtot and the second is a viscosity dependent friction.

The third term is a white Gaussian noise and effects of collision with solvent molecules which causes brownian motion are internalized in this term.

Langevin equation is integrated using a Velocity-Verlet method.

Verification of the Coarse-grained model: Toehold displacement of dsDNA

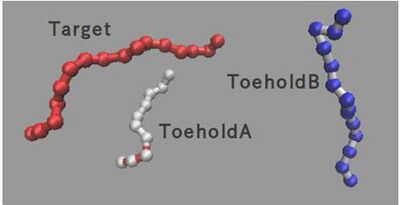

Format toea toeb.jpg

In order to test the model, here we carried out a simulation of Toehold displacement between two strands.

Toehold strands are modeled according to designs of the experiment section.

Length of strands and simulation condition were as follows:

Target strand / Toehold A / Toehold B : 16nt / 9nt / 13nt
Temperature : 300K
Time-step / simulation length : 0.01ps / 100ns
Ion concentration : 50mM Na+

<html><div style="clear:both;"></div></html>


EmbedVideo received the bad id "FGpemnMLUMk&border=1&color1=0x6699&color2=0x54abd6" for the service "youtube".

<html><div style="clear:both;"></div></html>

Movie1 : MD simulation of toehold strand displacement

<html><div style="clear:both;"></div></html>

Movie 1 shows the trajectory of each strand from the simulation. The target strand moves from Toehold A strand to Toehold B strand which are fixed on the field. This result agrees with the energy gradient. The result supported our coarse-grained DNA model is feasible.

Comparison of capture ability

One of constructional features of our structure ”CELL-GATE”is the use of a novel strand displacement method, called porter system.

By comparing our porter strand to toehold strand, the most popular method for strand displacement, we looked at the effectiveness of our structure in terms of it's strand capturing ability.

Model and Method

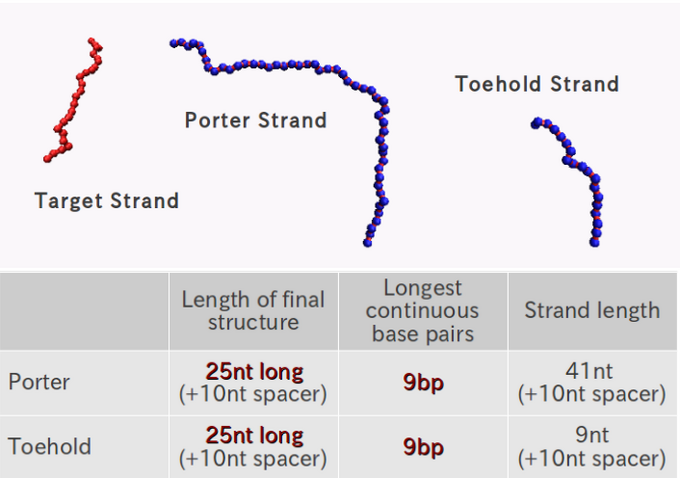

According to the design of the experiment section, we modeled the porter strand and the toehold strand as shown below.

Format selector.jpg

<html><div style="clear:both;"></div></html>

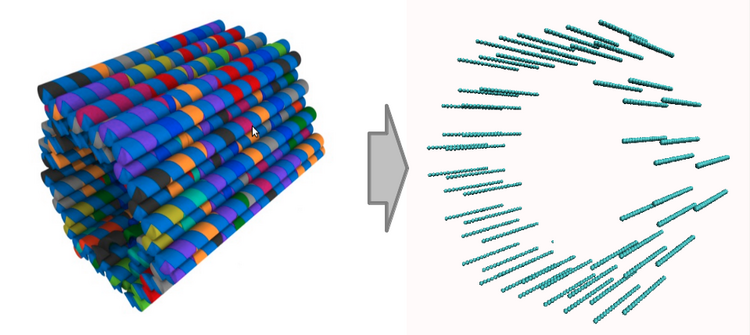

Hex-cylinder is represented as the assembly of fixed electrically-charged mass points.

Format Hexagon.jpg

<html><div style="clear:both;"></div></html>

Simulation was carried out at the following condition:

Temperature : 300K
Ion concentration : Na+ 50mM
Box size : 20nm×20nm×20nm (periodic boundary condition)
Time-step / simulation length : 0.01ps / 10ns

Results and Conclusion

EmbedVideo received the bad id "NXo4cYKkrF0&border=1&color1=0x6699&color2=0x54abd6" for the service "youtube".

<html><div style="clear:both;"></div></html>

EmbedVideo received the bad id "qidZS1pI0lc&border=1&color1=0x6699&color2=0x54abd6" for the service "youtube".

<html><div style="clear:both;"></div></html>

Movie2 : MD simulation of porter strand

Movie3 : MD simulation of toehold strand

<html><div style="clear:both;"></div></html>

Movie2 and 3 shows the result of each simulation, porter-target and toehold-target.

We note that this simulation was carried out under a periodic boundary condition, where the size of the simulation box is 20nm×20nm×20nm. Then, the distance between the target strand and the Hex-cylinder is maintained virtually constant.

One of the advantages of the porter strand is shrinking ability. The porter strand hybridizes to the target making a loop which makes it possible to extend the strand length without changing the final structure's length.

Results obtained from this simulation show that the porter strand can catch the target strand exists outside of the Hex-cylinder and hybridize completely while the toehold strand never hybridize to the target strand in simulation time.

We run additional 5 simulations for each capturing mechanism under the same conditions (NOTE: random seeds were different) and very similar results were obtained. Thus, the simulation results are very feasible under our model.

By considering results of electrostatic potential calculation around the hex-cylinder and MD simulation, it is clear that the electrostatic field prevents the entrance of DNA strands into the Hex-cylinder and the porter strand helps it to get into the cylinder.

Therefore, we concluded that our novel porter strand provides a high capture ability to our system “CELL-GATE”.


1. Thomas A. Knotts et al. A coarse grain model of DNA , J.Chem.Phys 126,084901(2007)

2. Carsten Svaneborg et al. DNA Self-Assembly and Computation Studied with a Coarse-Grained Dynamic Bonded Model, DNA 18,LNCS 7433, pp.123-134, (2012)

3. Xhuysn Guo & D.Thirumalai, Kinetics of Protein Folding: Nucleation Mechanism, Time Scales, and Pathways, Biopolymars, Vol.36, 83-102 (1995)

4. GROMACS manual ( )

5. Cafemol manual ( )
